![Parallel and Perpendicular Lines Parallel and Perpendicular Lines](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-1.jpg)
Parallel and Perpendicular Lines
![Parallel Lines Two lines with the same slope are said to be parallel Parallel Lines • Two lines with the same slope are said to be parallel](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-2.jpg)
Parallel Lines • Two lines with the same slope are said to be parallel lines. If you graph them they will never intersect. • We can decide algebraically if two lines are parallel by finding the slope of each line and seeing if the slopes are equal to each other. • We can find the equation of a line parallel to a given line and going through a given point by: a. ) first finding the slope m of the given line; b. ) finding the equation of the line through the given point with slope m.
![Testing if Lines are Parallel Are the lines parallel Find the slope of The Testing if Lines are Parallel Are the lines parallel? Find the slope of The](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-3.jpg)
Testing if Lines are Parallel Are the lines parallel? Find the slope of The slope m = -4 Since the slopes are equal the lines are parallel.
![Graphs of Parallel Lines The red line is the graph of y Graphs of Parallel Lines The red line is the graph of y = –](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-4.jpg)
Graphs of Parallel Lines The red line is the graph of y = – 4 x – 3 and the blue line is the graph of y = – 4 x – 7
![Practice Testing if Lines are Parallel Are the lines parallel Since the slopes are Practice Testing if Lines are Parallel Are the lines parallel? Since the slopes are](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-5.jpg)
Practice Testing if Lines are Parallel Are the lines parallel? Since the slopes are different the lines are not parallel. Are the lines parallel? Since the slopes are equal the lines are parallel.
![Constructing Parallel Lines Find the equation of a line going through the point 3 Constructing Parallel Lines Find the equation of a line going through the point (3,](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-6.jpg)
Constructing Parallel Lines Find the equation of a line going through the point (3, -5) and parallel to Using the point-slope equation where the slope m = 2/ and 3 the point is (3, -5) we get

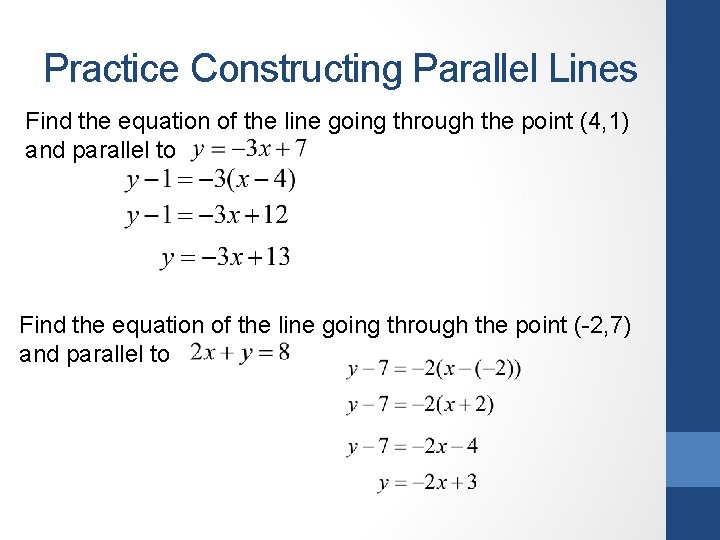

![Practice Constructing Parallel Lines Find the equation of the line going through the point Practice Constructing Parallel Lines Find the equation of the line going through the point](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-7.jpg)
Practice Constructing Parallel Lines Find the equation of the line going through the point (4, 1) and parallel to Find the equation of the line going through the point (-2, 7) and parallel to

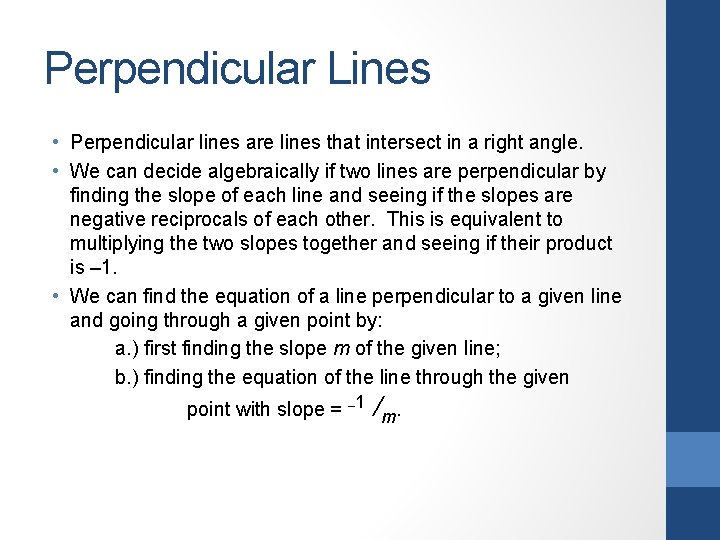

![Perpendicular Lines Perpendicular lines are lines that intersect in a right angle Perpendicular Lines • Perpendicular lines are lines that intersect in a right angle. •](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-8.jpg)
Perpendicular Lines • Perpendicular lines are lines that intersect in a right angle. • We can decide algebraically if two lines are perpendicular by finding the slope of each line and seeing if the slopes are negative reciprocals of each other. This is equivalent to multiplying the two slopes together and seeing if their product is – 1. • We can find the equation of a line perpendicular to a given line and going through a given point by: a. ) first finding the slope m of the given line; b. ) finding the equation of the line through the given point with slope = – 1 /m.
![Testing if Lines Are Perpendicular Since the slopes are negative reciprocals of each other Testing if Lines Are Perpendicular Since the slopes are negative reciprocals of each other](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-9.jpg)
Testing if Lines Are Perpendicular Since the slopes are negative reciprocals of each other the lines are perpendicular.
![Graphs of Perpendicular Lines The red line is the graph of y Graphs of Perpendicular Lines The red line is the graph of y = –](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-10.jpg)
Graphs of Perpendicular Lines The red line is the graph of y = – 2 x + 5 and the blue line is the graph of y = – 1/2 x +4
![Practice Testing if Lines Are Perpendicular Since the slopes are not negative reciprocals of Practice Testing if Lines Are Perpendicular Since the slopes are not negative reciprocals of](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-11.jpg)
Practice Testing if Lines Are Perpendicular Since the slopes are not negative reciprocals of each other (their product is not 1) the lines are not perpendicular Since the slopes are negative reciprocals of each other (their product is -1) the lines are perpendicular.
![Constructing Perpendicular Lines Find the equation of a line going through the point 3 Constructing Perpendicular Lines Find the equation of a line going through the point (3,](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-12.jpg)
Constructing Perpendicular Lines Find the equation of a line going through the point (3, -5) and perpendicular to The slope of the perpendicular line will be m = 3/2 Using the point-slope equation where the slope m = 3/ and 2 the point is (3, -5) we get

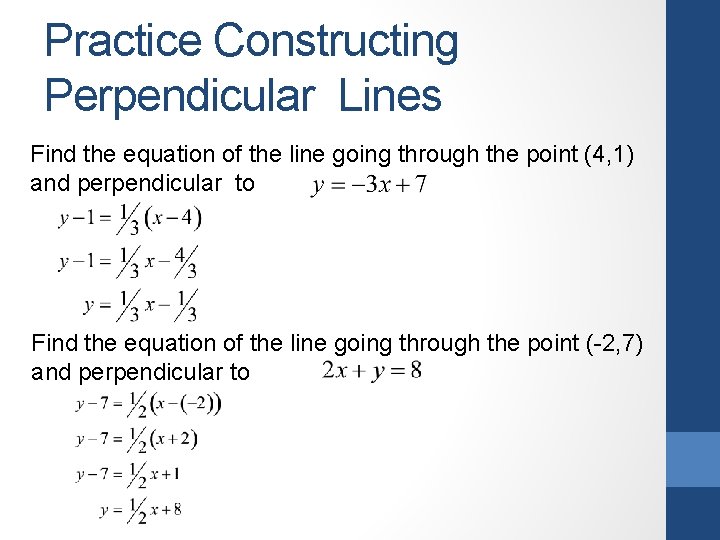

![Practice Constructing Perpendicular Lines Find the equation of the line going through the point Practice Constructing Perpendicular Lines Find the equation of the line going through the point](https://slidetodoc.com/presentation_image_h2/736f5acf6abeb0d1036ff169774046dd/image-13.jpg)
Practice Constructing Perpendicular Lines Find the equation of the line going through the point (4, 1) and perpendicular to Find the equation of the line going through the point (-2, 7) and perpendicular to
