LDCMLDSM LDCM LAN Desk Client Manager LDSM LAN

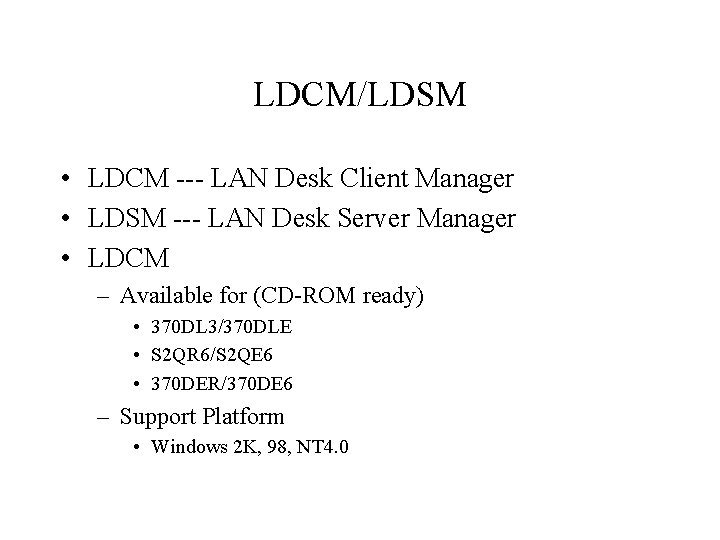

LDCM/LDSM • LDCM --- LAN Desk Client Manager • LDSM --- LAN Desk Server Manager • LDCM – Available for (CD-ROM ready) • 370 DL 3/370 DLE • S 2 QR 6/S 2 QE 6 • 370 DER/370 DE 6 – Support Platform • Windows 2 K, 98, NT 4. 0

LDCM --- Example

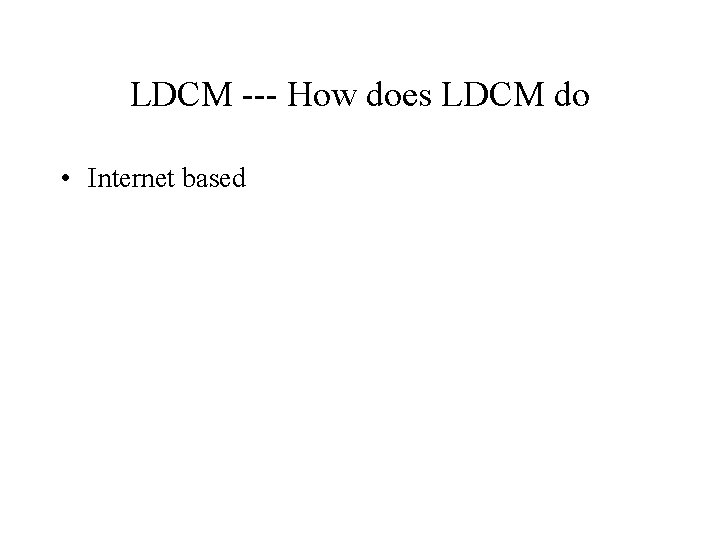

LDCM --- How does LDCM do • Internet based

LDCM --- What can LDCM do? • Health monitoring – Temperature • CPU • Environment – Voltage • Power supply • CPU voltage – Fan speed • CPU Fan • Chassis Fan

LDCM --- What can LDCM do? – Drive • Space available – Memory

LDCM --- What can LDCM do? • Critical condition alert (Notification) Normal Warning

LDCM --- Administrator

LDCM --- Administrator • Monitor client health information • Remote boot/shutdown/reset client LDSM • Remote control --- something like Pc. Anywhere – Redirect server’s mouse, keyboard, and monitor • AMS 2 --- Alert Management System 2 – Sending Alert whenever an event occurs

LDSM • Available for NT, 2 K, Net. Ware, Red. Hat, Linux • Remote control --- IRMC (Intel Remote Management Card) – – An Intel 386 processor with 6 MB RAM An integrated 10 M network adapter An external serial port to connect to an external modem An external DC adapter port for use with a 12 -volt external power adapter – An optional rechargeable battery pack to power the IRMC if all other power sources fails.

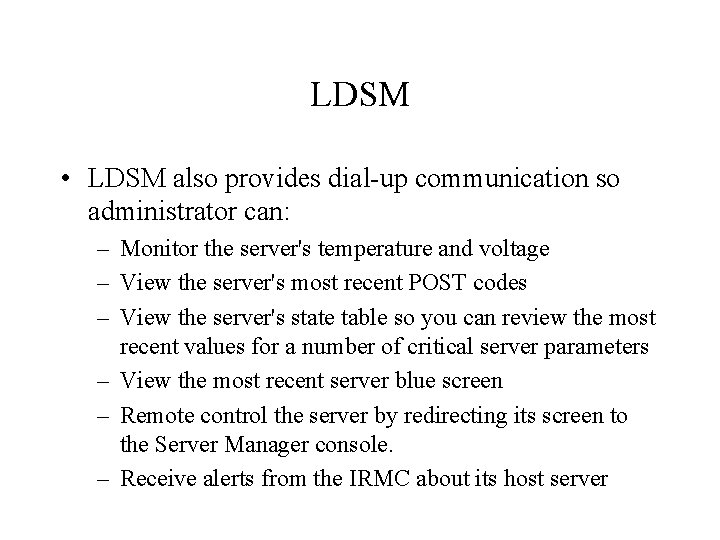

LDSM • LDSM also provides dial-up communication so administrator can: – Monitor the server's temperature and voltage – View the server's most recent POST codes – View the server's state table so you can review the most recent values for a number of critical server parameters – View the most recent server blue screen – Remote control the server by redirecting its screen to the Server Manager console. – Receive alerts from the IRMC about its host server

LDSM • IRMC is optional to LDSM • LDSM supports two different versions of the IRMC – IRMC 1 --- an ISA-based card shipped with LDSM 3. 0 or older – IRMC 2 --- a PCI-based card shipped with LDSM 6. x.

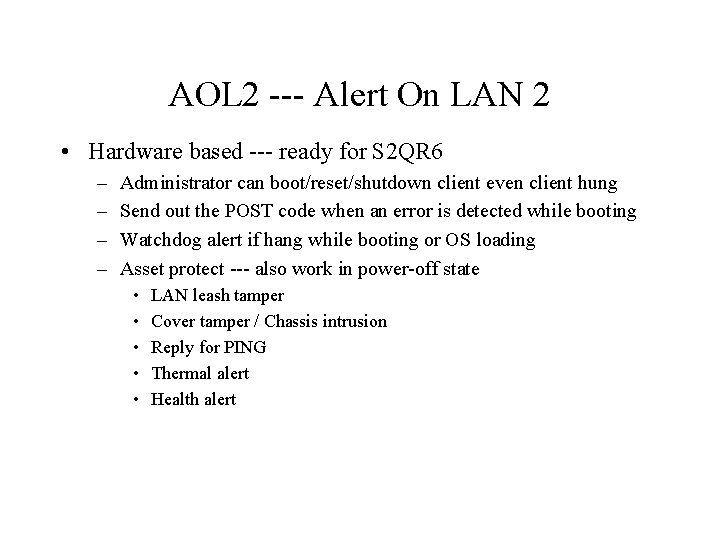

AOL 2 --- Alert On LAN 2 • Hardware based --- ready for S 2 QR 6 – – Administrator can boot/reset/shutdown client even client hung Send out the POST code when an error is detected while booting Watchdog alert if hang while booting or OS loading Asset protect --- also work in power-off state • • • LAN leash tamper Cover tamper / Chassis intrusion Reply for PING Thermal alert Health alert
