Layers of the Earth Layers of the Earth

Layers of the Earth

Layers of the Earth • Compositional Layers – Divided by what they are made out of – There are 3 Compositional Layers • Structural Layers – Divided by how they “work” – There are 5 Structural Layers

Compositional Layers (made out of) • Crust – Oceanic Crust • Thinner • Younger (180 million or less) • More dense – Continental Crust • Thicker • Older (up to 4 billion years old) • Less dense

Compositional Layers • Mantle – Under crust – More dense than crust – 2/3 of Earth’s total mass • Core – Central part of Earth – Made of Iron & Nickel

Structural Layers (work) • Lithosphere – Crust + Upper Mantle – Cool, Rigid – Makes up plates (tectonic) • Asthenosphere – Plastic (like clay) – Contains magma – Has convection currents which move the plates

Structural Layers • Mesosphere – “Middle” sphere – Solid mantle rock

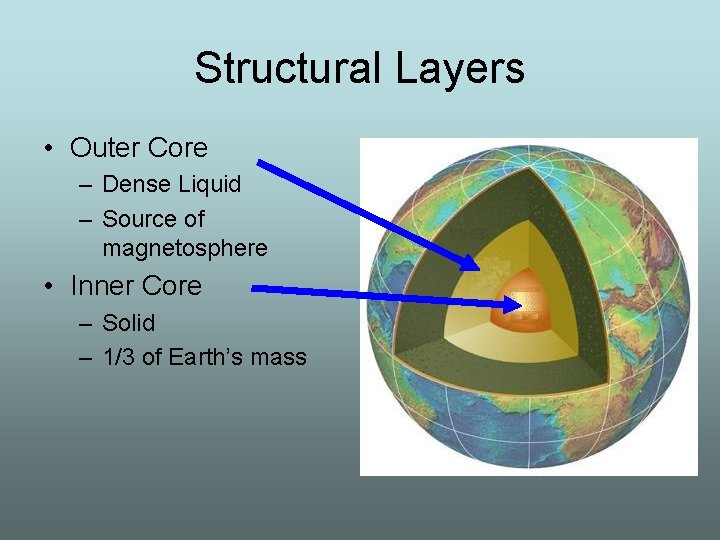

Structural Layers • Outer Core – Dense Liquid – Source of magnetosphere • Inner Core – Solid – 1/3 of Earth’s mass

How do scientists “know” that the earth has these layers?

How about drilling? • Continental Crust: – The Kola Superdeep Borehole on the Kola peninsula of Russia reached 12. 262 km (~7. 62 mi) and is the deepest penetration of the Earth's solid surface. – The dig began in 1970 and continued for 19 years, stopping only when the 180°C (356°F) temperature made further digging impossible • Oceanic Crust: – We have drilled down 1. 7 km (~1 mi) into the seafloor. • We have penetrated only the upper 25% of either crust.

Why can’t we dig deeper? • HEAT: At 5 km deep, the temperature reaches 70 degrees Celsius (158 F) and therefore massive cooling equipment is needed to allow workers to survive at such depths. Remember the deepest hole reached 180°C (356°F). • ROCK WEIGHT: At 3. 5 km the pressure of rocks above you is 9, 500 tons per meter squared. When rock is removed through mining this pressure triples in the surrounding rock. This effect (coupled with the cooling of the rock) causes a phenomenon known as rock bursts, which accounts for many of the 250 deaths in South African mines every year. • PRESSURE OF MAGMA: Once you break through the crust, you would release pressurized magma– instant volcano – destroying equipment, killing workers, etc.

So – what “tool” do scientists use to learn about the layers…

Scientists use data from earthquakes – using seismometers – to learn about what is below us.

Seismograms
