KOREA NO 1 HANSE SOLUTIONS DIGITAL DOOR LOCK

KOREA NO. 1 HANSE SOLUTIONS DIGITAL DOOR LOCK 2018 CATALOG

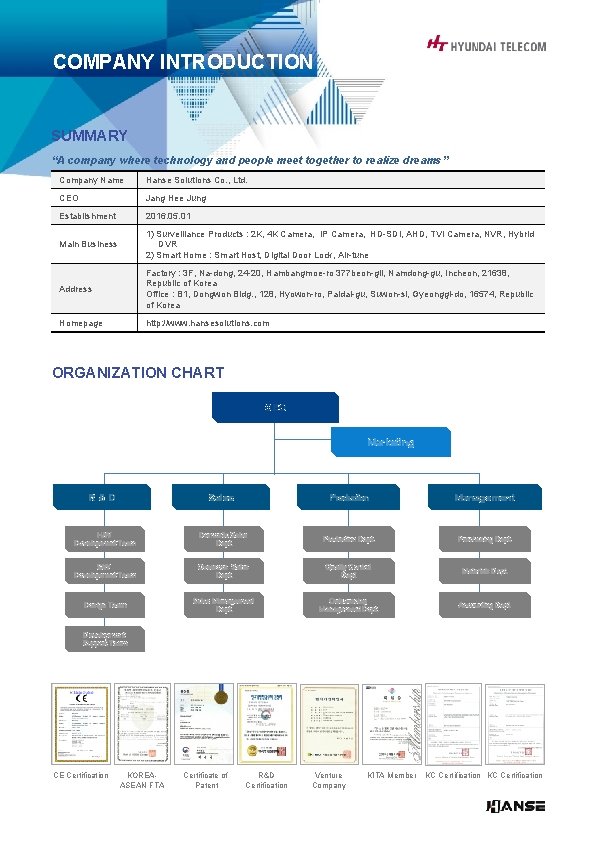

COMPANY INTRODUCTION SUMMARY “A company where technology and people meet together to realize dreams” Company Name Hanse Solutions Co. , Ltd. CEO Jang Hee Jung Establishment 2016. 05. 01 Main Business 1) Surveillance Products : 2 K, 4 K Camera, IP Camera, HD-SDI, AHD, TVI Camera, NVR, Hybrid DVR 2) Smart Home : Smart Host, Digital Door Lock, Air-tune Address Factory : 3 F, Na-dong, 24 -20, Hambangmoe-ro 377 beon-gil, Namdong-gu, Incheon, 21638, Republic of Korea Office : B 1, Dongwon Bldg. , 128, Hyowon-ro, Paldal-gu, Suwon-si, Gyeonggi-do, 16574, Republic of Korea Homepage http: //www. hansesolutions. com ORGANIZATION CHART CEO Marketing R&D Sales Production Management H/W Development Team Domestic Sales Dept. Production Dept. Purchasing Dept. S/W Development Team Overseas Sales Dept. Quality Control Dept. Materials Dept. Design Team Sales Management Dept. Outsourcing Management Dept. Accounting Dept. Development Support Team CE Certification KOREAASEAN FTA Certificate of Patent R&D Certification Venture Company KITA Member KC Certification

HDL-7390 SK / HDL-7300 SK SMART PUSH FULL DOOR LOCK New construction Smart premium type door lock which controls the access to household front door by various methods. WAVE DESIGN Various Entrance Curve design minimizes the bump accident, adds luxurious feeling. The access through smartphone and Bluetooth interlocking and various access method through finger print recognition provides easy and safe access service. PUSH PULL METAL DESIGN Push-pull handle type allows convenient door opening in various emergency situation External metal material adds luxuriousness of design and durability. HDL-7300 SK HDL-7390 SK Specification Battery/Bluetooth/Away mode Smart Key Pad(RF Card) It realizes the smart keys to open the door. You can register your smart key through the pad or unlock the door by assessing a registered smart key. Keypad You can enter the numbers through the keypad when registering or changing passwords. You can open the door to enter the registered password using the keypad. Emergency power supplier You can power the door lock by accessing a square 9 V battery when the internal battery is dead. Start Button Mechanical Key Hole 367 mm Fingerprinting Scanner[HDL-7390 SK] It recognizes your fingerprint to open the door. You can register your fingerprints or unlock the door by accessing the registered fingerprints. Handle 81 mm 69 mm

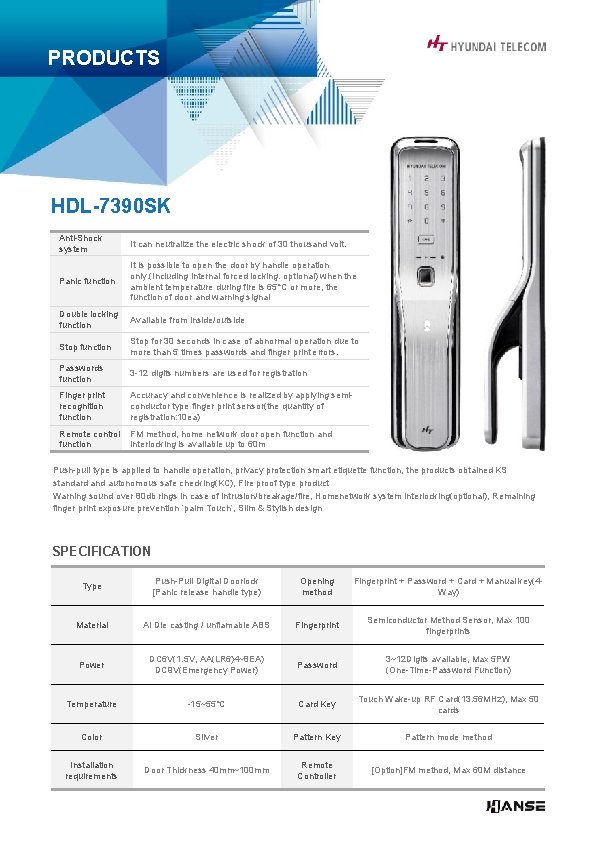

PRODUCTS HDL-7390 SK Anti-Shock system It can neutralize the electric shock of 30 thousand volt. Panic function It is possible to open the door by handle operation only. (Including internal forced locking. optional) when the ambient temperature during fire is 65°C or more, the function of door and warning signal Double locking function Available from inside/outside Stop function Stop for 30 seconds in case of abnormal operation due to more than 5 times passwords and finger print errors. Passwords function 3 -12 digits numbers are used for registration Finger print recognition function Accuracy and convenience is realized by applying semiconductor type finger print sensor(the quantity of registration: 10 ea) Remote control function FM method, home network door open function and interlocking is available up to 60 m Push-pull type is applied to handle operation, privacy protection smart etiquette function, the products obtained KS standard and autonomous safe checking(KC), Fire proof type product Warning sound over 80 db rings in case of intrusion/breakage/fire, Homenetwork system interlocking(optional), Remaining finger print exposure prevention ‘palm Touch’, Slim & Stylish design SPECIFICATION Type Push-Pull Digital Doorlock [Panic release handle type) Opening method Fingerprint + Password + Card + Manual key(4 Way) Material Al Die casting / unflamable ABS Fingerprint Semiconductor Method Sensor, Max 100 fingerprints Power DC 6 V(1. 5 V, AA(LR 6)4~8 EA) DC 9 V(Emergency Power) Password 3~12 Digits available, Max 5 PW (One-Time-Password Function) Temperature -15~55°C Card Key Touch Wake-up RF Card(13. 56 MHz), Max 50 cards Color Silver Pattern Key Pattern mode method Installation requirements Door Thickness 40 mm~100 mm Remote Controller [Option]FM method, Max 60 M distance

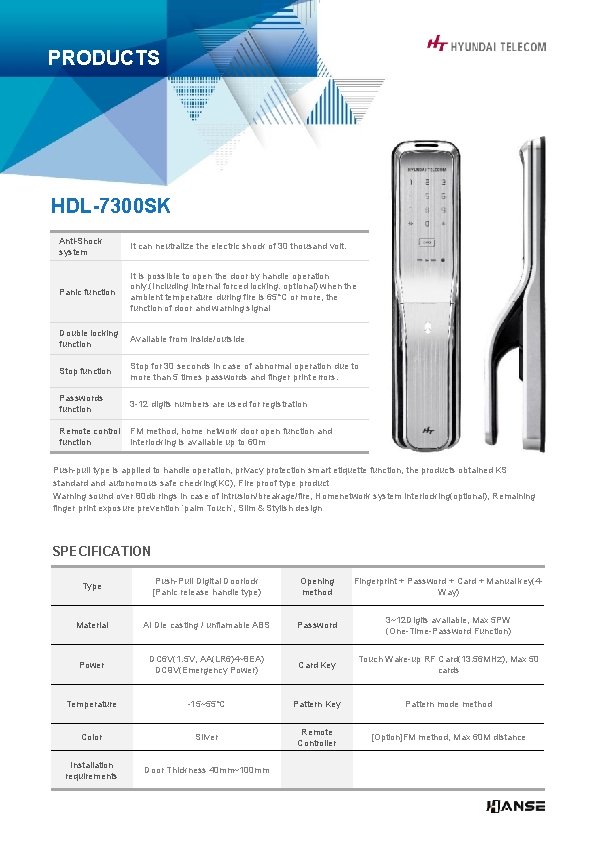

PRODUCTS HDL-7300 SK Anti-Shock system It can neutralize the electric shock of 30 thousand volt. Panic function It is possible to open the door by handle operation only. (Including internal forced locking. optional) when the ambient temperature during fire is 65°C or more, the function of door and warning signal Double locking function Available from inside/outside Stop function Stop for 30 seconds in case of abnormal operation due to more than 5 times passwords and finger print errors. Passwords function 3 -12 digits numbers are used for registration Remote control function FM method, home network door open function and interlocking is available up to 60 m Push-pull type is applied to handle operation, privacy protection smart etiquette function, the products obtained KS standard and autonomous safe checking(KC), Fire proof type product Warning sound over 80 db rings in case of intrusion/breakage/fire, Homenetwork system interlocking(optional), Remaining finger print exposure prevention ‘palm Touch’, Slim & Stylish design SPECIFICATION Type Push-Pull Digital Doorlock [Panic release handle type) Opening method Fingerprint + Password + Card + Manual key(4 Way) Material Al Die casting / unflamable ABS Password 3~12 Digits available, Max 5 PW (One-Time-Password Function) Power DC 6 V(1. 5 V, AA(LR 6)4~8 EA) DC 9 V(Emergency Power) Card Key Touch Wake-up RF Card(13. 56 MHz), Max 50 cards Temperature -15~55°C Pattern Key Pattern mode method Color Silver Remote Controller [Option]FM method, Max 60 M distance Installation requirements Door Thickness 40 mm~100 mm

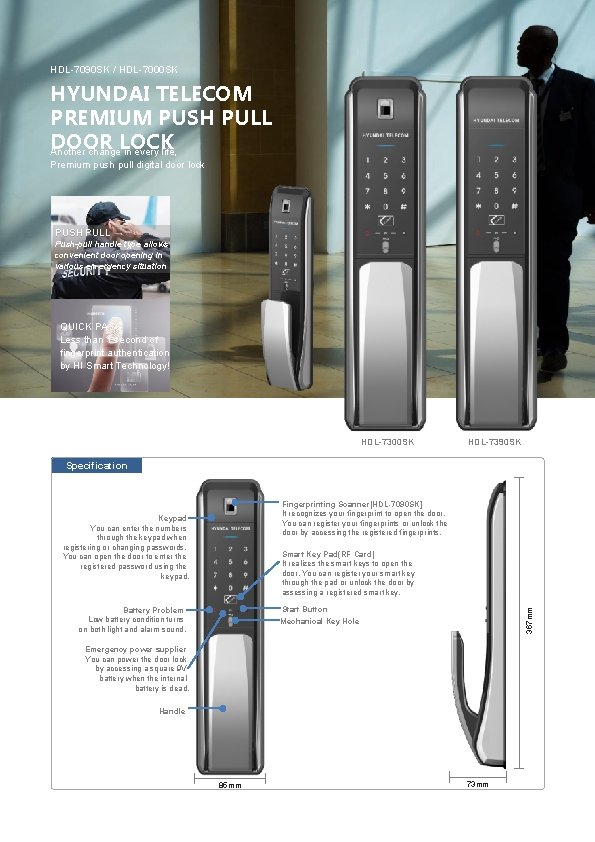

HDL-7090 SK / HDL-7000 SK HYUNDAI TELECOM PREMIUM PUSH PULL DOOR LOCK Another change in every life, Premium push pull digital door lock PUSH PULL Push-pull handle type allows convenient door opening in various emergency situation QUICK PASS Less than 1 second of fingerprint authentication by HI Smart Technology! HDL-7300 SK HDL-7390 SK Specification Fingerprinting Scanner[HDL-7090 SK] It recognizes your fingerprint to open the door. You can register your fingerprints or unlock the door by accessing the registered fingerprints. Keypad You can enter the numbers through the keypad when registering or changing passwords. You can open the door to enter the registered password using the keypad. Smart Key Pad(RF Card) It realizes the smart keys to open the door. You can register your smart key through the pad or unlock the door by assessing a registered smart key. 367 mm Start Button Mechanical Key Hole Battery Problem Low battery condition turns on both light and alarm sound. Emergency power supplier You can power the door lock by accessing a square 9 V battery when the internal battery is dead. Handle 85 mm 73 mm

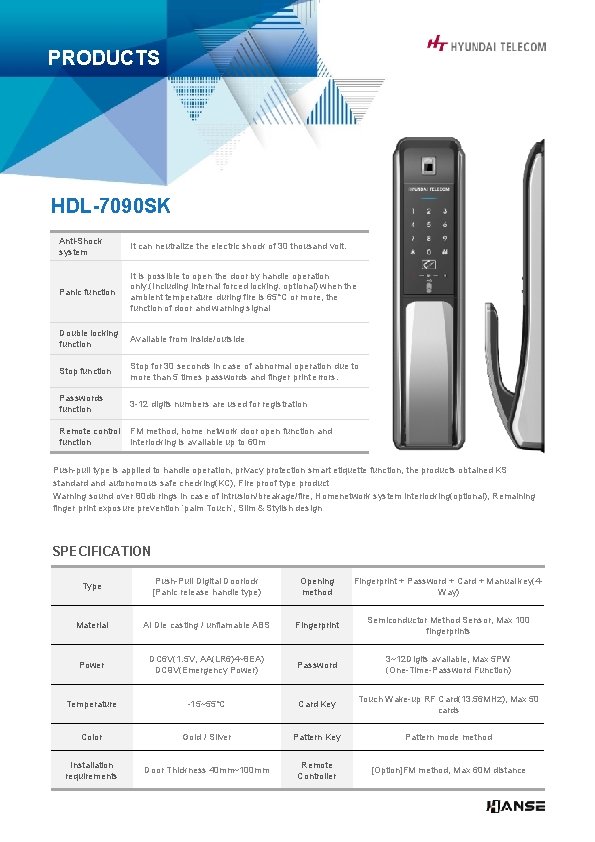

PRODUCTS HDL-7090 SK Anti-Shock system It can neutralize the electric shock of 30 thousand volt. Panic function It is possible to open the door by handle operation only. (Including internal forced locking. optional) when the ambient temperature during fire is 65°C or more, the function of door and warning signal Double locking function Available from inside/outside Stop function Stop for 30 seconds in case of abnormal operation due to more than 5 times passwords and finger print errors. Passwords function 3 -12 digits numbers are used for registration Remote control function FM method, home network door open function and interlocking is available up to 60 m Push-pull type is applied to handle operation, privacy protection smart etiquette function, the products obtained KS standard and autonomous safe checking(KC), Fire proof type product Warning sound over 80 db rings in case of intrusion/breakage/fire, Homenetwork system interlocking(optional), Remaining finger print exposure prevention ‘palm Touch’, Slim & Stylish design SPECIFICATION Type Push-Pull Digital Doorlock [Panic release handle type) Opening method Fingerprint + Password + Card + Manual key(4 Way) Material Al Die casting / unflamable ABS Fingerprint Semiconductor Method Sensor, Max 100 fingerprints Power DC 6 V(1. 5 V, AA(LR 6)4~8 EA) DC 9 V(Emergency Power) Password 3~12 Digits available, Max 5 PW (One-Time-Password Function) Temperature -15~55°C Card Key Touch Wake-up RF Card(13. 56 MHz), Max 50 cards Color Gold / Silver Pattern Key Pattern mode method Installation requirements Door Thickness 40 mm~100 mm Remote Controller [Option]FM method, Max 60 M distance

HANSE SOLUTIONS Co. , Ltd. 42 B-2 L, 24 -20, Hambangmoe-ro 377 beon-gil, Namdong-gu, Incheon, 21638 Korea Tel : +82 -70 -7809 -7109 Fax : +82 -03 -3441 -7109 Email : jessica@hansesolutions. com / sales@hansesolutions. com
