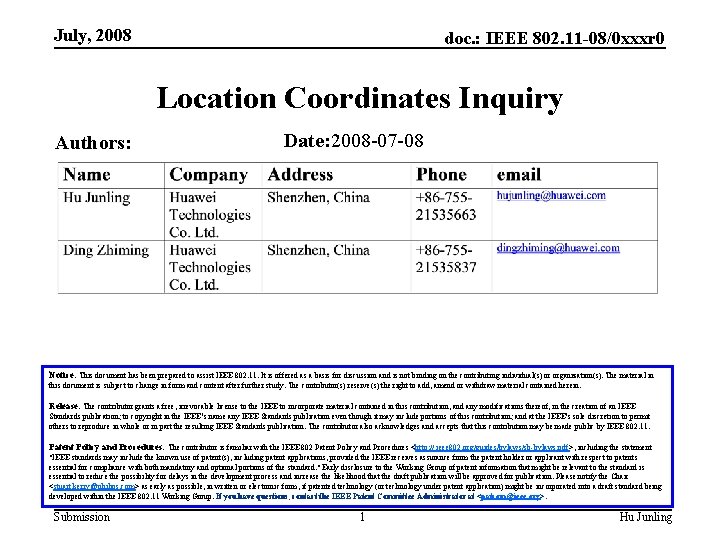

July, 2008 doc. : IEEE 802. 11 -08/0 xxxr 0 Location Coordinates Inquiry Authors: Date: 2008 -07 -08 Notice: This document has been prepared to assist IEEE 802. 11. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor grants a free, irrevocable license to the IEEE to incorporate material contained in this contribution, and any modifications thereof, in the creation of an IEEE Standards publication; to copyright in the IEEE’s name any IEEE Standards publication even though it may include portions of this contribution; and at the IEEE’s sole discretion to permit others to reproduce in whole or in part the resulting IEEE Standards publication. The contributor also acknowledges and accepts that this contribution may be made public by IEEE 802. 11. Patent Policy and Procedures: The contributor is familiar with the IEEE 802 Patent Policy and Procedures <http: // ieee 802. org/guides/bylaws/sb-bylaws. pdf>, including the statement "IEEE standards may include the known use of patent(s), including patent applications, provided the IEEE receives assurance from the patent holder or applicant with respect to patents essential for compliance with both mandatory and optional portions of the standard. " Early disclosure to the Working Group of patent information that might be relevant to the standard is essential to reduce the possibility for delays in the development process and increase the likelihood that the draft publication will be approved for publication. Please notify the Chair <stuart. kerry@philips. com> as early as possible, in written or electronic form, if patented technology (or technology under patent application) might be incorporated into a draft standard being developed within the IEEE 802. 11 Working Group. If you have questions, contact the IEEE Patent Committee Administrator at <patcom@ieee. org>. Submission 1 Hu Junling

July, 2008 doc. : IEEE 802. 11 -08/0 xxxr 0 Abstract This document proposes to add a measurement type of Measurement Request element for a STA requesting location coordinates of itself or remote target. Submission 2 Hu Junling

July, 2008 doc. : IEEE 802. 11 -08/0 xxxr 0 Background (1/2) • In p 802. 11 v draft 3. 0, Location Civic Request is used to request for civic address information and Location Identifier Request is used to request for an indirect reference in URI format which can be retrieved from an external agent. • Two of above Requests belong to Measurement Request as a measurement type. • Corresponding Report types have been defined for Measurement Report also. They are Location Civic Report and Location Identifier Report. Submission 3 Hu Junling

July, 2008 doc. : IEEE 802. 11 -08/0 xxxr 0 Background (2/2) • The Location Civic Report element format is Location Accuracy X-estimate Location Accuracy Y-estimate Location Accuracy Z-estimate Civic Location – The Location Accuracy estimates relative to Civic Location. – The Civic Location is a readable text for geographical address. • The Location Identifier Report element format is Public Identifier URI – The Public Identifier URI confirms the validity of the location estimate to an external agent when a STA forwards a location estimate to that agent. Submission 4 Hu Junling

July, 2008 doc. : IEEE 802. 11 -08/0 xxxr 0 Problem • For a Wi. Fi handset with a function of navigation, what kind of data will it need for navigation function? • I think it will need coordinates to show location on the map to user. • Of cause the navigation equipment can get a civic location from the infrastructure and show it to user, but also it can get a civic location from the map in itself after it got a coordinate values. • The civic location information of the map in the navigation equipment may be not so rich so as to that the equipment can not indicate the location on the map according to received civic location. • Although the Wi. Fi location service is not a appropriate technology for navigation, but it is beneficial to the navigation technology based on satellite. The satellite signal can not be received in building, but a Wi. Fi network can be there. Submission 5 Hu Junling

July, 2008 doc. : IEEE 802. 11 -08/0 xxxr 0 Proposition • A new measurement type of Location Coordinates Request/Report is proposed to be added to Measurement Request/Report. Following is a sample for Measurement Request. Table 7 -29—Measurement Type definitions for measurement requests Name Measurement Type … Measurement Use … Location Civic request 11 Radio Resource Measurement Location Identifier request 12 Radio Resource Measurement Location Coordinates request 13 Radio Resource Measurement Reserved 14 -254 … Submission 6 Hu Junling

July, 2008 doc. : IEEE 802. 11 -08/0 xxxr 0 Fields of Location Coordinates Request/Report • The field format of Location Coordinates Request is same as Location Civic Request which is shown as follow. Location Subject – • Location Service Interval Units Location Service Interval The Location Subject indicates that a STA request local or remote location. The field format of Location Coordinates Report is similar as Location Civic Report which is shown as follow. Location Accuracy X-estimate – – – Location Accuracy Y-estimate Location Accuracy Z-estimate Longitude Latitude Altitude The definition of Location Accuracy parameters are same as Location Civic Report. Longitude and latitude are signed long integer in 4 octets length with a unit of 0. 0001 degree. The sign indicates the west / east of longitude or north / south of latitude. Altitude is signed short integer in 2 octets length with a unit of 1 meter. Or, the altitude is 4 octets length with the unit 0. 1 meter. The sign indicate higher or lower than see level. Submission 7 Hu Junling
