Intelligent Integration GE MAC 600 ECG INTEGRATION MAC 600 SD Card – TPP Systm. One

• The NHS number is entered in to the MAC 600 • The ECGs are recorded • Multiple ECGs for one or more patients can be recorded and stored in the MAC 600

• The memory card is removed from the MAC 600 and inserted in the Card Reader (supplied) connected to the PC

• With the clinical system open and the patient selected, the I 3 integration software is started.

• MAC PDF filer is selected from the product selection screen.

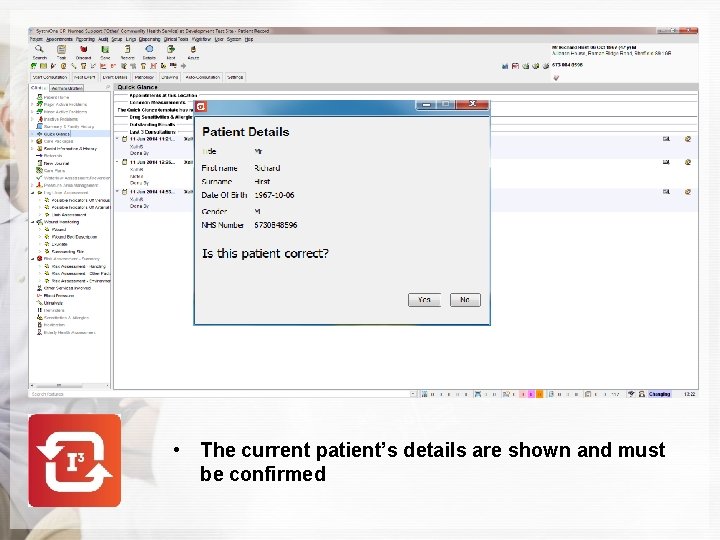

• The current patient’s details are shown and must be confirmed

• The list of available ECG reports is shown • I 3 will automatically check the patient details match the current Systm. One patient, based on the NHS number entered

• If there is a mismatch in details, the ECG report can be manually assigned to the current patient

• The ECG report can be previewed by clicking the View button

• A comment can also be added to any individual report that will be shown alongside the clinical system attachment

• When ready, click the Send button • All reports selected for Send will be filed back to the clinical system in one go

• The attachment is filed along with any user entered comments • A Read code is also optionally filed

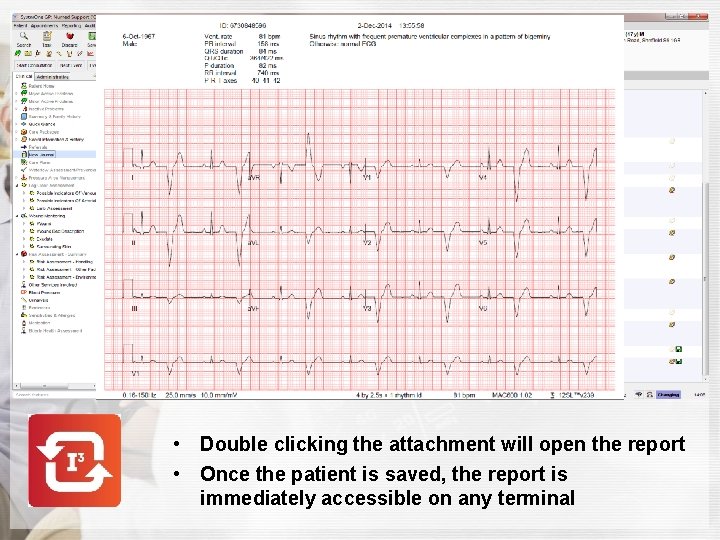

• Double clicking the attachment will open the report • Once the patient is saved, the report is immediately accessible on any terminal
