H Vo QAs Outlet Zone Inlet Zone Sedimentation

  • Slides: 15
Download presentation

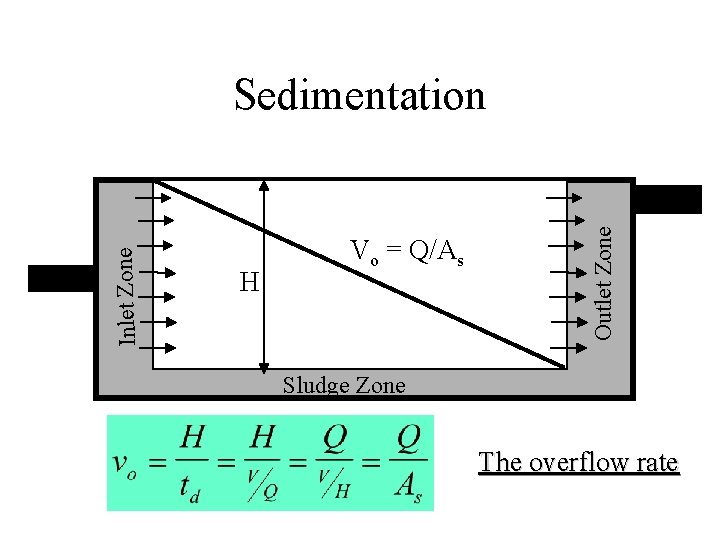

H Vo = Q/As Outlet Zone Inlet Zone Sedimentation Sludge Zone The overflow rate

H Vo = Q/As Outlet Zone Inlet Zone Sedimentation Sludge Zone The overflow rate

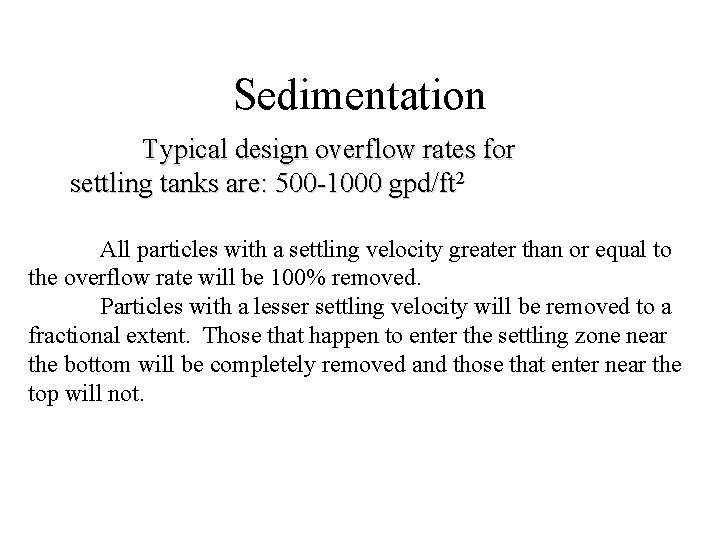

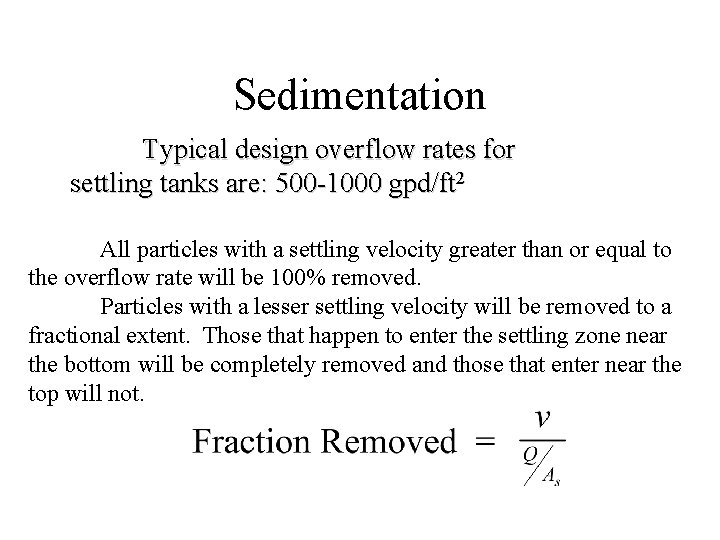

Sedimentation Typical design overflow rates for settling tanks are: 500 -1000 gpd/ft 2 All

Sedimentation Typical design overflow rates for settling tanks are: 500 -1000 gpd/ft 2 All particles with a settling velocity greater than or equal to the overflow rate will be 100% removed. Particles with a lesser settling velocity will be removed to a fractional extent. Those that happen to enter the settling zone near the bottom will be completely removed and those that enter near the top will not.

Sedimentation Typical design overflow rates for settling tanks are: 500 -1000 gpd/ft 2 All

Sedimentation Typical design overflow rates for settling tanks are: 500 -1000 gpd/ft 2 All particles with a settling velocity greater than or equal to the overflow rate will be 100% removed. Particles with a lesser settling velocity will be removed to a fractional extent. Those that happen to enter the settling zone near the bottom will be completely removed and those that enter near the top will not.

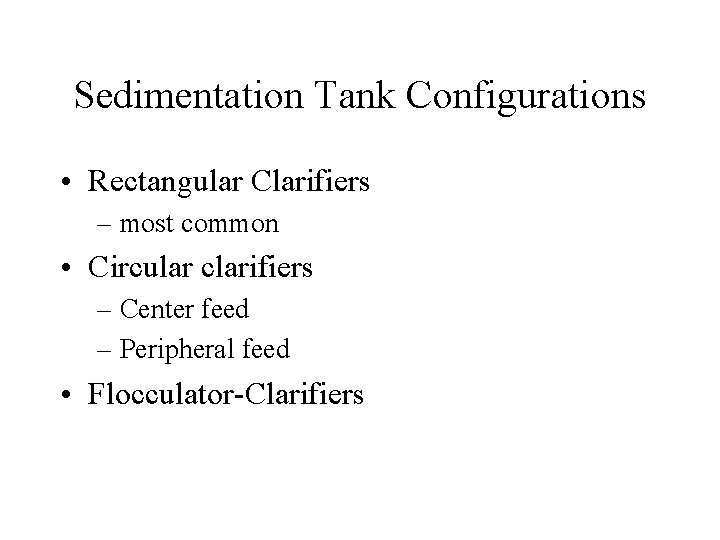

Sedimentation Tank Configurations • Rectangular Clarifiers – most common • Circular clarifiers – Center

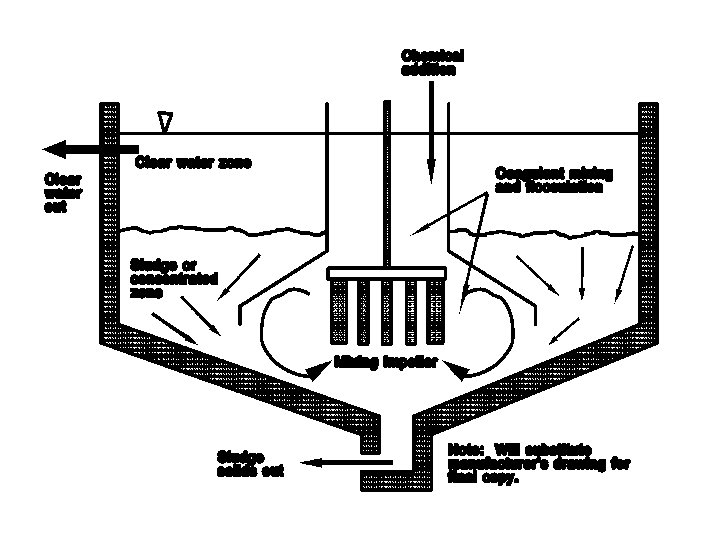

Sedimentation Tank Configurations • Rectangular Clarifiers – most common • Circular clarifiers – Center feed – Peripheral feed • Flocculator-Clarifiers

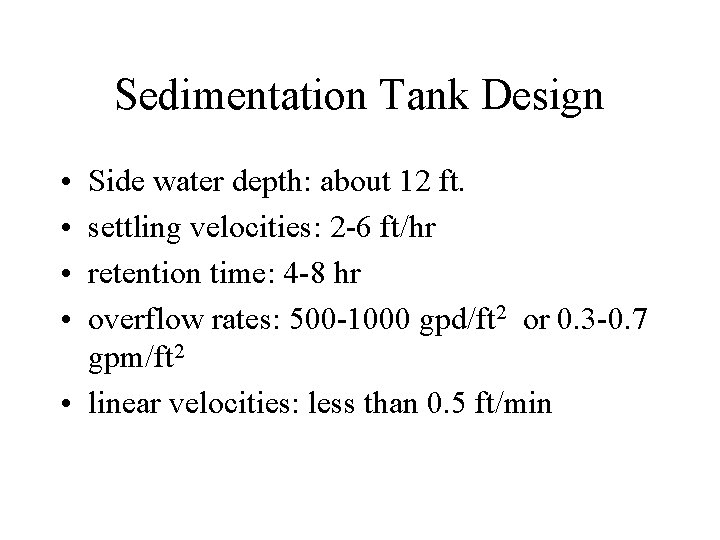

Sedimentation Tank Design • • Side water depth: about 12 ft. settling velocities: 2

Sedimentation Tank Design • • Side water depth: about 12 ft. settling velocities: 2 -6 ft/hr retention time: 4 -8 hr overflow rates: 500 -1000 gpd/ft 2 or 0. 3 -0. 7 gpm/ft 2 • linear velocities: less than 0. 5 ft/min

Typical rectangular clarifier

Typical rectangular clarifier

Sedimentation Tank Design • • Side water depth: about 12 ft. settling velocities: 2

Sedimentation Tank Design • • Side water depth: about 12 ft. settling velocities: 2 -6 ft/hr retention time: 4 -8 hr overflow rates: 500 -1000 gpd/ft 2 or 0. 3 -0. 7 gpm/ft 2 • linear velocities: less than 0. 5 ft/min

Sedimentation Tank Configurations • Rectangular Clarifiers – most common • Circular clarifiers – Center

Sedimentation Tank Configurations • Rectangular Clarifiers – most common • Circular clarifiers – Center feed – Peripheral feed • Flocculator-Clarifiers

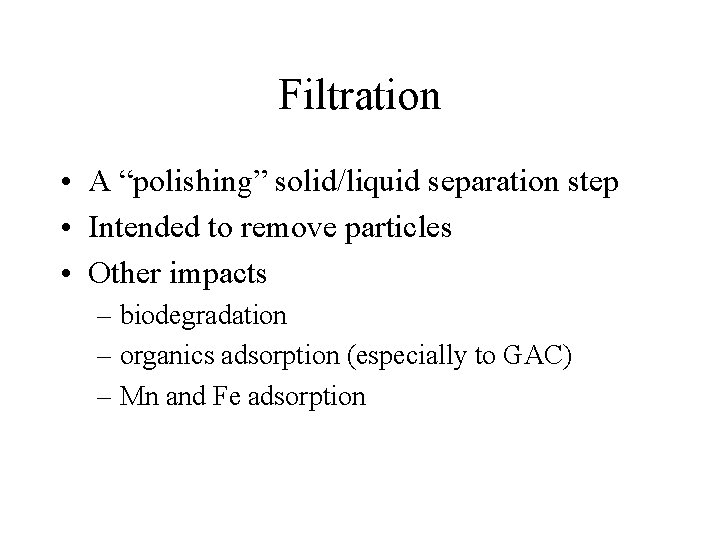

Filtration • A “polishing” solid/liquid separation step • Intended to remove particles • Other

Filtration • A “polishing” solid/liquid separation step • Intended to remove particles • Other impacts – biodegradation – organics adsorption (especially to GAC) – Mn and Fe adsorption

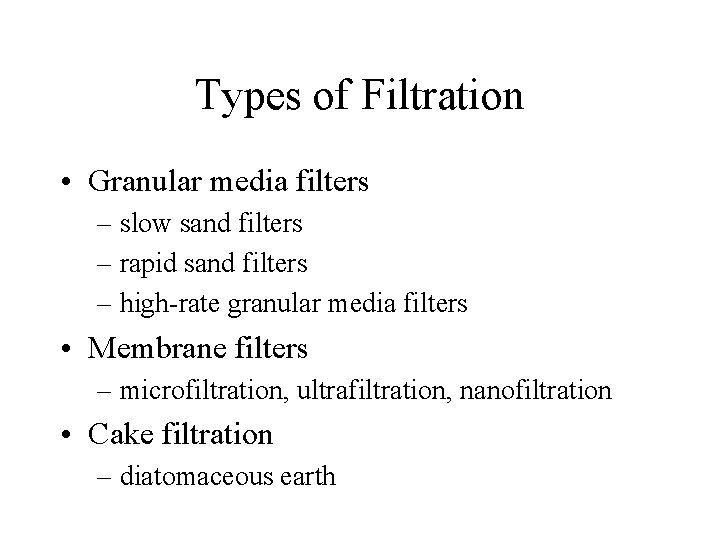

Types of Filtration • Granular media filters – slow sand filters – rapid sand

Types of Filtration • Granular media filters – slow sand filters – rapid sand filters – high-rate granular media filters • Membrane filters – microfiltration, ultrafiltration, nanofiltration • Cake filtration – diatomaceous earth

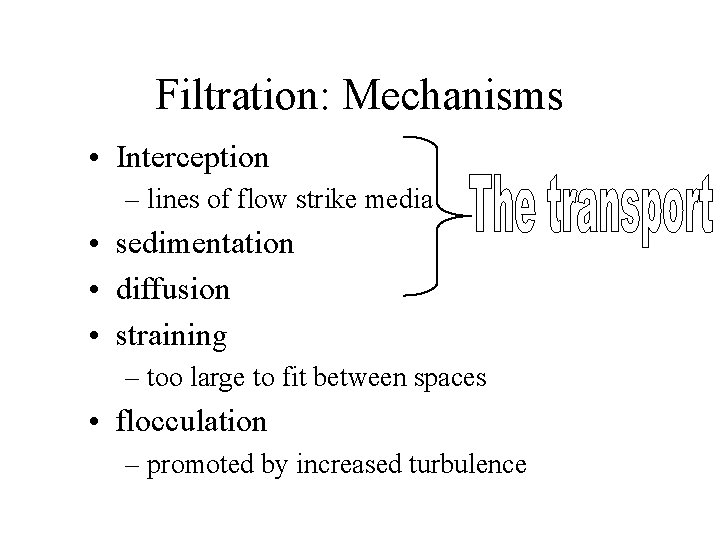

Filtration: Mechanisms • Interception – lines of flow strike media • sedimentation • diffusion

Filtration: Mechanisms • Interception – lines of flow strike media • sedimentation • diffusion • straining – too large to fit between spaces • flocculation – promoted by increased turbulence

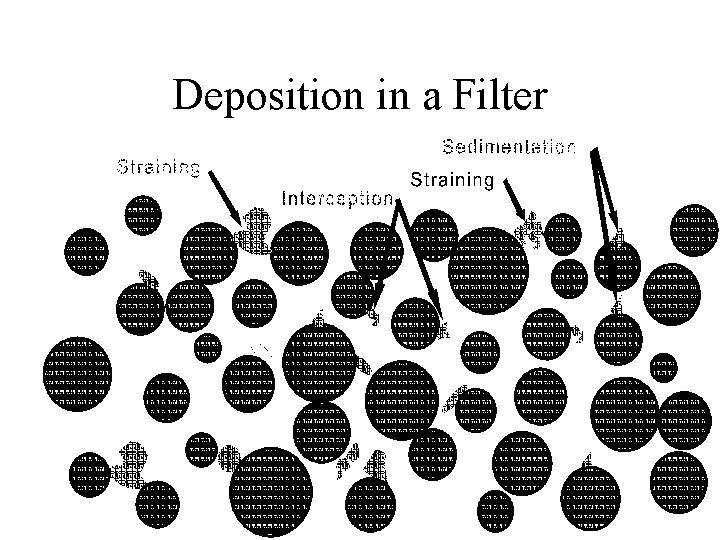

Deposition in a Filter

Deposition in a Filter

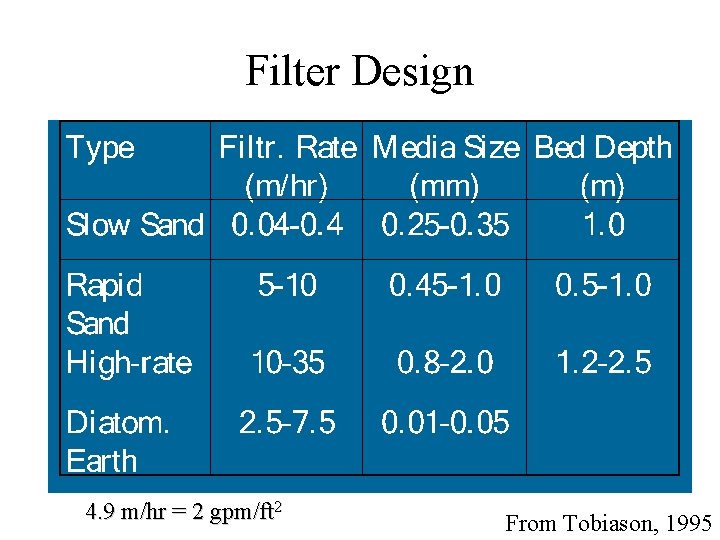

Filter Design 4. 9 m/hr = 2 gpm/ft 2 From Tobiason, 1995

Filter Design 4. 9 m/hr = 2 gpm/ft 2 From Tobiason, 1995

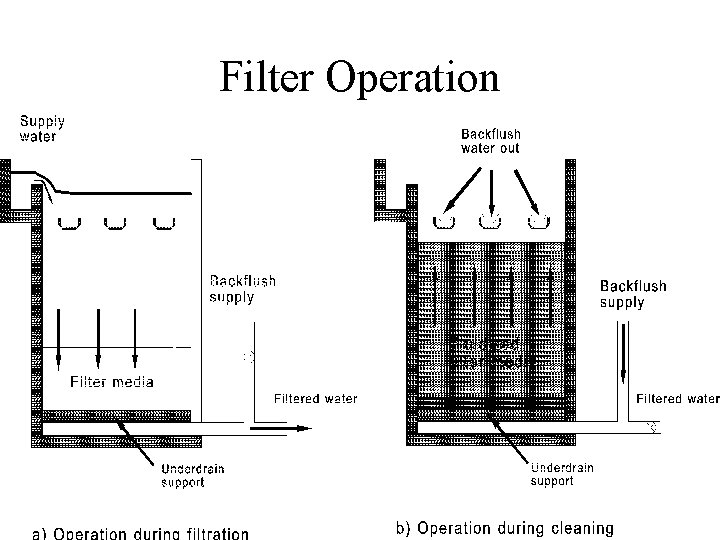

Filter Operation

Filter Operation
