GHG Emissions Management in Russian Pulp Paper Industry

GHG Emissions Management in Russian Pulp & Paper Industry Michael Yulkin, yulkin@aha. ru Bonn, June 23, 2004

Arkhangelsk PPM Pulp production Paper production Cardboard production Wood fiberboard production HPP-1

GHG Inventory at Arkhangelsk PPM, ton CO 2 -equivalent

GHG Emissions at Arkhangelsk PPM

Direct GHG Emissions and Pulping at Arkhangelsk PPM thou. ton СО 3 000 2 -equiv. thou. ton pulp / year 100% 900 Direct GHG Emissions 2 800 Pulping 800 2 600 79% 700 2 400 600 2 200 500 2 000 67% 1 800 400 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002

Specific GHG Emissions per ton of Cooked Pulp at Arkhangelsk PPM

Structure of Direct GHG Emissions at Arkhangelsk PPM in 2002 Total Direct GHG Emissions – 1 985 458 ton CO 2 -equiv.

Average GHG Emission Factor for Stationary Combusted Fuel

Associated GHG Emissions by Departments at Arkhangelsk PPM

Arkhangelsk PPM – GHG Emissions Budget for 2008 -2012 120% 2008… 2012 109% 1990 100% 88% 80% 60% 40% 1000 thou. ton pulp/year 2600 thou. ton CO 2 equiv. /year 20% 0% Pulping Emissions

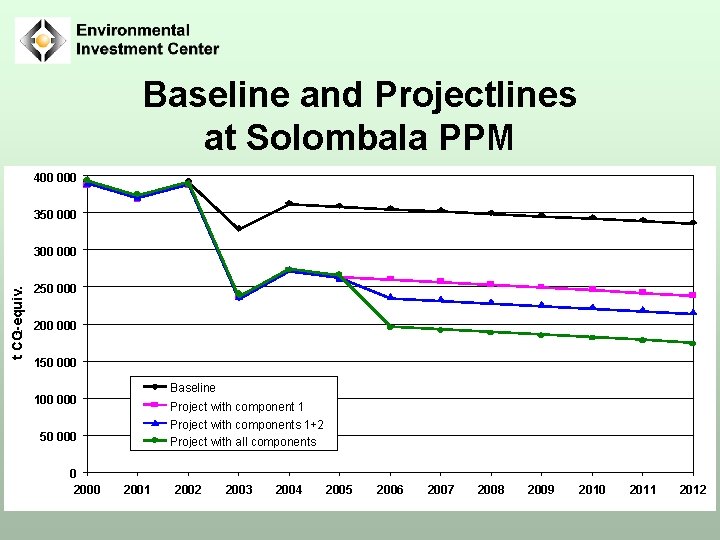

Baseline and Projectlines at Solombala PPM 400 000 350 000 t СО 2 -equiv. 300 000 250 000 200 000 150 000 Baseline 100 000 Project with component 1 Project with components 1+2 Project with all components 50 000 0 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012

Baseline and Projectline at Pitkyaranta Pulp Mill 240 000 t СО 2 -equiv. 220 000 200 000 180 000 160 000 Baseline Projectline 140 000 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012

Thank you for attention!
