Geological Time really really long Motion pictures are

Geological Time - really, really long! Motion pictures are generally projected at 32 frames per second. Therefore, each frame (image) is on the screen for only split second- let each frame represent 100 years. Start movie at present and go back in time. • The Declaration of Independence would show up 1/16 of a second into the movie. • The Christian era (BC-AD boundary) would be 3/4 of a second into the movie. • The most recent Ice Age would be 7 seconds into it. • The movie would run about 6 hours before we got to the end of the Mesozoic era (extinction of the dinosaurs). • We'd have to watch the movie for about 2 days to see the beginning of the Paleozoic era (macroscopic life). • The whole movie (to the beginning of geologic time on Earth) would be approximately 16 days long!

Geologic Time • Two ways to relate time in geology: > Relative: Placing events in a sequence based on their positions in the geologic record. > Chronologic : Placing a specific number of years on an event or rock sample.

Geologic Time Scale • a combination of the two types of age determinations > a relative sequence of lithologic units - established using logical principles > measured against a framework of chronologic dates.

Geologic Time and the "geologic column" • Developed using logical rules to establish relative rules to establish sequences of events relative sequences - superposition - cross-cutting relationships - original horizontality - lateral continuity • Added to as new information is obtained and data is refined - Use • of fossils for correlation and age determination Numerical Dates attached to strata after the - development of Radiometric techniques Still being refined as more information becomes available

The Geologic Time Scale (1: 2)

The Geologic Time Scale (2: 2)

Relative Dating Methods • determines the relative sequence of events. > which came first, which came last. > no numeric age assigned • 6 Relative age principles: > Superposition > Lateral continuity > Inclusions > Original Horizontality, > Cross-cutting Relationships > Fossil succession. Those in yellow are most useful

Law of Superposition • In undisturbed strata, the layer on the bottom is oldest, those above are younger.

Original Horizontality • Sediments are generally deposited as horizontal layers. Lateral Continuity • Sediment layers extend laterally in all direction until they thin & pinch out as they meet the edge of the depositional basin.

Charles Lyell • 1 st Principles of Geology text - included description and use of > principles of cross-cutting relationships > principles of inclusions • relative time tools

Cross-cutting Relationships That which cuts through is younger than the Object that is cut dike cuts through granite is cut

Relative Ages of Lava Flows and Sills

Principle of Inclusions • Inclusions (one rock type contained in another rock type) are older than the rock they are embedded in. That is, the younger rock contains the inclusions

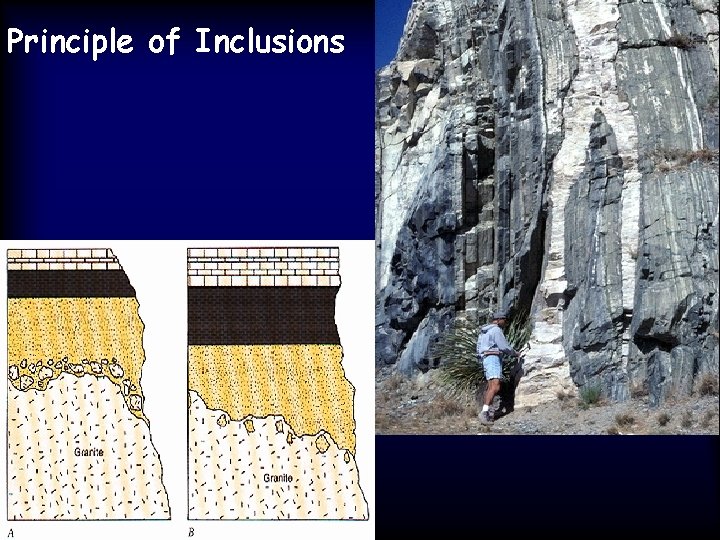

Principle of Inclusions

Faunal/Floral Succession • • Fossil assemblages (groupings of fossils) succeed one another through time.

• Correlationrelating rocks in one location to those in another using relative age stratigraphic principles - Faunal Succession -- Superposition -- Lateral Continuity -- Cross-cutting

Unconformities • surfaces represent a long time. a time when rocks were not deposited or a time when rocks were eroded Hiatus the gap in time represented in the rocks by an unconformity 3 kinds Angular Unconformity Nonconformity Disconformity

Disconformities A surface of erosion or non-deposition between Parallel sedimentary rock beds of differing ages.

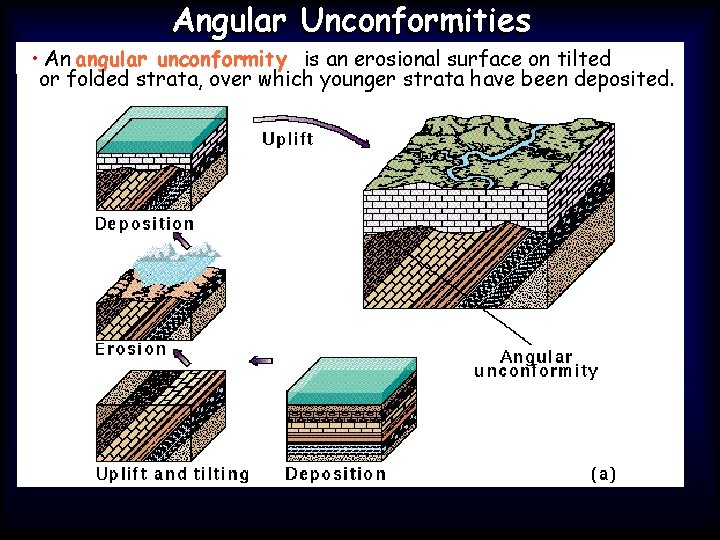

Angular Unconformities • An angular unconformity is an erosional surface on tilted or folded strata, over which younger strata have been deposited.

Nonconformities A nonconformity is an erosional surface on igneous or metamorphic rocks which are overlain by sedimentary rocks.

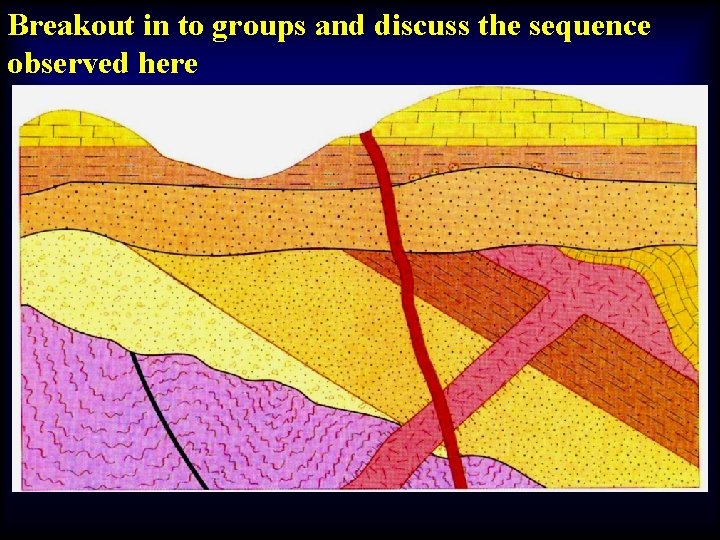

Breakout in to groups and discuss the sequence observed here

Age Estimates of Earth Counting lifetimes in the Bible Comparing cooling rates of iron pellets. Determine sedimentation rates & compare Estimate age based on salinity of the ocean. all age estimates were off by billions of years some were more off than others!

Absolute Dating Methods Radioactive Decay sequences acts as an atomic clock we see the clock at the end of its cycle analogous to starting a stopwatch allows assignment of numerical dates to rocks. > Radioactive isotopes change (decay) into daughter isotopes at known rates vary with the isotope ++ e. g. , 235 U , 40 K , 14 C, etc.

Decay unstable nuclei in parent isotope emits subatomic particles and transform into another isotopic element (daughter). does so at a known rate, measured in the lab • Half-life The amount of time needed for one-half of a radioactive parent to decay into daughter isotope. Assumptions? -you bet Cross-checks ensure validity of method.

Rate of Decay t 0 All atoms are parent isotope or some known ratio of parent to daughter t 1 1 half-life period has elapsed, half of the material has changed to a daughter isotope (6 parent: 6 daughter) t 2 2 half-lives elapsed, half of the parent remaining is transformed into a daughter isotope (3 parent: 9 daughter) t 3 half-lives elapsed, half of the parent remaining is transformed into a daughter 3 isotope (1. 5 parent: 10. 5 daughter) We would see the rock at this point.

Radioactive Isotopes % parent remaining • analogous to sand in an hour glass - we measure how much sand there is > represents themass of elements - we measure the ratio of sand in the bottom to sand in the top - at the end (present) > daughter (b) and parent (t) - we know at what rate the sand falls into the bottom > the half life of the radioactive element - how long would it take to get the amount sand in the observed ratio starting with all of it in the top? 100 Parent Daughter 50 25 13 time------>

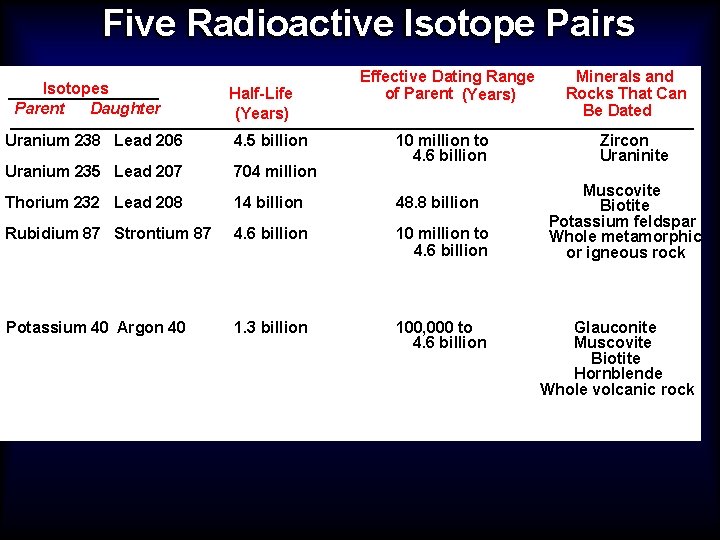

Five Radioactive Isotope Pairs Isotopes Parent Daughter Half-Life (Years) Effective Dating Range of Parent (Years) Uranium 238 Lead 206 4. 5 billion 10 million to 4. 6 billion Uranium 235 Lead 207 704 million Thorium 232 Lead 208 14 billion 48. 8 billion Rubidium 87 Strontium 87 4. 6 billion 10 million to 4. 6 billion Potassium 40 Argon 40 1. 3 billion 100, 000 to 4. 6 billion Minerals and Rocks That Can Be Dated Zircon Uraninite Muscovite Biotite Potassium feldspar Whole metamorphic or igneous rock Glauconite Muscovite Biotite Hornblende Whole volcanic rock

Radiocarbon and Tree- Ring Dating Methods • • Carbon-14 dating is based on the ratio of C-14 to C-12 in an organic sample. Valid only for samples less than 70, 000 >> Valid years old. years Living things take in in both isotopes of of >> Living carbon. When the organism dies, the "clock" starts. >> When Method can be validated by cross-checking with tree rings

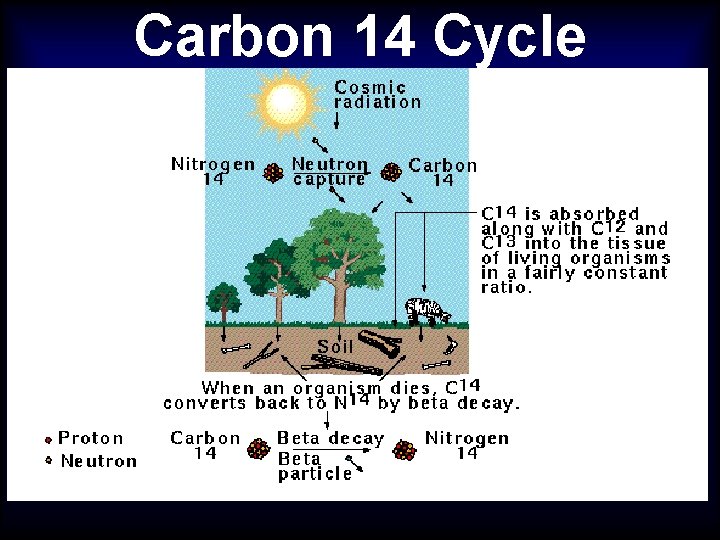

Carbon 14 Cycle
