Developing Composition Tree Visualizer for Text BE Vit
Developing Composition Tree Visualizer for Text. BE Vit Zuraida, IK 2007
Text. BE • Integrare: graphical editor • Text. BE: textual representation that automate graphical representation • Text. BE run on Eclipse Galileo SR 2 Modeling Tools • Existing functional: stabil textual representation for BT, BT visualizer • Functional will be added: hiding deleted nodes, indication of active components, model validation, simulator, CT visualizer, etc

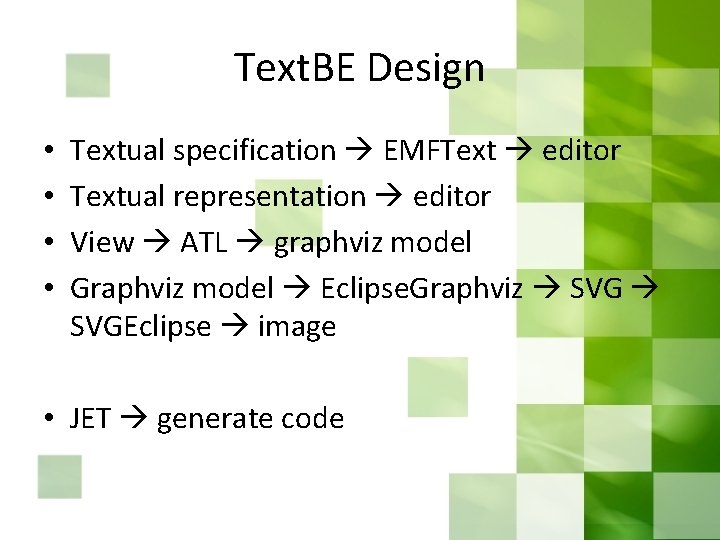

Text. BE Design • • Textual specification EMFText editor Textual representation editor View ATL graphviz model Graphviz model Eclipse. Graphviz SVGEclipse image • JET generate code
Composition Tree • Controlled vocabulary aliases (added, deleted) • CT composition of component • Optional • Needed for developing a large scale or complex system or developing a system with many developer.
CT Vs BT • Infrormation represented by CT Vs BT BT detail sequential behavior CT composition of components with each attribute, state, event, and other informastions related to the component • Building process of ICT Vs IBT integrate all requirment begavior tree ICT if there is any new information added in RBT, add it to existion composition tree too • Branching type CT Vs BT BT same branching type CT different branching type

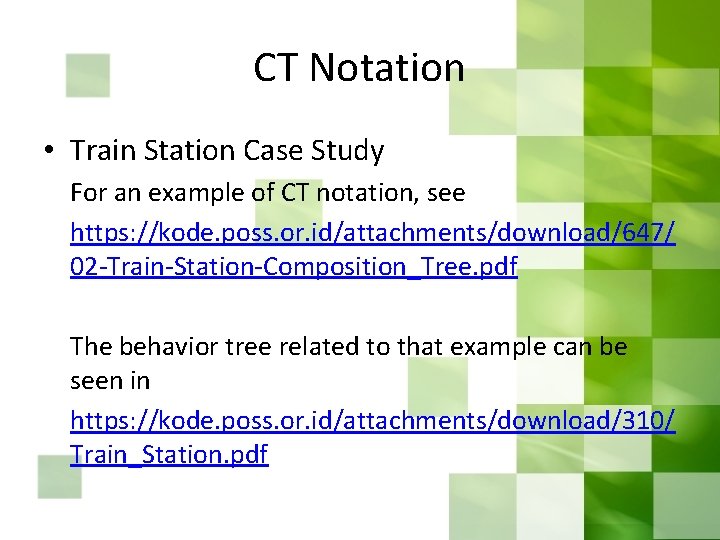

CT Notation • Train Station Case Study For an example of CT notation, see https: //kode. poss. or. id/attachments/download/647/ 02 -Train-Station-Composition_Tree. pdf The behavior tree related to that example can be seen in https: //kode. poss. or. id/attachments/download/310/ Train_Station. pdf
