Detecting Performance Design and Deployment Anti. Patterns in Enterprise Systems Trevor Parsons trevparsons@gmail. com Detecting Performance Design and Deployment Antipatterns in Enterprise Systems Trevor Parsons Performance Engineering Laboratory University College Dublin Ireland Performance Engineering Laboratory 1 www. perfenglab. com

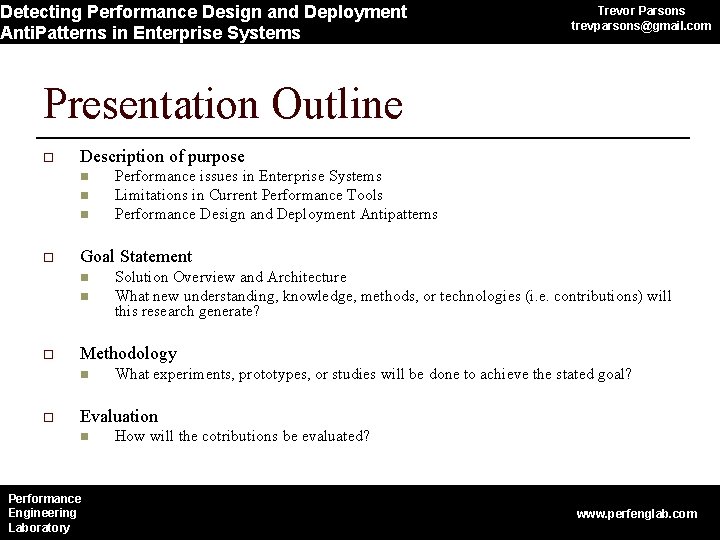

Detecting Performance Design and Deployment Anti. Patterns in Enterprise Systems Trevor Parsons trevparsons@gmail. com Presentation Outline o Description of purpose n n n o Goal Statement n n o Solution Overview and Architecture What new understanding, knowledge, methods, or technologies (i. e. contributions) will this research generate? Methodology n o Performance issues in Enterprise Systems Limitations in Current Performance Tools Performance Design and Deployment Antipatterns What experiments, prototypes, or studies will be done to achieve the stated goal? Evaluation n Performance Engineering Laboratory How will the cotributions be evaluated? Performance Engineering Laboratory 2 www. perfenglab. com

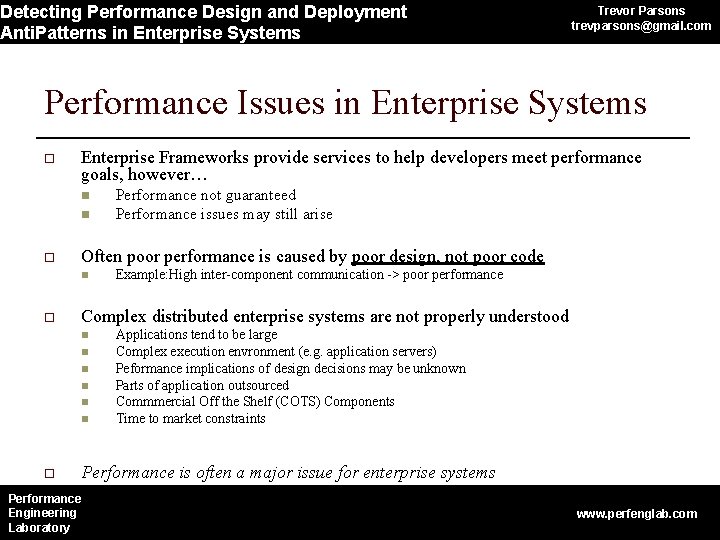

Detecting Performance Design and Deployment Anti. Patterns in Enterprise Systems Trevor Parsons trevparsons@gmail. com Performance Issues in Enterprise Systems o Enterprise Frameworks provide services to help developers meet performance goals, however… n n o Often poor performance is caused by poor design, not poor code n o Example: High inter-component communication -> poor performance Complex distributed enterprise systems are not properly understood n n n o Performance not guaranteed Performance issues may still arise Applications tend to be large Complex execution envronment (e. g. application servers) Peformance implications of design decisions may be unknown Parts of application outsourced Commmercial Off the Shelf (COTS) Components Time to market constraints Performance is often a major issue for enterprise systems Performance Engineering Laboratory 3 www. perfenglab. com

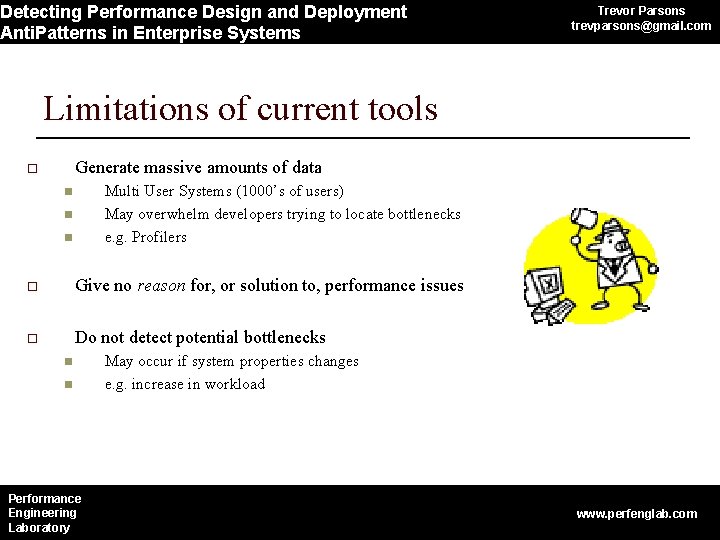

Detecting Performance Design and Deployment Anti. Patterns in Enterprise Systems Trevor Parsons trevparsons@gmail. com Limitations of current tools Generate massive amounts of data o Multi User Systems (1000’s of users) May overwhelm developers trying to locate bottlenecks e. g. Profilers n n n o Give no reason for, or solution to, performance issues o Do not detect potential bottlenecks n n Performance Engineering Laboratory May occur if system properties changes e. g. increase in workload Performance Engineering Laboratory 4 www. perfenglab. com

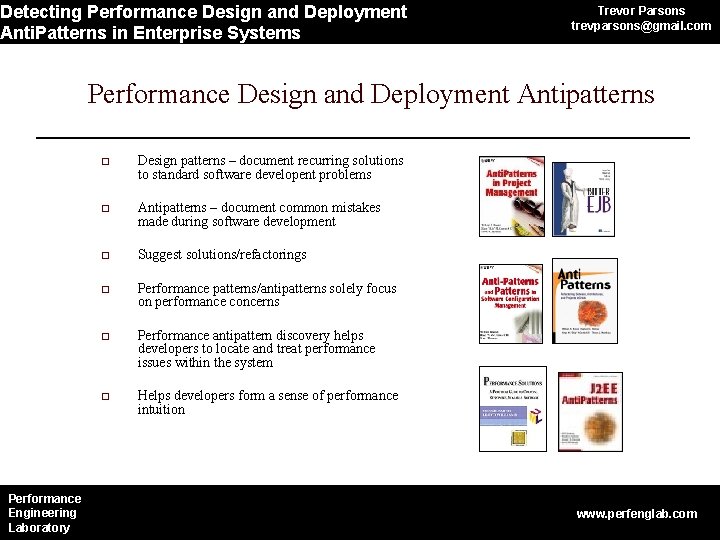

Detecting Performance Design and Deployment Anti. Patterns in Enterprise Systems Trevor Parsons trevparsons@gmail. com Performance Design and Deployment Antipatterns Performance Engineering Laboratory o Design patterns – document recurring solutions to standard software developent problems o Antipatterns – document common mistakes made during software development o Suggest solutions/refactorings o Performance patterns/antipatterns solely focus on performance concerns o Performance antipattern discovery helps developers to locate and treat performance issues within the system o Helps developers form a sense of performance intuition Performance Engineering Laboratory 5 www. perfenglab. com

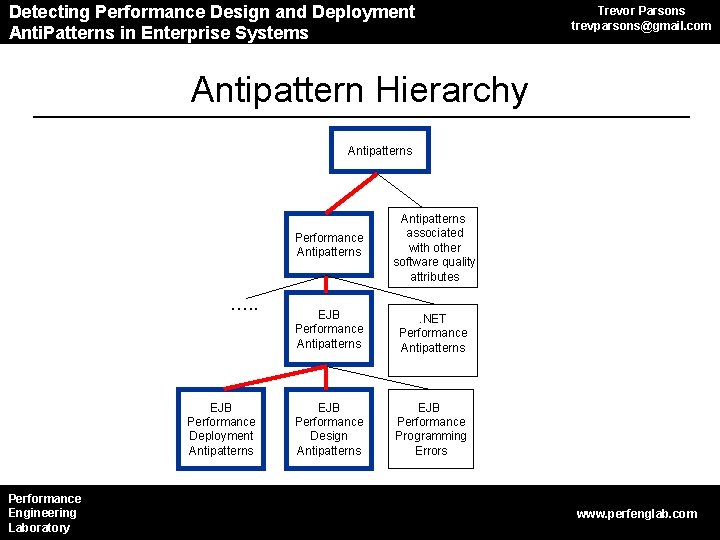

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie Antipattern Hierarchy Antipatterns …. . EJB Performance Deployment Antipatterns Performance Engineering Laboratory Performance Antipatterns associated with other software quality attributes EJB Performance Antipatterns . NET Performance Antipatterns EJB Performance Design Antipatterns EJB Performance Programming Errors Performance Engineering Laboratory Performance 6 www. perfenglab. com Engineering Laboratory

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie Solution Overview Automatically Detect and Assess Performance Design and Deployment Antipatterns in Component Based Enterprise Systems • Monitoring: Obtains performance information from a running application • Analysis: Uses analysis techniques(e. g. Data Mining) to make sense of large volumes of data • Detection: Rule Engine - Antipatterns are described in terms of rules • Assessment: Performance models applied to ranks antipatterns in terms of their performance impact on the system • Presentation: Creates UML models of the system augmented with performance data, highlighting discovered antipatterns. Diagrams are created at different levels of abstraction (following the MDA paradigm). Performance Engineering Laboratory Performance 7 www. perfenglab. com Engineering Laboratory

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie Architecture Monitoring JVMTI JMX MEJB Monitor Call Path Tracer XML Parser Custom Monitoring Tool Analysis Determine System Structure Data Mining Detection Rule Engine Rules Performance Engineering Laboratory Custom. Analysis Statistical Analysis Assessment & Ranking Presentation Micro Performance Models Performance Engineering Laboratory Performance 8 www. perfenglab. com Engineering Laboratory

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie Problem Solution Improved Performance Design Performance Engineering Laboratory Performance 9 www. perfenglab. com Engineering Laboratory

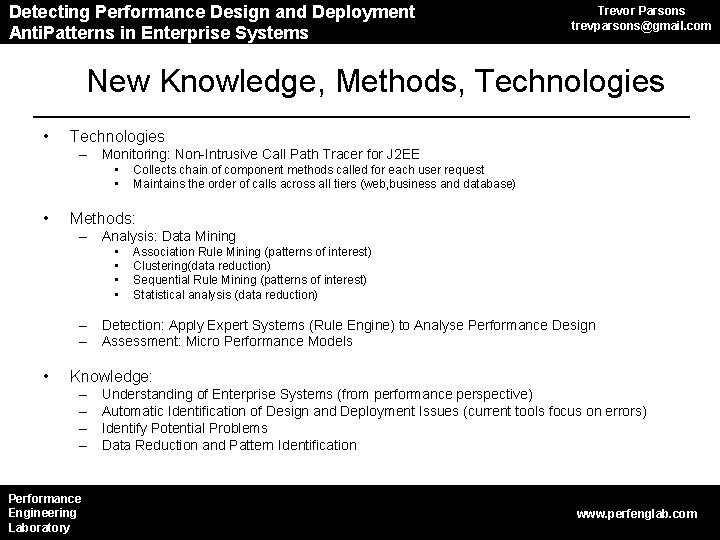

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie New Knowledge, Methods, Technologies • Technologies – Monitoring: Non-Intrusive Call Path Tracer for J 2 EE • • • Collects chain of component methods called for each user request Maintains the order of calls across all tiers (web, business and database) Methods: – Analysis: Data Mining • • Association Rule Mining (patterns of interest) Clustering(data reduction) Sequential Rule Mining (patterns of interest) Statistical analysis (data reduction) – Detection: Apply Expert Systems (Rule Engine) to Analyse Performance Design – Assessment: Micro Performance Models • Knowledge: – – Performance Engineering Laboratory Understanding of Enterprise Systems (from performance perspective) Automatic Identification of Design and Deployment Issues (current tools focus on errors) Identify Potential Problems Data Reduction and Pattern Identification Performance Engineering Laboratory Performance 10 www. perfenglab. com Engineering Laboratory

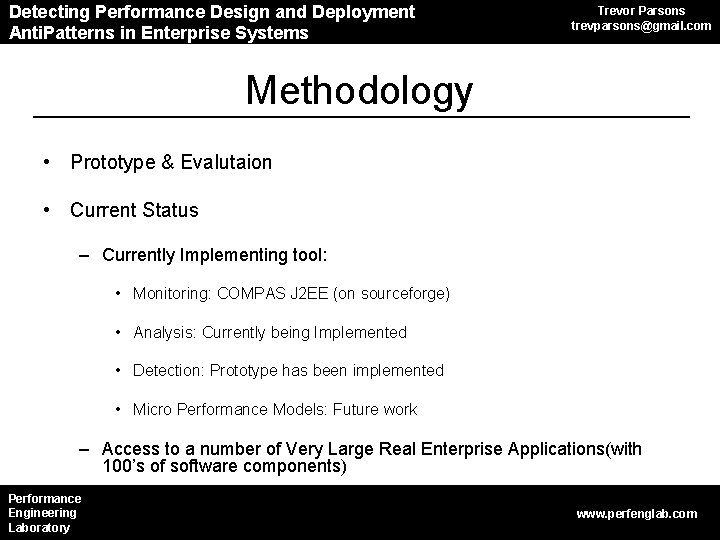

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie Methodology • Prototype & Evalutaion • Current Status – Currently Implementing tool: • Monitoring: COMPAS J 2 EE (on sourceforge) • Analysis: Currently being Implemented • Detection: Prototype has been implemented • Micro Performance Models: Future work – Access to a number of Very Large Real Enterprise Applications(with 100’s of software components) Performance Engineering Laboratory Performance 11 www. perfenglab. com Engineering Laboratory

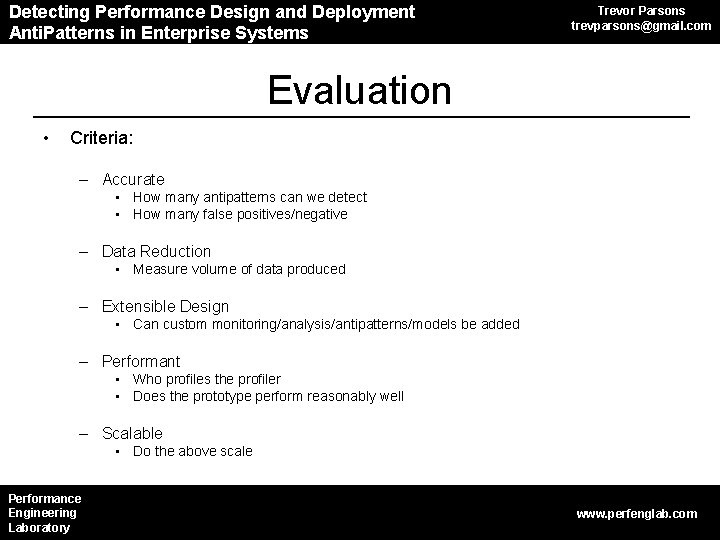

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie Evaluation • Criteria: – Accurate • How many antipatterns can we detect • How many false positives/negative – Data Reduction • Measure volume of data produced – Extensible Design • Can custom monitoring/analysis/antipatterns/models be added – Performant • Who profiles the profiler • Does the prototype perform reasonably well – Scalable • Do the above scale Performance Engineering Laboratory Performance 12 www. perfenglab. com Engineering Laboratory

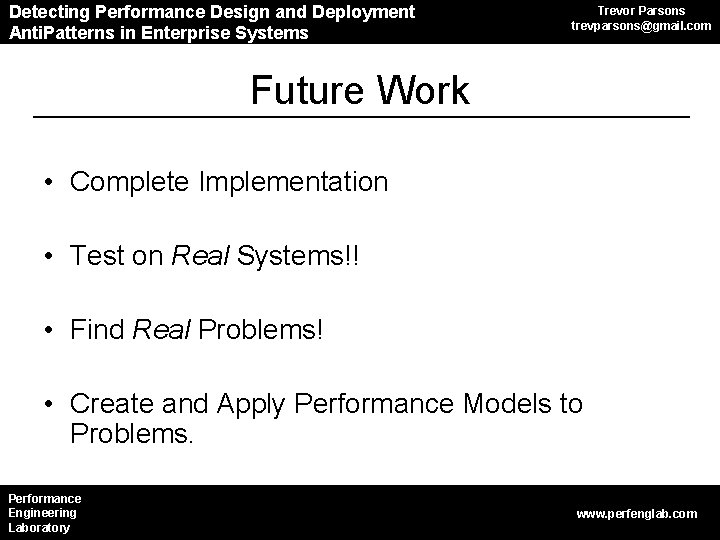

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie Future Work • Complete Implementation • Test on Real Systems!! • Find Real Problems! • Create and Apply Performance Models to Problems. Performance Engineering Laboratory Performance 13 www. perfenglab. com Engineering Laboratory

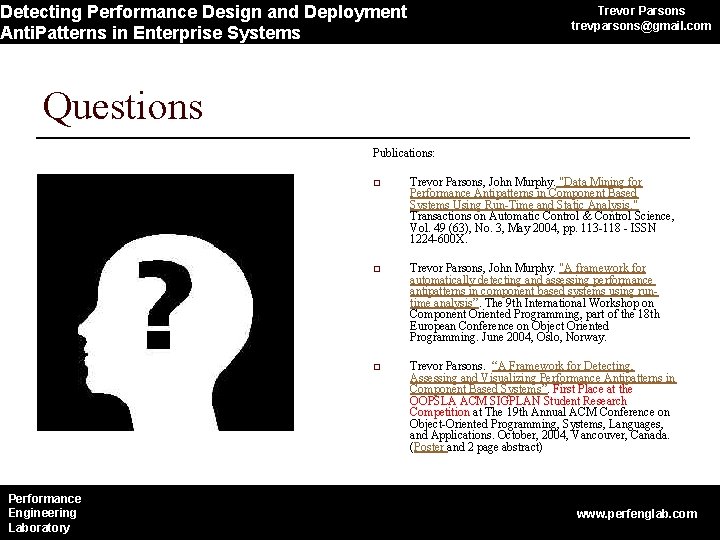

Detecting Performance Design and Deployment Anti. Patterns in Enterprise Systems Trevor Parsons trevparsons@gmail. com Questions Publications: Performance Engineering Laboratory o Trevor Parsons, John Murphy. "Data Mining for Performance Antipatterns in Component Based Systems Using Run-Time and Static Analysis. " Transactions on Automatic Control & Control Science, Vol. 49 (63), No. 3, May 2004, pp. 113 -118 - ISSN 1224 -600 X. o Trevor Parsons, John Murphy. "A framework for automatically detecting and assessing performance antipatterns in component based systems using runtime analysis”. The 9 th International Workshop on Component Oriented Programming, part of the 18 th European Conference on Object Oriented Programming. June 2004, Oslo, Norway. o Trevor Parsons. “A Framework for Detecting, Assessing and Visualizing Performance Antipatterns in Component Based Systems”. First Place at the OOPSLA ACM SIGPLAN Student Research Competition at The 19 th Annual ACM Conference on Object-Oriented Programming, Systems, Languages, and Applications. October, 2004, Vancouver, Canada. (Poster and 2 page abstract) Performance Engineering Laboratory 14 www. perfenglab. com

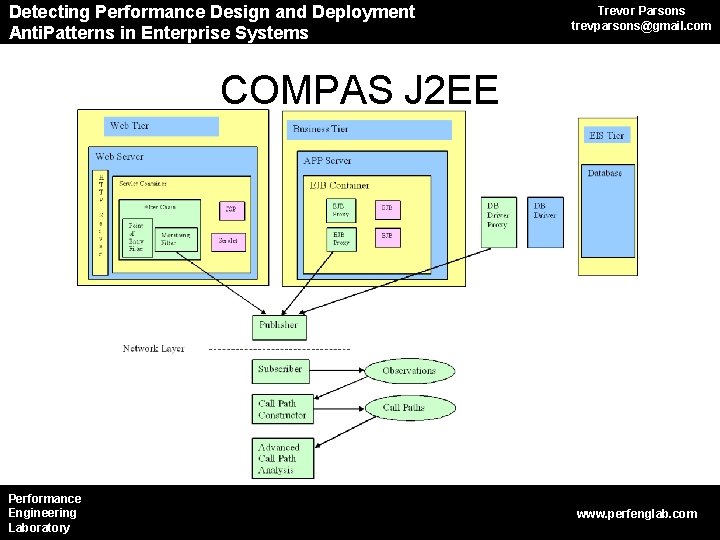

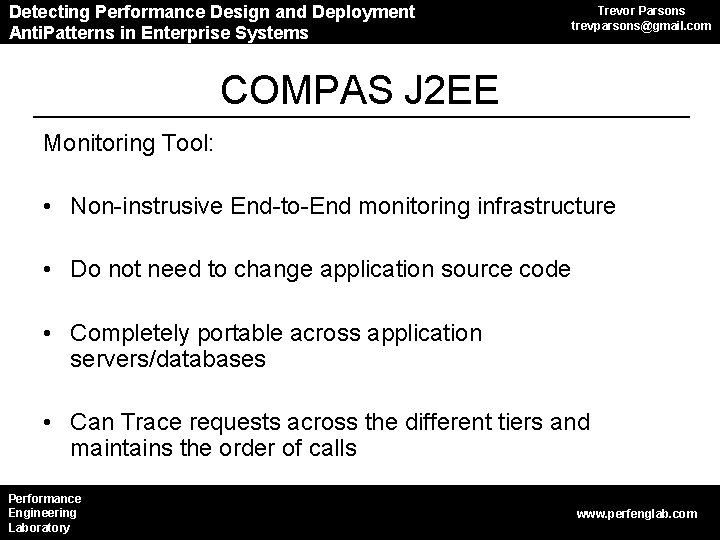

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie COMPAS J 2 EE Monitoring Tool: • Non-instrusive End-to-End monitoring infrastructure • Do not need to change application source code • Completely portable across application servers/databases • Can Trace requests across the different tiers and maintains the order of calls Performance Engineering Laboratory Performance 15 www. perfenglab. com Engineering Laboratory

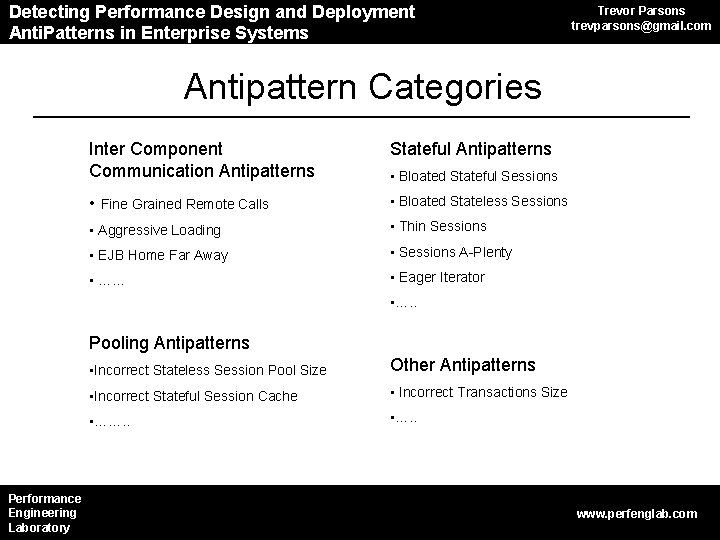

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie Antipattern Categories Inter Component Communication Antipatterns Stateful Antipatterns • Fine Grained Remote Calls • Bloated Stateless Sessions • Aggressive Loading • Thin Sessions • EJB Home Far Away • Sessions A-Plenty • …… • Eager Iterator • Bloated Stateful Sessions • …. . Pooling Antipatterns Performance Engineering Laboratory • Incorrect Stateless Session Pool Size Other Antipatterns • Incorrect Stateful Session Cache • Incorrect Transactions Size • ……. . • …. . Performance Engineering Laboratory Performance 16 www. perfenglab. com Engineering Laboratory

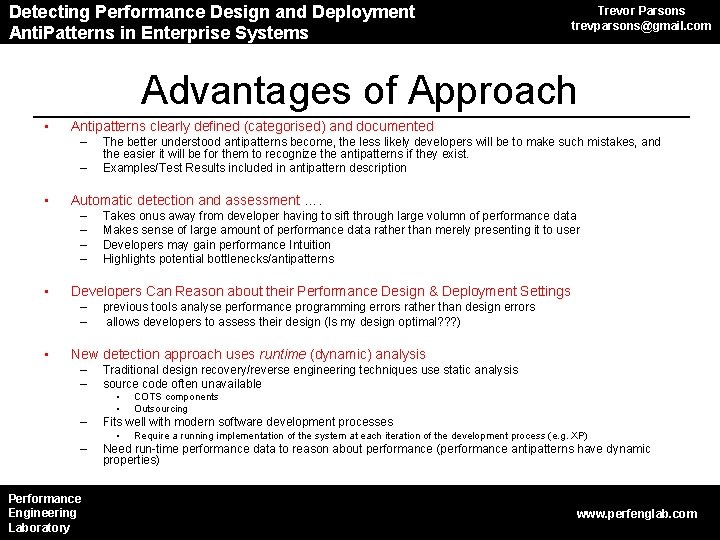

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie Advantages of Approach • Antipatterns clearly defined (categorised) and documented – – • Automatic detection and assessment …. – – • Takes onus away from developer having to sift through large volumn of performance data Makes sense of large amount of performance data rather than merely presenting it to user Developers may gain performance Intuition Highlights potential bottlenecks/antipatterns Developers Can Reason about their Performance Design & Deployment Settings – – • The better understood antipatterns become, the less likely developers will be to make such mistakes, and the easier it will be for them to recognize the antipatterns if they exist. Examples/Test Results included in antipattern description previous tools analyse performance programming errors rather than design errors allows developers to assess their design (Is my design optimal? ? ? ) New detection approach uses runtime (dynamic) analysis – – Traditional design recovery/reverse engineering techniques use static analysis source code often unavailable • • – Fits well with modern software development processes • – Performance Engineering Laboratory COTS components Outsourcing Require a running implementation of the system at each iteration of the development process (e. g. XP) Need run-time performance data to reason about performance (performance antipatterns have dynamic properties) Performance Engineering Laboratory Performance 18 www. perfenglab. com Engineering Laboratory

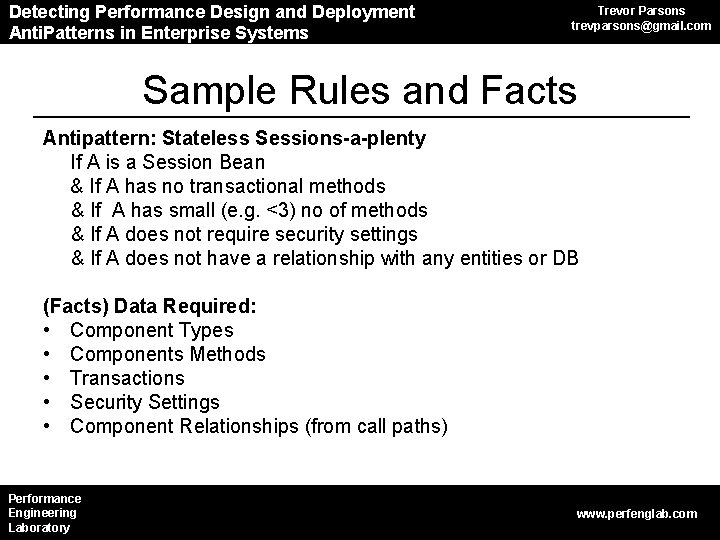

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie Sample Rules and Facts Antipattern: Stateless Sessions-a-plenty If A is a Session Bean & If A has no transactional methods & If A has small (e. g. <3) no of methods & If A does not require security settings & If A does not have a relationship with any entities or DB (Facts) Data Required: • Component Types • Components Methods • Transactions • Security Settings • Component Relationships (from call paths) Performance Engineering Laboratory Performance 19 www. perfenglab. com Engineering Laboratory

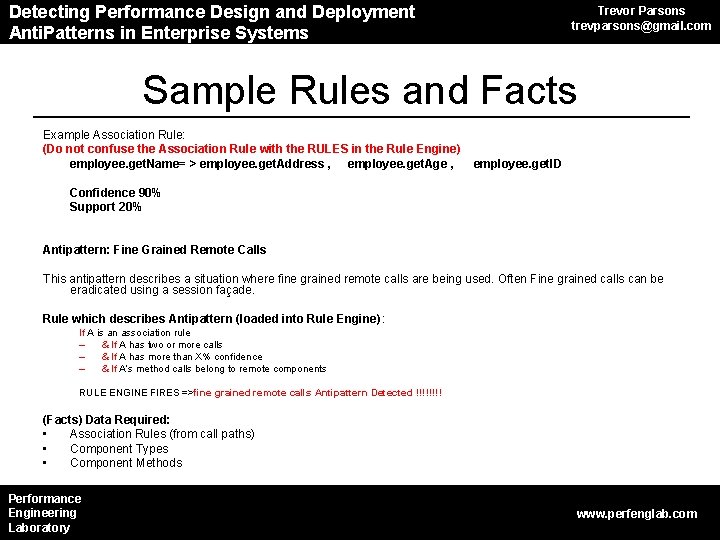

Detecting Performance Anti. Patterns in CBS Design and Deployment Anti. Patterns in Enterprise Systems Trevor. Parsons trevparsons@gmail. com parsonst@eeng. dcu. ie Sample Rules and Facts Example Association Rule: (Do not confuse the Association Rule with the RULES in the Rule Engine) employee. get. Name= > employee. get. Address , employee. get. Age , employee. get. ID Confidence 90% Support 20% Antipattern: Fine Grained Remote Calls This antipattern describes a situation where fine grained remote calls are being used. Often Fine grained calls can be eradicated using a session façade. Rule which describes Antipattern (loaded into Rule Engine): If A is an association rule – & If A has two or more calls – & If A has more than X% confidence – & If A’s method calls belong to remote components RULE ENGINE FIRES =>fine grained remote calls Antipattern Detected !!!! (Facts) Data Required: • Association Rules (from call paths) • Component Types • Component Methods Performance Engineering Laboratory Performance 20 www. perfenglab. com Engineering Laboratory
