Coordinating Motion Stage and Galvo Scanner Control Motion

Coordinating Motion Stage and Galvo Scanner Control Motion Control Solutions For Steered Beam Laser Micro-Processing © 2018 ACS Motion Control Ltd.

Common Platform For Different System Architectures Stitching Aka Tiling, Step & Scan Most Economical, Lowest Throughput Mark on the fly Processing during constant velocity stage motion / raster scanning Better Throughput, Limited Accuracy XLSCAN – EXtra Large SCANning Field of View Full Coordination & Synchronization of Stage & Galvo Control Highest Throughput and Highest Accuracy 2 © 2018 ACS Motion Control Ltd.

Stitching Architecture ACS Software Product ACS Hardware Product Host PC SPii. Plus. SPC User Interface SPii. Plus API Galvo Controller Digital Trigger Signal Ethernet SPii. Plus Motion Controller Laser Beam Galvo Data Transfer Protocol Galvo Scan Head Steered Laser Beam Ether. CAT Workpiece Drive Module(s) Motor & Encoder Cables 3 Laser Motion Stage (XY, XX’Y, R-Theta…) © 2018 ACS Motion Control Ltd Galvo Supplier Software Product Galvo Supplier Hardware Product

Mark on the Fly Architecture ACS Software Product ACS Hardware Product Host PC SPii. Plus. SPC User Interface SPii. Plus API Galvo Controller Digital Trigger Signal Ethernet Laser Beam SPii. Plus Motion Controller Ether. CAT Drive Module(s) Galvo Data Transfer Protocol Galvo Scan Head Steered Laser Beam Encoder Workpiece EM 64 Encoder Splitter Motor & Encoder Cables 4 Laser Motion Stage (XY, XX’Y, R-Theta…) © 2018 ACS Motion Control Ltd Galvo Supplier Software Product Galvo Supplier Hardware Product

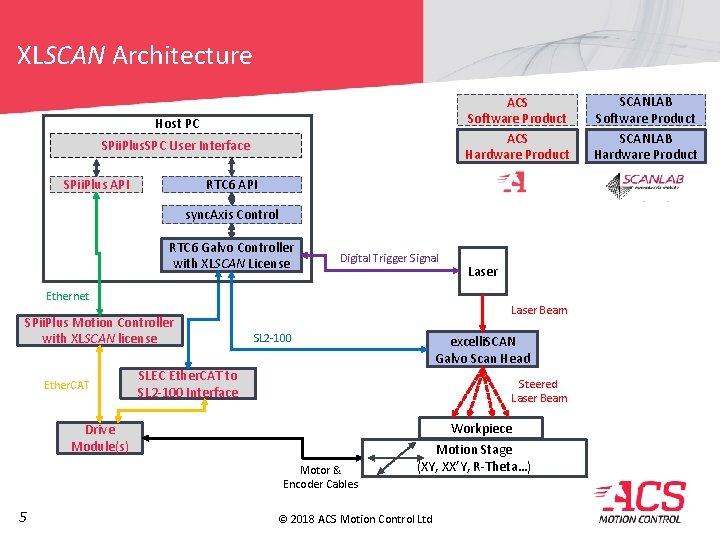

XLSCAN Architecture ACS Software Product ACS Hardware Product Host PC SPii. Plus. SPC User Interface SPii. Plus API RTC 6 API sync. Axis Control RTC 6 Galvo Controller with XLSCAN License Digital Trigger Signal Ethernet SPii. Plus Motion Controller with XLSCAN license Ether. CAT Laser Beam SL 2 -100 excelli. SCAN Galvo Scan Head SLEC Ether. CAT to SL 2 -100 Interface Steered Laser Beam Workpiece Drive Module(s) Motor & Encoder Cables 5 Laser Motion Stage (XY, XX’Y, R-Theta…) © 2018 ACS Motion Control Ltd SCANLAB Software Product SCANLAB Hardware Product

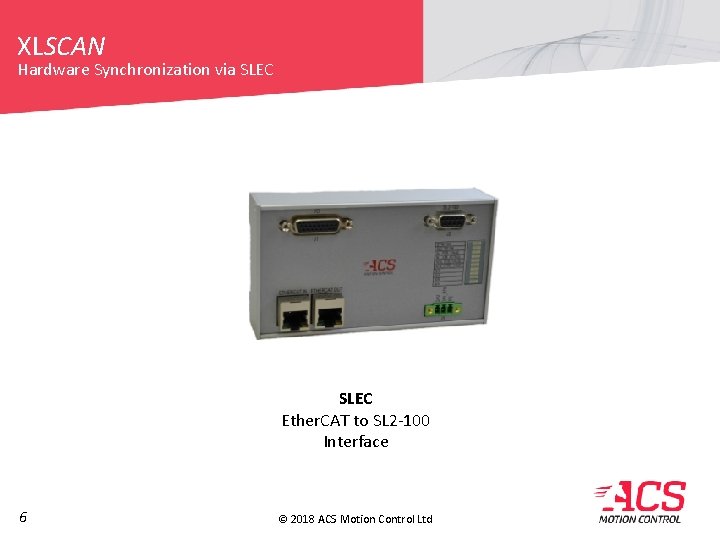

XLSCAN Hardware Synchronization via SLEC Ether. CAT to SL 2 -100 Interface 6 © 2018 ACS Motion Control Ltd

XLSCAN Video Traditional Tiling (aka Step and Scan, Stitching) Fully Synchronized and Coordinated Stage + Scanner Motion with XLSCAN https: //www. youtube. com/watch? v=_av. O 3 h. C 8 Av. A 7 © 2018 ACS Motion Control Ltd

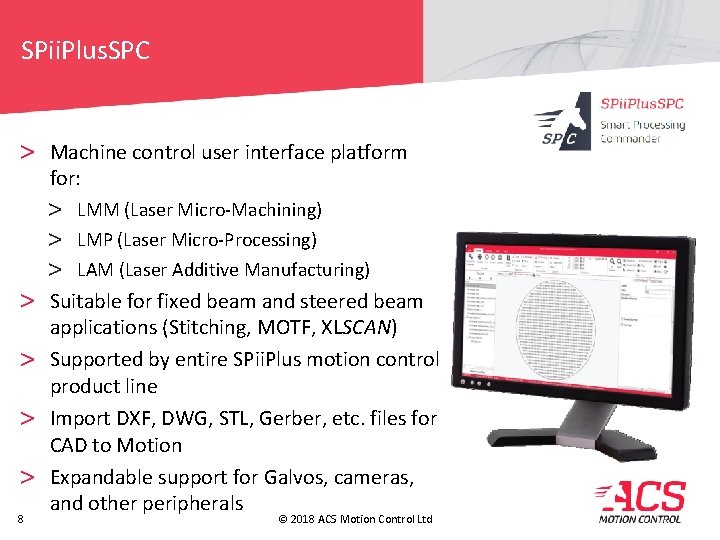

SPii. Plus. SPC Machine control user interface platform for: LMM (Laser Micro-Machining) LMP (Laser Micro-Processing) LAM (Laser Additive Manufacturing) 8 Suitable for fixed beam and steered beam applications (Stitching, MOTF, XLSCAN) Supported by entire SPii. Plus motion control product line Import DXF, DWG, STL, Gerber, etc. files for CAD to Motion Expandable support for Galvos, cameras, and other peripherals © 2018 ACS Motion Control Ltd

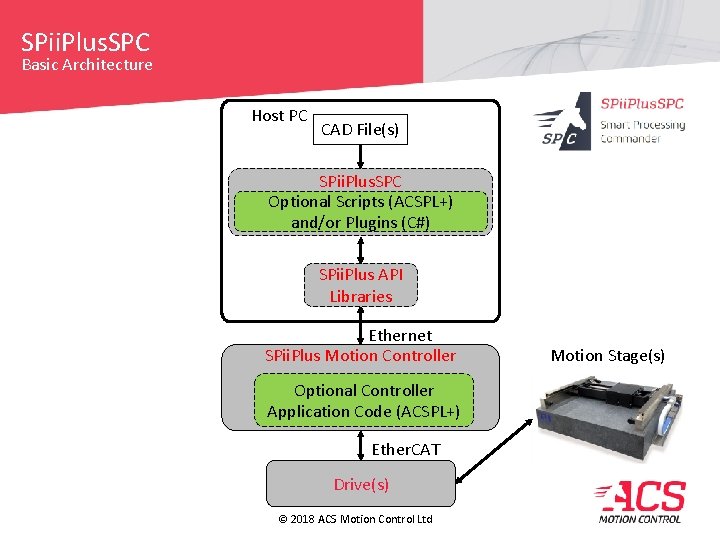

SPii. Plus. SPC Basic Architecture Host PC CAD File(s) SPii. Plus. SPC Optional Scripts (ACSPL+) and/or Plugins (C#) SPii. Plus API Libraries Ethernet SPii. Plus Motion Controller Optional Controller Application Code (ACSPL+) Ether. CAT Drive(s) © 2018 ACS Motion Control Ltd Motion Stage(s)

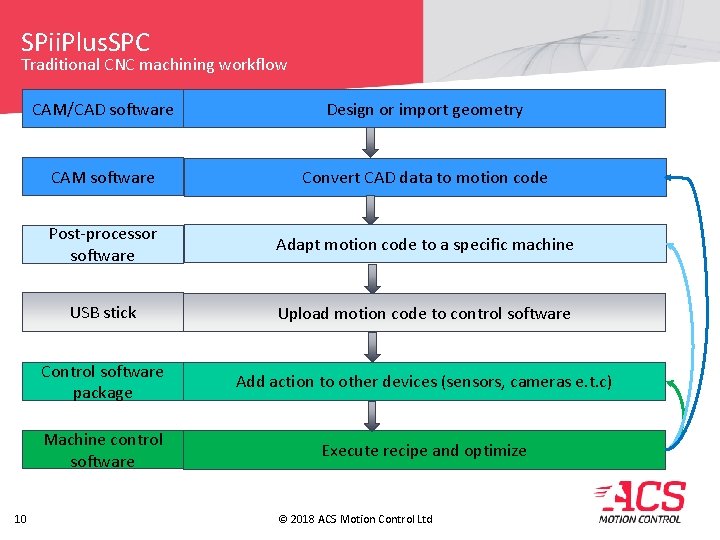

SPii. Plus. SPC Traditional CNC machining workflow 10 CAM/CAD software Design or import geometry CAM software Convert CAD data to motion code Post-processor software Adapt motion code to a specific machine USB stick Upload motion code to control software Control software package Add action to other devices (sensors, cameras e. t. c) Machine control software Execute recipe and optimize © 2018 ACS Motion Control Ltd

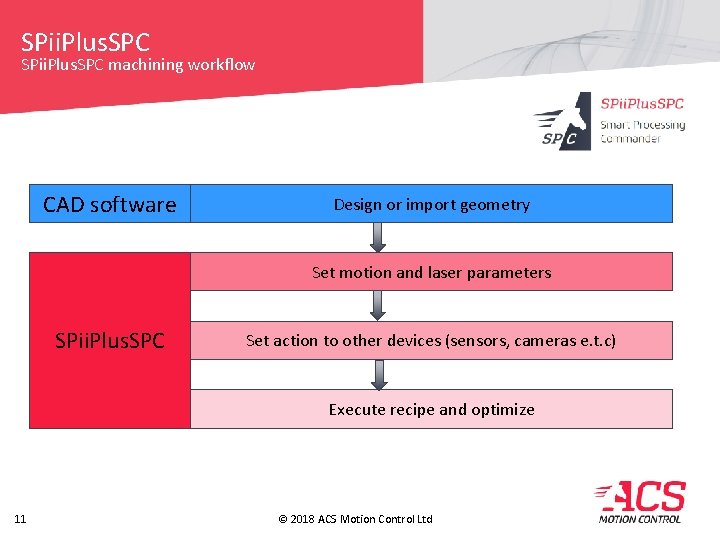

SPii. Plus. SPC machining workflow CAD software Design or import geometry Set motion and laser parameters SPii. Plus. SPC Set action to other devices (sensors, cameras e. t. c) Execute recipe and optimize 11 © 2018 ACS Motion Control Ltd

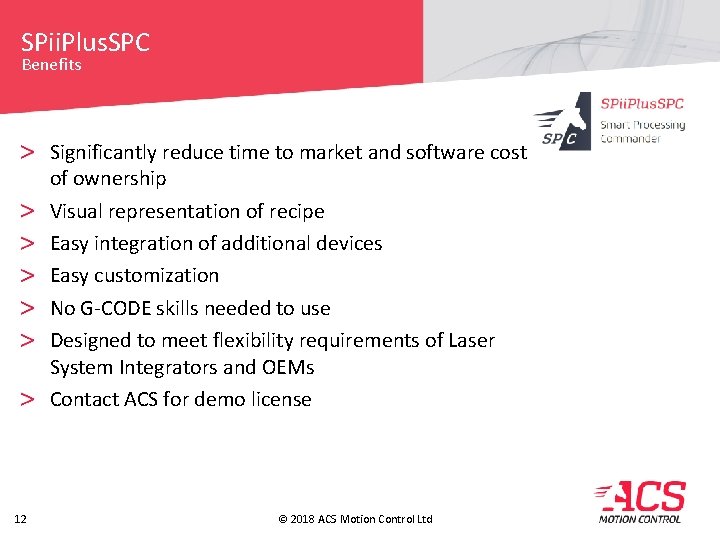

SPii. Plus. SPC Benefits Significantly reduce time to market and software cost of ownership Visual representation of recipe Easy integration of additional devices Easy customization No G-CODE skills needed to use Designed to meet flexibility requirements of Laser System Integrators and OEMs Contact ACS for demo license 12 © 2018 ACS Motion Control Ltd
