Chapter 10 Simple Machines Applied Physics Tenth Edition

Figure 9. 1 (continued) Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P.

Figure 9. 3 The angular displacements of points A and B on the flywheel

Figure 9. 5 Even though the two cylinders are of equal mass, the hollow

Figure 9. 11 Gears and pulleys are used to reduce slippage in transferring rotational

Figure 9. 11 (continued) Gears and pulleys are used to reduce slippage in transferring

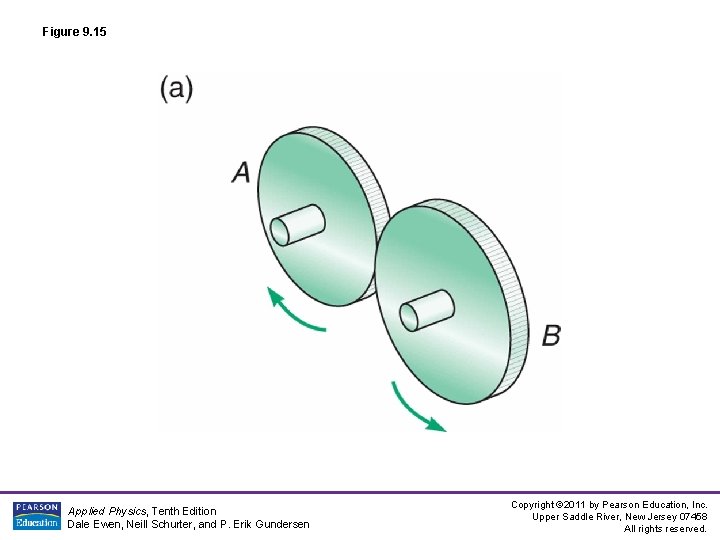

Figure 9. 15 Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik

Figure 9. 15 (continued) Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P.

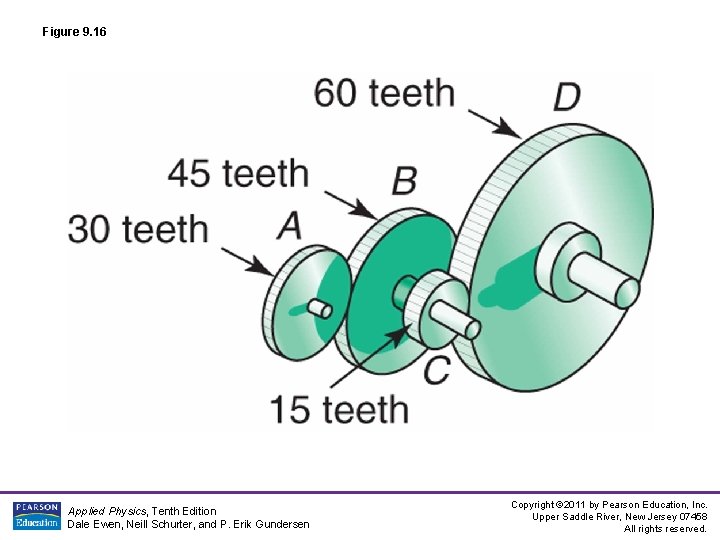

Figure 9. 16 Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik

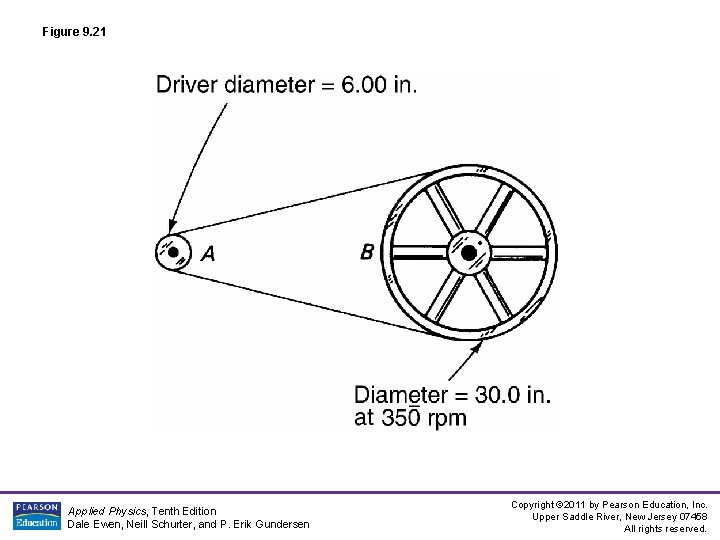

Figure 9. 21 Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik

Figure 9. 22 Crossing a belt reverses direction. Applied Physics, Tenth Edition Dale Ewen,

Figure 9. 22 (continued) Crossing a belt reverses direction. Applied Physics, Tenth Edition Dale

Slides: 15

Download presentation

Chapter 10 Simple Machines Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik Gundersen Copyright © 2011 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.

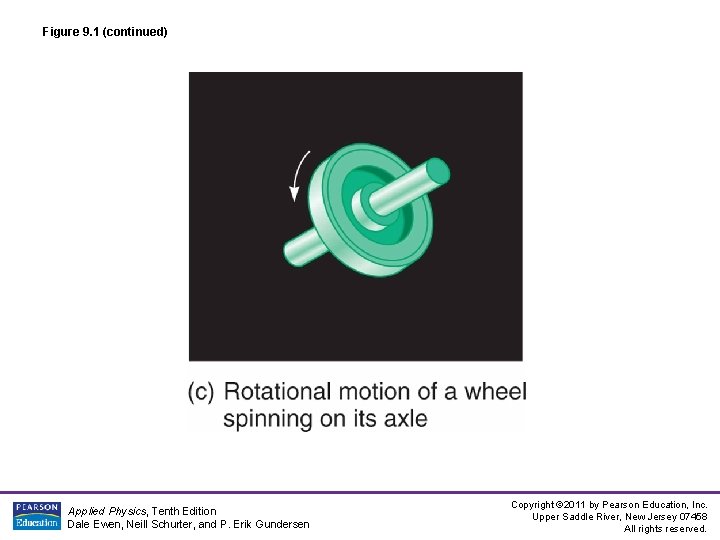

Figure 9. 1 (continued) Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik Gundersen Copyright © 2011 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.

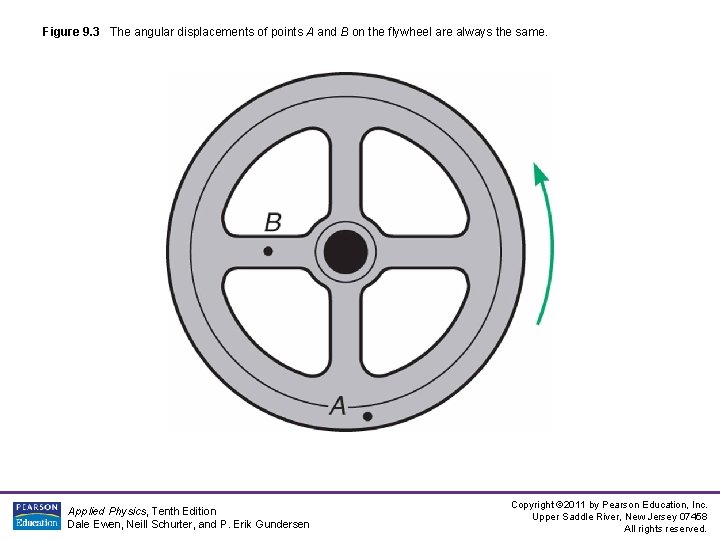

Figure 9. 3 The angular displacements of points A and B on the flywheel are always the same. Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik Gundersen Copyright © 2011 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.

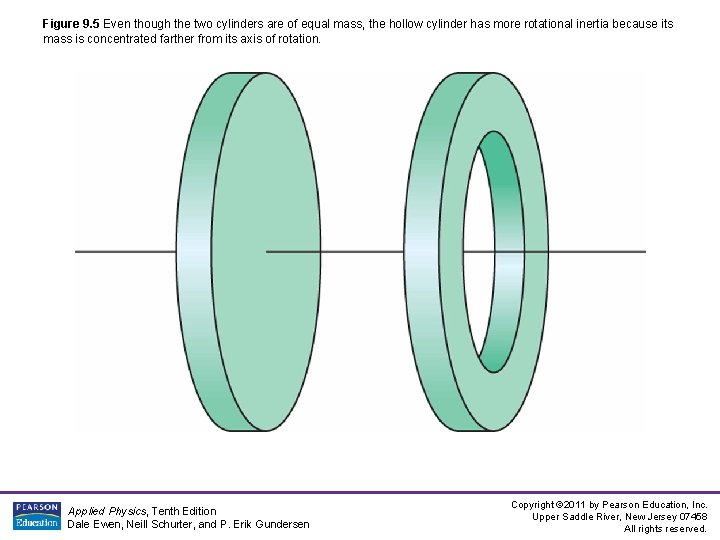

Figure 9. 5 Even though the two cylinders are of equal mass, the hollow cylinder has more rotational inertia because its mass is concentrated farther from its axis of rotation. Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik Gundersen Copyright © 2011 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.

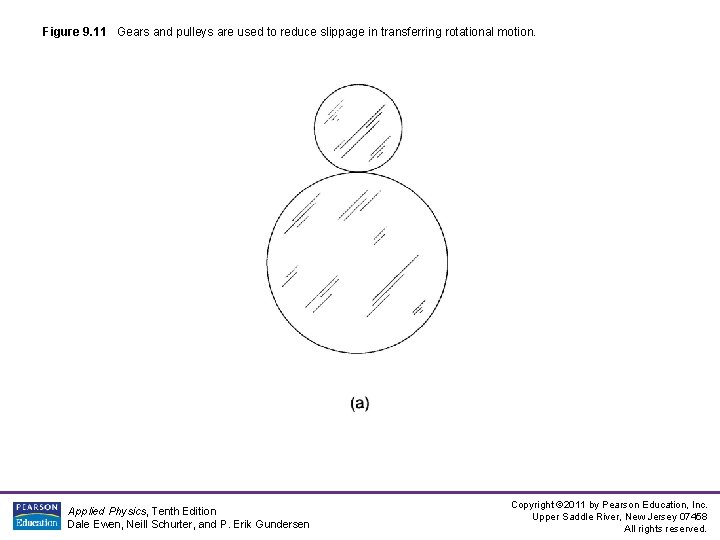

Figure 9. 11 Gears and pulleys are used to reduce slippage in transferring rotational motion. Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik Gundersen Copyright © 2011 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.

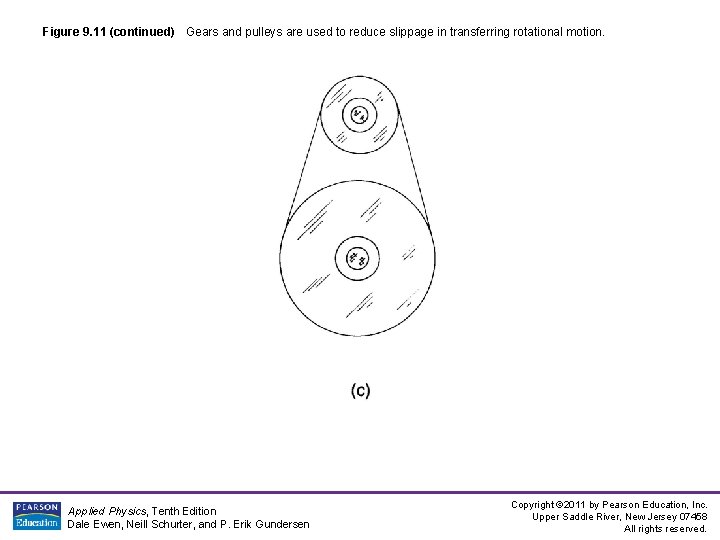

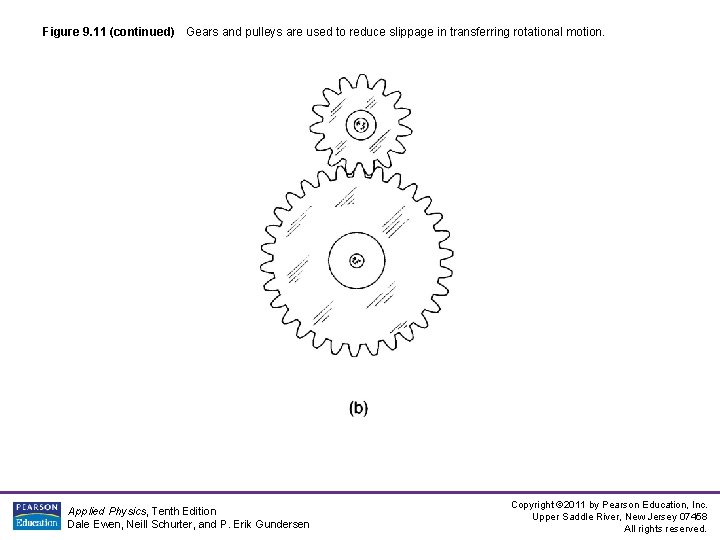

Figure 9. 11 (continued) Gears and pulleys are used to reduce slippage in transferring rotational motion. Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik Gundersen Copyright © 2011 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.

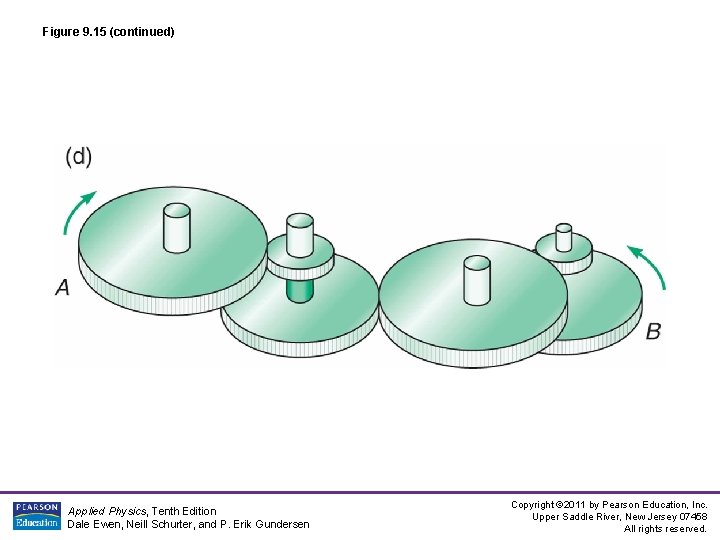

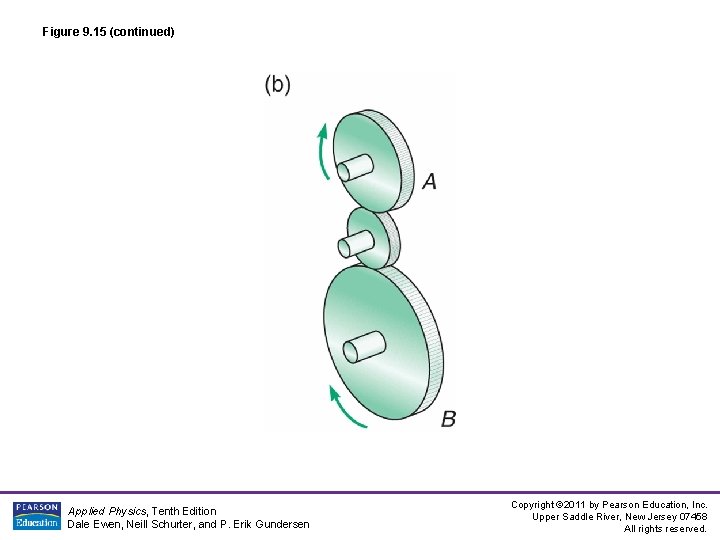

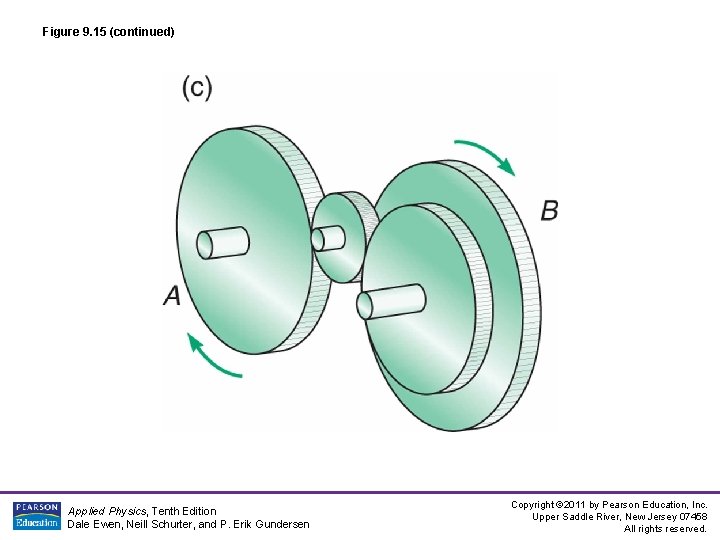

Figure 9. 15 (continued) Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik Gundersen Copyright © 2011 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.

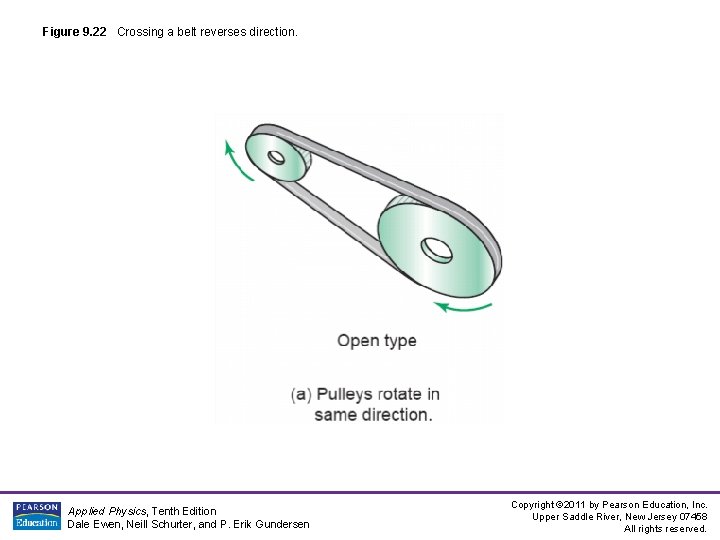

Figure 9. 22 Crossing a belt reverses direction. Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik Gundersen Copyright © 2011 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.

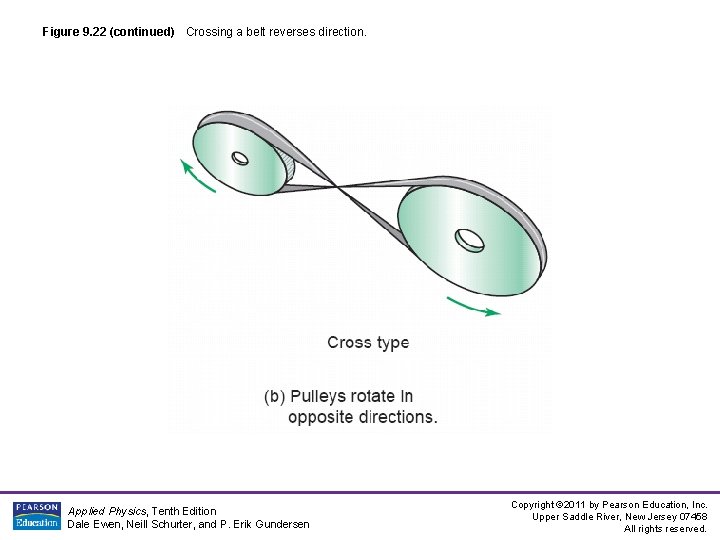

Figure 9. 22 (continued) Crossing a belt reverses direction. Applied Physics, Tenth Edition Dale Ewen, Neill Schurter, and P. Erik Gundersen Copyright © 2011 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
