AN/TSQ-179 C(V)2 (Lot D) Tactical Intelligence Ground Station (TGS) Student Training Aid Supplement

CGS OSRVT VPC GBS TOCNET TCDL VMs Other

CGS OSRVT VPC GBS TOCNET TCDL VMs Other

ECU PSC-5 Radio (Data) MI Encoder PSC-5 Radio (Voice) Dual Speaker Unit Mini Patch Panel MI Switch e. CAU LCD Display Unit Video I/O Panel Antenna Selector Switch DVD Player HD Cassette Player SYSCON Laptop PAL TV Tuner NTSC TV Tuner UPS Label the equipment on the racks. CGS OSRVT VPC GBS TOCNET TCDL VMs Other

OSRVT Modem OSRVT RF Switch Power Vault (located in back) OSRVT Receiver Ground Data Term – AC/AC Conv Ground Data Term – JSTARS IU Ground Data Term – LCU Label the equipment on the racks. CGS OSRVT VPC GBS TOCNET TCDL VMs Other

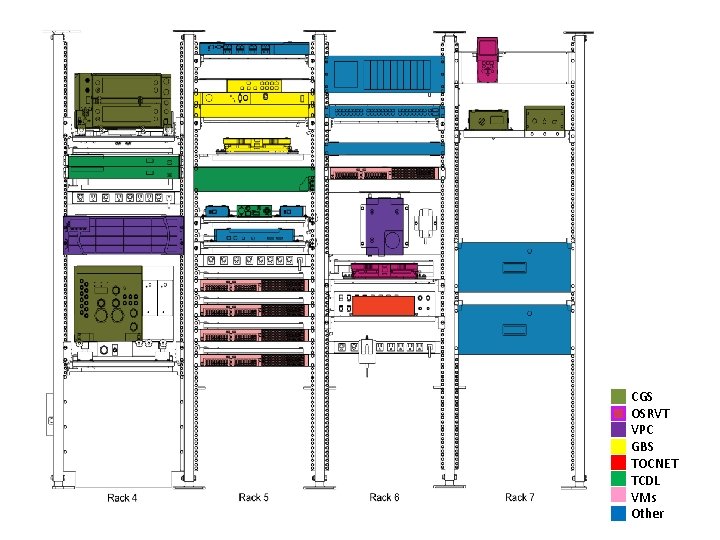

FC Switch GBS I/O Panel AN/VRC-92 Radio GBS COMSEC Tray Ass. GBS Satellite Receiver Decoder GBS Server Red and Black NIA Servers WISRD Tray PXSe Serial Boxes KG-175 RAID 1553 OMNIBUS #1 #1 #2 #2 Joint Tactical Terminal VM Ware Servers/EXSI #3 #3 #4 #4 Label the equipment on the racks. CGS OSRVT VPC GBS TOCNET TCDL VMs Other

GPS Receiver Fiber Optic Chassis Ethernet 48 -Port Switch VDC 550 KVM Switch 4: 1 Switch HERO Transcoder MI Radio Receiver OSRVT Server Storage, GBS Terminal e. MCSU Storage Label the equipment on the racks. CGS OSRVT VPC GBS TOCNET TCDL VMs Other

Road Side SEP (Signal Entry Panel) MDAS Antenna and MDAS Control GBS Antenna and GBS Ant Serial 115 V. 15 Amp Power Outlet GFCI Reset Switch 115 V. 15 Amp Power Outlet TV Antenna SCDL Antenna SATCOM Remote Antenna Conn Remote 1: JSTARS (RX & TX MTI and msg Remote 2: JTT (receive only) Remote 3: Voice over SATCOM (PSC 5 D) Remote 4: Not Used AM/FM Radio Antenna

Curb Side SEP (Signal Entry Panel) Video Connection (from CGS) Fiber Connections (Data TX/RX) NET 1 & 2 GBS Ethernet (Unclass Feed) UAV Connections (from CGS Remote via the Fiber Optic Converter) CAT 6 Ethernet NET 3 & 4 115 V. 15 Amp Power Outlet TCDL Antenna GFCI Reset Switch Black Network

Tent Interface Panel (TIP) TOC Fiber Connection Workstation TFOCA Connection (data TX/RX) IP Phone (VOIP) GFCI Reset Switch 115 V. 15 Amp Power Outlet

AM/FM Antenna TV Antenna SATCOM Directional Antenna MDAS Identify and label the remote antennas provided with the TGS GBS NGRT Antenna SCDL

Identify and write in the antennas and panels OSRVT Ku Band Antenna Dual Band Antenna Voice Curbside Signal Entry Panel (SEP) Tent Interface Panel (TIP) GPS Antenna Dual Band Antenna Data UHF Hemi Antenna OSRVT C/L Band Antenna o OSRVT UHF Band Antenna Roadside Signal Entry Panel (SEP)

List the equipment and the rack no. where mounted for the VPC Group List the equipment and the rack no. where mounted for the OSRVT group List the equipment and the rack no. where mounted for the GBS Group DVD Player (1) HD Cassette Player (1) GBS I/O Panel (5) PAL TV Tuner (1) GBS COMSEC Tray KG-250 (5) NTSC TV Tuner (1) MI Encoder (2) GBS Satellite Receiver Decoder (5) Dual Speaker Unit (2) MI Switch (2) LCD Display Unit (2) Video I/O Panel (2) RAID (4) MI Radio Receiver (6) What does OSRVT mean? One System Remote Video Terminal What does VPC mean? GBS Server (Tunes MI Radio 5) Video Processing Capability What does GBS mean? Global Broadcast Service
