TCPIP Packet Descriptor Acceptance Test Welcome Mr Ken

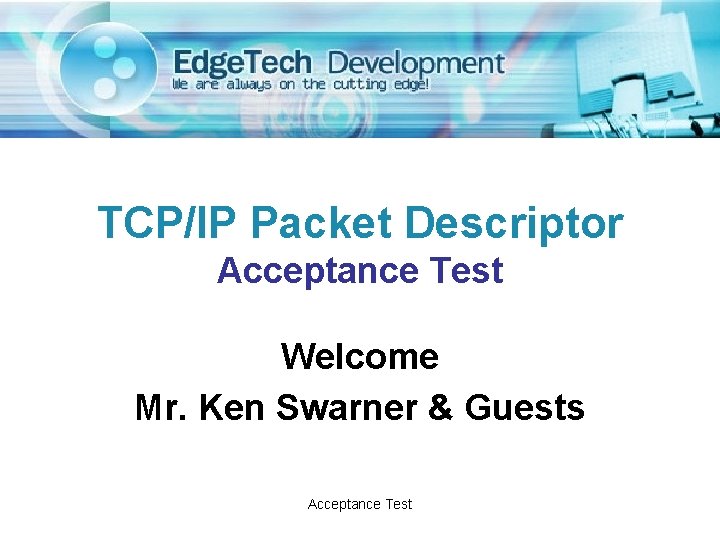

TCP/IP Packet Descriptor Acceptance Test Welcome Mr. Ken Swarner & Guests Acceptance Test

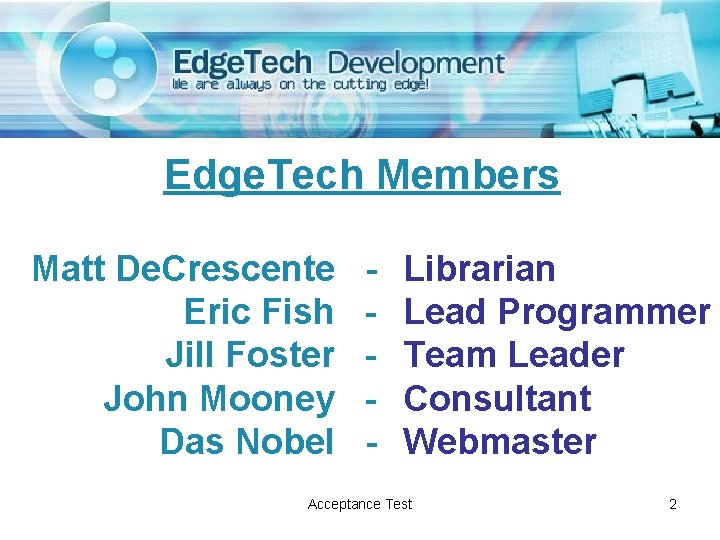

Edge. Tech Members Matt De. Crescente Eric Fish Jill Foster John Mooney Das Nobel - Librarian Lead Programmer Team Leader Consultant Webmaster Acceptance Test 2

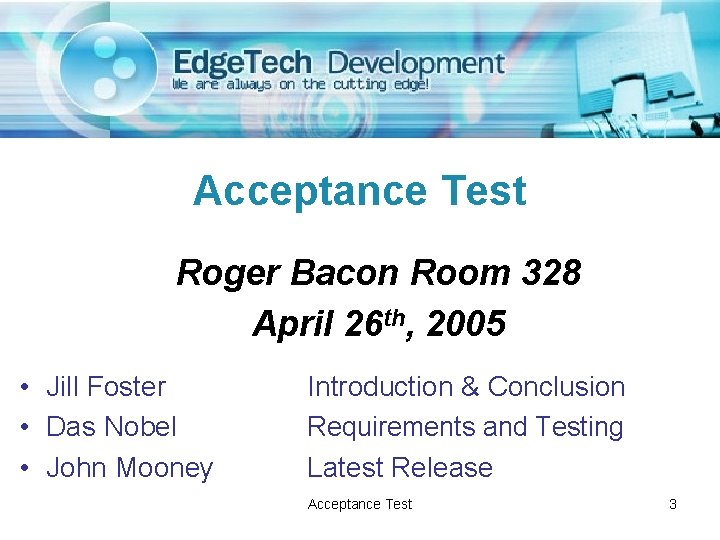

Acceptance Test Roger Bacon Room 328 April 26 th, 2005 • Jill Foster • Das Nobel • John Mooney Introduction & Conclusion Requirements and Testing Latest Release Acceptance Test 3

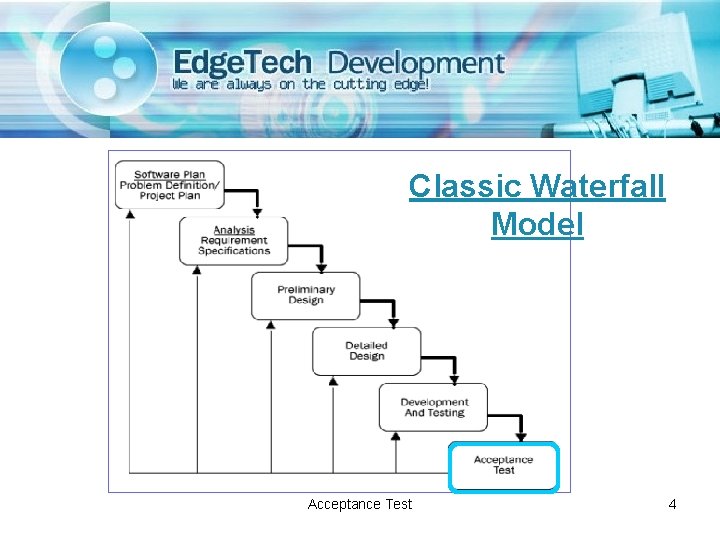

Classic Waterfall Model Acceptance Test 4

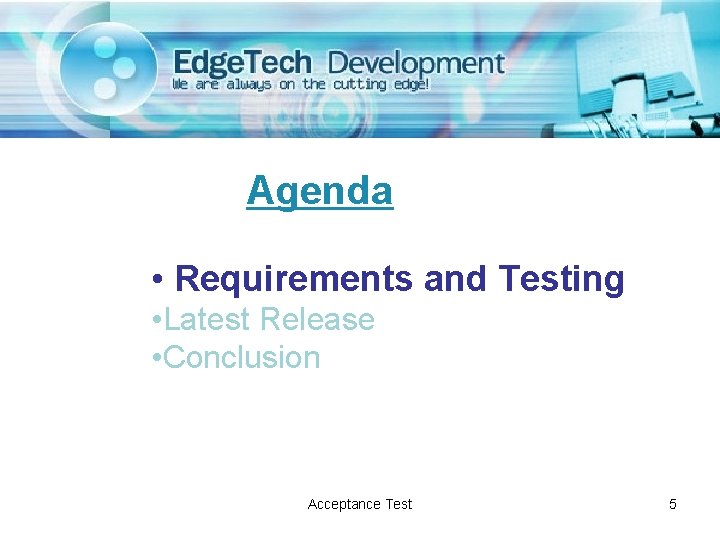

Agenda • Requirements and Testing • Latest Release • Conclusion Acceptance Test 5

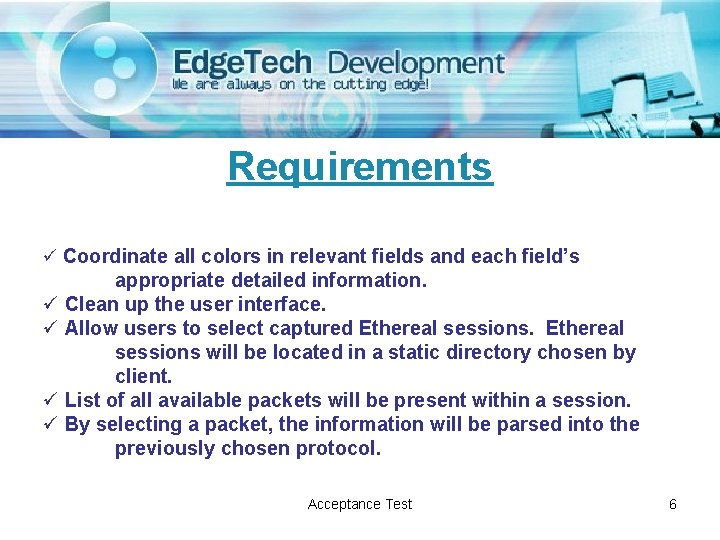

Requirements ü Coordinate all colors in relevant fields and each field’s appropriate detailed information. ü Clean up the user interface. ü Allow users to select captured Ethereal sessions will be located in a static directory chosen by client. ü List of all available packets will be present within a session. ü By selecting a packet, the information will be parsed into the previously chosen protocol. Acceptance Test 6

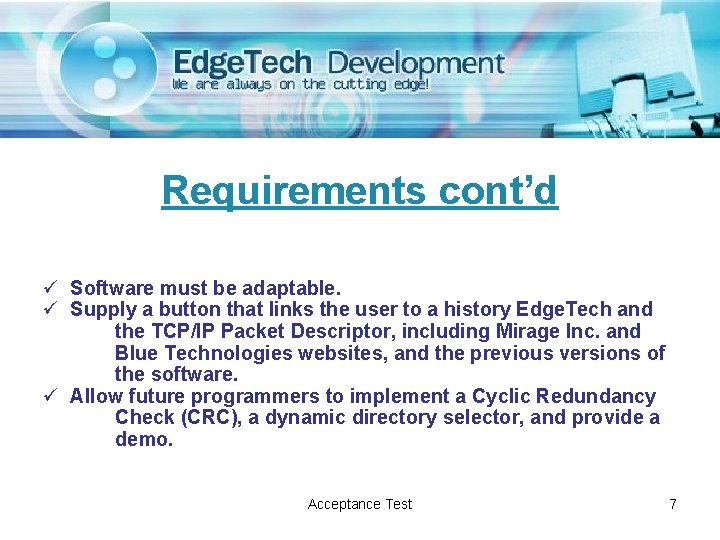

Requirements cont’d ü Software must be adaptable. ü Supply a button that links the user to a history Edge. Tech and the TCP/IP Packet Descriptor, including Mirage Inc. and Blue Technologies websites, and the previous versions of the software. ü Allow future programmers to implement a Cyclic Redundancy Check (CRC), a dynamic directory selector, and provide a demo. Acceptance Test 7

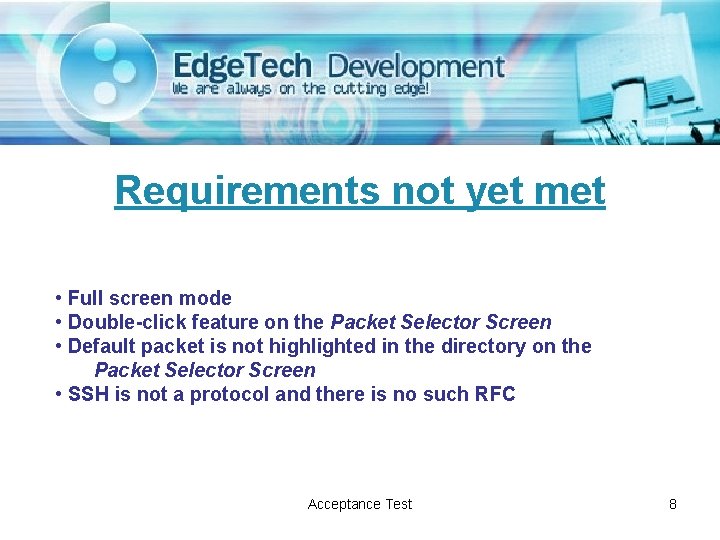

Requirements not yet met • Full screen mode • Double-click feature on the Packet Selector Screen • Default packet is not highlighted in the directory on the Packet Selector Screen • SSH is not a protocol and there is no such RFC Acceptance Test 8

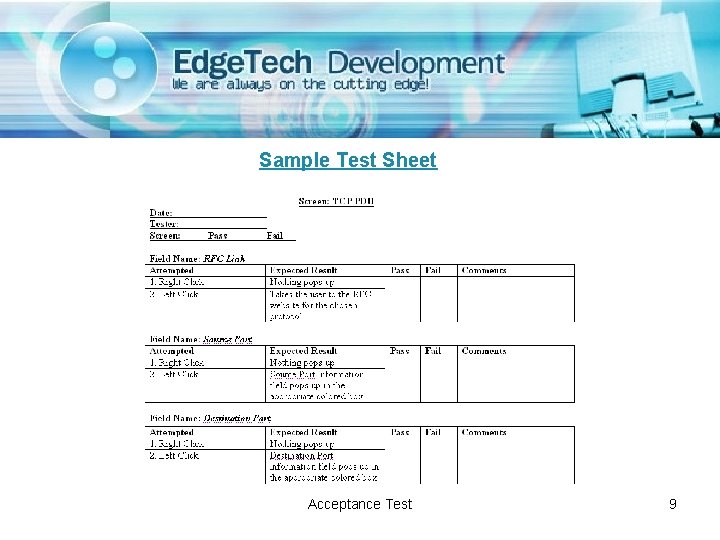

Sample Test Sheet Acceptance Test 9

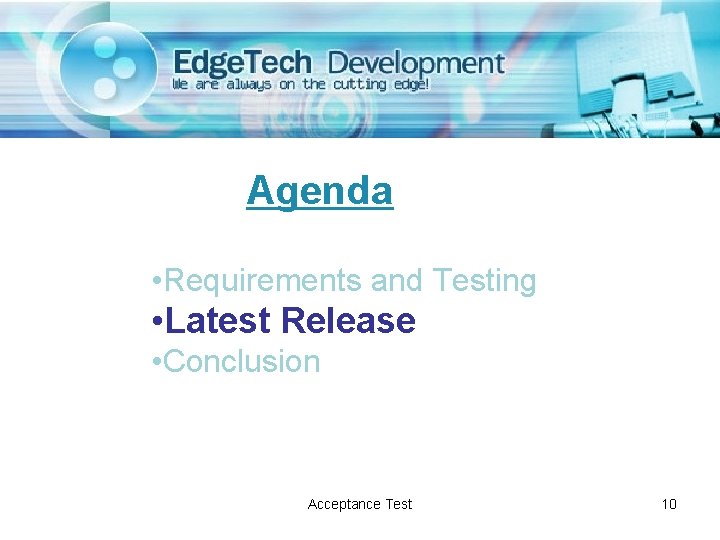

Agenda • Requirements and Testing • Latest Release • Conclusion Acceptance Test 10

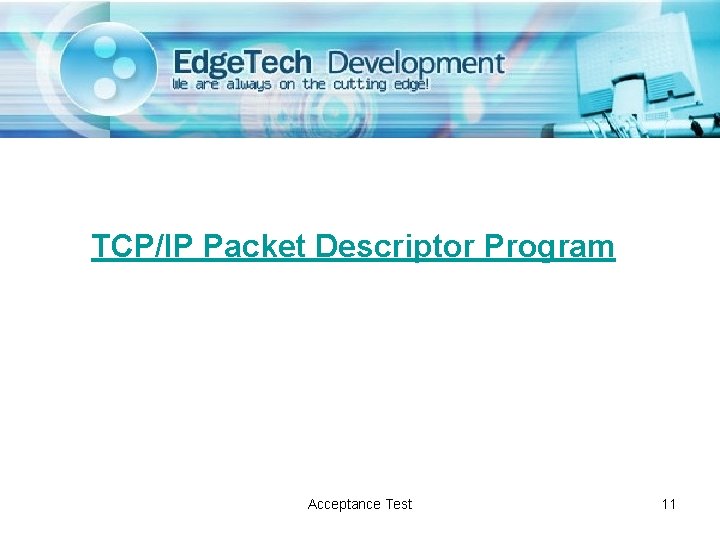

TCP/IP Packet Descriptor Program Acceptance Test 11

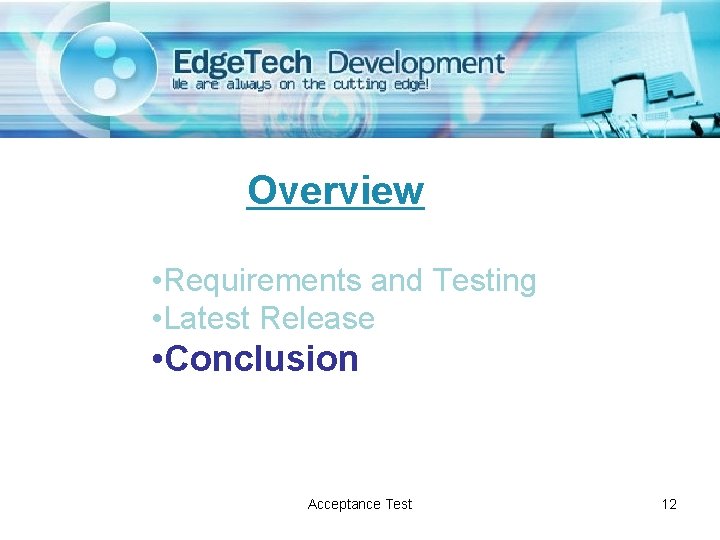

Overview • Requirements and Testing • Latest Release • Conclusion Acceptance Test 12

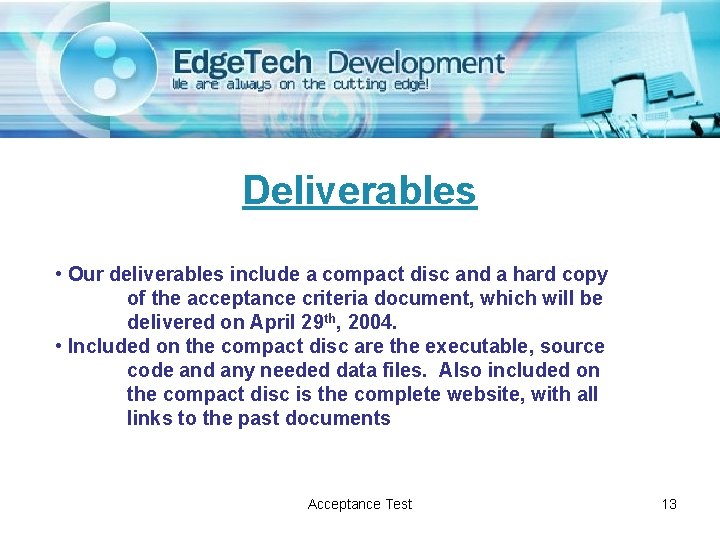

Deliverables • Our deliverables include a compact disc and a hard copy of the acceptance criteria document, which will be delivered on April 29 th, 2004. • Included on the compact disc are the executable, source code and any needed data files. Also included on the compact disc is the complete website, with all links to the past documents Acceptance Test 13

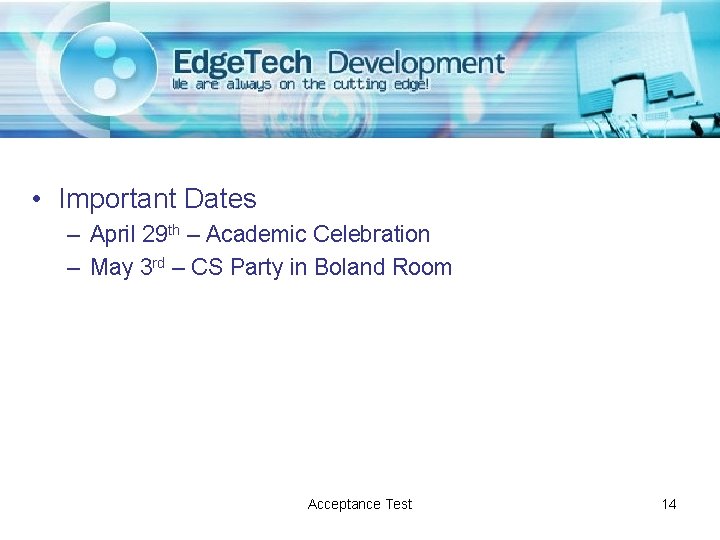

• Important Dates – April 29 th – Academic Celebration – May 3 rd – CS Party in Boland Room Acceptance Test 14

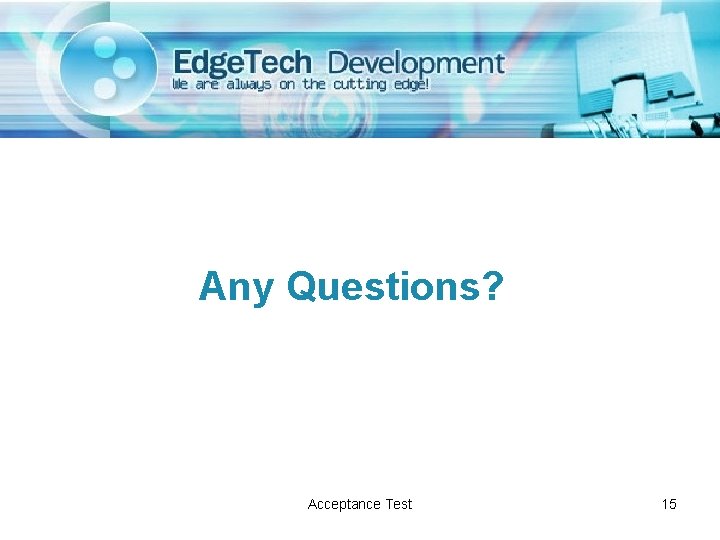

Any Questions? Acceptance Test 15

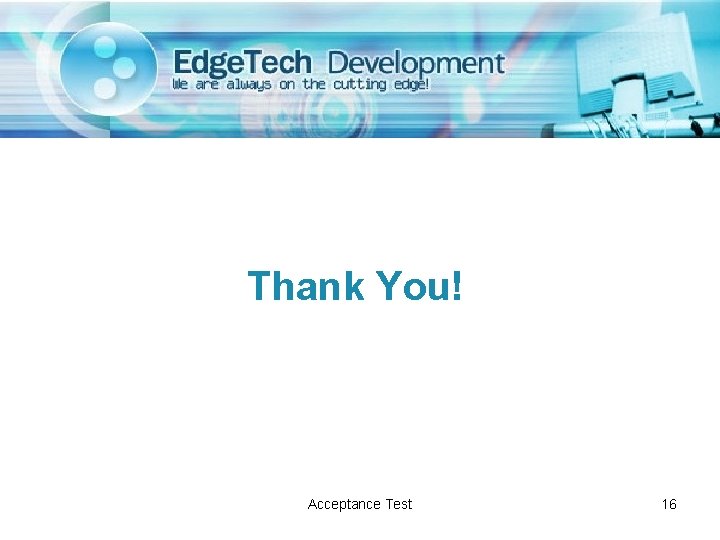

Thank You! Acceptance Test 16
