Take 5 for Safety 10 CFR 851 and

Take 5 for Safety 10 CFR 851 and Electrical Equipment Installation

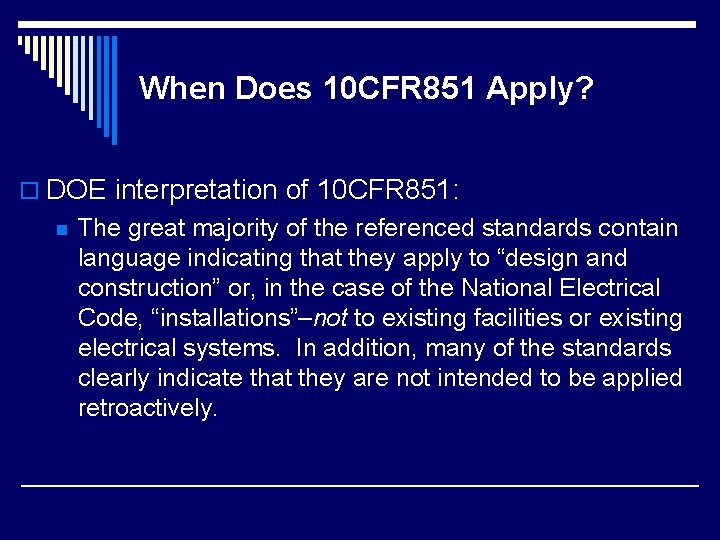

When Does 10 CFR 851 Apply? o DOE interpretation of 10 CFR 851: n The great majority of the referenced standards contain language indicating that they apply to “design and construction” or, in the case of the National Electrical Code, “installations”–not to existing facilities or existing electrical systems. In addition, many of the standards clearly indicate that they are not intended to be applied retroactively.

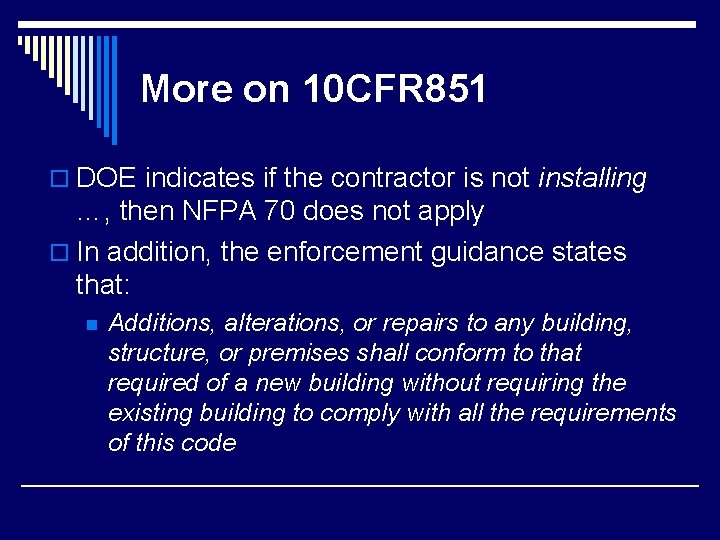

More on 10 CFR 851 o DOE indicates if the contractor is not installing …, then NFPA 70 does not apply o In addition, the enforcement guidance states that: n Additions, alterations, or repairs to any building, structure, or premises shall conform to that required of a new building without requiring the existing building to comply with all the requirements of this code

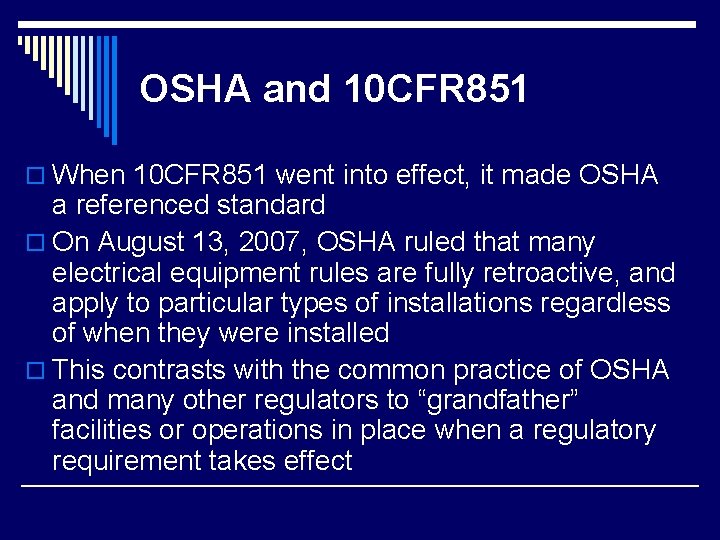

OSHA and 10 CFR 851 o When 10 CFR 851 went into effect, it made OSHA a referenced standard o On August 13, 2007, OSHA ruled that many electrical equipment rules are fully retroactive, and apply to particular types of installations regardless of when they were installed o This contrasts with the common practice of OSHA and many other regulators to “grandfather” facilities or operations in place when a regulatory requirement takes effect

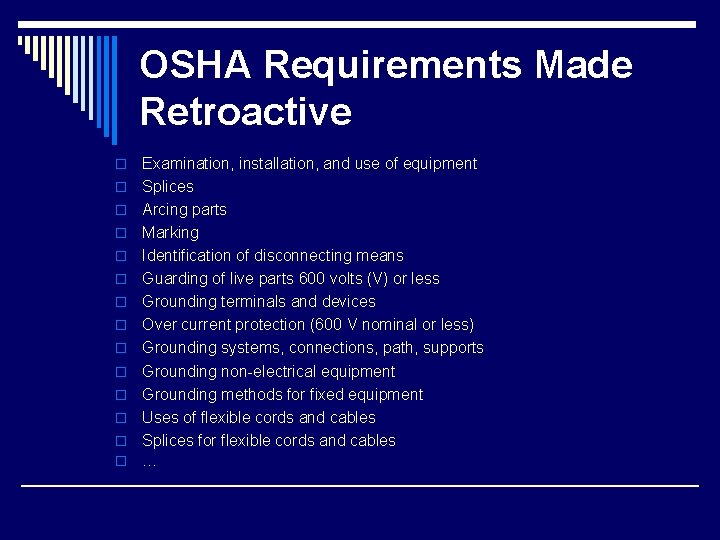

OSHA Requirements Made Retroactive o o o o Examination, installation, and use of equipment Splices Arcing parts Marking Identification of disconnecting means Guarding of live parts 600 volts (V) or less Grounding terminals and devices Over current protection (600 V nominal or less) Grounding systems, connections, path, supports Grounding non-electrical equipment Grounding methods for fixed equipment Uses of flexible cords and cables Splices for flexible cords and cables …

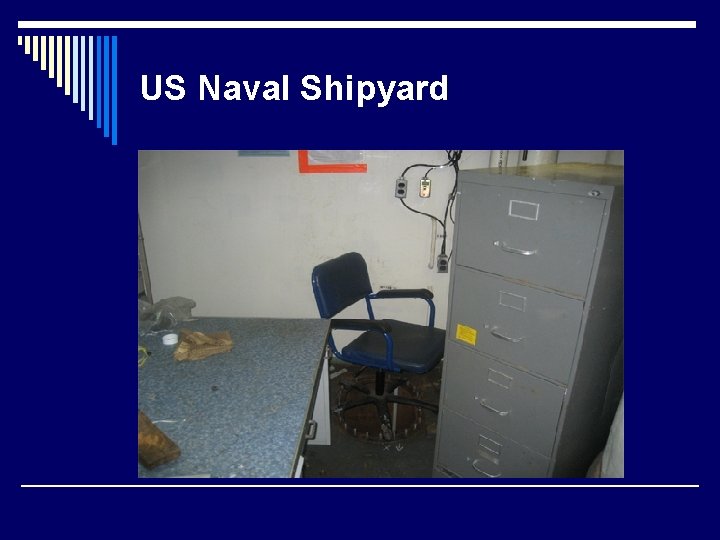

US Naval Shipyard
