Signalling Security RESIST Roaming Evolution to Secure IPX

Signalling Security RESIST Roaming Evolution to Secure IPX Signalling Together 30/05/2018

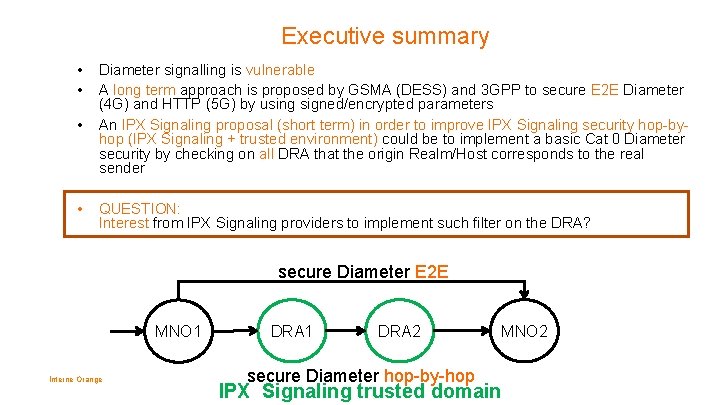

Executive summary • • • Diameter signalling is vulnerable A long term approach is proposed by GSMA (DESS) and 3 GPP to secure E 2 E Diameter (4 G) and HTTP (5 G) by using signed/encrypted parameters An IPX Signaling proposal (short term) in order to improve IPX Signaling security hop-byhop (IPX Signaling + trusted environment) could be to implement a basic Cat 0 Diameter security by checking on all DRA that the origin Realm/Host corresponds to the real sender • QUESTION: Interest from IPX Signaling providers to implement such filter on the DRA? secure Diameter E 2 E MNO 1 Interne Orange DRA 1 DRA 2 secure Diameter hop-by-hop MNO 2 IPX Signaling trusted domain

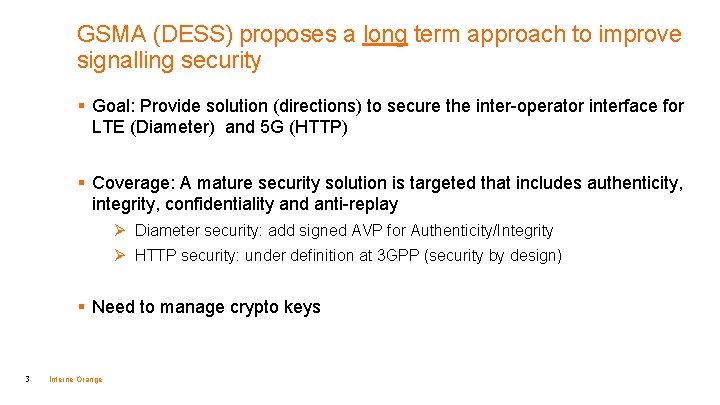

GSMA (DESS) proposes a long term approach to improve signalling security § Goal: Provide solution (directions) to secure the inter-operator interface for LTE (Diameter) and 5 G (HTTP) § Coverage: A mature security solution is targeted that includes authenticity, integrity, confidentiality and anti-replay Ø Diameter security: add signed AVP for Authenticity/Integrity Ø HTTP security: under definition at 3 GPP (security by design) § Need to manage crypto keys 3 Interne Orange

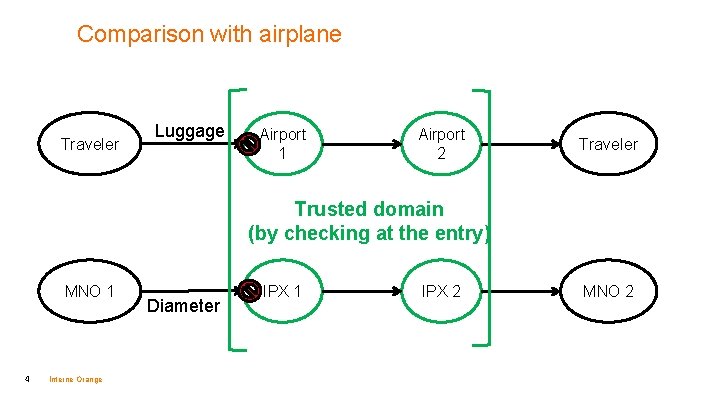

Comparison with airplane Traveler Luggage Airport 1 Airport 2 Traveler Trusted domain (by checking at the entry) MNO 1 4 Interne Orange Diameter IPX 1 IPX 2 MNO 2

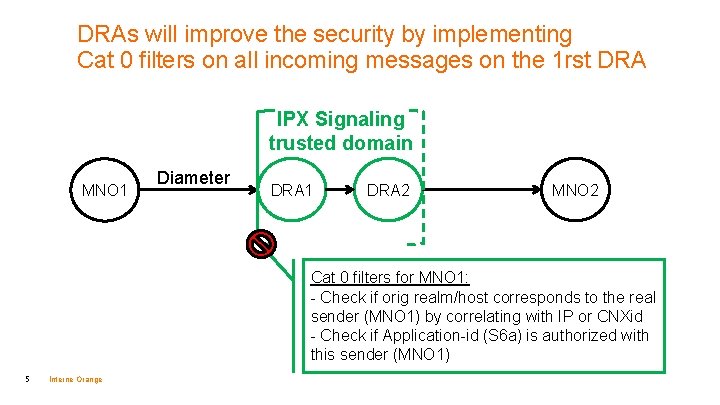

DRAs will improve the security by implementing Cat 0 filters on all incoming messages on the 1 rst DRA IPX Signaling trusted domain MNO 1 Diameter DRA 1 DRA 2 MNO 2 Cat 0 filters for MNO 1: - Check if orig realm/host corresponds to the real sender (MNO 1) by correlating with IP or CNXid - Check if Application-id (S 6 a) is authorized with this sender (MNO 1) 5 Interne Orange

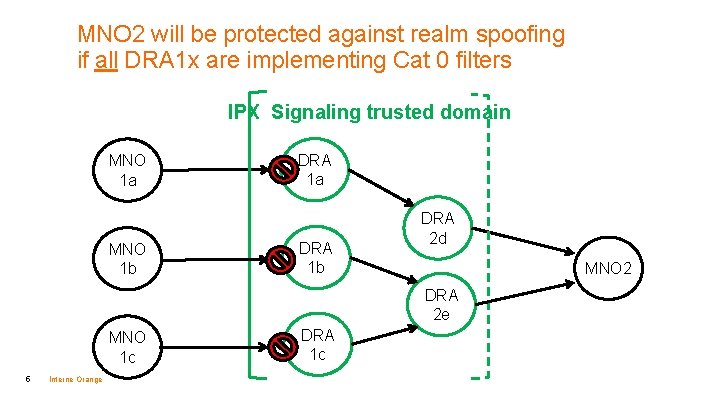

MNO 2 will be protected against realm spoofing if all DRA 1 x are implementing Cat 0 filters IPX Signaling trusted domain MNO 1 a MNO 1 b DRA 1 a DRA 1 b DRA 2 d MNO 2 DRA 2 e MNO 1 c 6 Interne Orange DRA 1 c

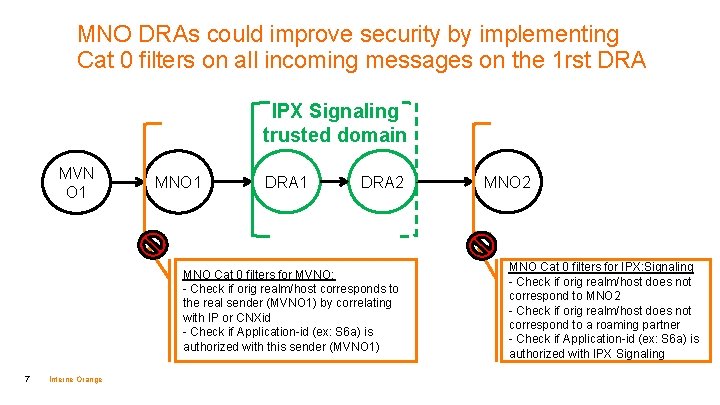

MNO DRAs could improve security by implementing Cat 0 filters on all incoming messages on the 1 rst DRA IPX Signaling trusted domain MVN O 1 MNO 1 DRA 2 MNO Cat 0 filters for MVNO: - Check if orig realm/host corresponds to the real sender (MVNO 1) by correlating with IP or CNXid - Check if Application-id (ex: S 6 a) is authorized with this sender (MVNO 1) 7 Interne Orange MNO 2 MNO Cat 0 filters for IPX: Signaling - Check if orig realm/host does not correspond to MNO 2 - Check if orig realm/host does not correspond to a roaming partner - Check if Application-id (ex: S 6 a) is authorized with IPX Signaling
