® Sialex®Ring “Gegen Kalk und Rost” (against scale and corrosion) www. sialexring. com / www. phoenixringmanufaktur. de
® Sialex®Ring existing pipes scale Initially notice more „Scale“ particles passing through water pipes. Gradual decrease over time. Sialex® effect Incoming water (to water circuit) Water pipe 285 mg/L Exiting water (to water circuit) Ex. Ideal situation 285 mg/L „un protected“ pipe work in hard water area Installation of a Sialex® Ring www. sialexring. com / www. phoenixringmanufaktur. de time

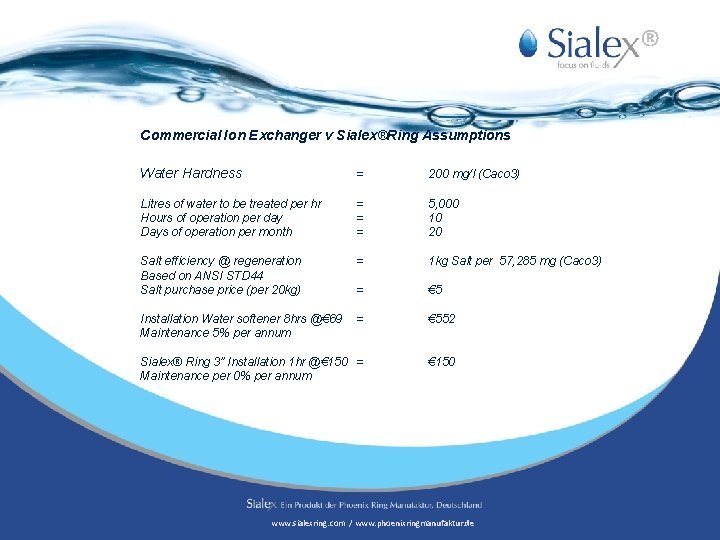

® Commercial Ion Exchanger v Sialex®Ring Assumptions Water Hardness = 200 mg/l (Caco 3) Litres of water to be treated per hr Hours of operation per day Days of operation per month = = = 5, 000 10 20 Salt efficiency @ regeneration Based on ANSI STD 44 Salt purchase price (per 20 kg) = 1 kg Salt per 57, 285 mg (Caco 3) = € 5 Installation Water softener 8 hrs @€ 69 Maintenance 5% per annum = € 552 Sialex® Ring 3” Installation 1 hr @€ 150 = Maintenance per 0% per annum € 150 www. sialexring. com / www. phoenixringmanufaktur. de

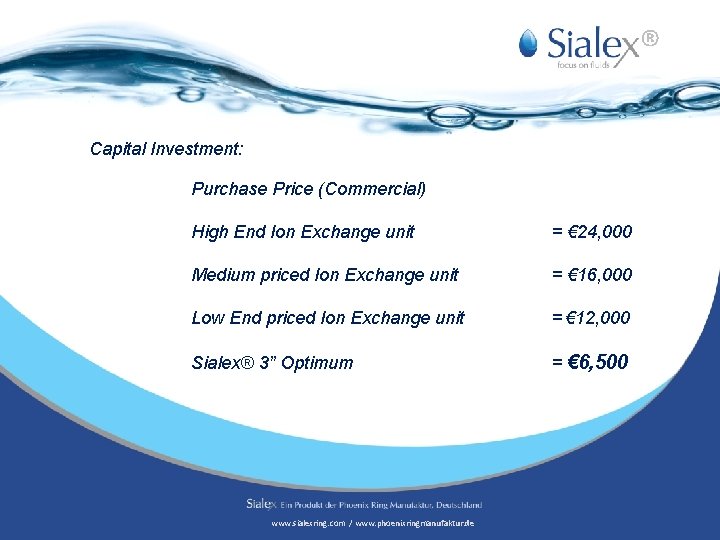

® Capital Investment: Purchase Price (Commercial) High End Ion Exchange unit = € 24, 000 Medium priced Ion Exchange unit = € 16, 000 Low End priced Ion Exchange unit = € 12, 000 Sialex® 3” Optimum = € 6, 500 www. sialexring. com / www. phoenixringmanufaktur. de

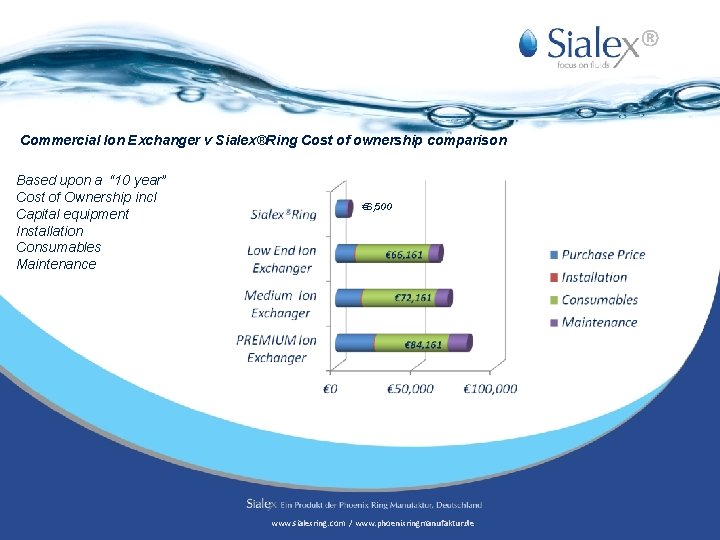

® Commercial Ion Exchanger v Sialex®Ring Cost of ownership comparison Based upon a “ 10 year” Cost of Ownership incl Capital equipment Installation Consumables Maintenance € 6, 500 www. sialexring. com / www. phoenixringmanufaktur. de
® 190 tons of SALT ! 10 Years (est. over 10 years) US led Growing restrictions on Salt based ion exchange use 38 x 5 ton SKIPs 9, 500 x bags (20 kg) 20 kg 20 kg www. sialexring. com / www. phoenixringmanufaktur. de 20 kg

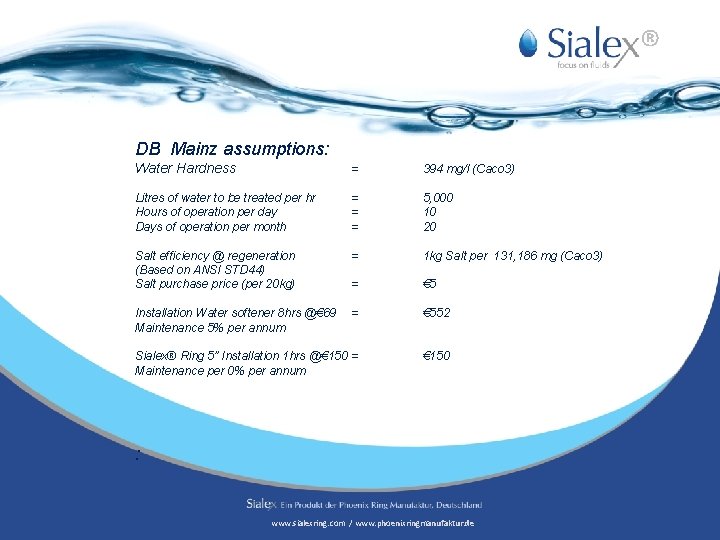

® DB Mainz assumptions: Water Hardness = 394 mg/l (Caco 3) Litres of water to be treated per hr Hours of operation per day Days of operation per month = = = 5, 000 10 20 Salt efficiency @ regeneration (Based on ANSI STD 44) Salt purchase price (per 20 kg) = 1 kg Salt per 131, 186 mg (Caco 3) = € 5 Installation Water softener 8 hrs @€ 69 Maintenance 5% per annum = € 552 Sialex® Ring 5” Installation 1 hrs @€ 150 = Maintenance per 0% per annum € 150 : www. sialexring. com / www. phoenixringmanufaktur. de

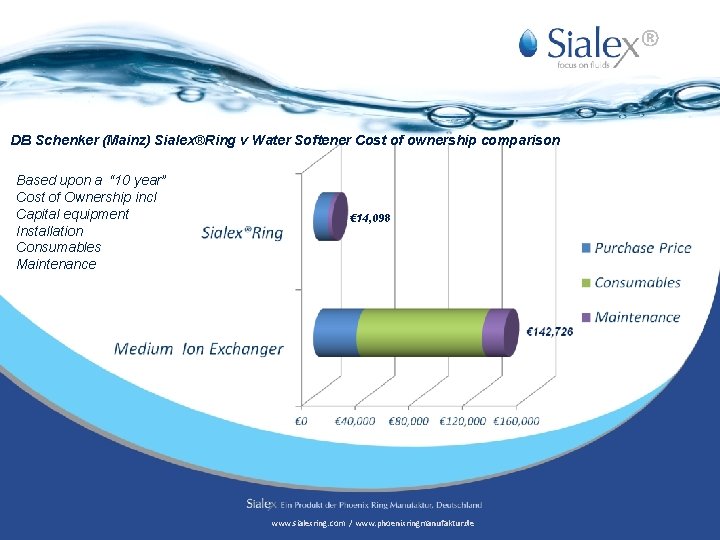

® DB Schenker (Mainz) Sialex®Ring v Water Softener Cost of ownership comparison Based upon a “ 10 year” Cost of Ownership incl Capital equipment Installation Consumables Maintenance € 14, 098 www. sialexring. com / www. phoenixringmanufaktur. de
® 374 tons of SALT ! 10 Years (est. over 10 years) US led Growing restrictions on Salt based ion exchange use 75 x 5 ton SKIP S 25 kg 25 kg www. sialexring. com / www. phoenixringmanufaktur. de 25 kg

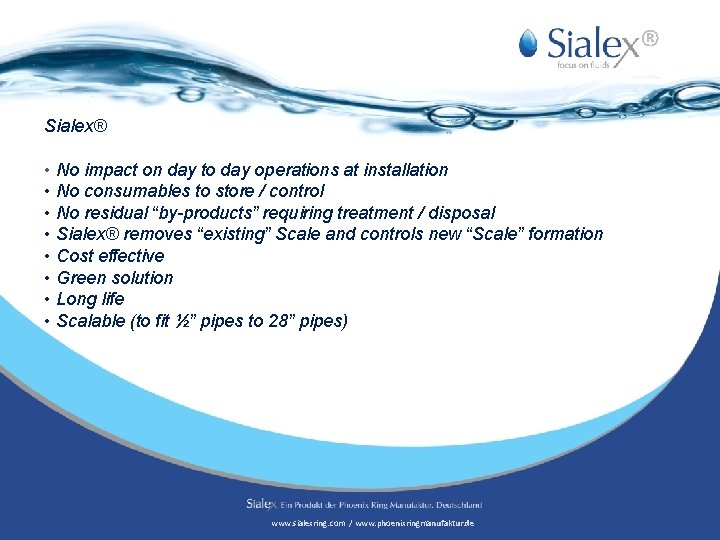

® Sialex® • No impact on day to day operations at installation • No consumables to store / control • No residual “by-products” requiring treatment / disposal • Sialex® removes “existing” Scale and controls new “Scale” formation • Cost effective • Green solution • Long life • Scalable (to fit ½” pipes to 28” pipes) www. sialexring. com / www. phoenixringmanufaktur. de
® Thank You Sialex®Ring “Gegen Kalk und Rost” (against scale and corrosion) www. sialexring. com / www. phoenixringmanufaktur. de
