VBAでの記述 ①データ宣言とパルス信号の設定 (色々な信号を設定してみよう) Private Private Const Num = 8 Const PI = 3. 12159265358979

VBAでの記述 ①データ宣言とパルス信号の設定 (色々な信号を設定してみよう) Private Private Const Num = 8 Const PI = 3. 12159265358979 X(Num) As Double Y(Num) As Double Z(Num) As Double HMat(8, 8) As Double Private Sub パルス() For K = 0 To Num - 1 X(K) = -1 If K >= 3 And K <= 5 Then X(K) = 1 Next X(Num) = X(0) End Sub

VBAでの記述 ②結果設定とボタンのCLICKイベントハンドラ Private Sub 結果設定() With Worksheets("Sheet 3"). Cells(1, 1) = "No. ": .

VBAでの記述 ②結果設定とボタンのCLICKイベントハンドラ Private Sub 結果設定() With Worksheets("Sheet 3"). Cells(1, 1) = "No. ": . Cells(1, 2) = "X". Cells(1, 3) = "Y": . Cells(1, 4) = "Z" For K = 0 To Num. Cells(K + 2, 1) = K: . Cells(K + 2, 2) = X(K). Cells(K + 2, 3) = Y(K): . Cells(K + 2, 4) = Z(K) Next End With End Sub Sheet 3_ボタン 1_Click() パルス set 8 HMAT HT IHT 結果設定 End Sub

VBAでの記述 ③8行8列のアダマール行列設定(その1) Private Sub set 8 HMAT() For I = 0 To 7 HMat(0,

VBAでの記述 ③8行8列のアダマール行列設定(その1) Private Sub set 8 HMAT() For I = 0 To 7 HMat(0, I) = 1 Next For I = 0 To 7 V = 1 If I >= 4 Then V = -1 HMat(1, I) = V Next For I = 0 To 7 V = 1 If I >= 2 And I <= 5 Then V = -1 HMat(2, I) = V Next For I = 0 To 7 V = 1 If I = 2 Or I = 3 Or I = 6 Or I = 7 Then V = -1 HMat(3, I) = V Next

VBAでの記述 ④8行8列のアダマール行列設定(その2) For I = 0 To 7 V = 1 If I =

VBAでの記述 ④8行8列のアダマール行列設定(その2) For I = 0 To 7 V = 1 If I = 1 Or I = HMat(4, I) = V Next For I = 0 To 7 V = 1 If I = 1 Or I = HMat(5, I) = V Next For I = 0 To 7 V = 1 If I = 1 Or I = HMat(6, I) = V Next For I = 0 To 7 V = 1 If (I Mod 2) <> HMat(7, I) = V Next End Sub 2 Or I = 5 Or I = 6 Then V = -1 2 Or I = 4 Or I = 7 Then V = -1 3 Or I = 4 Or I = 6 Then V = -1 0 Then V = -1

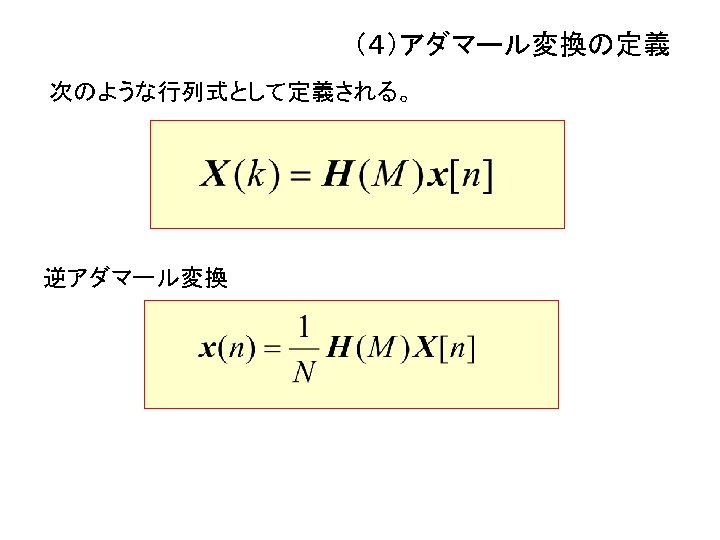

VBAでの記述 ⑤アダマール変換と逆アダマール変換 Private Sub HT() 'Hadamard変換 For I = 0 To Num - 1

VBAでの記述 ⑤アダマール変換と逆アダマール変換 Private Sub HT() 'Hadamard変換 For I = 0 To Num - 1 Y(I) = 0 For J = 0 To Num - 1 Y(I) = Y(I) + HMat(I, J)* X(J) Next Y(Num) = Y(0) End Sub Private Sub IHT() '逆Hadamard変換 For I = 0 To Num - 1 Z(I) = 0 For J = 0 To Num - 1 Z(I) = Z(I) + HMat(I, J) *Y(J) Next Z(Num) = Z(0) For I = 0 To Num Z(I) = Z(I) / Num Next End Sub Hmat(I, J)は -1または1なので 加算と減算に 置き換えることができる。

VBAでの記述 ①FHT(その1) (その他のプログラムはHTと同じ) Private Sub FHT() 'Hadamard変換) For i = 0 To Num Y(i)

VBAでの記述 ①FHT(その1) (その他のプログラムはHTと同じ) Private Sub FHT() 'Hadamard変換) For i = 0 To Num Y(i) = X(i) Next 'ビット逆順の並び替え For J = 0 To Num - 1 JP = J: JX = 0: k = 1 Do While k < Num MD = JP Mod 2 JX = JX * 2 + MD JP = JP 2 k = k * 2 Loop If J < JX Then temp = Y(J): Y(J) = Y(JX): Y(JX) = temp End If Next

VBAでの記述 ②FHT(その2) 'FHTの計算 n_half = Num  2: Ne = 1 Do While Ne

VBAでの記述 ②FHT(その2) 'FHTの計算 n_half = Num 2: Ne = 1 Do While Ne < Num 符号 = 1 n_half 2 = n_half * 2 For JP = 0 To Num - 1 Step n_half 2 JX = 0 For J = JP To JP + n_half - 1 jnh = J + n_half xtmp = 符号 * Y(jnh) = Y(J) - xtmp Y(J) = Y(J) + xtmp JX = JX + Ne Next 符号 = -符号 Next n_half = n_half 2 Ne = Ne * 2 Loop Y(Num) = Y(0) End Sub

VBAでの記述 ③IFHT(その1) Private Sub IFHT() '逆Hadamard変換 For i = 0 To Num Z(i) =

VBAでの記述 ③IFHT(その1) Private Sub IFHT() '逆Hadamard変換 For i = 0 To Num Z(i) = Y(i) Next 'ビット逆順の並び替え For J = 0 To Num - 1 JP = J: JX = 0: k = 1 Do While k < Num MD = JP Mod 2 JX = JX * 2 + MD JP = JP 2 k = k * 2 Loop If J < JX Then temp = Z(J): Z(J) = Z(JX): Z(JX) = temp End If Next 'FHTの計算 n_half = Num 2: Ne = 1 Do While Ne < Num

VBAでの記述 ④IFHT(その2) Do While Ne < Num 符号 = 1 n_half 2 = n_half

VBAでの記述 ④IFHT(その2) Do While Ne < Num 符号 = 1 n_half 2 = n_half * 2 For JP = 0 To Num - 1 Step n_half 2 JX = 0 For J = JP To JP + n_half - 1 jnh = J + n_half xtmp = 符号 * Z(jnh) = Z(J) - xtmp Z(J) = Z(J) + xtmp JX = JX + Ne Next 符号 = -符号 Next n_half = n_half 2 Ne = Ne * 2 Loop Z(Num) = Z(0) For i = 0 To Num Z(i) = Z(i) / Num Next End Sub
