Preview VX Infinity HIGHLIGHTS Infinity Design VX Infinity

Preview

VX Infinity HIGHLIGHTS • Infinity Design VX Infinity – IP 55, ASA body, Rebuilt from the basic architecture • Multi Dimensional Optics – Rectangular Detection Area Setting • Tough Mod 2 – Microwave Detection on Battery Operation • Advanced Processing Logic – SMDA Logic and Low energy consumption

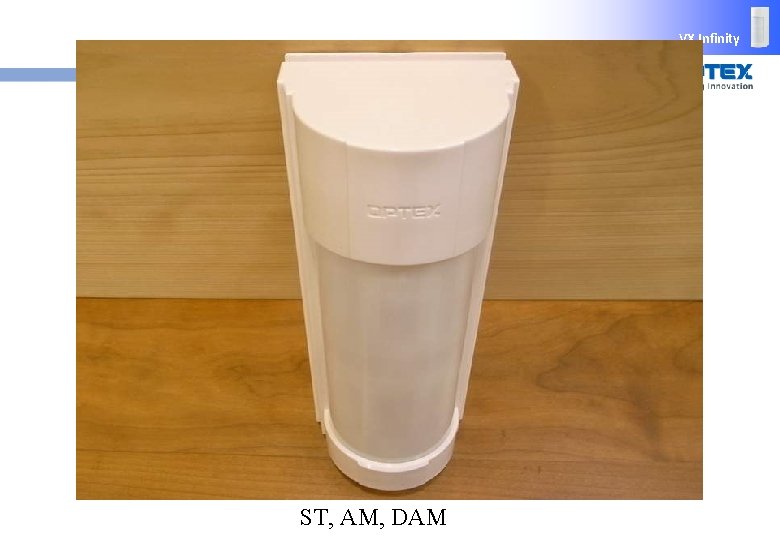

VX Infinity ST, AM, DAM

VX Infinity ST, AM, DAM

VX Infinity ST, AM, DAM

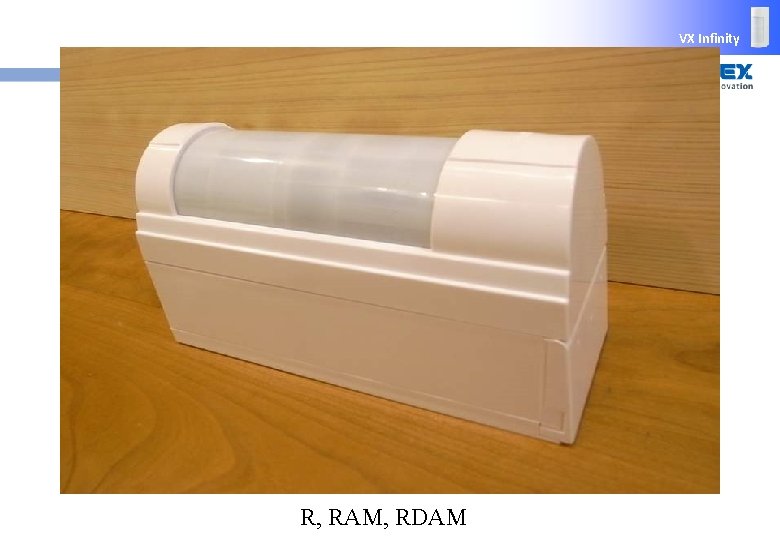

VX Infinity R, RAM, RDAM

VX Infinity R, RAM, RDAM

VX Infinity R, RAM, RDAM

VX Infinity

VX Infinity Comparison VX Infinity VX-402 VX-Infinity Internal Protection IP 54 IP 55 Temperature Environment -20 ~ 50 deg. C -30 ~ 60 deg. C Size of ST (mm) 198× 80× 82 181. 9× 70. 9× 66. 5 Detection Ranges (Adjustable steps) 12 m, 8 m, 5 m, 2 m (4 steps) 12 m, 8. 5 m, 6 m, 3. 5 m, 2. 5 m (5 steps) 90 wide / 7 zones 97 wide / 8 zones (87 wide / 7 zones toward sides) Area angle / Optical Zoning

Stylish Modern Appearance VX Infinity Wired model also comes with Back Box as standard so that same appearance with wireless can be made if needed.

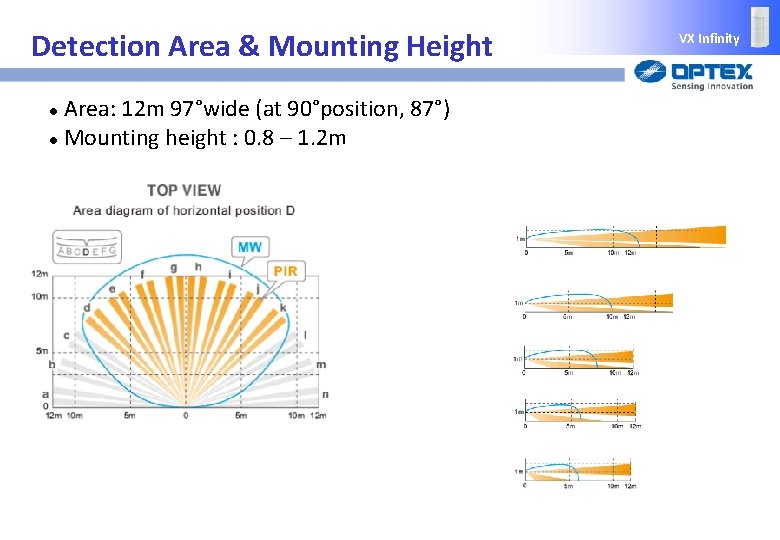

Detection Area & Mounting Height Area: 12 m 97°wide (at 90°position, 87°) l Mounting height : 0. 8 – 1. 2 m VX Infinity l VX Infinity

Variety of model line-up to cover your needs VX Infinity No Model 2 PIR Anti-Masking (AM) Microwave (D) Battery Operated VX Infinity (R) 1 VXI-ST ü - - - 2 VXI-AM ü ü - - 3 VXI-DAM ü ü ü - 4 VXI-R ü - - ü 5 VXI-RAM ü ü - ü 6 VXI-RDAM ü ü VXI’s low power consumption enables battery operated Microwave model

Low Power Consumption model l Power consumption Item VXI-ST VXI-AM 20 m. A (max) at 12 V DC Current draw l VX Infinity VXI-RAM 9μA(standby) / 2 m. A (max) at 3 VDC VXI-DAM 25 VX m. AInfinity (max) at 12 V DC VXI-RDAM 18μA(standby) / 4 m. A (max) at 3 VDC R-model battery life VXI employs new low power consumption microwave unit. In combination with new microwave and Optex smart control logic for power saving, VXI enables fairly-long battery life. * In comparison with HX-40 RAM/80 NRAM, power consumption reduced by approx 40%. ü Technical information Interactive Break - In the noisy environment, microprocessor is activated frequently and power consumption is increased. In such noisy environment, microprocessor automatically stops PIR signal analysis for power saving and this enables long battery life in such as harsh environment.

Auto area adjustment function VX Infinity The false alarm from temperature change at wall surface is one of the major problem when using VX at the corner (at VX Infinity 90°position). In order to reduce the false alarm in such a usage condition, VXI employs new Shutter Mechanism which automatically reduce one area when using at 90°position to match the corner form. At normal usage (8 area (16 zones) 97°wide At 90°position usage (7 area (14 zones) 87°wide

5 types of Rectangular Detection Area VX Infinity You can select 5 types of ready-to-use Masking Seals to build desired rectangle detection area. VX Infinity Masking seal 2 Area can is set at the both sides. Masking seal 4 1. 5 × 10 m area Masking seal 3 5 × 10 m area Masking seal 6 12 × 2 m area Masking seal 5 10 × 5 m area The false alarm can be prevented easily by eliminating unnecessary area by using ready-to-use masking seal House Fan shape road fence premise House Rectangular shape

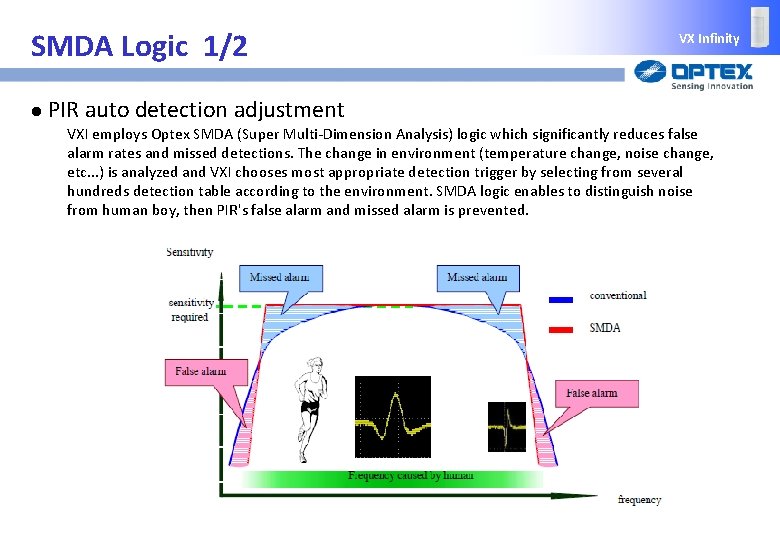

SMDA Logic 1/2 l VX Infinity PIR auto detection adjustment VXI employs Optex SMDA (Super Multi-Dimension Analysis) logic which significantly reduces false Infinitynoise change, alarm rates and missed detections. The change in environment (temperature. VX change, etc. . . ) is analyzed and VXI chooses most appropriate detection trigger by selecting from several hundreds detection table according to the environment. SMDA logic enables to distinguish noise from human boy, then PIR's false alarm and missed alarm is prevented.

SMDA Logic 2/2 l VX Infinity PIR Noise Cancellation When noise level is increased, VXI prevents false alarm by changing noise-cut level with keeping the performance of human body detection ability l VX Infinity Vegetation sway analysis logic VXI automatically analyze the signal of microwave and distinguish vegetation sway from human body to prevent the false alarm at outside. l Microwave boost logic for human body detection To make up the deficit of Microwave which is weak at lateral motion detection, VXI adjust the sensitivity of microwave automatically according to the signal of PIR which is strong at lateral motion.

Combination of PIR and Microwave VX Infinity Characteristics of PIR & Microwave Passive Infrared detector just receives infrared energy which emit from object. On the other hand, Microwave unit continually transmits microwave, and receives signals that are reflected back. PIR detection, combined with microwave technology, allows the generation of an alarm, only when target is detected by VXa Infinity both detection mechanisms simultaneously. Basic Principles of an Combination Detector Both Microwave and PIR detectors have different physical characteristics. However, PIR technology is of utmost importance in the design of combination detector. Microwave technology is considered to fulfill a complementary role for PIR detector. <The difference of influence by the false alarm factors between PIR & Microwave> Temperature Light Changes Disturbance Vibration PIR Detectable Not affected Microwave Not affected Detectable

Re: Microwave VX Infinity Humidity resistance of microwave detector The weakest point of microwave is that it is very much affected by “MOISTURE”. VX Infinity Moisture is absorbed by the surface of microwave unit under high-humidity environment. Once moisture attaches, the power of microwave transmission gradually decreases. In the worst scenario, if the surface materials of microwave unit progress oxidation, the unit dies off. Microwave transmit power × Microwave transmit power Weaken …

Optex New Microwave unit 1/2 VX Infinity Tough MOD (super tough microwave module) OPTEX developed a new microwave unit that has the unrivaled quality and ability to achieve high reliable detection performance. OPTEX VX Infinity Competitors Images VX Infinity PCB board Material Ceramic board Glass epoxy board (FR 4) Antenna Material Gold-plated antenna Tin-plated antenna Temperature change Light Disturbance High Humidity Oxidation Degradation

Optex New Microwave unit 2/2 VX Infinity Accelerated Aging Test * This test is a pseudo-method for evaluating the long-term reliability. * This test shows the deterioration of detection sensitivity as time progresses. * This test was conducted in an environment: 60 degrees C, 90% humidity. 0. 00 0 h 350 h 600 h 700 h VX Infinity 1080 h 1280 h 1480 h VX-Infinity sensitivity variation % Competitor A Competitor B -30. 00 Competitor C Competitor D -60. 00 Competitor E -90. 00 >>Time>>

Other information l VX Infinity Increase in environmental tolerance Ø To prevent tuning yellow by ultraviolet light, ASA* is used for plastic parts. VX Infinity *(Acrylonitrile-Styrene-Acrylate resin) Ø IP 55 rated. l Interface to external devices Ø Connecting terminal for an external buzzer for walk-test As the visibility of LED is low outside, connecting terminal for an external buzzer is prepared to encourage to heighten the installation quality. Serial communication Terminal for an external buzzer for walk-test Ø Serial communication terminal For Optex engineering use only. To check the wave shape from PC, factory check, problem analysis etc…

Options l VX Infinity Wall tamper (WRS) VX Infinity l Plug in EOL (PEU) l Battery Box with connector By connecting to the battery box, battery capacity can be easily increased and battery operating life can be expand to triple. In R/RAM model, maximally, 18 years battery operating life can be realized.

Switch Setting and Wiring Ø Setting switch (VXI-ST, AM, DAM (Wired models) Ø Wiring and Connectors configuration VX Infinity Ø Setting switch (VXI-R, RAM, RDAM (Wireless models) VX Infinity
