One Stop Shop Pumping Solutions One Stop Shop

One Stop Shop Pumping Solutions

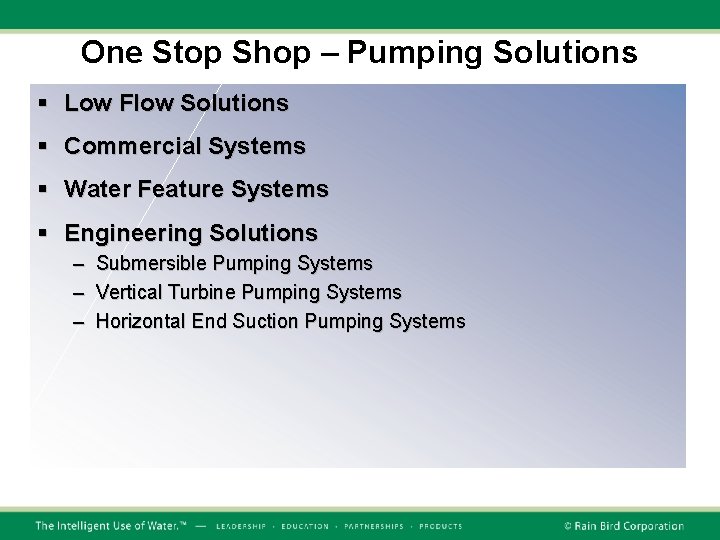

One Stop Shop – Pumping Solutions § Low Flow Solutions § Commercial Systems § Water Feature Systems § Engineering Solutions – – – Submersible Pumping Systems Vertical Turbine Pumping Systems Horizontal End Suction Pumping Systems

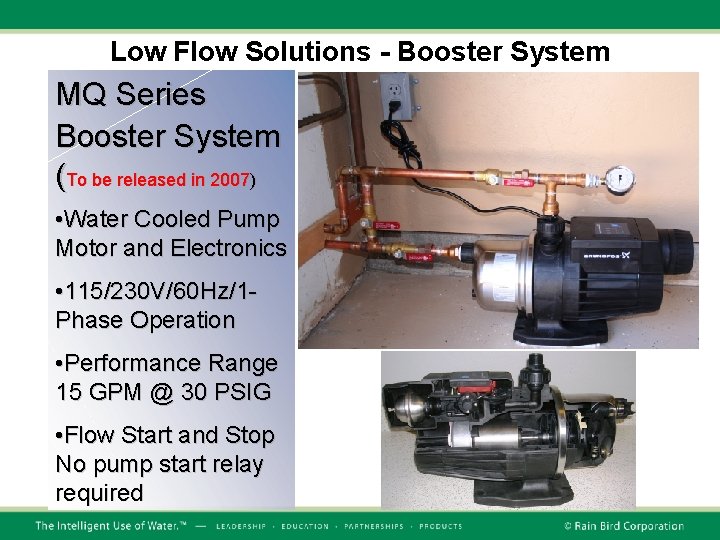

Low Flow Solutions - Booster System MQ Series Booster System (To be released in 2007) • Water Cooled Pump Motor and Electronics • 115/230 V/60 Hz/1 Phase Operation • Performance Range 15 GPM @ 30 PSIG • Flow Start and Stop No pump start relay required

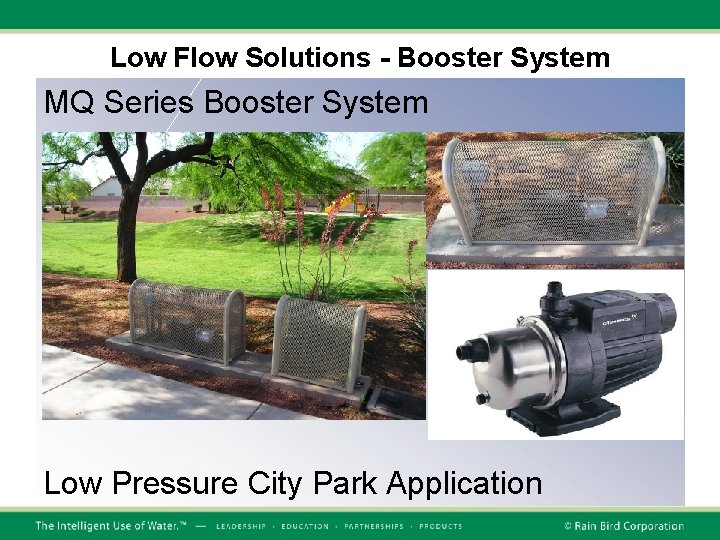

Low Flow Solutions - Booster System MQ Series Booster System Low Pressure City Park Application

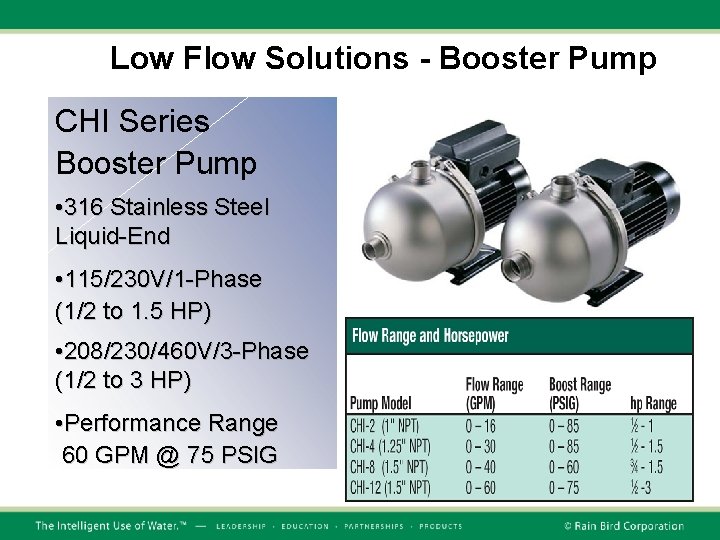

Low Flow Solutions - Booster Pump CHI Series Booster Pump • 316 Stainless Steel Liquid-End • 115/230 V/1 -Phase (1/2 to 1. 5 HP) • 208/230/460 V/3 -Phase (1/2 to 3 HP) • Performance Range 60 GPM @ 75 PSIG

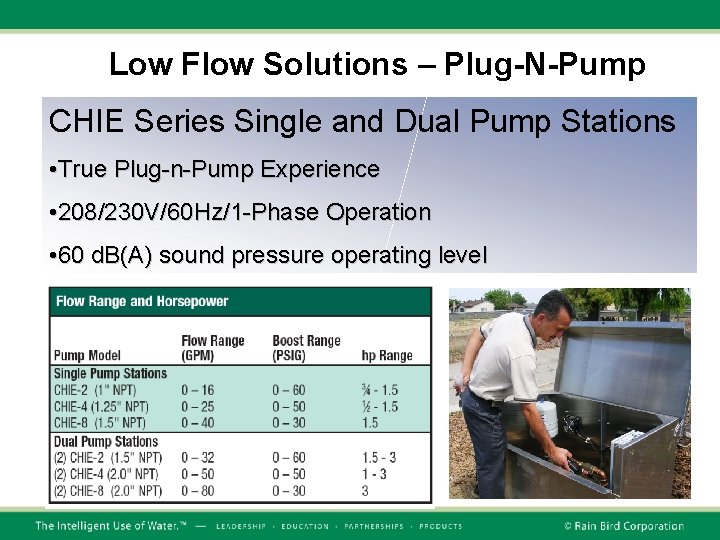

Low Flow Solutions – Plug-N-Pump CHIE Series Single and Dual Pump Stations • True Plug-n-Pump Experience • 208/230 V/60 Hz/1 -Phase Operation • 60 d. B(A) sound pressure operating level

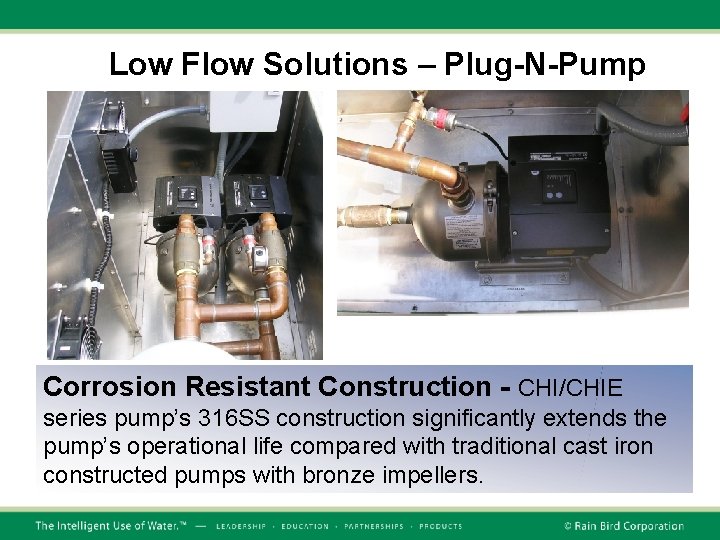

Low Flow Solutions – Plug-N-Pump Corrosion Resistant Construction - CHI/CHIE series pump’s 316 SS construction significantly extends the pump’s operational life compared with traditional cast iron constructed pumps with bronze impellers.

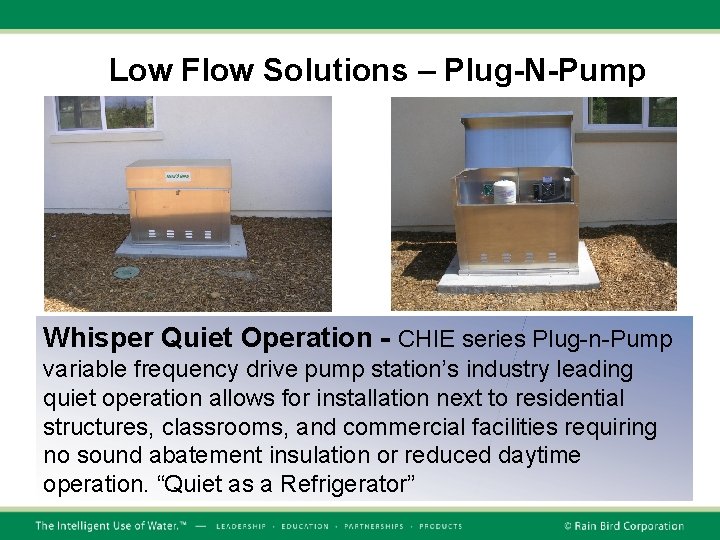

Low Flow Solutions – Plug-N-Pump Whisper Quiet Operation - CHIE series Plug-n-Pump variable frequency drive pump station’s industry leading quiet operation allows for installation next to residential structures, classrooms, and commercial facilities requiring no sound abatement insulation or reduced daytime operation. “Quiet as a Refrigerator”

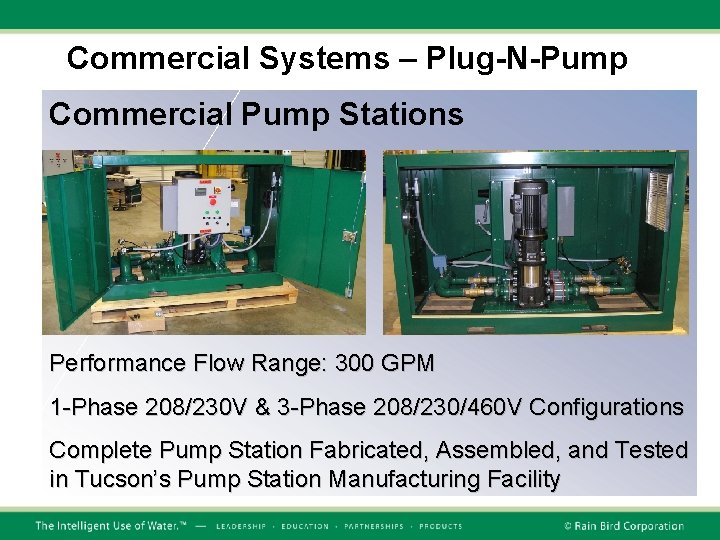

Commercial Systems – Plug-N-Pump Commercial Pump Stations Performance Flow Range: 300 GPM 1 -Phase 208/230 V & 3 -Phase 208/230/460 V Configurations Complete Pump Station Fabricated, Assembled, and Tested in Tucson’s Pump Station Manufacturing Facility

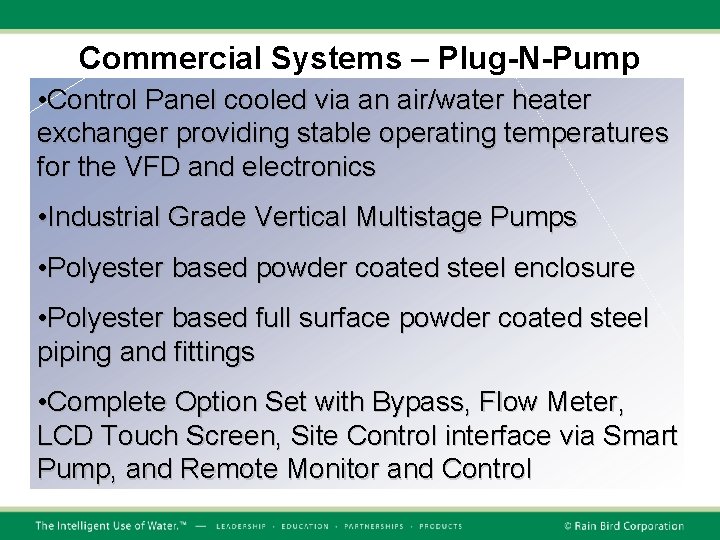

Commercial Systems – Plug-N-Pump • Control Panel cooled via an air/water heater exchanger providing stable operating temperatures for the VFD and electronics • Industrial Grade Vertical Multistage Pumps • Polyester based powder coated steel enclosure • Polyester based full surface powder coated steel piping and fittings • Complete Option Set with Bypass, Flow Meter, LCD Touch Screen, Site Control interface via Smart Pump, and Remote Monitor and Control

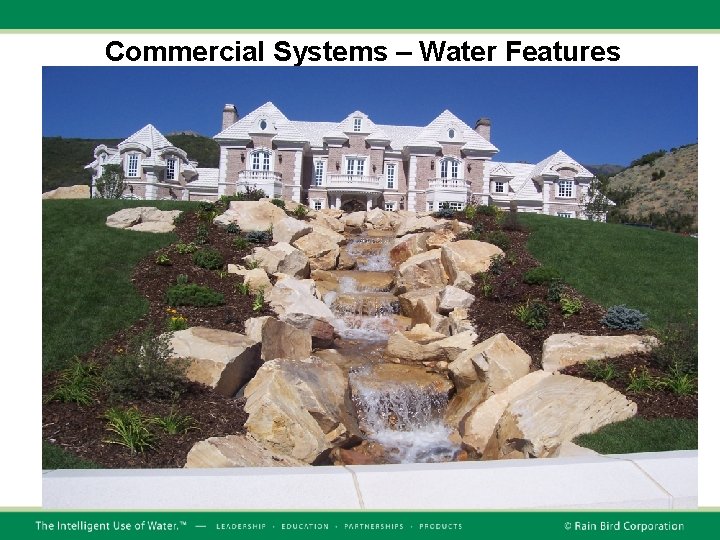

Commercial Systems – Water Features

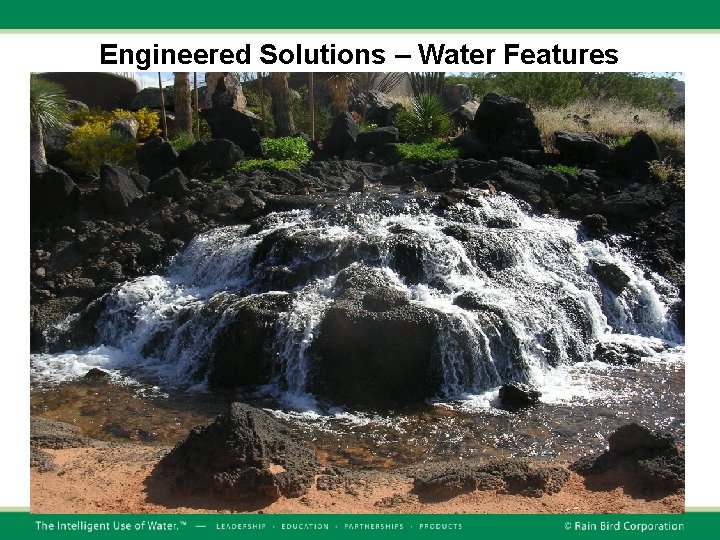

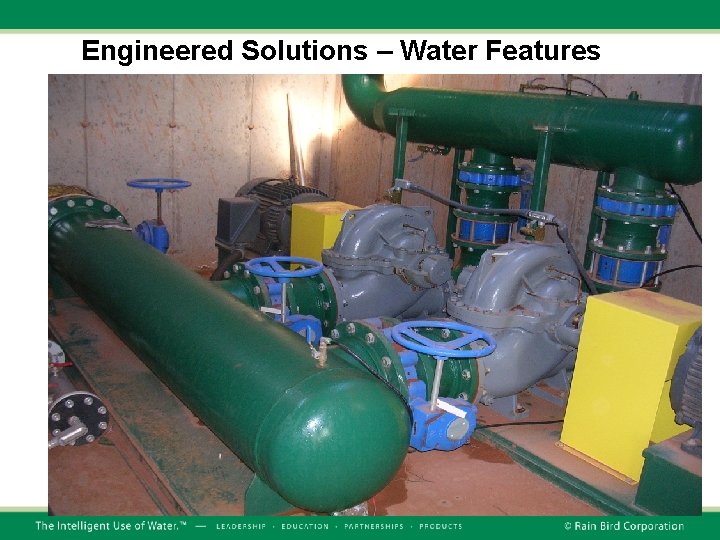

Engineered Solutions – Water Features

Engineered Solutions – Water Features

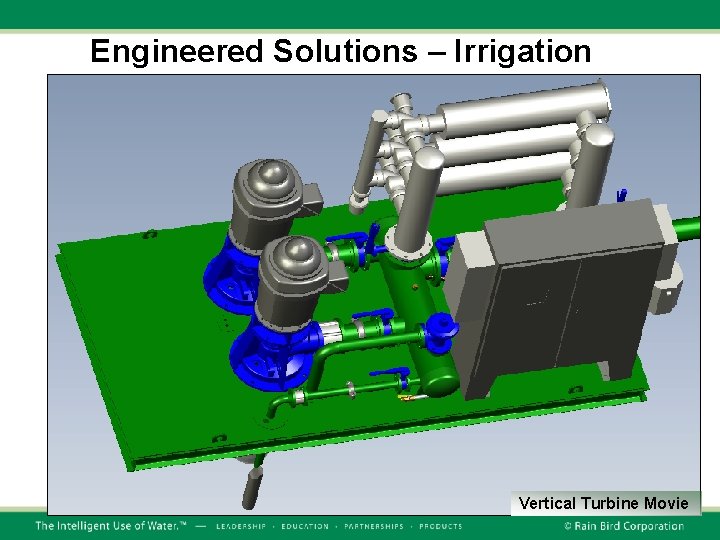

Engineered Solutions – Irrigation Vertical Turbine Movie

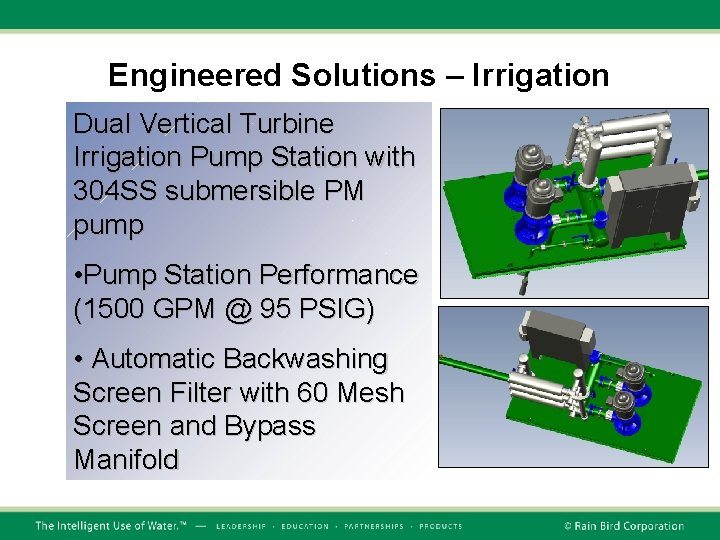

Engineered Solutions – Irrigation Dual Vertical Turbine Irrigation Pump Station with 304 SS submersible PM pump • Pump Station Performance (1500 GPM @ 95 PSIG) • Automatic Backwashing Screen Filter with 60 Mesh Screen and Bypass Manifold

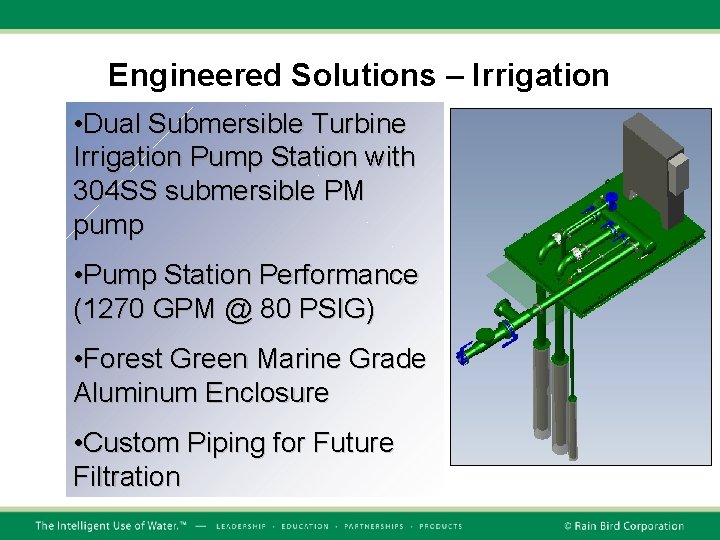

Engineered Solutions – Irrigation • Dual Submersible Turbine Irrigation Pump Station with 304 SS submersible PM pump • Pump Station Performance (1270 GPM @ 80 PSIG) • Forest Green Marine Grade Aluminum Enclosure • Custom Piping for Future Filtration

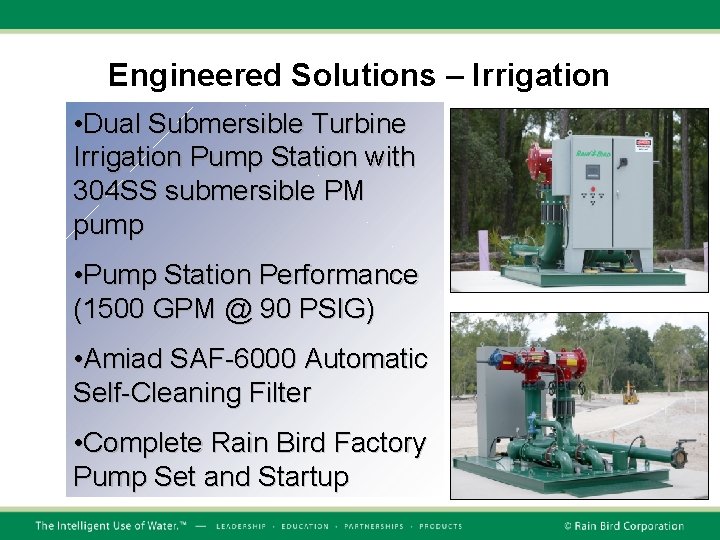

Engineered Solutions – Irrigation • Dual Submersible Turbine Irrigation Pump Station with 304 SS submersible PM pump • Pump Station Performance (1500 GPM @ 90 PSIG) • Amiad SAF-6000 Automatic Self-Cleaning Filter • Complete Rain Bird Factory Pump Set and Startup

Thank You
