ONAP Plug and Play • ORAN OSC REL A & ONAP PLUGFEST • December 5, 2019 Benjamin Cheung, Ph. D Nov 13, 2019 version 2

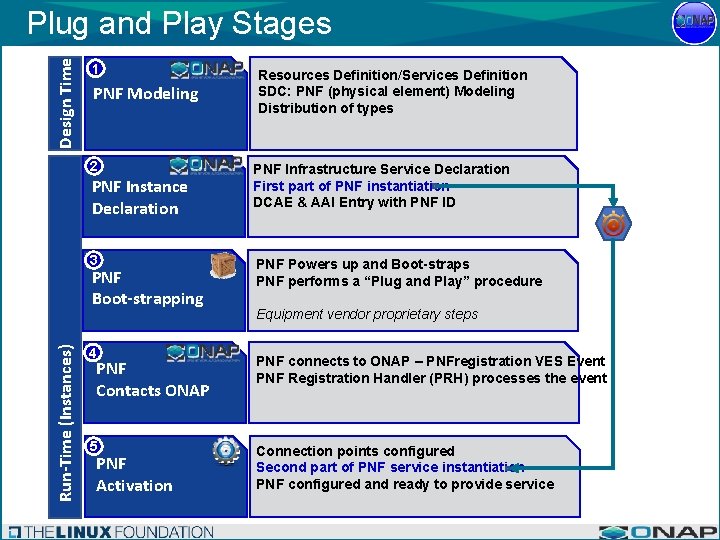

Design Time Plug and Play Stages 1 PNF Modeling 2 PNF Instance Declaration 3 Run-Time (Instances) PNF Boot-strapping 4 PNF Contacts ONAP 5 PNF Activation Resources Definition/Services Definition SDC: PNF (physical element) Modeling Distribution of types PNF Infrastructure Service Declaration First part of PNF instantiation DCAE & AAI Entry with PNF ID PNF Powers up and Boot-straps PNF performs a “Plug and Play” procedure Equipment vendor proprietary steps PNF connects to ONAP – PNFregistration VES Event PNF Registration Handler (PRH) processes the event Connection points configured Second part of PNF service instantiation PNF configured and ready to provide service

Plug and Play Flow RUN-TIME DESIGN-TIME 42 ONAP Portal BSS/ OSS VID 15 ONAP Deployment 1 2 CATALOG CLAMP SDC Service Instantiation 3 Common Services Policy Framework 16 22 34 DCAE 41 pnf. Ready 35 PRH 39 19 27 SDN-C APP-C Service Configuration 28 25 6 5 G DU (PNF) 14 A&AI ESR OPERATIONAL NE 37 Security Gateway 20 29 30 26 pnf. Registration SO 21 MSB / DMaa. P 31 38 36 40 Certificate Authority DHCP Server PNF A&AI entry

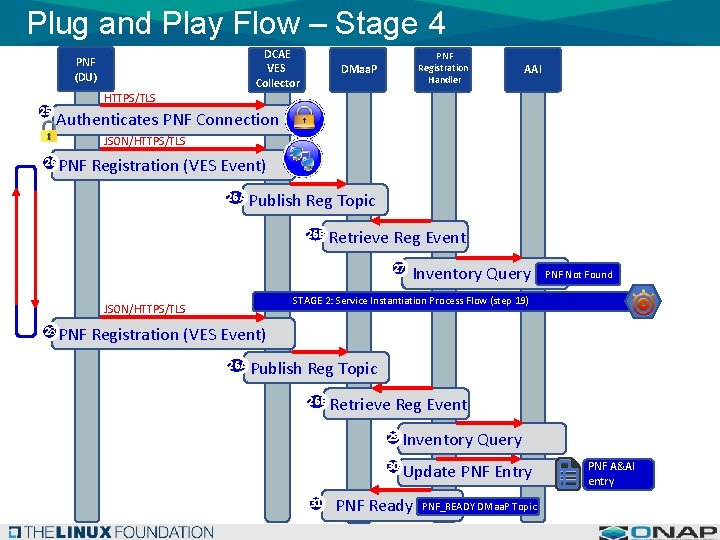

Plug and Play Flow – Stage 4 DCAE VES Collector PNF (DU) 25 PNF Registration Handler DMaa. P AAI HTTPS/TLS Authenticates PNF Connection JSON/HTTPS/TLS 26 PNF Registration (VES Event) 26 A Publish Reg Topic 26 B Retrieve Reg Event 27 PNF Not Found STAGE 2: Service Instantiation Process Flow (step 19) JSON/HTTPS/TLS 28 Inventory Query PNF Registration (VES Event) 26 A Publish Reg Topic 26 B 31 Retrieve Reg Event 29 Inventory Query 30 Update PNF Entry PNF Ready PNF_READY DMaa. P Topic PNF A&AI entry

Plug and Play Flow – Stage 4 Controller SDN-C SO 34 34 A 35 35 A 35 B DCAE AAI Get pnf. Ready Event PNF A&AI entry Query A&AI Network Assignments Updates with Network Assignments #35 -#38 PNF Configuration PNF (DU) Network Assign Complete 36 Configure Service Ansible (SSH), Net. Conf, Chef 37 Service Configuration #39 -#43 Normal Flow 38 39 Update with Configuration Info Service Configured 40 Service Running 41 42 Monitors Service Monitored
