Mechanical Energy Gravitational Potential Energy The energy possessed
- Slides: 16
Mechanical Energy
Gravitational Potential Energy • The energy possessed by an object because of its position relative to a lower position • The potential of an object to be pulled down by gravity
A GPE Machine
Eg = mgh Eg – gravitational potential energy (J) m – mass (kg) g – gravitational field strength (N/kg or m/s 2) h – height above reference level (m)
• We always have to indicate a reference level Ex. The gravitational potential energy is 30 J relative to the Earth’s surface
Sample Problem: A 58 kg skydiver stands in the door of a plane preparing to jump. If the earth is 2. 8 km below the skydiver, what is the skydiver’s potential energy relative to the earth?
Kinetic Energy • the energy possessed by an object due to its motion
Calculating Kinetic Energy: Ek = ½ mv 2 Ek – Kinetic Energy (J) m – mass (kg) v – Speed (m/s)
Sample Problem: What is the kinetic energy of a 60 g tennis ball that has a speed of 3. 6 m/s?
Mechanical Energy • The sum of the gravitational potential energy and the kinetic energy • Think of TOTAL energy of an object due to it’s motion/position

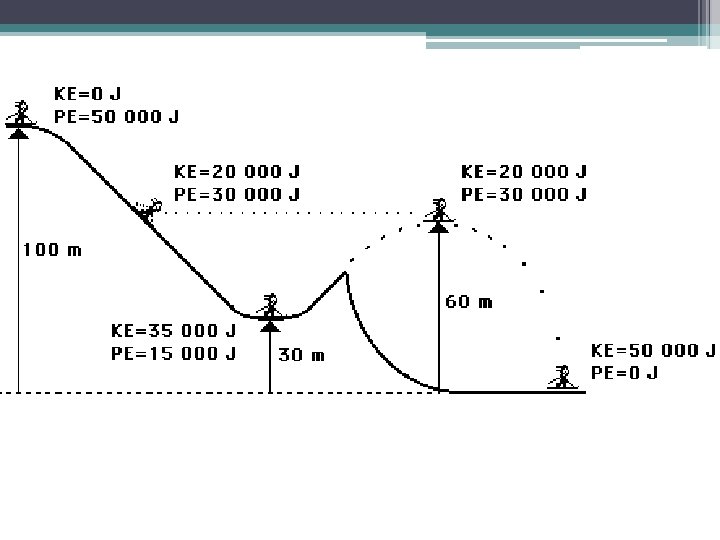

• Mechanical energy will always stay the same unless WORK is done • Ex. When a parachutist jumps from a plane, she initially has a large GPE and no kinetic energy. As she falls, she speeds up as her GPE converts to kinetic energy Her Mechanical Energy will always be the same
Calculating Mechanical Energy Em = E g + E k Ek – Kinetic Energy (J) Eg – Gravitational Potential Energy (J) Em – Mechanical Energy (J)
Applications of Mechanical Energy • South African vultures eats bones – if they are too big the bird will drop them from a greater height so they break
• A roller coaster on a track – the height has to be high enough to create enough potential energy – this will be conve Applications of Mechanical Energy • A roller coaster on a track – the height of the first hill has to be high enough giving a high potential energy – this will be converted into kinetic energy which will make it go really fast Top Thrill Dragster – Cedar Point, Ohio • 128 m tall, 193 km/h on the up and down
