IP CAMERAS
PT 100 Guard patrol system

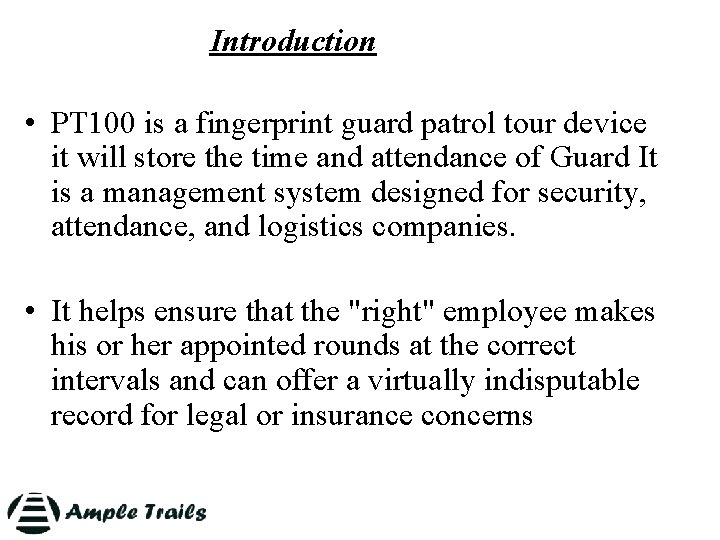

Introduction • PT 100 is a fingerprint guard patrol tour device it will store the time and attendance of Guard It is a management system designed for security, attendance, and logistics companies. • It helps ensure that the "right" employee makes his or her appointed rounds at the correct intervals and can offer a virtually indisputable record for legal or insurance concerns

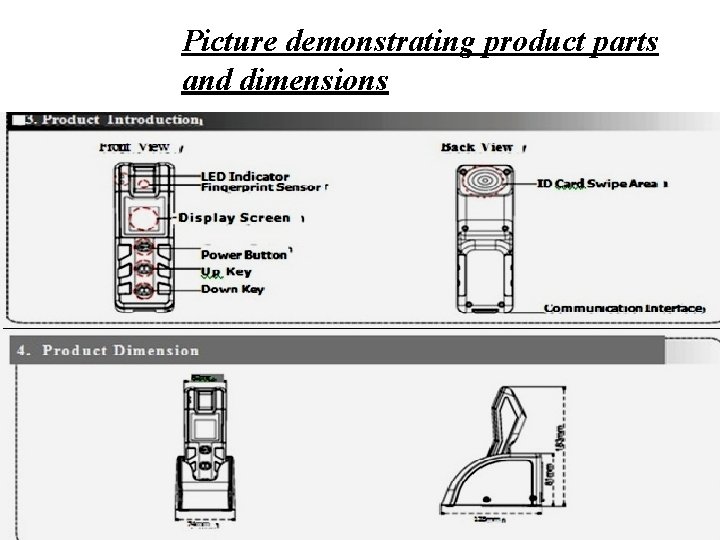

Picture demonstrating product parts and dimensions

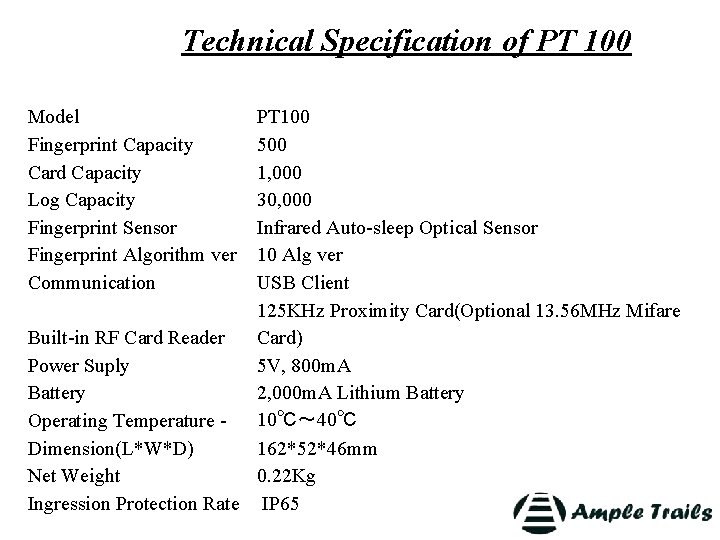

Technical Specification of PT 100 Model Fingerprint Capacity Card Capacity Log Capacity Fingerprint Sensor Fingerprint Algorithm ver Communication PT 100 500 1, 000 30, 000 Infrared Auto-sleep Optical Sensor 10 Alg ver USB Client 125 KHz Proximity Card(Optional 13. 56 MHz Mifare Built-in RF Card Reader Card) Power Suply 5 V, 800 m. A Battery 2, 000 m. A Lithium Battery 10℃～ 40℃ Operating Temperature Dimension(L*W*D) 162*52*46 mm Net Weight 0. 22 Kg Ingression Protection Rate IP 65

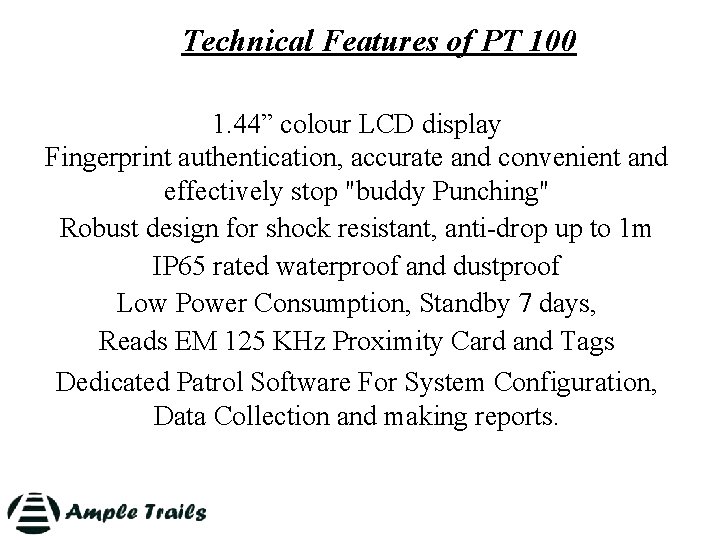

Technical Features of PT 100 1. 44” colour LCD display Fingerprint authentication, accurate and convenient and effectively stop "buddy Punching" Robust design for shock resistant, anti-drop up to 1 m IP 65 rated waterproof and dustproof Low Power Consumption, Standby 7 days, Reads EM 125 KHz Proximity Card and Tags Dedicated Patrol Software For System Configuration, Data Collection and making reports.

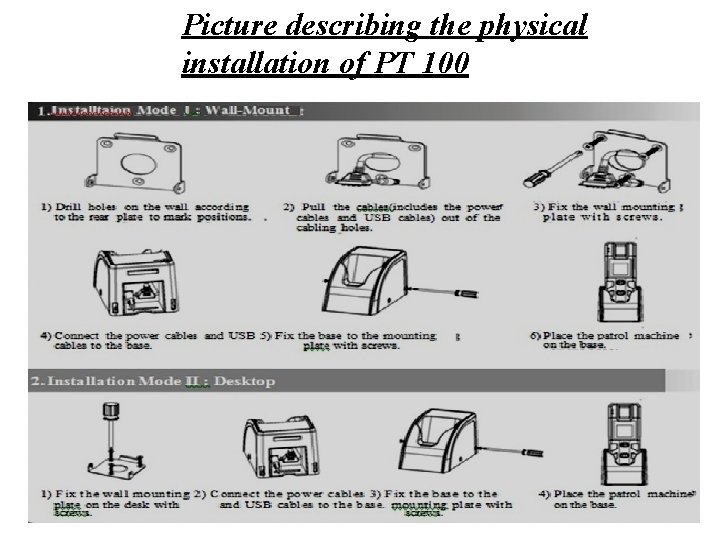

Picture describing the physical installation of PT 100

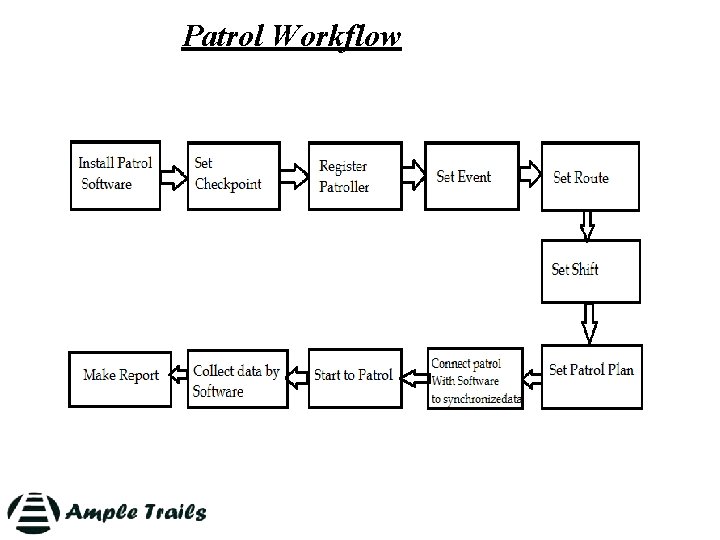

Patrol Workflow

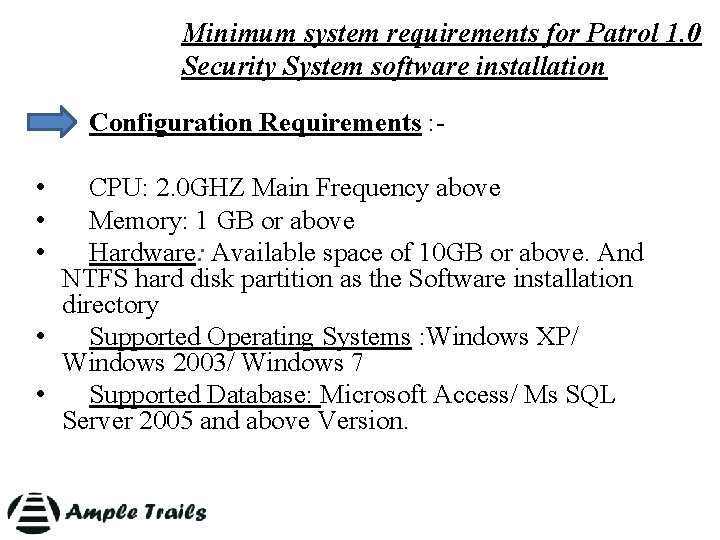

Minimum system requirements for Patrol 1. 0 Security System software installation Configuration Requirements : - • • • CPU: 2. 0 GHZ Main Frequency above Memory: 1 GB or above Hardware: Available space of 10 GB or above. And NTFS hard disk partition as the Software installation directory • Supported Operating Systems : Windows XP/ Windows 2003/ Windows 7 • Supported Database: Microsoft Access/ Ms SQL Server 2005 and above Version.

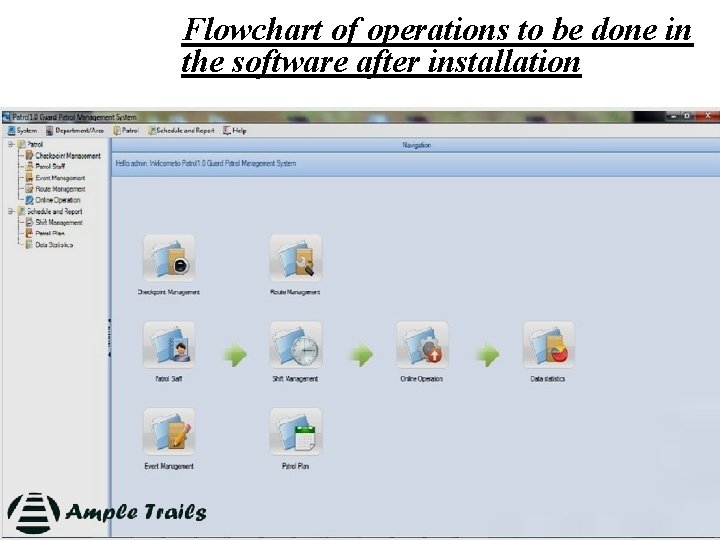

Flowchart of operations to be done in the software after installation.

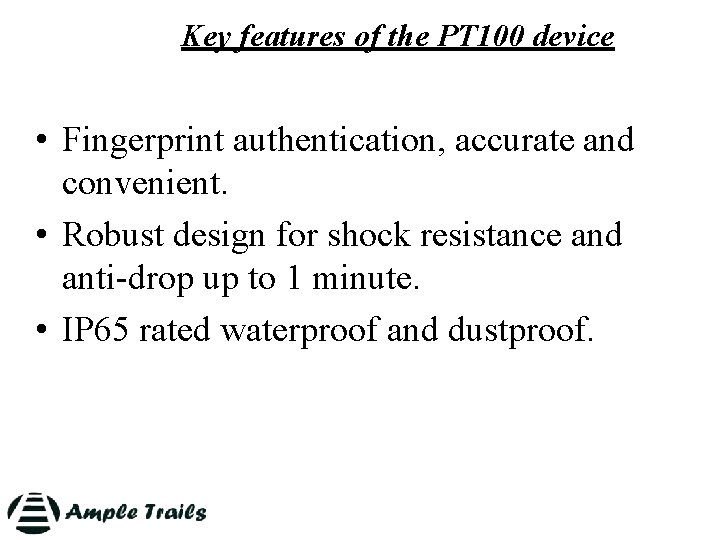

Key features of the PT 100 device • Fingerprint authentication, accurate and convenient. • Robust design for shock resistance and anti-drop up to 1 minute. • IP 65 rated waterproof and dustproof.

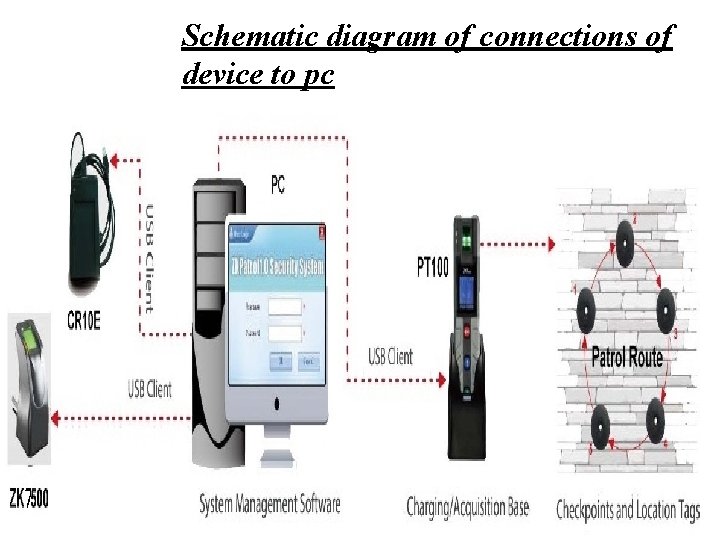

Schematic diagram of connections of device to pc
For Your Time & Attention Contact Us: 9315441053 Email id – info@ampletrails. com Website: www. ampletrails. com
