Field Device Controller Model: FDC 280 Southeast Users Group – January 10, 2018 Presented

Field Device Controller Model: FDC 280 Southeast Users Group – January 10, 2018 Presented by: Tom Rosborough – Program Manager thomas. rosborough@schneider-electric. com Confidential Property of Schneider Electric

FDC 280 AGENDA Confidential Property of Schneider Electric | Page 2 1 Value Proposition

FDC 280 AGENDA Confidential Property of Schneider Electric | Page 2 1 Value Proposition 2 Technology Overview 3 Hardware 4 Sample Architectures 5 Performance 6 Sizing Tool 7 Roadmap 8 Summary

FDC 280 Value Proposition Save Equipment and Rack Room Space Lower Total Installed Cost

FDC 280 Value Proposition Save Equipment and Rack Room Space Lower Total Installed Cost Average 54% Saving on Space Ensure High Availability More Than Minimise Total Power Budget Repurpose Space for other Equipment in Upgrades 50% * Saving on Cost *when compared to FCP 280 with 3 redundant FDSI Confidential Property of Schneider Electric | Page 3

Technology Integration Enable Cost-Effective, Efficient Data Integration and Control Field Device Controller 280 Dual

Technology Integration Enable Cost-Effective, Efficient Data Integration and Control Field Device Controller 280 Dual Core Processor • Core 1: FDC 280 Control Software and FECN Network Stack • Core 2: Device Integration Software with IO Network Stack Features Today • Integrated controller and device integration • XML configuration integrated into Control Editor • Up to 8, 000 I/O Points • Up to 256 Devices • Major/Minor Upgrade • ISASecure EDSA Level 1 • Modbus TCP Client (Ethernet) • Control Software o CS 6. 2, CCS 9. 3 Confidential Property of Schneider Electric | Page 4 Benefits • Decrease device integration footprint • Minimize engineering & maintenance work • Increase performance Lower Cost per Integrated Point

Hardware: Closer Look Confidential Property of Schneider Electric | Page 5

Hardware: Closer Look Confidential Property of Schneider Electric | Page 5

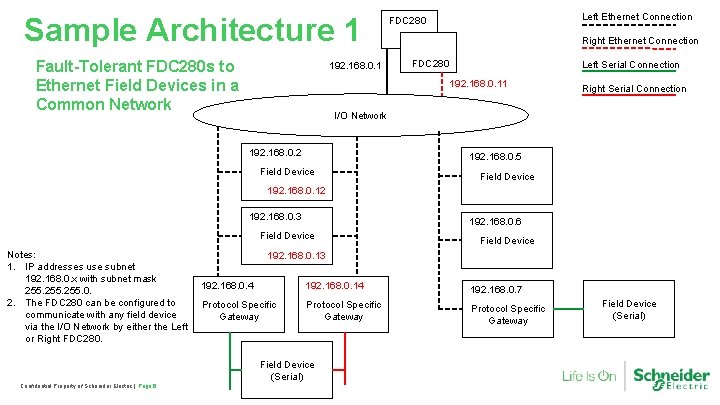

Sample Architecture 1 Fault-Tolerant FDC 280 s to Ethernet Field Devices in a Common

Sample Architecture 1 Fault-Tolerant FDC 280 s to Ethernet Field Devices in a Common Network 192. 168. 0. 1 Left Ethernet Connection FDC 280 Right Ethernet Connection FDC 280 Left Serial Connection 192. 168. 0. 11 Right Serial Connection I/O Network 192. 168. 0. 2 192. 168. 0. 5 Field Device 192. 168. 0. 12 192. 168. 0. 3 192. 168. 0. 6 Field Device Notes: 1. IP addresses use subnet 192. 168. 0. x with subnet mask 255. 0. 2. The FDC 280 can be configured to communicate with any field device via the I/O Network by either the Left or Right FDC 280. 192. 168. 0. 13 192. 168. 0. 4 192. 168. 0. 14 192. 168. 0. 7 Protocol Specific Gateway Field Device (Serial) Confidential Property of Schneider Electric | Page 6 Field Device (Serial)

Sample Architecture 2 Fault-Tolerant FDC 280 s to Ethernet Field Devices in Separate Networks

Sample Architecture 2 Fault-Tolerant FDC 280 s to Ethernet Field Devices in Separate Networks Left Ethernet Connection FDC 280 Right Ethernet Connection FDC 280 192. 168. 0. 1 I/O Network A I/O Network B 192. 168. 0. 2 Field Device 192. 168. 0. 2 192. 168. 0. 3 Field Device 192. 168. 0. 3 192. 168. 0. 4 Protocol Specific Gateway Field Device (Serial) Confidential Property of Schneider Electric | Page 7 Left Serial Connection Right Serial Connection

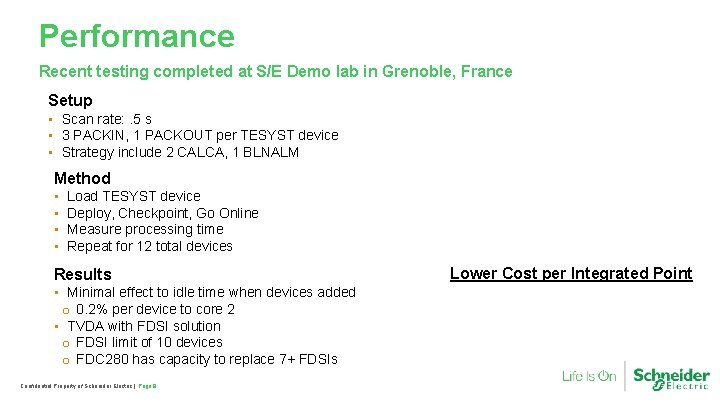

Performance Recent testing completed at S/E Demo lab in Grenoble, France Setup • Scan

Performance Recent testing completed at S/E Demo lab in Grenoble, France Setup • Scan rate: . 5 s • 3 PACKIN, 1 PACKOUT per TESYST device • Strategy include 2 CALCA, 1 BLNALM Method • • Load TESYST device Deploy, Checkpoint, Go Online Measure processing time Repeat for 12 total devices Results • Minimal effect to idle time when devices added o 0. 2% per device to core 2 • TVDA with FDSI solution o FDSI limit of 10 devices o FDC 280 has capacity to replace 7+ FDSIs Confidential Property of Schneider Electric | Page 8 Lower Cost per Integrated Point

Sizing Tool Confidential Property of Schneider Electric | Page 9

Sizing Tool Confidential Property of Schneider Electric | Page 9

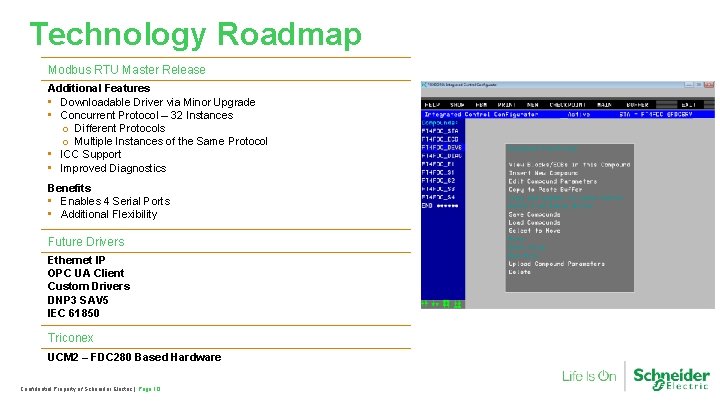

Technology Roadmap Modbus RTU Master Release Additional Features • Downloadable Driver via Minor Upgrade

Technology Roadmap Modbus RTU Master Release Additional Features • Downloadable Driver via Minor Upgrade • Concurrent Protocol – 32 Instances o Different Protocols o Multiple Instances of the Same Protocol • ICC Support • Improved Diagnostics Benefits • Enables 4 Serial Ports • Additional Flexibility Future Drivers Ethernet IP OPC UA Client Custom Drivers DNP 3 SAV 5 IEC 61850 Triconex UCM 2 – FDC 280 Based Hardware Confidential Property of Schneider Electric | Page 10

Summary FDC 280 Device Integration no longer requires FDSIs • Higher Performance • Less

Summary FDC 280 Device Integration no longer requires FDSIs • Higher Performance • Less Space • Less Power • Less Maintenance Upcoming Features • Modbus RTU Master • Concurrent Protocol • ICC Support Future • More Protocols • Standard Hardware • Other Potential Uses Contact • thomas. rosborough@schneider-electric. com Confidential Property of Schneider Electric | Page 11 Lower Cost per Integrated Point
