DILIP MATERIAL HANDLING EQUIPMENT HYDRAULIC HAND PALLET TRUCK

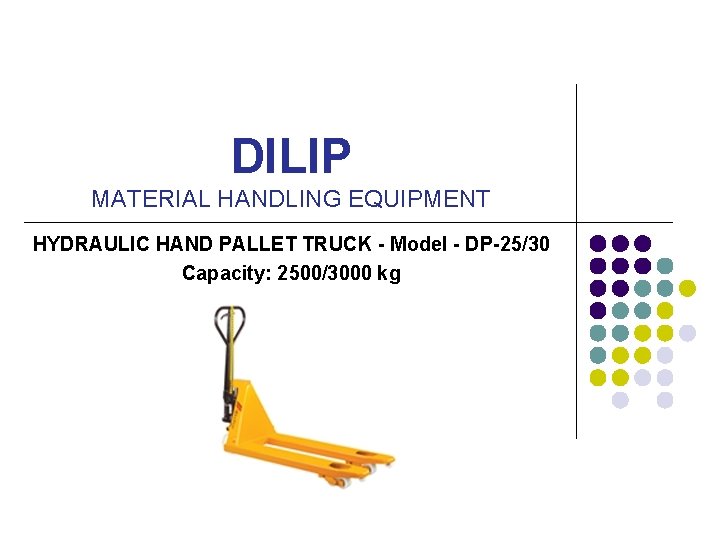

DILIP MATERIAL HANDLING EQUIPMENT HYDRAULIC HAND PALLET TRUCK - Model - DP-25/30 Capacity: 2500/3000 kg

DILIP MATERIAL HANDLING EQUIPMENT LOAD WHEELS Bogie mounted for driving on uneven floors, Nose Wheels PARKING BRAKE Foot operated parking brake is available as an option

HYDRAULIC HAND PALLET TRUCK - Model - DP-25/30 Capacity: 2500/3000 kg Easy to operate v Silent in operation v Requires minimum pulling power v No oil leakage v Minimum maintenance v Maximum maneuverability v

HYDRAULIC HAND PALLET TRUCK - Model - DP-25/30 Capacity: 2500/3000 kg DILIP uses single piece bent forks for extra strength. Hand lowering is the key to productivity. Pull the convenient lever in the DP -25/30 large steering handle and effortlessly deposit the load. The special handle design offers protection for the operator's handle and makes raising loads and steering easier. Release the handle and it returns to vertical. A few strokes of the handle provide 110 mm of lift, the DP-25/30 heavy duty pump is built to take thousands of pick-up and deposit cycles. The pump 'topof-stroke' hydraulic fluid bypass minimizes stress on the system when load is raised to maximum lift height.

DILIP offers pivoting steering wheels v v To ensure constant floor contact and stability To reduce wear and tear on the wheels DILIP offers an ergonomically designed steering handle v For easy operation from all angles ergonomically v To reduce pulling power and minimize operation fatigue DILIP offers double sealed ball bearing to ensure dust free operation Hydraulic system q q The manually operated lift pump is simple and reliable in operation. The hard chrome polished piston are resistant to rust, scratches and strokes. The pump is double sealed which secures efficiently against leakages and prolongs the life of the packing The lift cylinders is welded directly on to the pump, and the oil reservoir is welded around the lift cylinder. This imparts efficient tightness and eliminates tube and hose connections The hand pallet truck is equipped with a >> neutral position valve<< as standard. When the drawbar is moved slowly, the neutral position ensures that the load is not lifted (Driving position). When the drawbar is moved a little faster, the load is lifted the usual way (lifting function) The system is simple, needs no adjustment and is reliable in operation

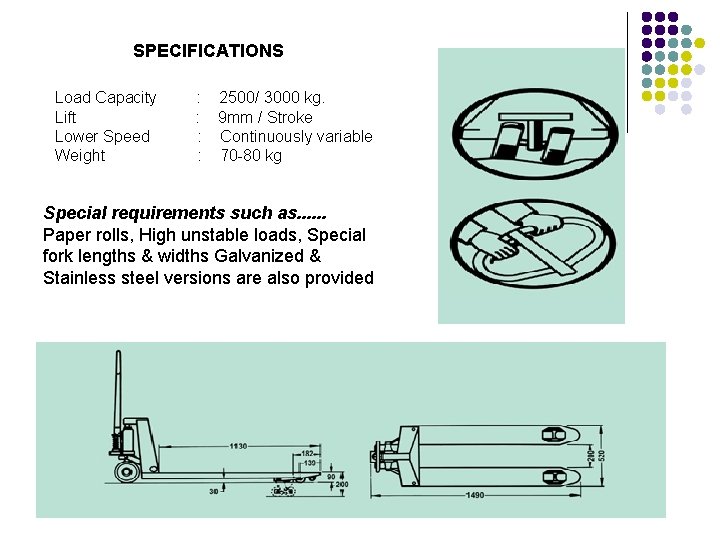

SPECIFICATIONS Load Capacity Lift Lower Speed Weight : 2500/ 3000 kg. : 9 mm / Stroke : Continuously variable : 70 -80 kg Special requirements such as. . . Paper rolls, High unstable loads, Special fork lengths & widths Galvanized & Stainless steel versions are also provided

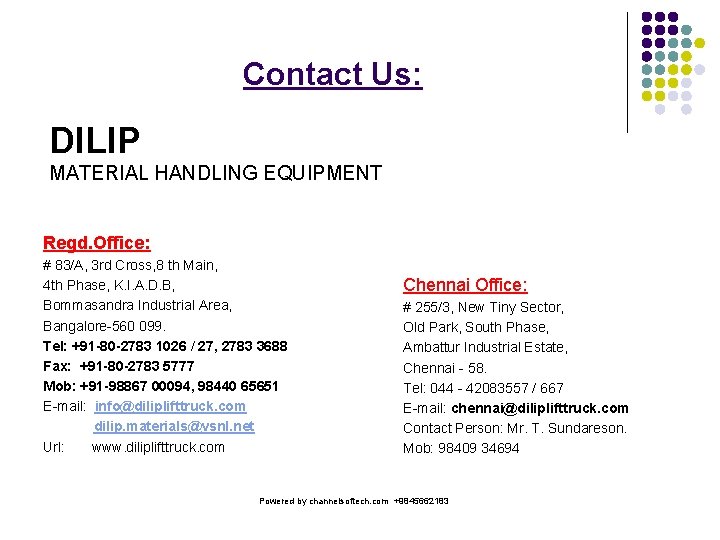

Contact Us: DILIP MATERIAL HANDLING EQUIPMENT Regd. Office: # 83/A, 3 rd Cross, 8 th Main, 4 th Phase, K. I. A. D. B, Bommasandra Industrial Area, Bangalore-560 099. Tel: +91 -80 -2783 1026 / 27, 2783 3688 Fax: +91 -80 -2783 5777 Mob: +91 -98867 00094, 98440 65651 E-mail: info@diliplifttruck. com dilip. materials@vsnl. net Url: www. diliplifttruck. com Chennai Office: # 255/3, New Tiny Sector, Old Park, South Phase, Ambattur Industrial Estate, Chennai - 58. Tel: 044 - 42083557 / 667 E-mail: chennai@diliplifttruck. com Contact Person: Mr. T. Sundareson. Mob: 98409 34694 Powered by channelsoftech. com +9845662183
