Derivatives of Trig Functions AP Calculus Mrs Mongold

Derivatives of Trig Functions AP Calculus Mrs. Mongold

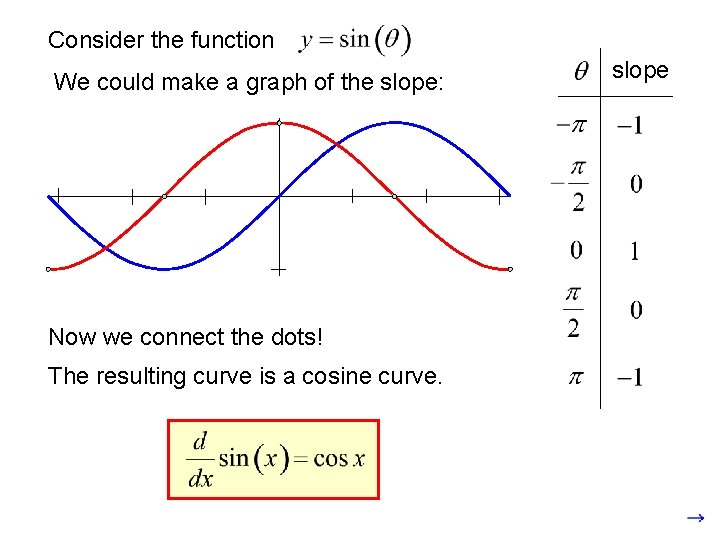

Consider the function We could make a graph of the slope: Now we connect the dots! The resulting curve is a cosine curve. slope

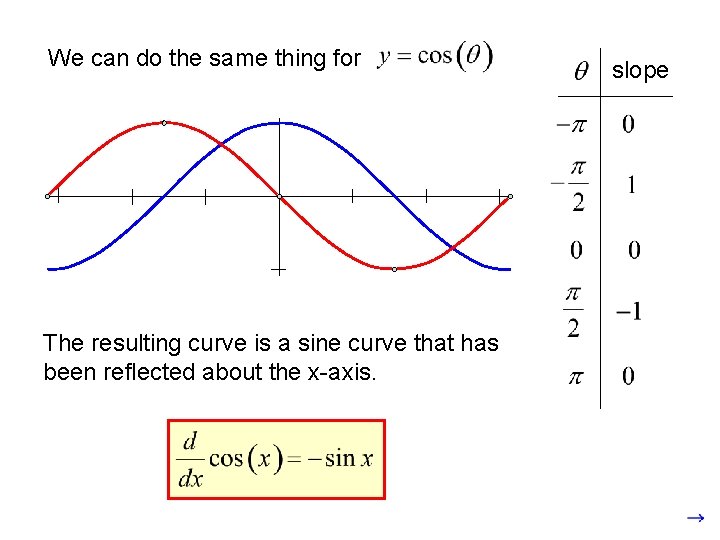

We can do the same thing for The resulting curve is a sine curve that has been reflected about the x-axis. slope

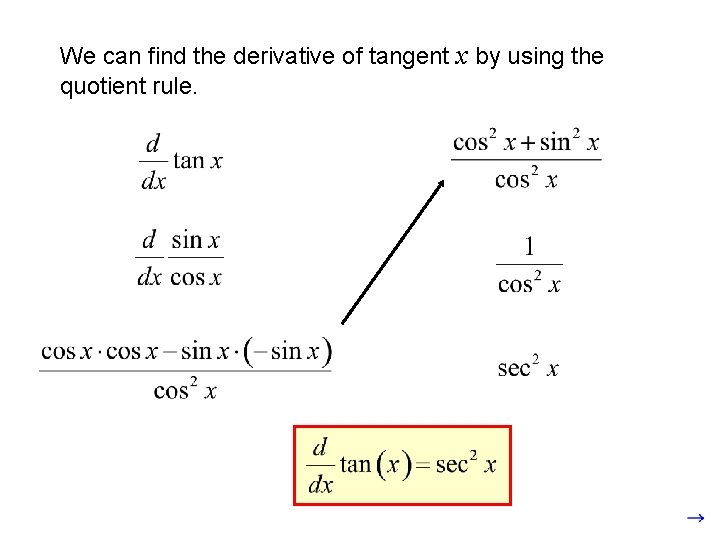

We can find the derivative of tangent x by using the quotient rule.

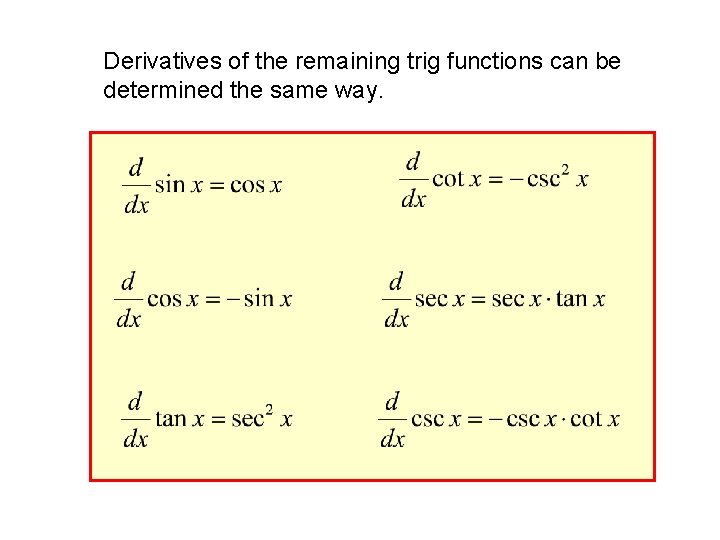

Derivatives of the remaining trig functions can be determined the same way.

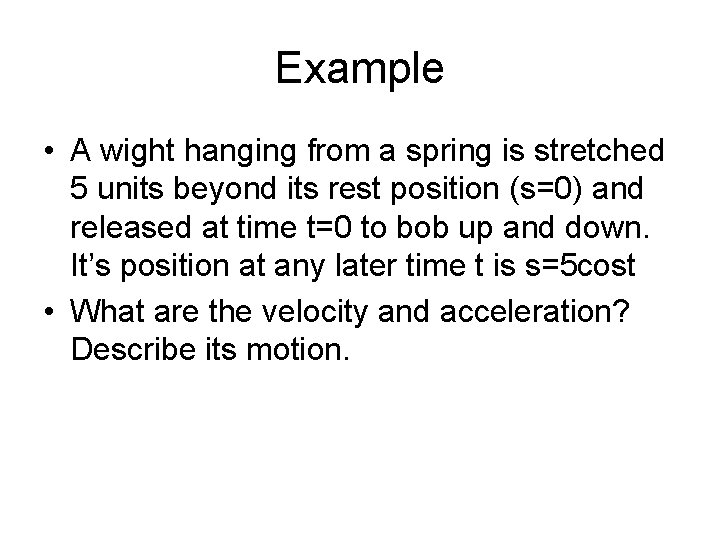

Example • A wight hanging from a spring is stretched 5 units beyond its rest position (s=0) and released at time t=0 to bob up and down. It’s position at any later time t is s=5 cost • What are the velocity and acceleration? Describe its motion.

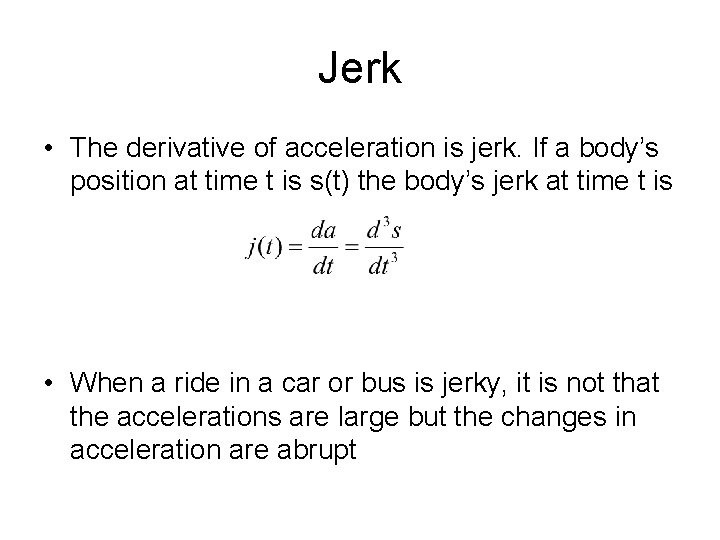

Jerk • The derivative of acceleration is jerk. If a body’s position at time t is s(t) the body’s jerk at time t is • When a ride in a car or bus is jerky, it is not that the accelerations are large but the changes in acceleration are abrupt

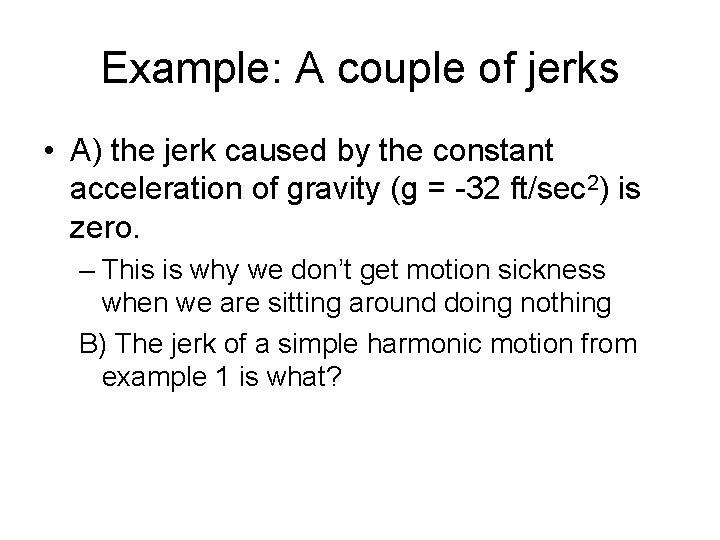

Example: A couple of jerks • A) the jerk caused by the constant acceleration of gravity (g = -32 ft/sec 2) is zero. – This is why we don’t get motion sickness when we are sitting around doing nothing B) The jerk of a simple harmonic motion from example 1 is what?

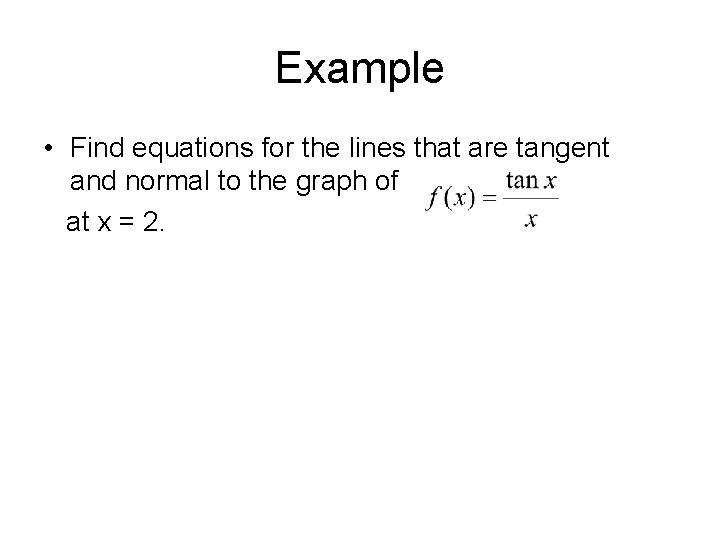

Example • Find equations for the lines that are tangent and normal to the graph of at x = 2.

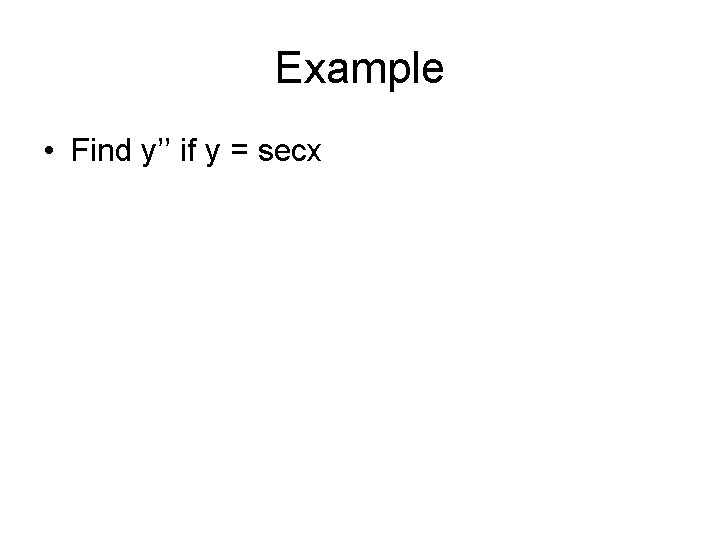

Example • Find y’’ if y = secx

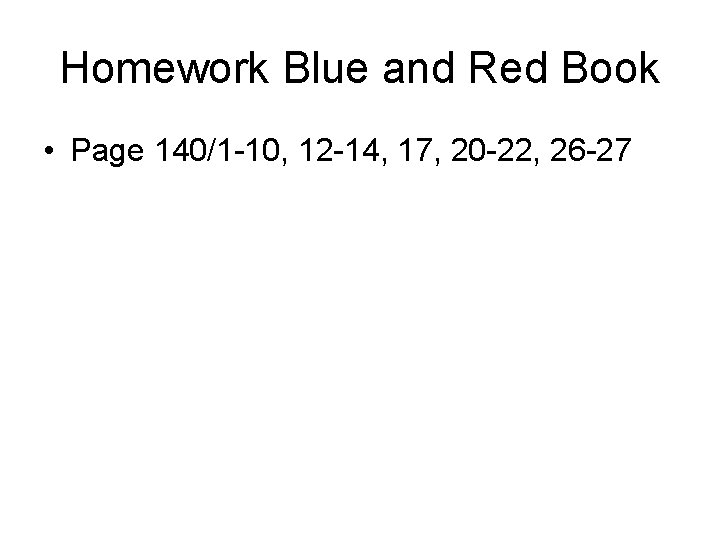

Homework Blue and Red Book • Page 140/1 -10, 12 -14, 17, 20 -22, 26 -27
