Curing Concrete Curing requires adequate n n n

Curing Concrete

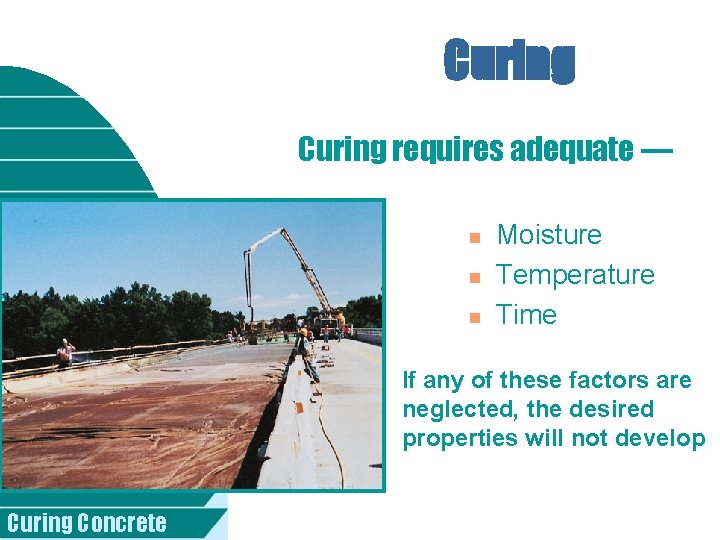

Curing requires adequate — n n n Moisture Temperature Time If any of these factors are neglected, the desired properties will not develop Curing Concrete

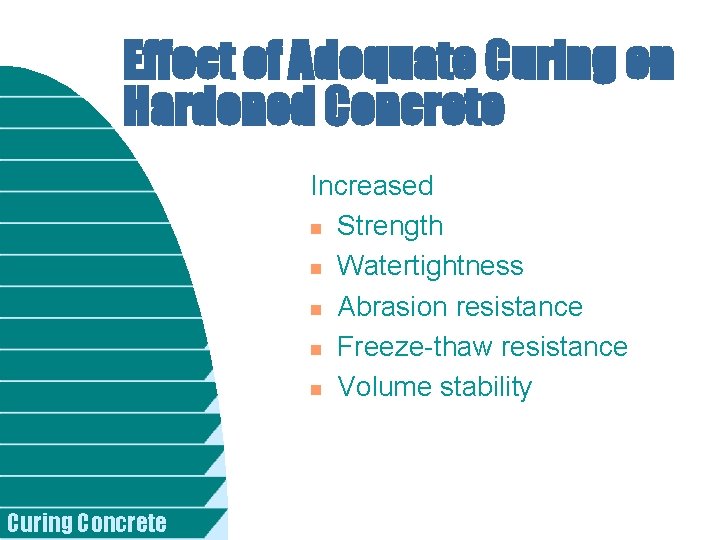

Effect of Adequate Curing on Hardened Concrete Increased n Strength n Watertightness n Abrasion resistance n Freeze-thaw resistance n Volume stability Curing Concrete

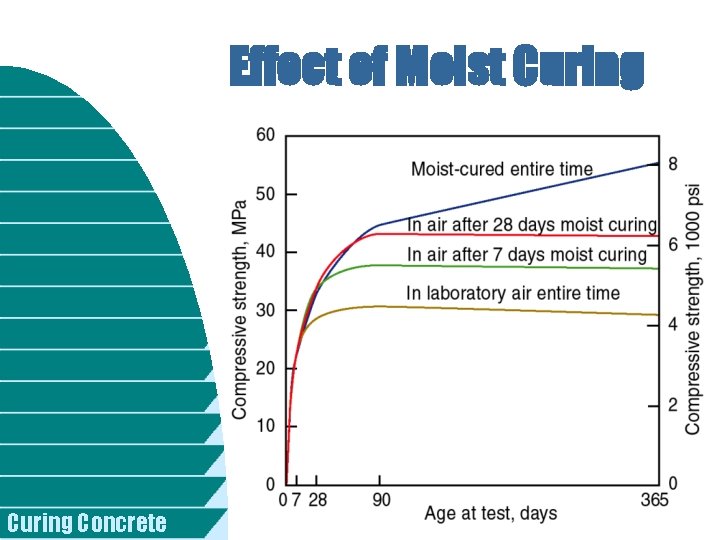

Effect of Moist Curing Concrete

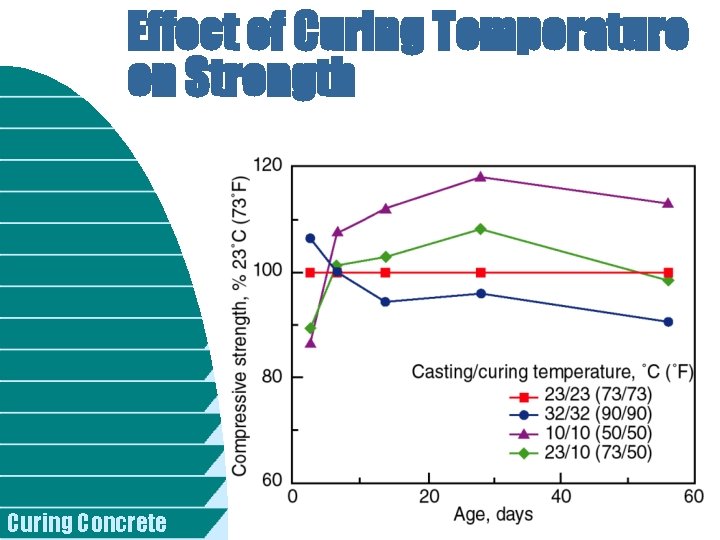

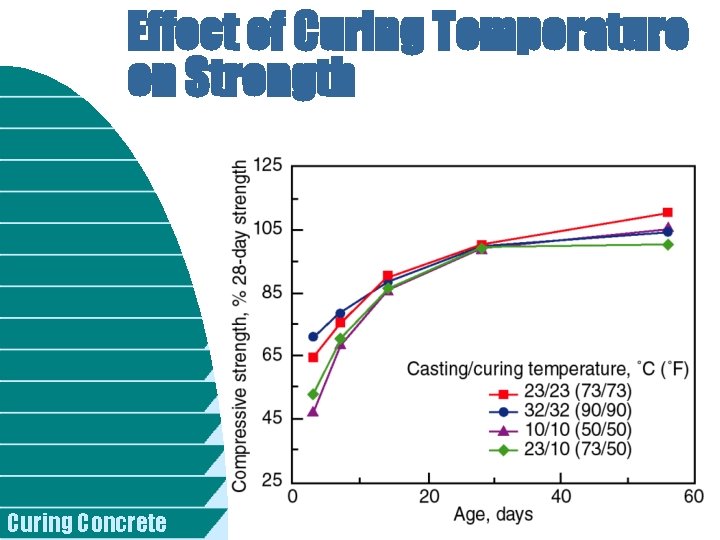

Effect of Curing Temperature on Strength Curing Concrete

Effect of Curing Temperature on Strength Curing Concrete

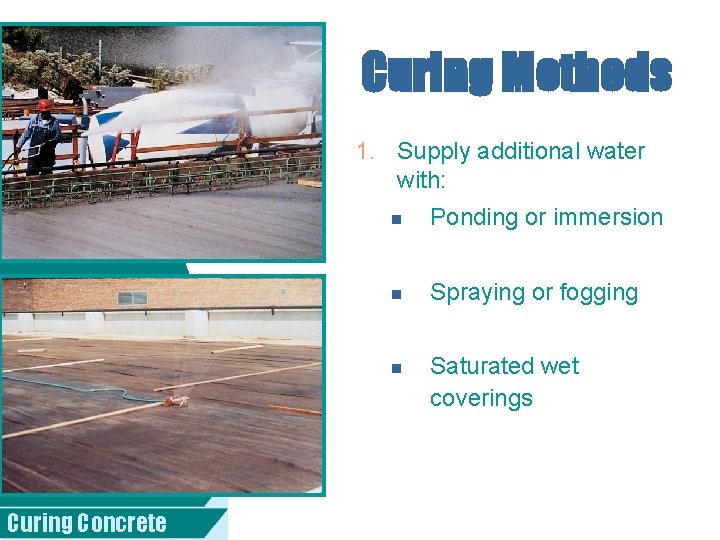

Curing Methods 1. Supply additional water with: n Ponding or immersion n Spraying or fogging n Curing Concrete Saturated wet coverings

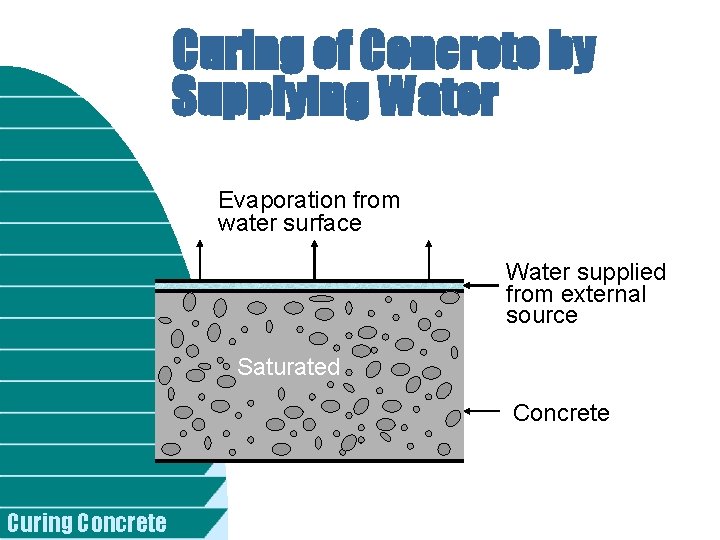

Curing of Concrete by Supplying Water Evaporation from water surface Water supplied from external source Saturated Concrete Curing Concrete

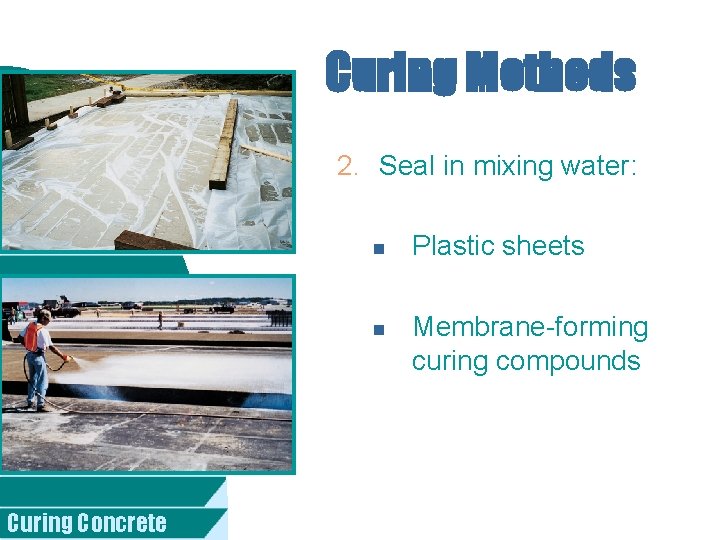

Curing Methods 2. Seal in mixing water: n n Curing Concrete Plastic sheets Membrane-forming curing compounds

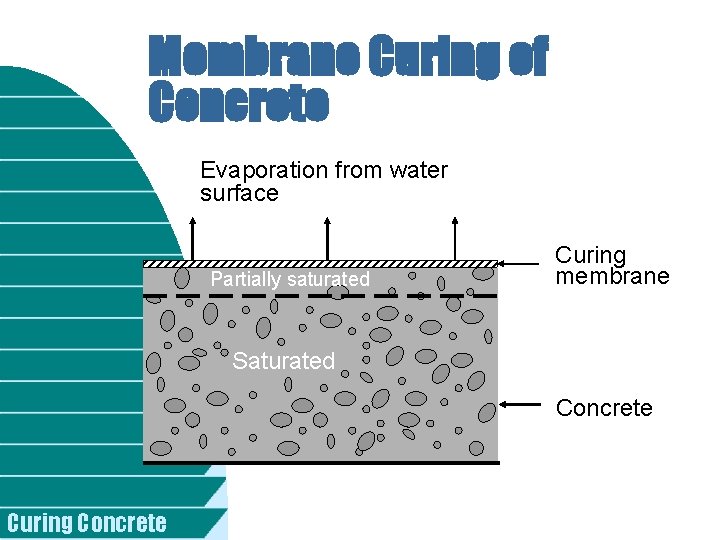

Membrane Curing of Concrete Evaporation from water surface Partially saturated Curing membrane Saturated Concrete Curing Concrete

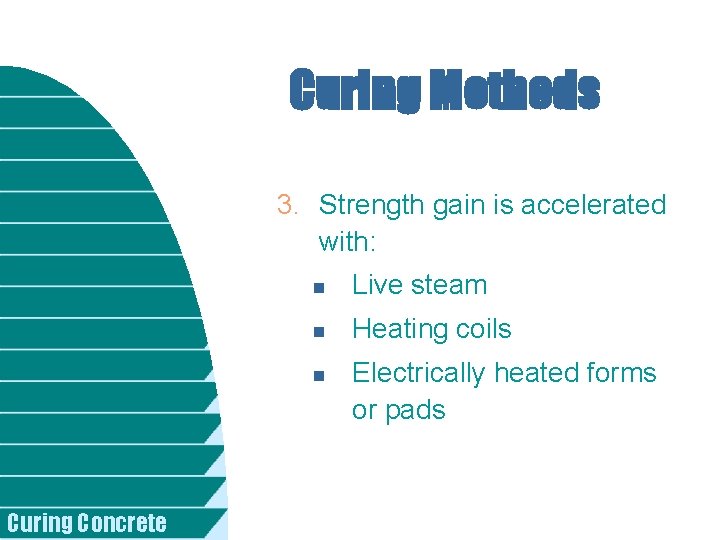

Curing Methods 3. Strength gain is accelerated with: n Live steam n Heating coils n Curing Concrete Electrically heated forms or pads

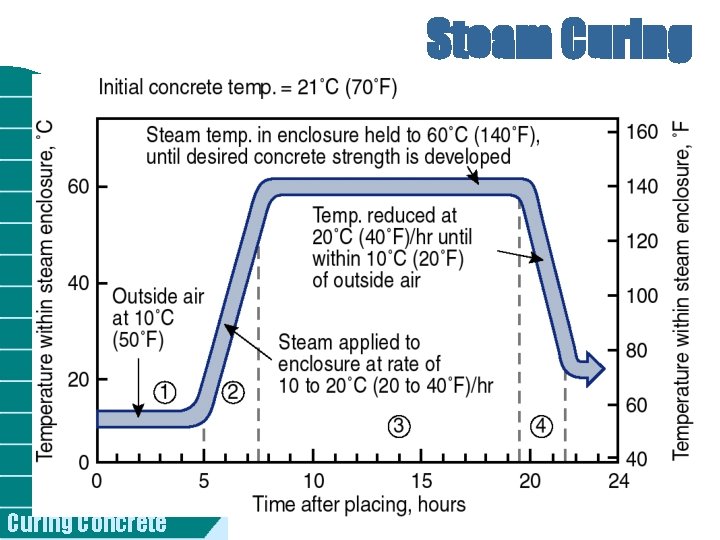

Steam Curing Concrete

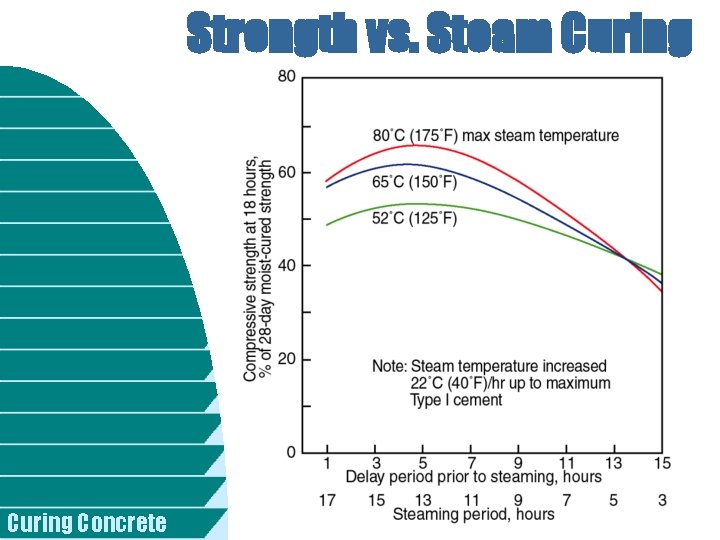

Strength vs. Steam Curing Concrete

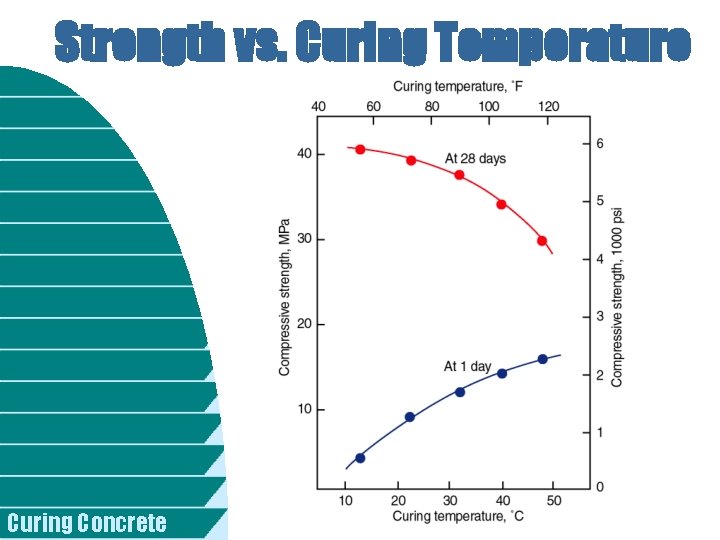

Strength vs. Curing Temperature Curing Concrete

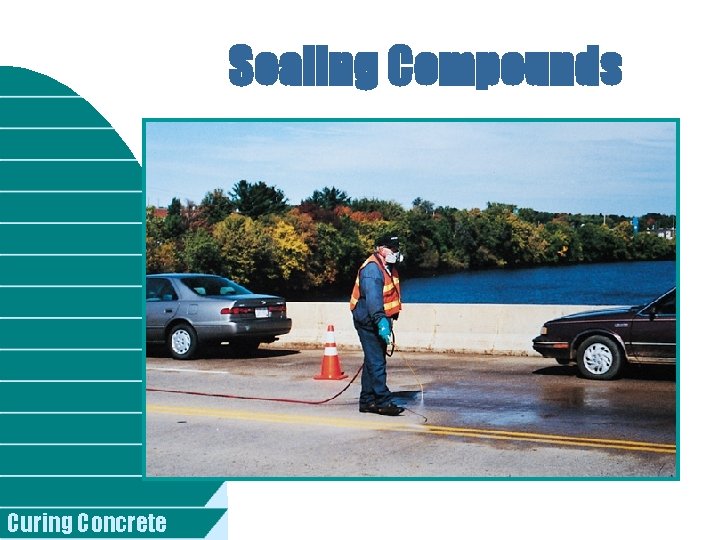

Sealing Compounds Curing Concrete
