Connecting to Internet Telephony Service Providers with SIP

Connecting to Internet Telephony Service Providers with SIP Trunks Shore. Tel & Ingate SIParator Jerome Joanny Senior Product Manager Shore. Tel CONFIDENTIAL -- FOR INTERNAL USE ONLY (c) Shore. Tel, Inc. 2007 -- ALL RIGHTS RESERVED

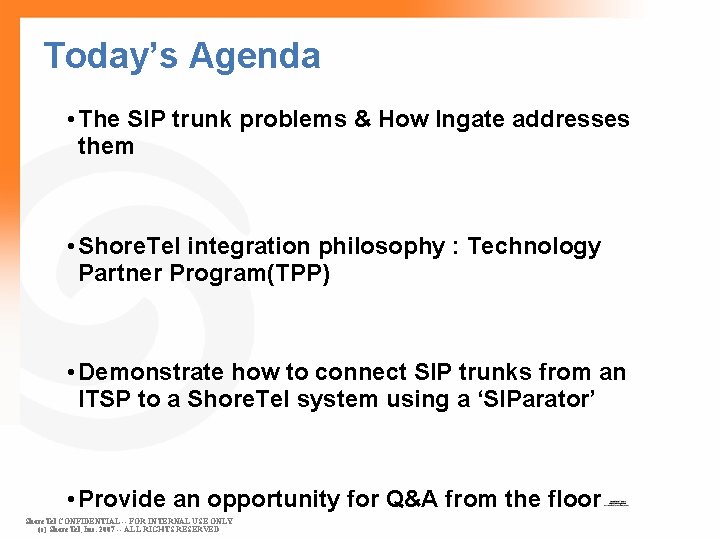

Today’s Agenda • The SIP trunk problems & How Ingate addresses them • Shore. Tel integration philosophy : Technology Partner Program(TPP) • Demonstrate how to connect SIP trunks from an ITSP to a Shore. Tel system using a ‘SIParator’ • Provide an opportunity for Q&A from the floor Shore. Tel CONFIDENTIAL -- FOR INTERNAL USE ONLY (c) Shore. Tel, Inc. 2007 -- ALL RIGHTS RESERVED

SIP trunking problematic • NAT traversal for SIP – NAT resides at L 3 – SIP at L 7 – NAT processing “breaks” SIP addressing • Network & SIP Communication security – Physical medium is the IP pipe – Firewalls control what goes in or out such pipe • SIP Protocol Normalization & translation – Not all SIP are created equal … and compatible – Open Standard …open to interpretations Shore. Tel CONFIDENTIAL -- FOR INTERNAL USE ONLY (c) Shore. Tel, Inc. 2007 -- ALL RIGHTS RESERVED

INGATE Siparator addressing the NAT issue 603 -883 -6569 Firewall 972 -678 -0464 To: 972 -678 -0464@ IP 168. 105. 45. 19 From: 603 -883 -6569 @10. 200. 16 Shore. Tel IP 10. 200. 16 For calls to route successfully internal IP addresses have to be re-written The SBC handles the Network Address Translation (NAT) Shore. Tel CONFIDENTIAL -- FOR INTERNAL USE ONLY (c) Shore. Tel, Inc. 2007 -- ALL RIGHTS RESERVED IP 168. 203. 30. 11 Address re-write IP 168. 105. 45. 19 168. 203. 30. 11 To/URI: 972 -678 -0464@ IP IP 168. 105. 45. 19 account@provider. co m From: 603 -883 -6569 @10. 200. 16

ITSPs can’t reach the IPBX in the LAN Service Provider can only address the known public IPaddress of the Enterprise 603 -883 -6569 Shore. Tel 972 -678 -0464 Firewall From: 972 -678 -0464@ IP 168. 203. 30. 11 To: 603 -883 -6569@168. 105. 45. 19 IP 10. 200. 16 For calls to route successfully IP addresses have to be re-written The SBC again handles the Network Address Translation (NAT) Shore. Tel CONFIDENTIAL -- FOR INTERNAL USE ONLY (c) Shore. Tel, Inc. 2007 -- ALL RIGHTS RESERVED IP 168. 203. 30. 11 Address re-write To/URI: 603 -883 -6569@168. 105. 45. 19 IP 10. 200. 16 IP 168. 105. 45. 19

No Need to Replace the Existing How does the Siparator help? Firewall! Normal Firewalls Siparator DMZ SIP-enables any firewall It works with existing firewalls Dynamically manages ports need for SIP: -SIP Signaling port 5060 -Range of UDP/TCP ports Provides a B 2 BUA & SIP Proxy Shore. Tel CONFIDENTIAL -- FOR INTERNAL USE ONLY (c) Shore. Tel, Inc. 2007 -- ALL RIGHTS RESERVED

The ITSP SIP transfer problem B 2 BUA handles the “REFER” SIP method locally and a new media stream is set up to Jane Sure! I will transfer you to Jane John 603 -883 -6569 Shore. Tel Hi John ! May I speak with Jane ? ITSP sees a RE-INVITE with the same Call ID REFER to Jane Bob 972 -678 -0464 ALG Call-ID: X ? Call-ID: Y IP 168. 203. 30. 11 DMZ Re-INVITE Jane 603 -883 -6580 Shore. Tel CONFIDENTIAL -- FOR INTERNAL USE ONLY (c) Shore. Tel, Inc. 2007 -- ALL RIGHTS RESERVED SBC with B 2 BUA *) The REFER SIP method

Shore. Tel’s philosophy on integration Shore. Tel Technology Partner Program - Mission Enable Shore. Tel Reseller Partners to deliver complete business solutions to end customers with confidence • Provide partners and customers with validated ‘end to end’ multi-vendor solutions in the SIP ‘plug and pray’ era • Products undergo mutual validation testing to check compatibility • We have validated interworking with 7 SIP carriers (Airespace , ATT IP Flex, Bandtel, Bandwith. com, Broadvox, Etherspeak, Gamma Telecom ) • There are 20+ ITSPs in the pipeline Shore. Tel CONFIDENTIAL -- FOR INTERNAL USE ONLY (c) Shore. Tel, Inc. 2007 -- ALL RIGHTS RESERVED

Shore. Tel Technology Partner Program Mission Enable Shore. Tel Reseller Partners to deliver complete business solutions to end customers with confidence Ex : Bandwidth. com is a TPP certified partner Shore. Tel CONFIDENTIAL -- FOR INTERNAL USE ONLY (c) Shore. Tel, Inc. 2007 -- ALL RIGHTS RESERVED

Practical Demonstration Jerome Joanny, Sr Product Manager, Shore. Tel Lisa Hallingstrom, System Engineering, Ingate Shore. Tel CONFIDENTIAL -- FOR INTERNAL USE ONLY (c) Shore. Tel, Inc. 2007 -- ALL RIGHTS RESERVED

Detailed Demonstration Setup Shore. Ware Director Shore. Gear 90 IP 565 SIParator Bandwidth. com Shore. Tel CONFIDENTIAL -- FOR INTERNAL USE ONLY (c) Shore. Tel, Inc. 2007 -- ALL RIGHTS RESERVED
