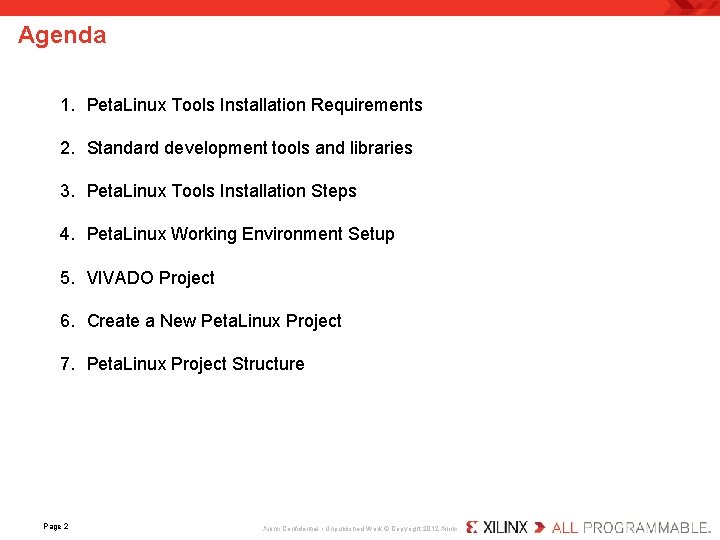

Agenda 1. Peta. Linux Tools Installation Requirements 2. Standard development tools and libraries 3. Peta. Linux Tools Installation Steps 4. Peta. Linux Working Environment Setup 5. VIVADO Project 6. Create a New Peta. Linux Project 7. Peta. Linux Project Structure Page 2 Xilinx Confidential • Unpublished Work © Copyright 2012 Xilinx

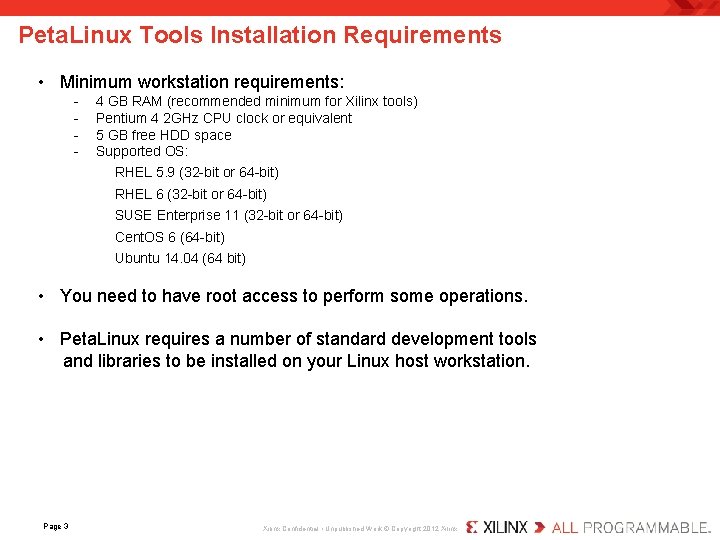

Peta. Linux Tools Installation Requirements • Minimum workstation requirements: - 4 GB RAM (recommended minimum for Xilinx tools) Pentium 4 2 GHz CPU clock or equivalent 5 GB free HDD space Supported OS: RHEL 5. 9 (32 -bit or 64 -bit) RHEL 6 (32 -bit or 64 -bit) SUSE Enterprise 11 (32 -bit or 64 -bit) Cent. OS 6 (64 -bit) Ubuntu 14. 04 (64 bit) • You need to have root access to perform some operations. • Peta. Linux requires a number of standard development tools and libraries to be installed on your Linux host workstation. Page 3 Xilinx Confidential • Unpublished Work © Copyright 2012 Xilinx

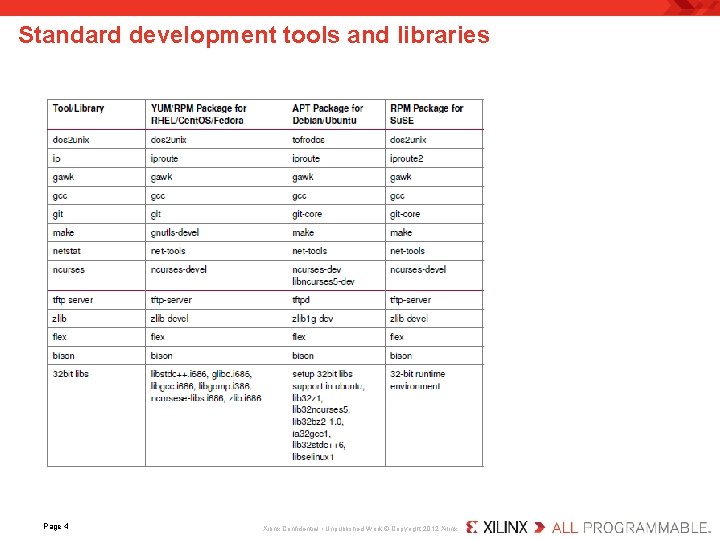

Standard development tools and libraries Page 4 Xilinx Confidential • Unpublished Work © Copyright 2012 Xilinx

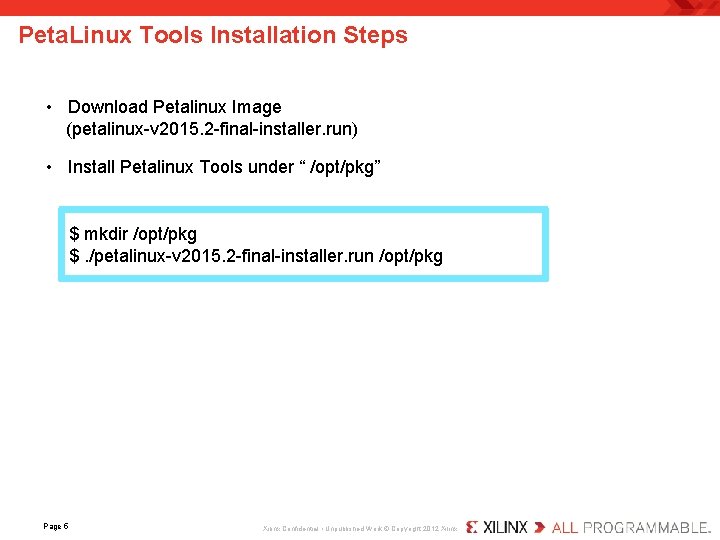

Peta. Linux Tools Installation Steps • Download Petalinux Image (petalinux-v 2015. 2 -final-installer. run) • Install Petalinux Tools under “ /opt/pkg” $ mkdir /opt/pkg $. /petalinux-v 2015. 2 -final-installer. run /opt/pkg Page 5 Xilinx Confidential • Unpublished Work © Copyright 2012 Xilinx

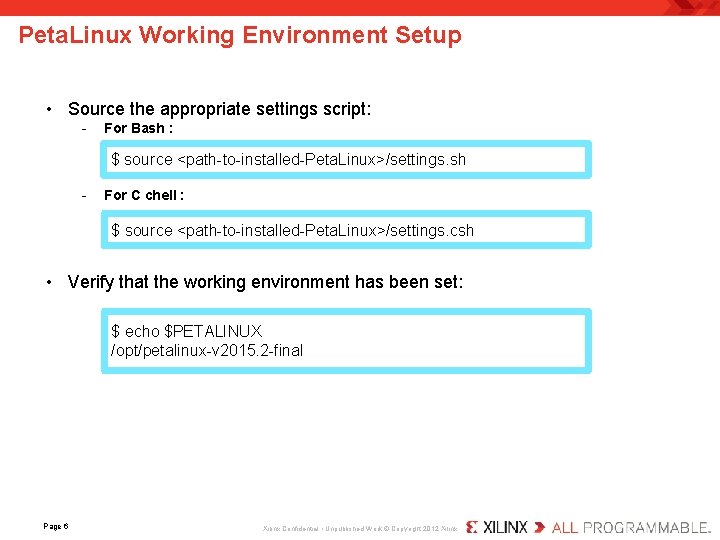

Peta. Linux Working Environment Setup • Source the appropriate settings script: - For Bash : $ source <path-to-installed-Peta. Linux>/settings. sh - For C chell : $ source <path-to-installed-Peta. Linux>/settings. csh • Verify that the working environment has been set: $ echo $PETALINUX /opt/petalinux-v 2015. 2 -final Page 6 Xilinx Confidential • Unpublished Work © Copyright 2012 Xilinx

VIVADO Project Page 7 Xilinx Confidential • Unpublished Work © Copyright 2012 Xilinx

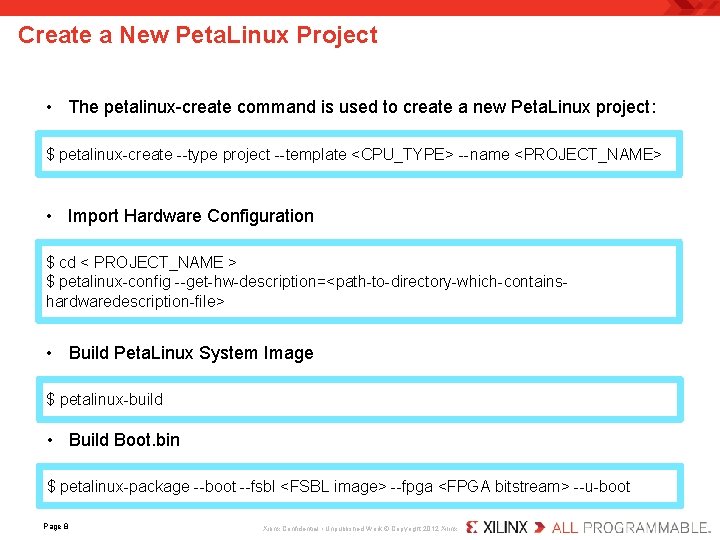

Create a New Peta. Linux Project • The petalinux-create command is used to create a new Peta. Linux project: $ petalinux-create --type project --template <CPU_TYPE> --name <PROJECT_NAME> • Import Hardware Configuration $ cd < PROJECT_NAME > $ petalinux-config --get-hw-description=<path-to-directory-which-containshardwaredescription-file> • Build Peta. Linux System Image $ petalinux-build • Build Boot. bin $ petalinux-package --boot --fsbl <FSBL image> --fpga <FPGA bitstream> --u-boot Page 8 Xilinx Confidential • Unpublished Work © Copyright 2012 Xilinx

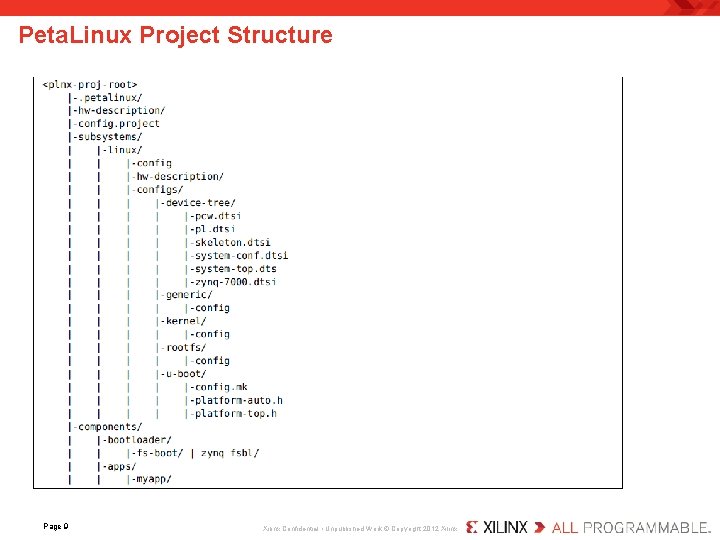

Peta. Linux Project Structure Page 9 Xilinx Confidential • Unpublished Work © Copyright 2012 Xilinx
