Zurn Traps & Primers - Overview July 25, 2019

agenda what you’ll learn 01 value proposition 02 how it works 03 features & benefits 04 design & specify 05 summary 06 resources page 02

Z 1072 -ZShield™ barrier trap seal device For building owners, engineers, and contractors, Zurn Industries provides traps and primers that prevent sewer gases from entering buildings through drains, allowing you to maintain a safe building environment Z 1022 GS sani-guard automatic trap primer

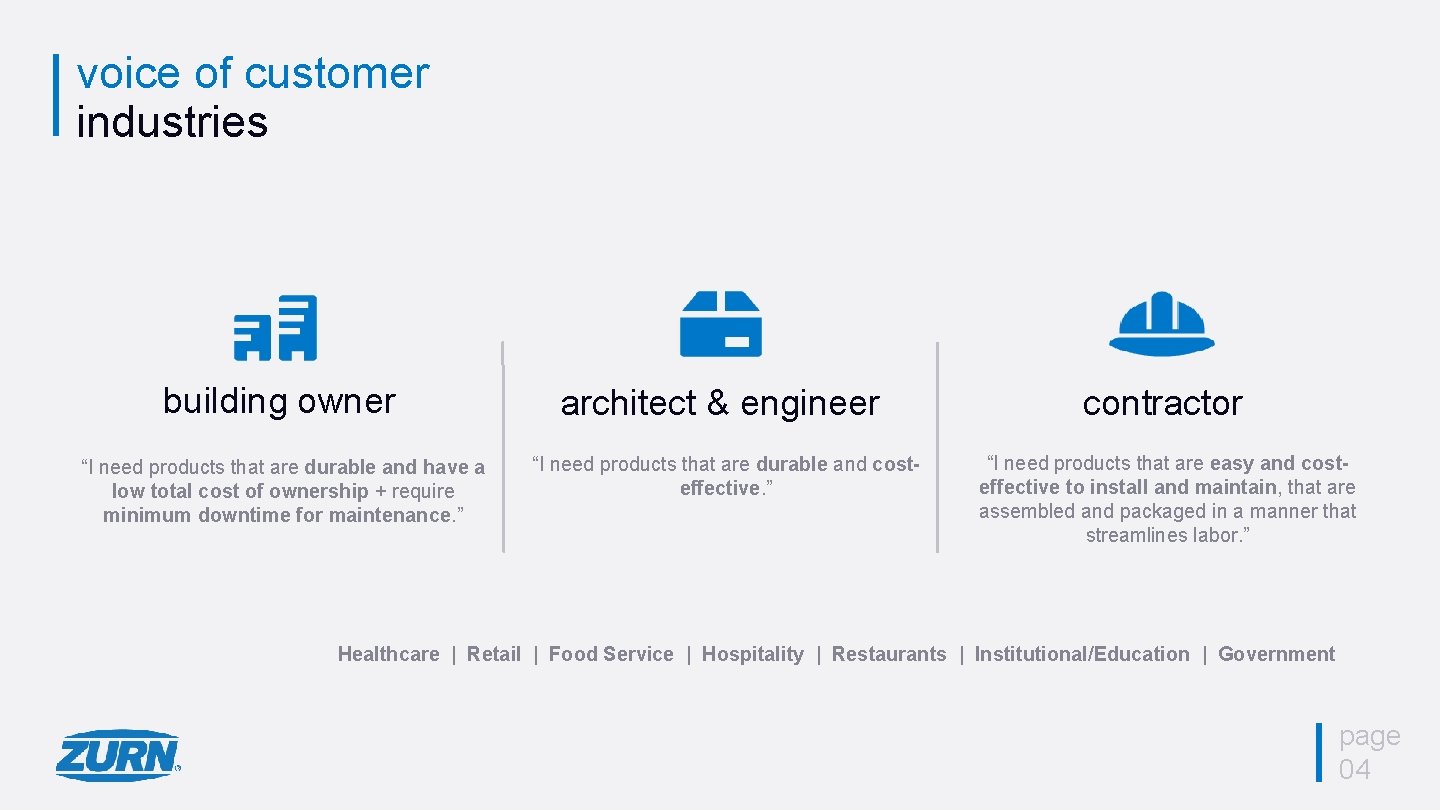

voice of customer industries building owner “I need products that are durable and have a low total cost of ownership + require minimum downtime for maintenance. ” architect & engineer “I need products that are durable and costeffective. ” contractor “I need products that are easy and costeffective to install and maintain, that are assembled and packaged in a manner that streamlines labor. ” Healthcare | Retail | Food Service | Hospitality | Restaurants | Institutional/Education | Government page 04

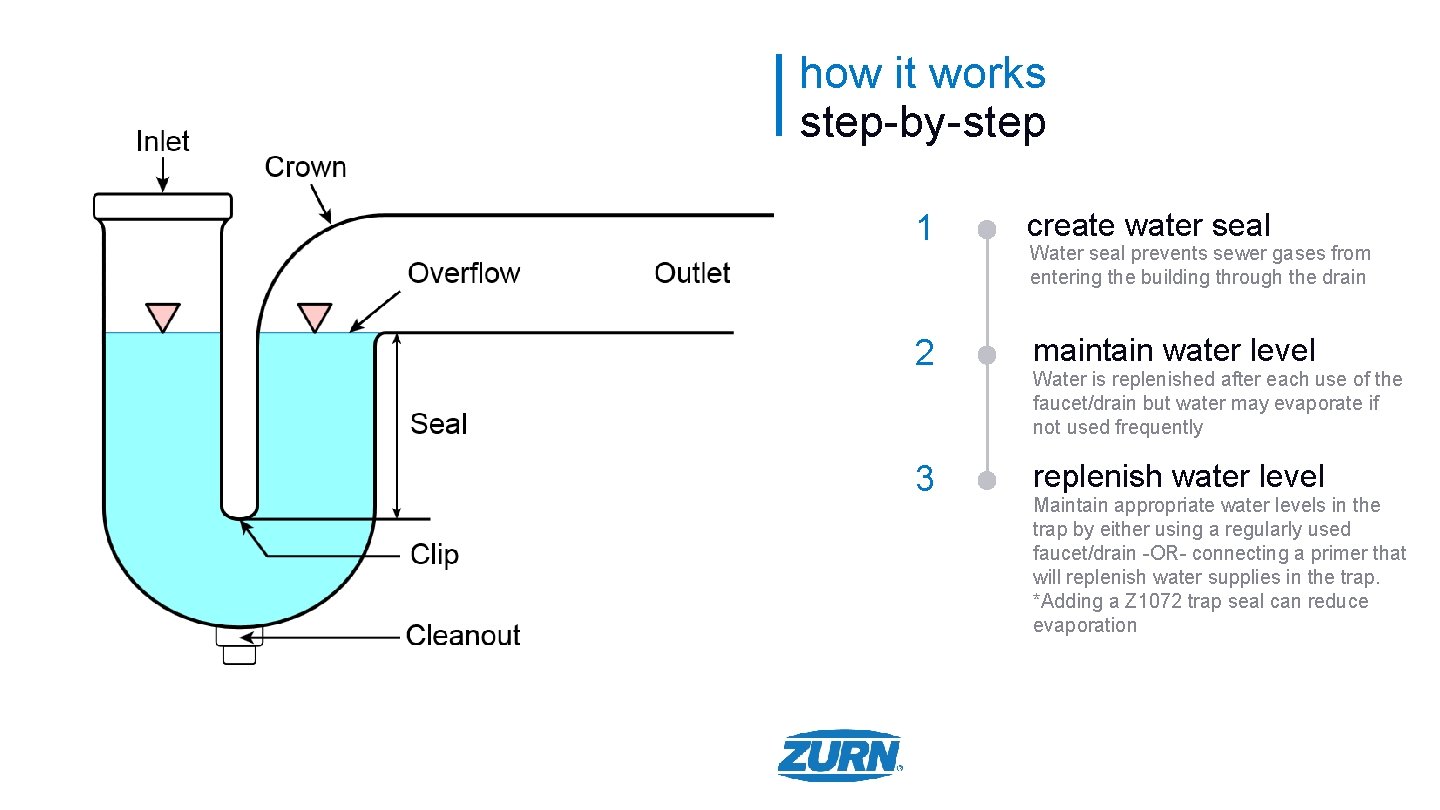

how it works step-by-step 1 create water seal 2 maintain water level 3 replenish water level Water seal prevents sewer gases from entering the building through the drain Water is replenished after each use of the faucet/drain but water may evaporate if not used frequently Maintain appropriate water levels in the trap by either using a regularly used faucet/drain -OR- connecting a primer that will replenish water supplies in the trap. *Adding a Z 1072 trap seal can reduce evaporation

Test Your Knowledge How do Zurn traps function? Place the following in the correct order: A. Water is replenished after each use of the faucet/drain but water may evaporate if not used frequently B. Maintain appropriate water levels in the trap by either using the faucet/drain or connecting a primer that will replenish water supplies in the trap C. Water seal prevents sewer gases from entering the building through the drain

features & benefits traps Z 1000 deep seal trap, with cleanout plug; provides 4” of trap seal, with bronze cleanout plug Z 1005 deep seal trap with adjustable cover prevents sewer gas, odors, and insects from entering up thru drain Typically connected to the bottom outlet of the floor drain key features Z 1019 funnel drain with p-trap, with bronze cleanout plug • Dura-coated cast iron body • P-trap primer connections allow automatic trap primers to be connected to provide water to the trap • Often, a trap primer connection is already on the floor drain • No-hub and threaded connections available • Optional –FL flushing connections Z 1012 deep seal trap with floor cleanout, used when the cleanout is recessed below the floor in an access box; where waste is being directly page discharged through a pipe into the top of 07 a funnel and a p-trap is desired below

features & benefits primers, automatic Z 1021 water saver trap primer, with 1½” copper sweat connection; chrome plated finish; escutcheon to conceal wall opening; braided hose is ½” female threaded connection with compression fittings supplies water to trap A trap primer supplies a dose of water to the trap in order to keep the trap full of water, to maintain its seal. Typical traps may provide 2½” of trap seal. Must be connected to a water source and is activated periodically key features • Z 1021 – supplies lavatory waste water to an additional trap by drawing excessive water from the trap below the sink, and diverting it through a braided host to a p-trap at a floor drain • Z 1022 – potable water is diverted from the supply line by the trap primer and sent through the bottom of the trap primer to the p-trap. Must be used on a line with a static pressure range from 20 -80 psi and requires a pressure drop of 2 to 3 psi across the trap primer. Most standard sized valves will allow for this pressure drop but some low flow valves may not have enough water flow to activate the trap primer Z 1022 GS sani-guard automatic trap primer, typically on a supply line from a lavatory orpage flush valve connection in a commercial building 08

features & benefits primers, electronic Z 1020 electronic trap primer supplies water to trap A trap primer supplies a dose of water to numerous traps in order to keep the traps full of water, to maintain their seals. Electronic primers are used in locations where no supply line is nearby; serves drains up to 60 feet away Z 1020 electronic trap primer Supplies water to 1 -5 traps; must be connected to a water source and is activated periodically (usually every 24 hours); operated by an internal control panel. Comes with 4 caps that cap off an outlet that is not in use -available as 1020 XL lead-free version available page 09

features & benefits fittings connects traps and primers to drains Z 1023 trap primer connection adapter, used below a floor drain without a trap primer connection; 2”, 3”, 4” Highly durable connectors key features • Dura-Coated cast iron body • Adapters – connection, hub, no-hub, and elbow • Reducers – inside calk, female pipe thread, female pipe eccentric Z 1040 male thread, no-hub adapter; 8 sizes – 2”-12” page 010

options ZShield™ barrier trap seal : 47 Video: Zurn Floor Drains ZShield – How to Install 95% less trap evaporation Prevents odors, gases, and insects from entering up through the drain key features • • • Complies with ASSE 1072 -2007 ASSE, ICC and IAPMO approved 2”, 3”, 4” outlet sizes + 3. 5” for shank installation New construction and retrofit Easy installation Z 1072 - ZShield™ -TSP option, for nearly ANY drain

features & benefits questions How important is preventing sewer gases from entering the building? How important is product durability? How important is it to have easy cleanouts? Use Contributes to a safe building environment Prevents sewer gases from entering buildings through drains Replenishes the water supply in the trap Design & Specify Zurn Online Specification Tools Highly durable construction Various sizes and configurations Automatic and electronic primer options Support Easy cleanouts Highly Effective Enhances Building Safety Durable, Long-Lasting Products Sizes & Configurations for a Variety of Needs Ease of Maintenance

Test Your Knowledge What are Zurn traps’ top 3 benefits? A. Durable, long-lasting products B. Automatic and electronic primer options C. Overall product effectiveness at preventing sewer gases from entering the building D. Various size options

how to specify step-by-step 1 trap type Deep seal trap, deep seal trap w/ adjustable cover, deep seal trap w/ floor cleanout, funnel drain w/ “P” trap, trap shield device 2 outlet size 2”, 3 -1/2”, 4” 3 connection type Hub, no-hub, or threaded 4 additional options Cleanout, flushing connection…

design & specify traps TRAPS Z 1000 Deep Seal Trap 2” Outlet 2” 3” Outlet 3” 4” Outlet Z 1005 Deep Seal Trap with Adjustable Cover Z 1012 Deep Seal Trap with Recessed Floor Cleanout Z 1019 Funnel Drain with Cleanout and “P” Trap 2” 2” 3” 3” 3” 4” 4” 4” Body Material Dura-Coated Cast Iron Other Bottom Bronze Cleanout Plug No-Hub and Threaded Connection Options No-Hub Inlet for Use with Bottom Outlet Drain Female Threaded Outlet Connection with Anchoring Flange and Adjustable Floor Level Gasketed Secured Cast Iron Cover For Use with Bottom Outlet Drain Cast Iron Floor Cleanout and Plug for Caulking into Top Hub Cleanout Opening No Hub Inlet Combination Funnel and Trap Drain Bronze Bottom Cleanout Plug 3 -1/2” Outlet

Test Your Knowledge Place the following specify steps in the correct order: A. Additional options B. Outlet size C. Trap type D. Connection type

design & specify primers PRIMERS Z 1020 XL Lead-Free Electronic Trap Primer Z 1021 Water Saver Trap Primer Z 1022 -XL Lead Free Sani-Guard Automatic Trap Primer Z 1072 ZShield™ Barrier Trap Seal Device Type Electronic Automatic, Pressure Activated Function Factory programmed to provide six-second water injection into traps every 24 hours 1 -1/2” NPT outlet, 1 -1/2” slip nuts and washers, and reducing washer for 1 -1/4” sink tail piece hookup, escutcheons and stainless steel braided primer hose with ½” FIP compression fittings Integral vacuum breaker Stainless steel spring Removable bronze seat with metering orifice For use with drains to minimize trap evaporation Chrome-plated polished cast bronze with cleanout Bronze Polymer Lead-Free ½” solder female, IP female, solder female union, IP female union Sealed bronze cover New Construction / Retrofit Body Material Galvanized steel combination surface or recessed mount box and cover Lead-Free Other Options 5 -port Cleanout Optional one-piece waste elbow

ENGINEERING SPECIFICATIONS stainlessdrains. com stainless steel p-traps STANDARD OPTIONS 304 or 316 Stainless Steel Schedule 10 or Schedule 40 Bead Blast Finish (Satin) q manufactures both schedule 10 & schedule 40 q drains wastewater & prevents gases from backing up into the space they are installed in q contamination/corrosion resistant q custom configurations available CUSTOM OPTIONS ½” Trap Primer Connection Half Couplings (150 lbs. ) Concentric Reducers Threaded Outlet Male/Female Extended Risers Flanged Connection Strainer Basket Attachment Drains Electro-polished Finish Typical Applications Food/Beverage Manufacturing Plants Institution & Restaurant Kitchens Wash Down Areas Maintenance Rooms page 018

design & specify tools Create unlimited configurations Solidify your basis of design Generate your submittal package Edit, share and copy projects Zurn. com tools in. Spec Create configurations, solidify your basis of design, generate your submittal package, edit/share/copy projects Manufacturer Cross Reference Select a manufacturer, then product, type, or competitor product number to find the corresponding Zurn Product ARCAT Review CAD, BIM, and spec files Master. Spec Review spec files BIM/Revit Files Browse BIM objects Cross Reference Guides Review cross reference guides for individual products Technical Resources Product Warranties page Review specs, calculation sheets, engineering guides, sizing and selections, materials and finishes, installation + 019 Review One Zurn terms and conditions

summary what you learned building owner architect & engineer contractor Highly Effective at Keeping Buildings Safe Durable Products Easy Maintenance Durable, Long-Lasting Products Various Sizes & Configurations For a Variety of Apps Automatic and Electronic Primer Options Highly Durable Products Easy Cleanouts Easy Maintenance page 020

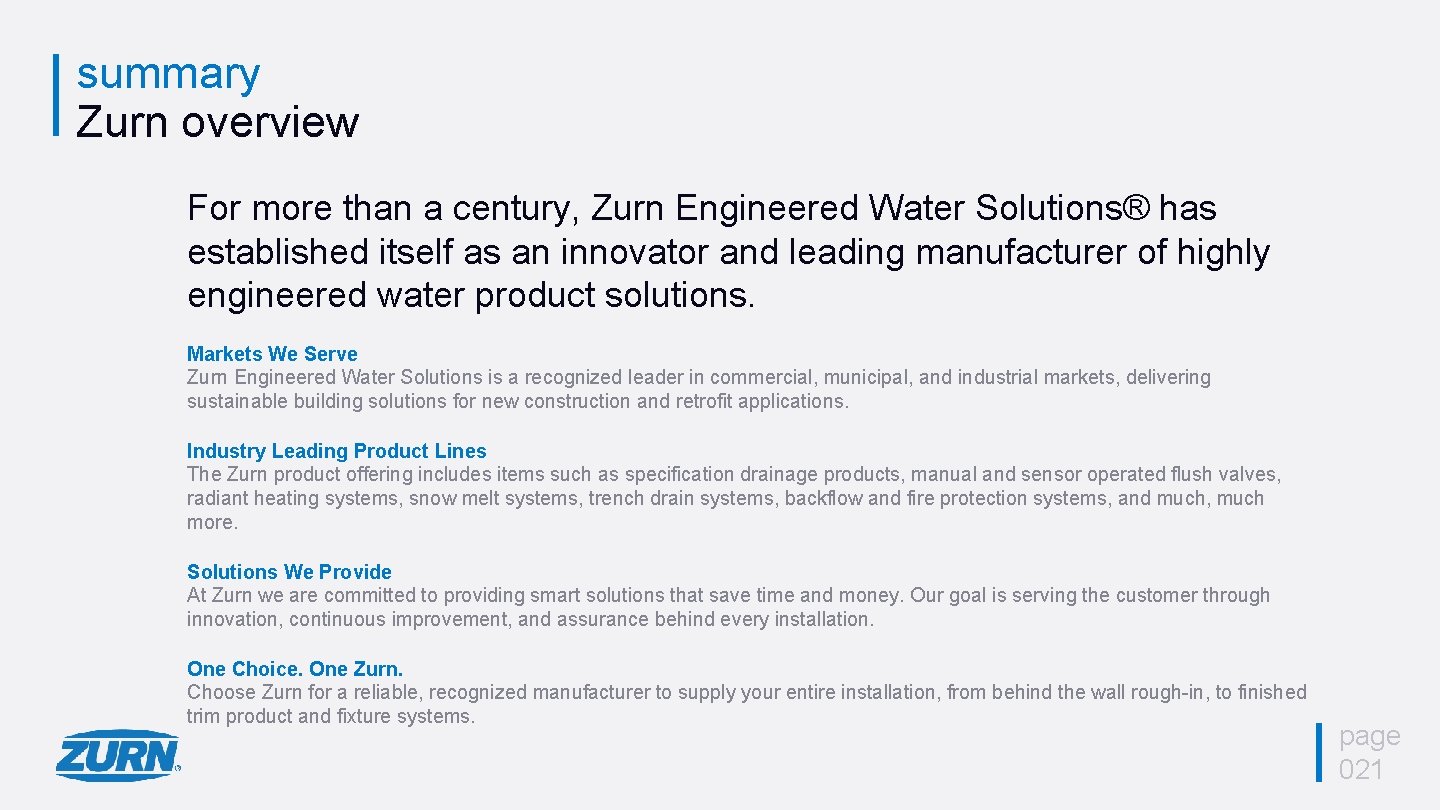

summary Zurn overview For more than a century, Zurn Engineered Water Solutions® has established itself as an innovator and leading manufacturer of highly engineered water product solutions. Markets We Serve Zurn Engineered Water Solutions is a recognized leader in commercial, municipal, and industrial markets, delivering sustainable building solutions for new construction and retrofit applications. Industry Leading Product Lines The Zurn product offering includes items such as specification drainage products, manual and sensor operated flush valves, radiant heating systems, snow melt systems, trench drain systems, backflow and fire protection systems, and much, much more. Solutions We Provide At Zurn we are committed to providing smart solutions that save time and money. Our goal is serving the customer through innovation, continuous improvement, and assurance behind every installation. One Choice. One Zurn. Choose Zurn for a reliable, recognized manufacturer to supply your entire installation, from behind the wall rough-in, to finished trim product and fixture systems. page 021

resources support address phone online 511 Freshwater Way toll-free 1 -855 -ONE-ZURN zurn. com Milwaukee, WI 53204 Product Pages | Tools, Specifications, & Resources | Vertical Market Solutions in. Spec | Manufacturer Cross Reference | ARCAT | Master. Spec | Spec. Builder | Specifiers | BIM/Revit Files zurn. com/resources/product-training Zurn Product - Overview How to Install and Support facebook. com/Zurn. Industries twitter. com/Zurn. Industries linkedin. com/company/Zurn. Industries youtube. com/Zurn. Industries. LLC page 022
