Zurn Fire Protection Overview December 2018 agenda what
Zurn Fire Protection - Overview December 2018
agenda what you’ll learn 01 value 04 design & 06 resources benefits proposition 03 how it works 05 02 features & summary specify page 02
FIRE PROTECTION SOLUTIONS The perfect safety plan requires having the necessary fire protection solutions in place. Our technologically advanced backflow prevention products with USC certified flow curves, automatic control valves, and fire valves continually deliver consistent performance results; exceed all fire sprinkler code requirements; feature easier installation; and simplify repair and maintenance, resulting in lower cost of ownership and priceless peace of mind. http: //www. zurn. co m/fire Zurn Headquarters Milwaukee, WI
WE’RE SOLVING SMARTER Zurn, a trusted and reliable fire protection leader, is solving smarter with a comprehensive line of fire protection solutions, providing contractors and engineers a single industry expert simplifying your sourcing needs for a fire system. Zurn Fire Protection Solutions include trusted products to help you get your fire sprinkler project done right and ahead of schedule. http: //www. zurn. co m/fire
voice of customer industries contractor “I need products that are easy and costeffective to install, that are assembled and packaged in a manner that streamlines labor. ” engineer “I need products that are durable and cost -effective and provide the lowest lifecycle costs for my clients. ” distribut or “I need products that are readily available, meet the project standards and are provided by a trusted, reliable brand. ” Healthcare | Retail | Food Service | Hospitality | Restaurants | Institutional/Education | Government page 05

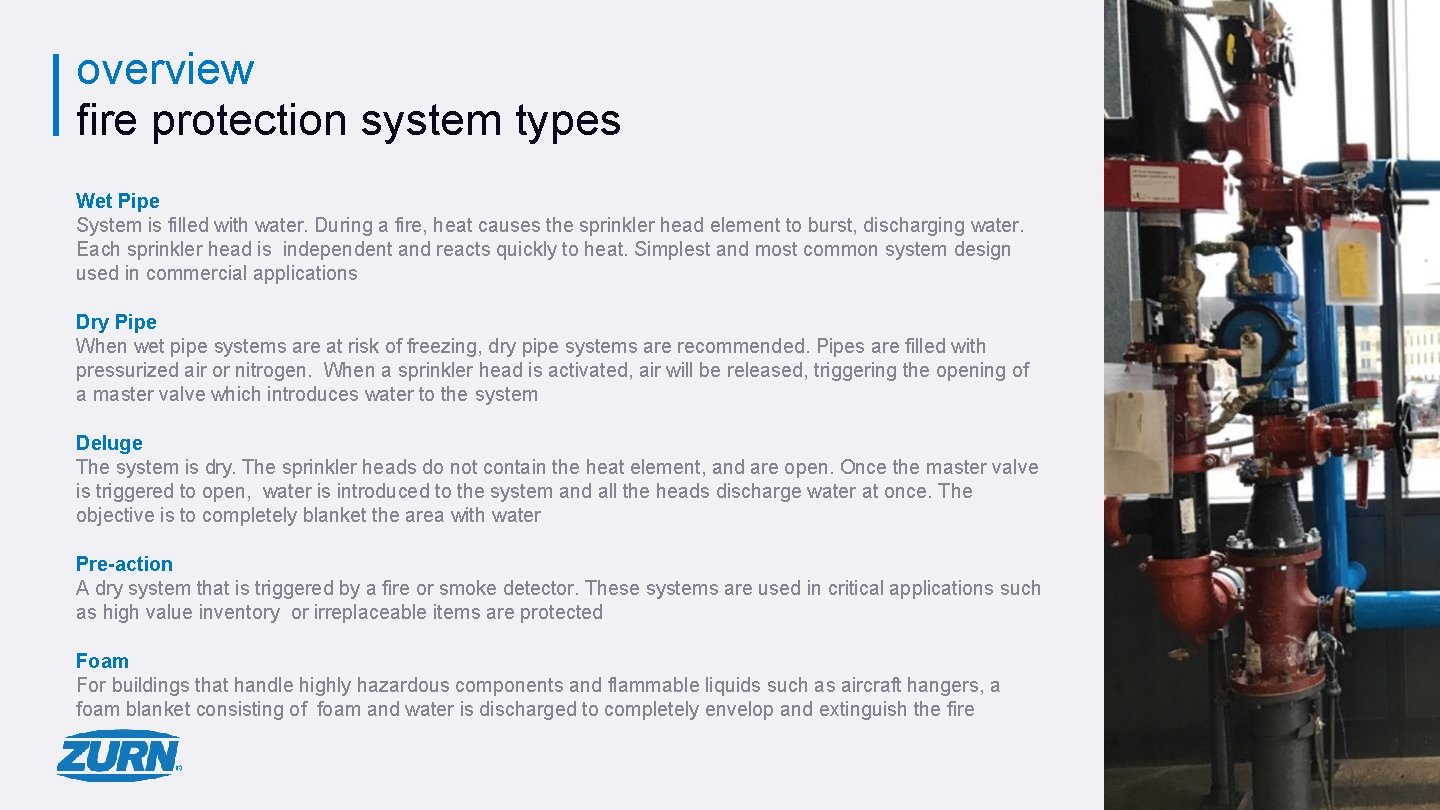

overview fire protection system types Wet Pipe System is filled with water. During a fire, heat causes the sprinkler head element to burst, discharging water. Each sprinkler head is independent and reacts quickly to heat. Simplest and most common system design used in commercial applications Dry Pipe When wet pipe systems are at risk of freezing, dry pipe systems are recommended. Pipes are filled with pressurized air or nitrogen. When a sprinkler head is activated, air will be released, triggering the opening of a master valve which introduces water to the system Deluge The system is dry. The sprinkler heads do not contain the heat element, and are open. Once the master valve is triggered to open, water is introduced to the system and all the heads discharge water at once. The objective is to completely blanket the area with water Pre-action A dry system that is triggered by a fire or smoke detector. These systems are used in critical applications such as high value inventory or irreplaceable items are protected Foam For buildings that handle highly hazardous components and flammable liquids such as aircraft hangers, a foam blanket consisting of foam and water is discharged to completely envelop and extinguish the fire

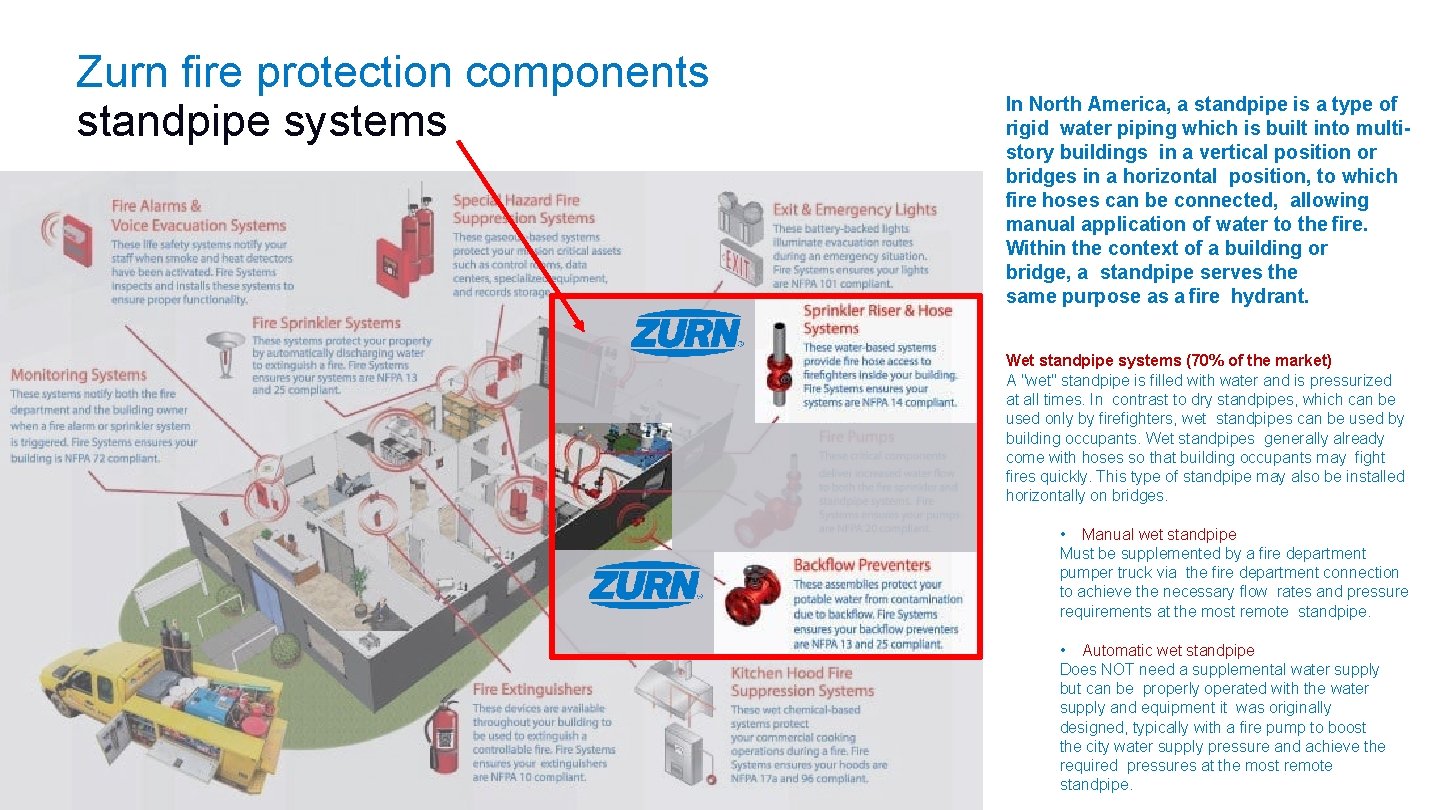

Zurn fire protection components standpipe systems In North America, a standpipe is a type of rigid water piping which is built into multistory buildings in a vertical position or bridges in a horizontal position, to which fire hoses can be connected, allowing manual application of water to the fire. Within the context of a building or bridge, a standpipe serves the same purpose as a fire hydrant. Wet standpipe systems (70% of the market) A "wet" standpipe is filled with water and is pressurized at all times. In contrast to dry standpipes, which can be used only by firefighters, wet standpipes can be used by building occupants. Wet standpipes generally already come with hoses so that building occupants may fight fires quickly. This type of standpipe may also be installed horizontally on bridges. • Manual wet standpipe Must be supplemented by a fire department pumper truck via the fire department connection to achieve the necessary flow rates and pressure requirements at the most remote standpipe. • Automatic wet standpipe Does NOT need a supplemental water supply but can be properly operated with the water supply and equipment it was originally designed, typically with a fire pump to boost the city water supply pressure and achieve the required pressures at the most remote standpipe.

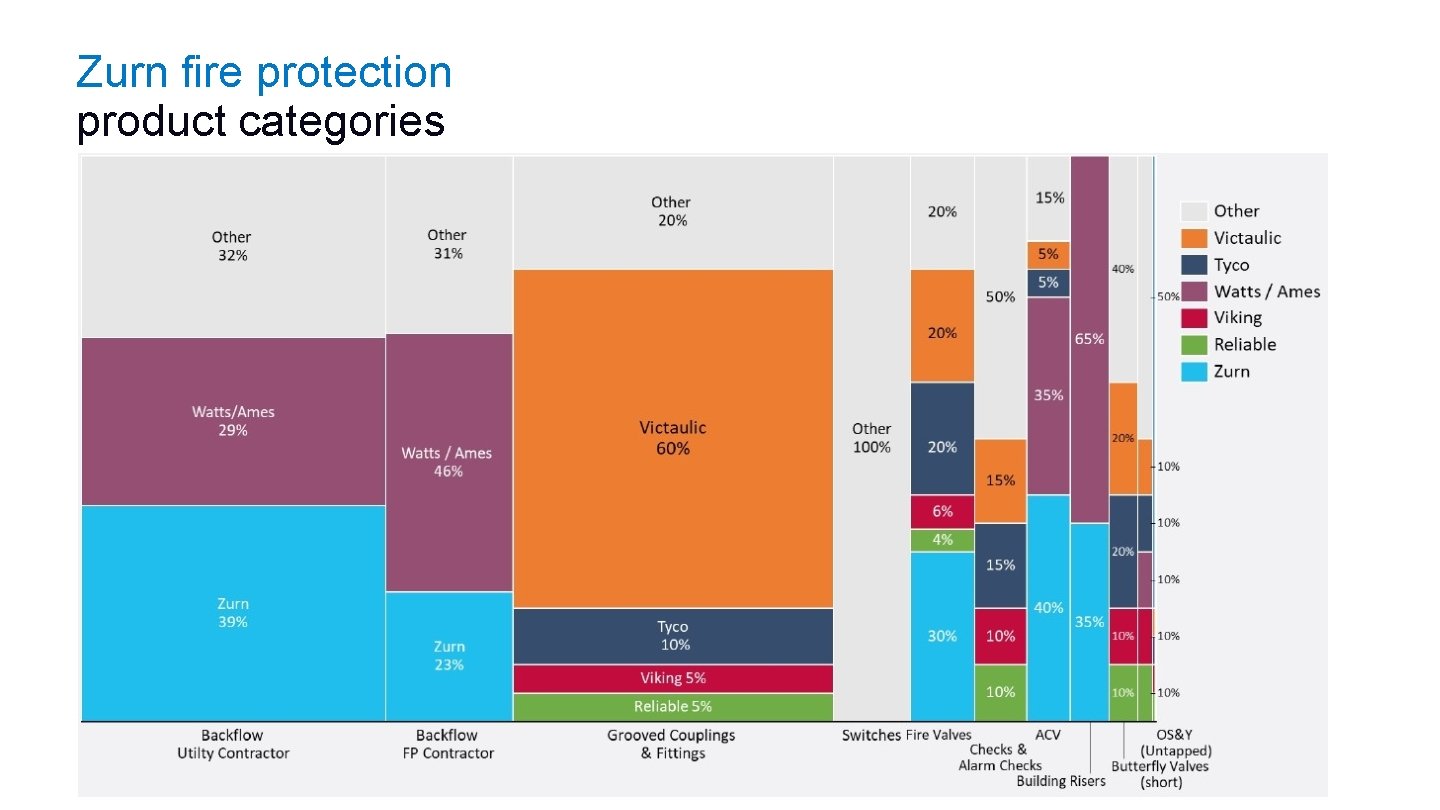

Zurn fire protection product categories

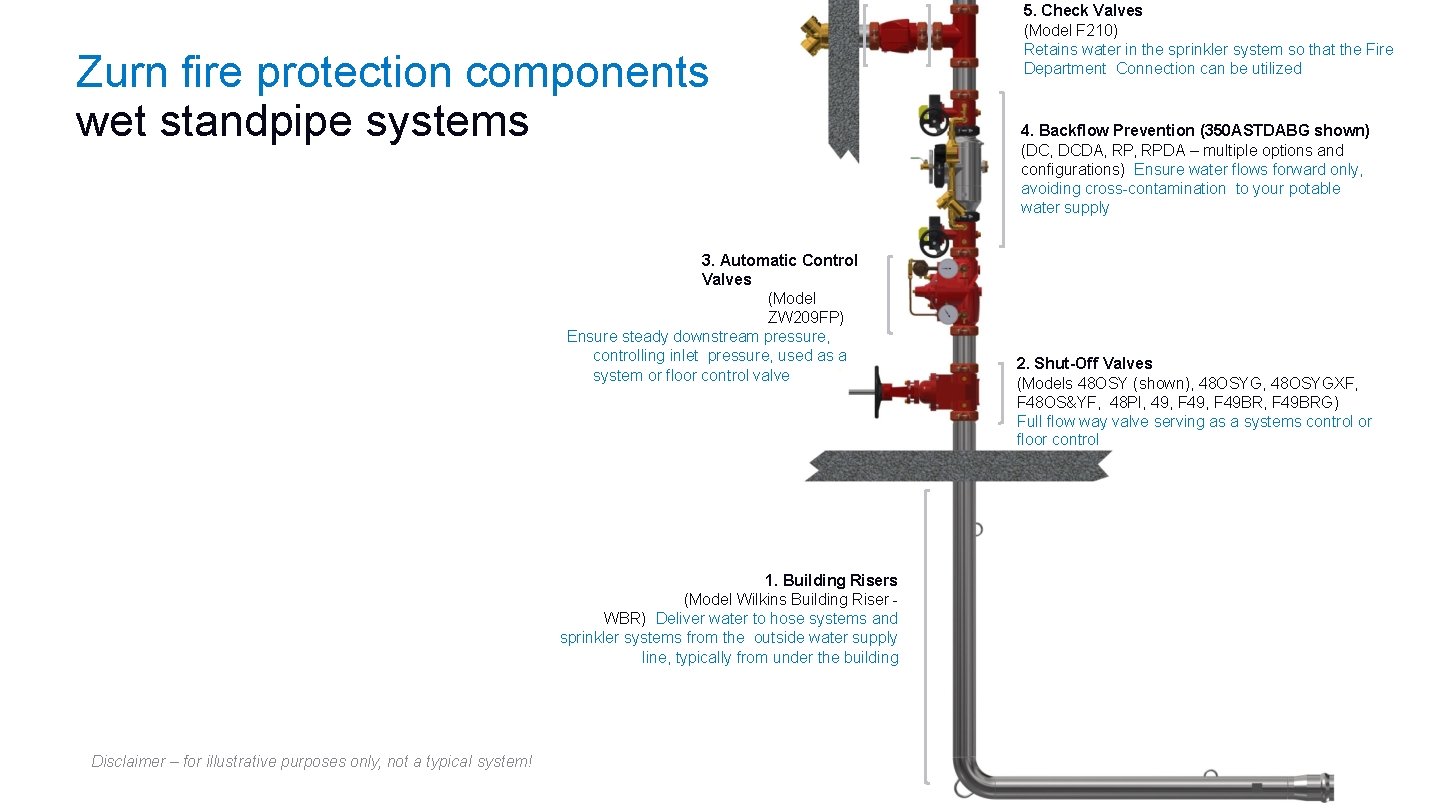

Zurn fire protection components wet standpipe systems 3. Automatic Control Valves (Model ZW 209 FP) Ensure steady downstream pressure, controlling inlet pressure, used as a system or floor control valve 1. Building Risers (Model Wilkins Building Riser WBR) Deliver water to hose systems and sprinkler systems from the outside water supply line, typically from under the building Disclaimer – for illustrative purposes only, not a typical system! 5. Check Valves (Model F 210) Retains water in the sprinkler system so that the Fire Department Connection can be utilized 4. Backflow Prevention (350 ASTDABG shown) (DC, DCDA, RPDA – multiple options and configurations) Ensure water flows forward only, avoiding cross-contamination to your potable water supply 2. Shut-Off Valves (Models 48 OSY (shown), 48 OSYGXF, F 48 OS&YF, 48 PI, 49, F 49 BR, F 49 BRG) Full flow way valve serving as a systems control or floor control
Zurn fire protection components wet standpipe systems Disclaimer – for illustrative purposes only, not a typical system! 13. Fire Valves – Pressure Reducing Valves (Z 3000, Z 3005, Z 3004, Z 2100, Z 2105, ZW 4100, ZW 4104, ZW 4000, ZW 4004) Provides floor control (with check feature), used to isolate the sprinkler run so maintenance can be performed 10. Commercial Riser (Model FEZRTD) Combines water flow detector, test and drain and pressure gauge to monitor systems pressure Butterfly Valve 12. Fire Valves – Hose Valves/ Restricting Hose Valves (Models F 100, F 105) Standpipe valve listed for use as a fire department outlet connection (or fire hose rack assembly) 11. Test and Drain Valves (Model FTD) Provide for required water flow testing and draining of a sprinkler system with one valve 9. Riser Checks (Model F 210 R and optional Check Trim Kit) zone water check to prevent system reversal of flow; as required by systems including sprinkler standpipe systems and fire department connections 8. Butterfly Valve (Model F 49) Short, light weight valve used as a system shutoff or floor control 7. Fire Department Connections (Model FDC 2) Provide a means for firefighters to connect hose lines to a fire sprinkler system to supplement the domestic water supply, if needed 6. Fittings and Couplings (Model F 210) Provide structure to the system, connecting pipe, changing pipe direction and reducing pipe sizes

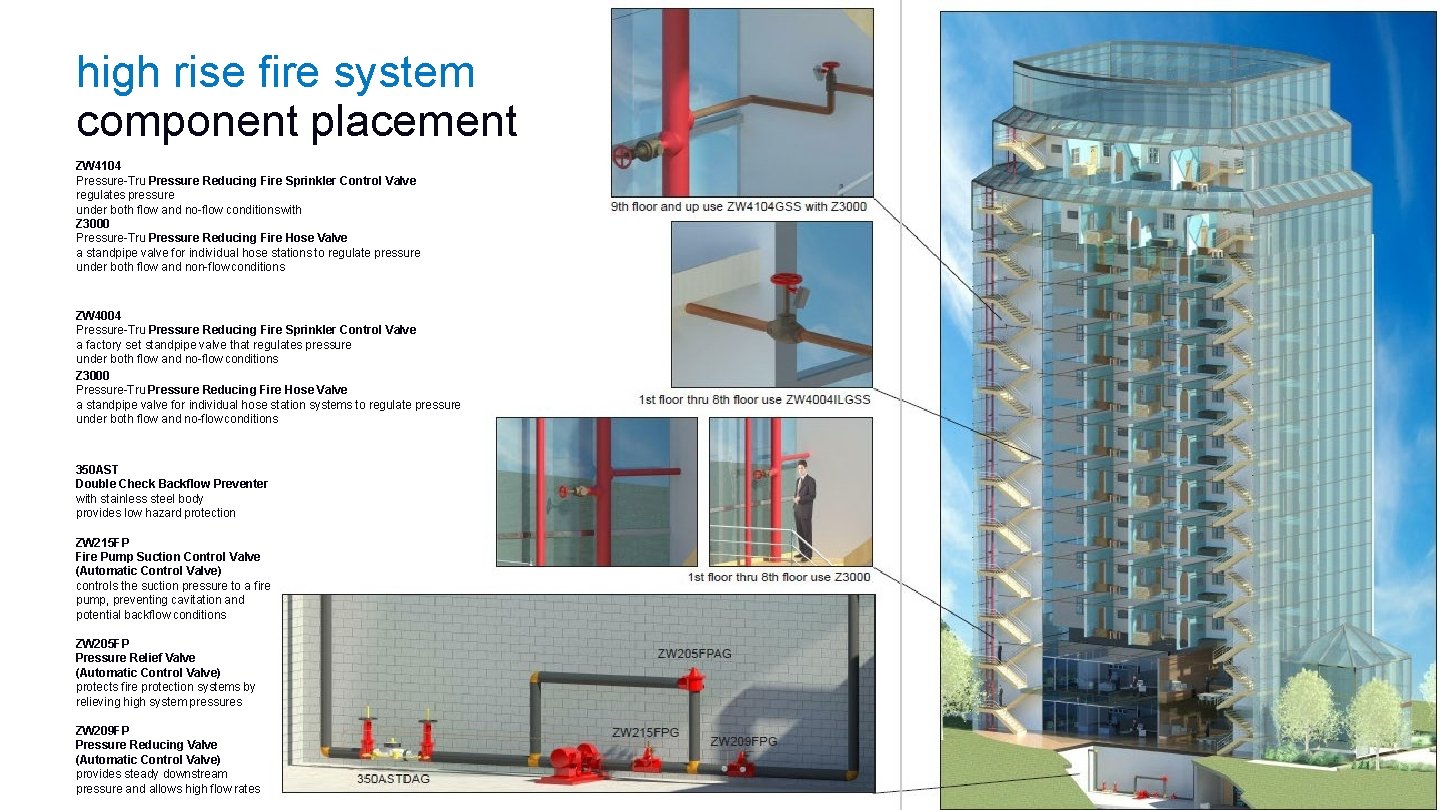

high rise fire system component placement ZW 4104 Pressure-Tru Pressure Reducing Fire Sprinkler Control Valve regulates pressure under both flow and no-flow conditions with Z 3000 Pressure-Tru Pressure Reducing Fire Hose Valve a standpipe valve for individual hose stations to regulate pressure under both flow and non-flow conditions ZW 4004 Pressure-Tru Pressure Reducing Fire Sprinkler Control Valve a factory set standpipe valve that regulates pressure under both flow and no-flow conditions Z 3000 Pressure-Tru Pressure Reducing Fire Hose Valve a standpipe valve for individual hose station systems to regulate pressure under both flow and no-flow conditions 350 AST Double Check Backflow Preventer with stainless steel body provides low hazard protection ZW 215 FP Fire Pump Suction Control Valve (Automatic Control Valve) controls the suction pressure to a fire pump, preventing cavitation and potential backflow conditions ZW 205 FP Pressure Relief Valve (Automatic Control Valve) protects fire protection systems by relieving high system pressures ZW 209 FP Pressure Reducing Valve (Automatic Control Valve) provides steady downstream pressure and allows high flow rates

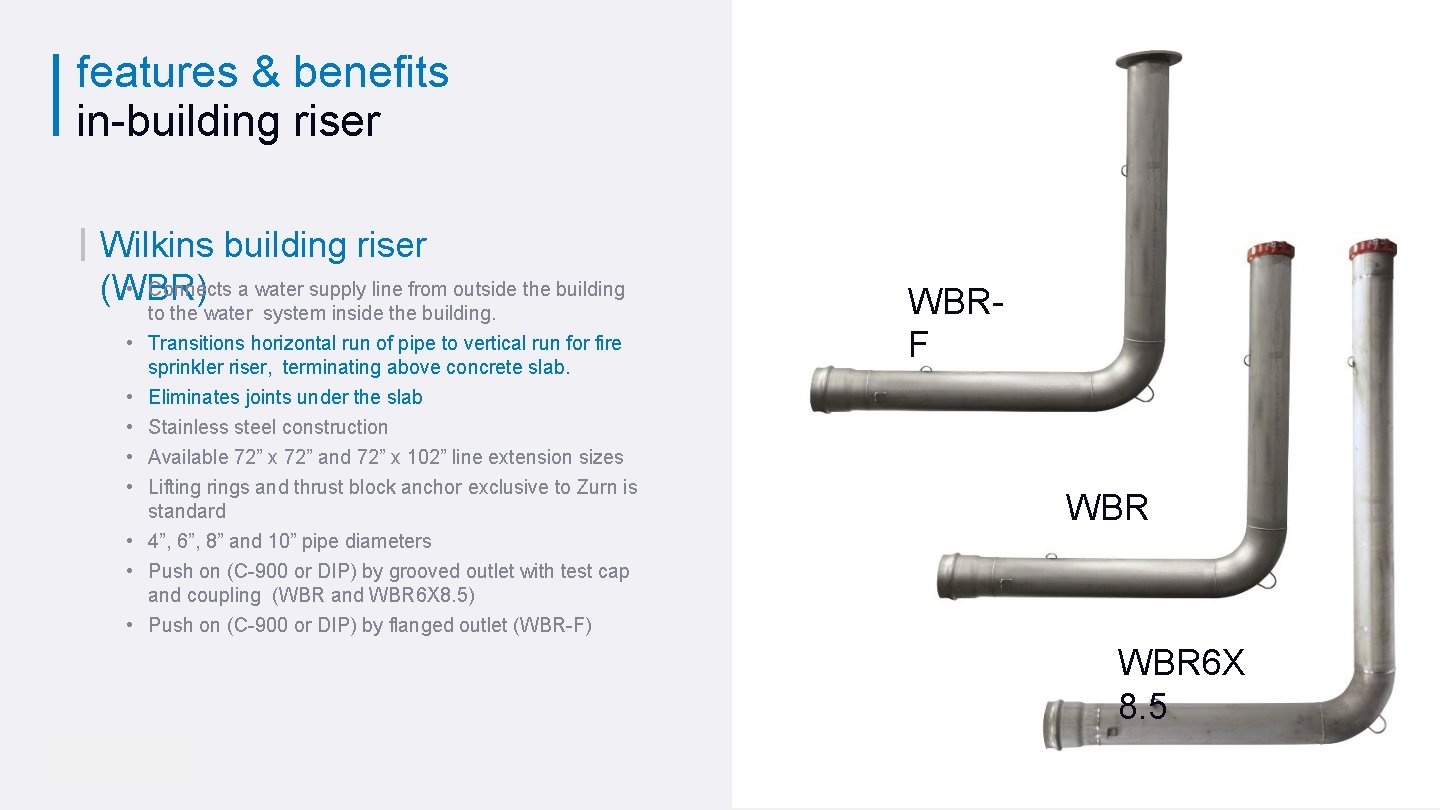

features & benefits in-building riser Wilkins building riser • Connects a water supply line from outside the building (WBR) to the water system inside the building. • Transitions horizontal run of pipe to vertical run for fire sprinkler riser, terminating above concrete slab. • Eliminates joints under the slab • Stainless steel construction • Available 72” x 72” and 72” x 102” line extension sizes • Lifting rings and thrust block anchor exclusive to Zurn is standard • 4”, 6”, 8” and 10” pipe diameters • Push on (C-900 or DIP) by grooved outlet with test cap and coupling (WBR and WBR 6 X 8. 5) • Push on (C-900 or DIP) by flanged outlet (WBR-F) WBRF WBR 6 X 8. 5 page 015

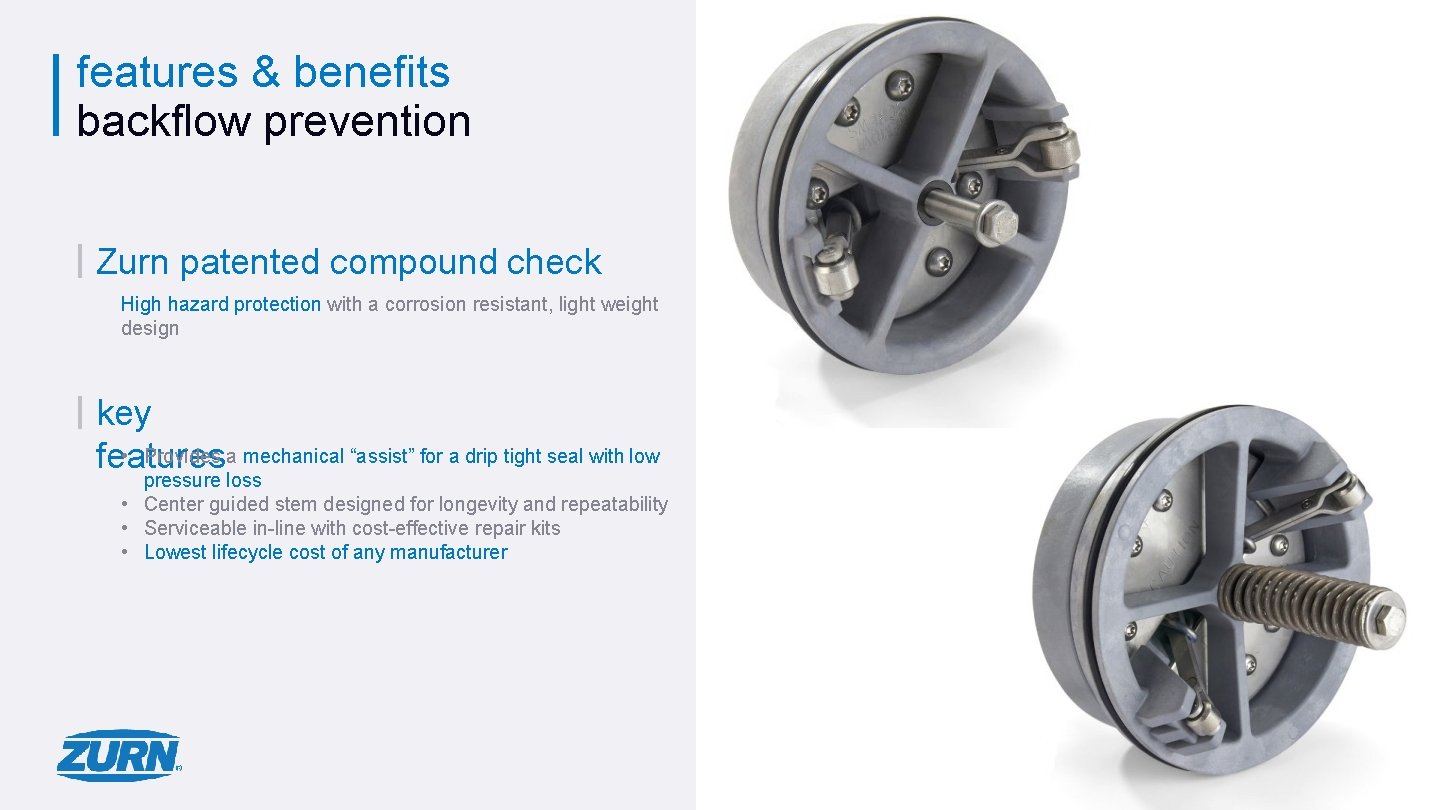

features & benefits backflow prevention Zurn patented compound check High hazard protection with a corrosion resistant, light weight design key • Provides a mechanical “assist” for a drip tight seal with low features pressure loss • Center guided stem designed for longevity and repeatability • Serviceable in-line with cost-effective repair kits • Lowest lifecycle cost of any manufacturer

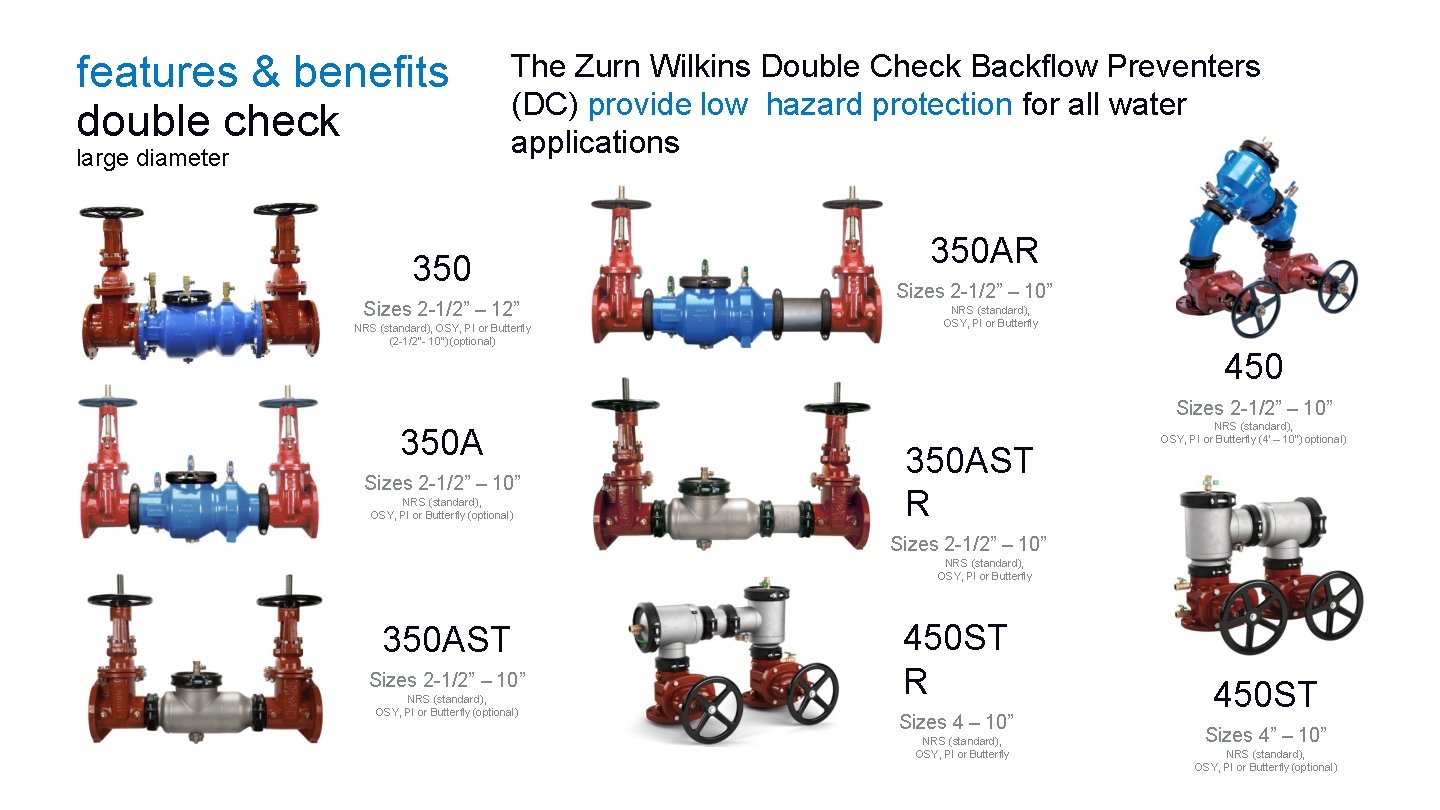

features & benefits double check large diameter The Zurn Wilkins Double Check Backflow Preventers (DC) provide low hazard protection for all water applications 350 Sizes 2 -1/2” – 12” NRS (standard), OSY, PI or Butterfly (2 -1/2"- 10") (optional) 350 AR Sizes 2 -1/2” – 10” NRS (standard), OSY, PI or Butterfly 450 Sizes 2 -1/2” – 10” 350 A Sizes 2 -1/2” – 10” NRS (standard), OSY, PI or Butterfly (optional) 350 AST R NRS (standard), OSY, PI or Butterfly (4’ – 10”) optional) Sizes 2 -1/2” – 10” NRS (standard), OSY, PI or Butterfly 350 AST Sizes 2 -1/2” – 10” NRS (standard), OSY, PI or Butterfly (optional) 450 ST R Sizes 4 – 10” NRS (standard), OSY, PI or Butterfly 450 ST Sizes 4” – 10” NRS (standard), OSY, PI or Butterfly (optional)
features & benefits backflow prevention detector assemblies (DA) Detects small water usage, either unauthorized use or a leak in the fire suppression system (static condition). Fire lines are generally not metered key • Double Check Detector Assemblies (DCDA) or features Reduced Pressure Detector Assemblies (RPDA) options • Serves as a water theft deterrent 475 STDA reduced pressure principle detector assembly
features & benefits double check detector large diameter The Zurn Wilkins Double Check Detector Backflow Preventers (DCDA) are ideal for low hazard protection, with a metered by-pass to detect leaks and unauthorized water use in unmetered fire sprinkler systems. 350 DA Sizes 2 -1/2” – 12” OSY (standard), PI or Butterfly (2 -1/2"- 10") (optional) 350 ADA Sizes 2 -1/2” – 10” 350 ASTD AR Sizes 2 -1/2” – 110” 450 DA Sizes 4” – 10” OSY (standard), PI or Butterfly (optional) 350 ASTD A Sizes 2 -1/2” – 10” OSY (standard), PI or Butterfly (optional) 450 STD AR Sizes 4 – 10” 450 ST DA

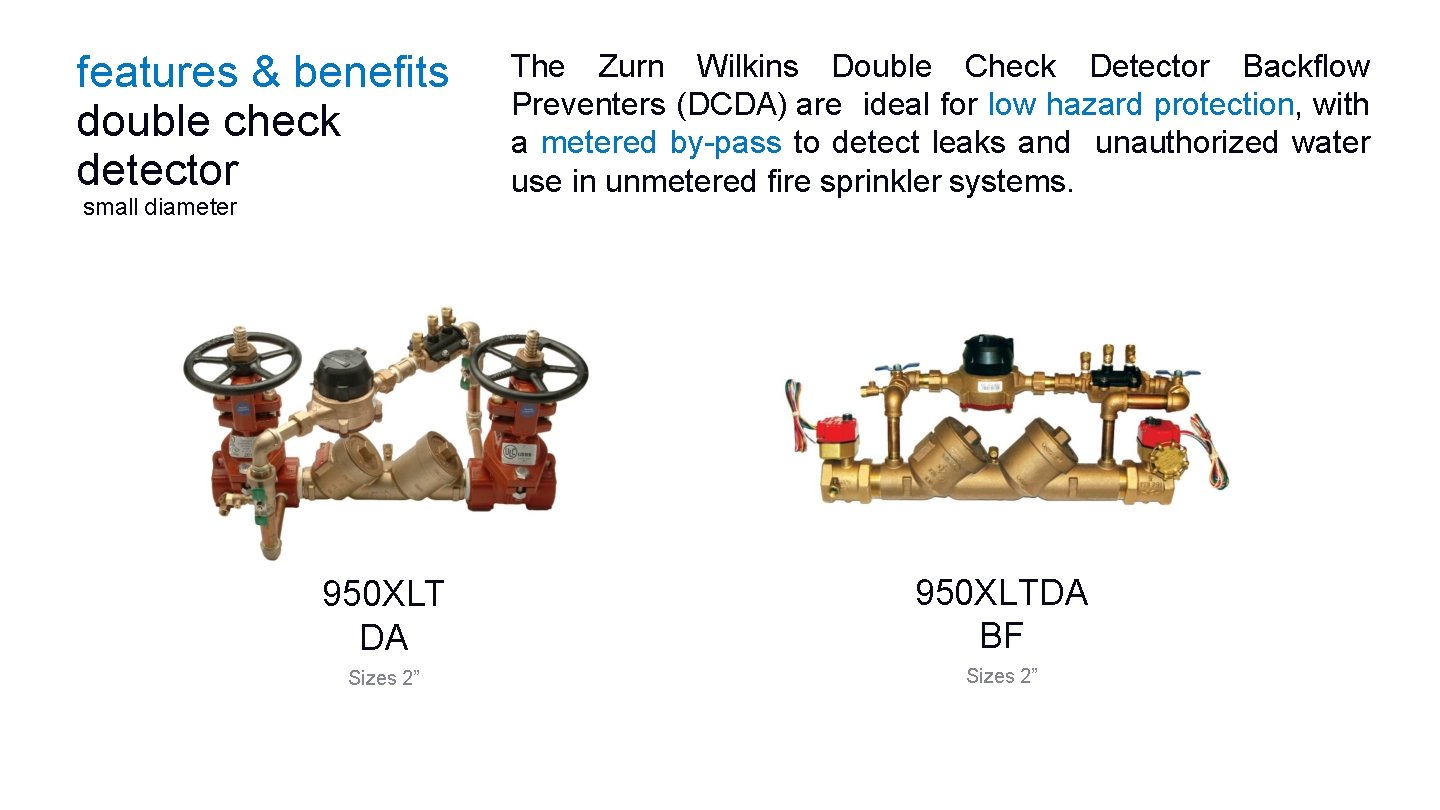

features & benefits double check detector small diameter The Zurn Wilkins Double Check Detector Backflow Preventers (DCDA) are ideal for low hazard protection, with a metered by-pass to detect leaks and unauthorized water use in unmetered fire sprinkler systems. 950 XLT DA 950 XLTDA BF Sizes 2”

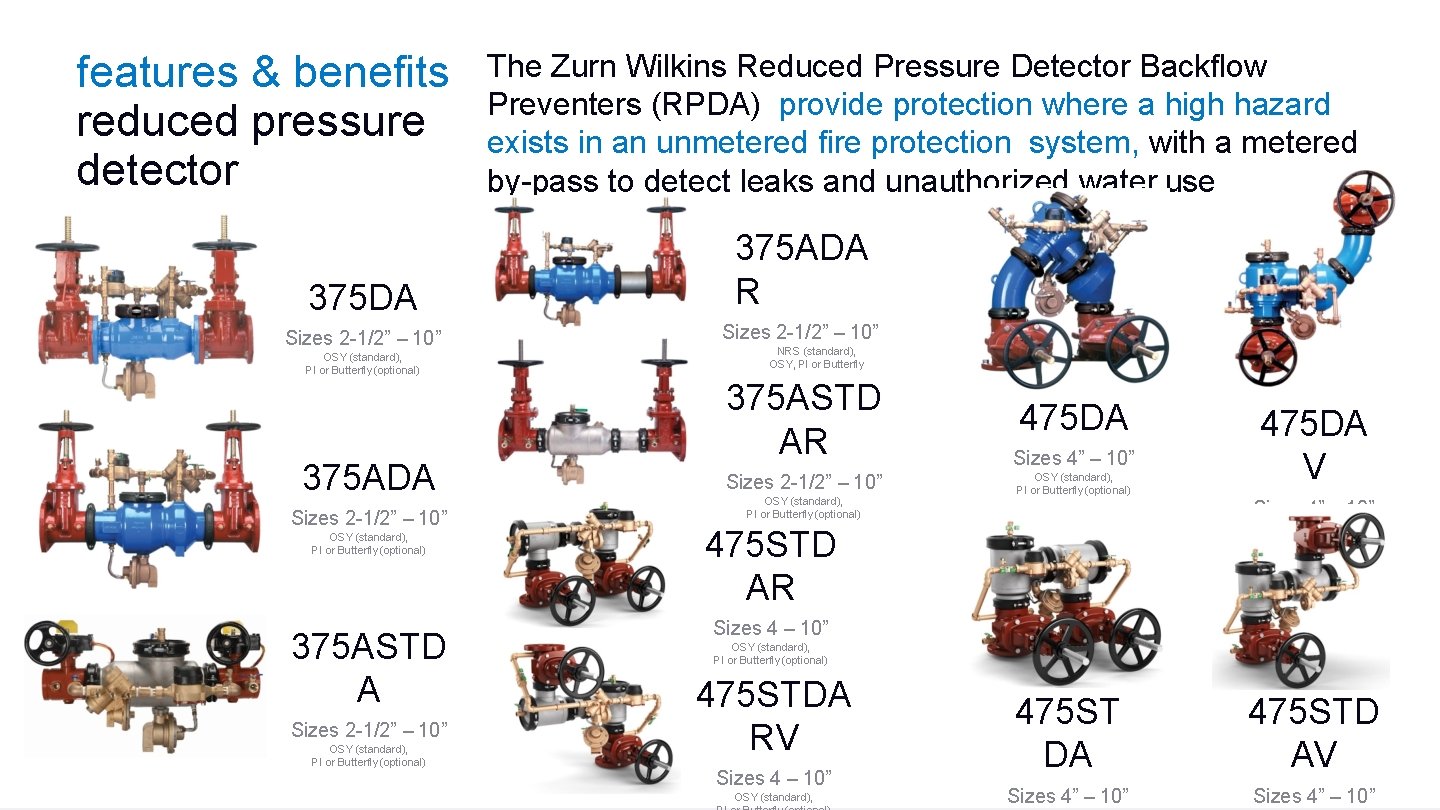

features & benefits reduced pressure detector The Zurn Wilkins Reduced Pressure Detector Backflow Preventers (RPDA) provide protection where a high hazard exists in an unmetered fire protection system, with a metered by-pass to detect leaks and unauthorized water use 375 DA 375 ADA R Sizes 2 -1/2” – 10” OSY (standard), PI or Butterfly (optional) 375 ADA Sizes 2 -1/2” – 10” OSY (standard), PI or Butterfly (optional) 375 ASTD A Sizes 2 -1/2” – 10” OSY (standard), PI or Butterfly (optional) NRS (standard), OSY, PI or Butterfly 375 ASTD AR Sizes 2 -1/2” – 10” OSY (standard), PI or Butterfly (optional) 475 DA Sizes 4” – 10” OSY (standard), PI or Butterfly (optional) 475 DA V Sizes 4” – 10” OSY (standard), PI or Butterfly (optional) 475 STD AR Sizes 4 – 10” OSY (standard), PI or Butterfly (optional) 475 STDA RV Sizes 4 – 10” OSY (standard), 475 ST DA 475 STD AV Sizes 4” – 10”

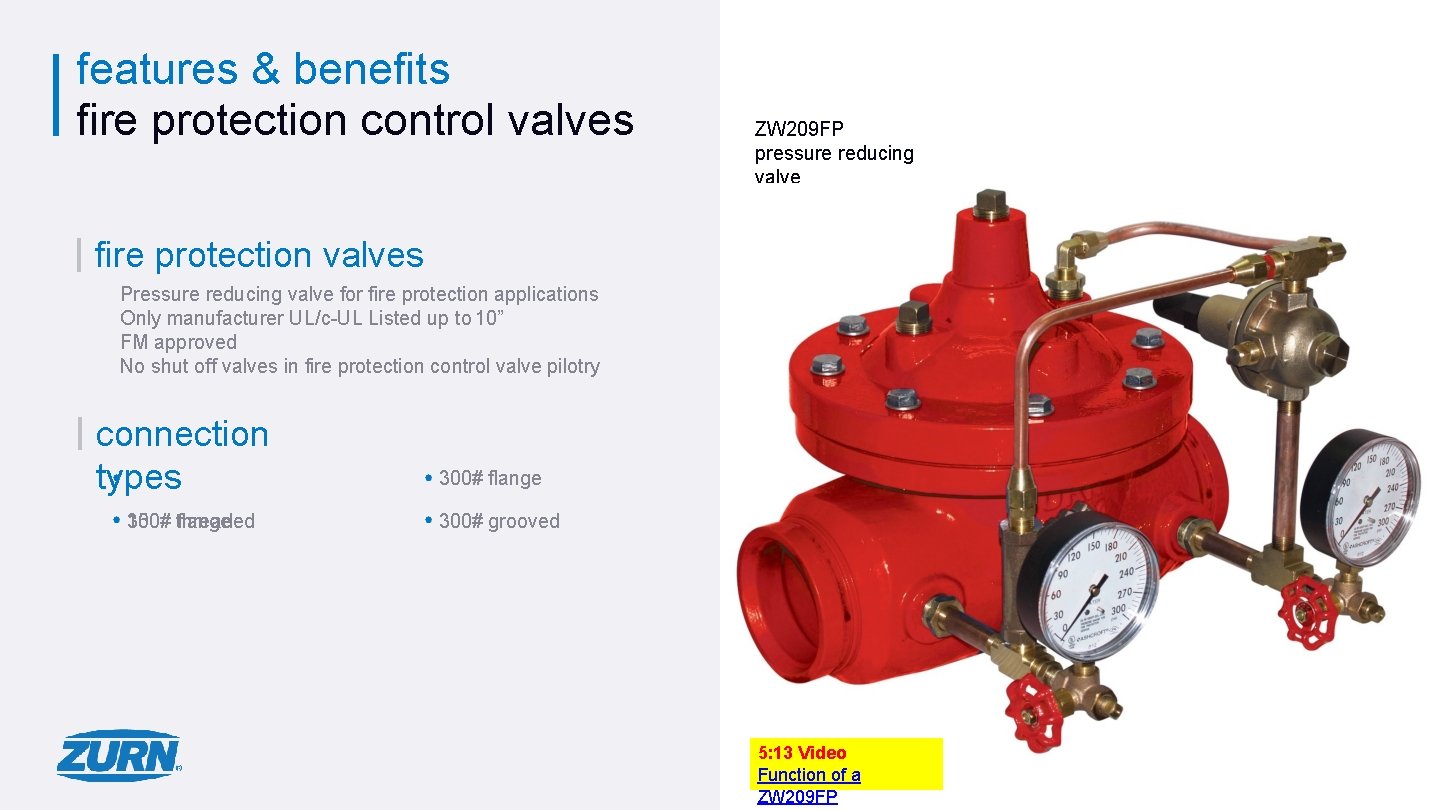

features & benefits fire protection control valves ZW 209 FP pressure reducing valve fire protection valves Pressure reducing valve for fire protection applications Only manufacturer UL/c-UL Listed up to 10” FM approved No shut off valves in fire protection control valve pilotry connection types 150# flange 300# threaded 300# flange 300# grooved 5: 13 Video Function of a ZW 209 FP page 026

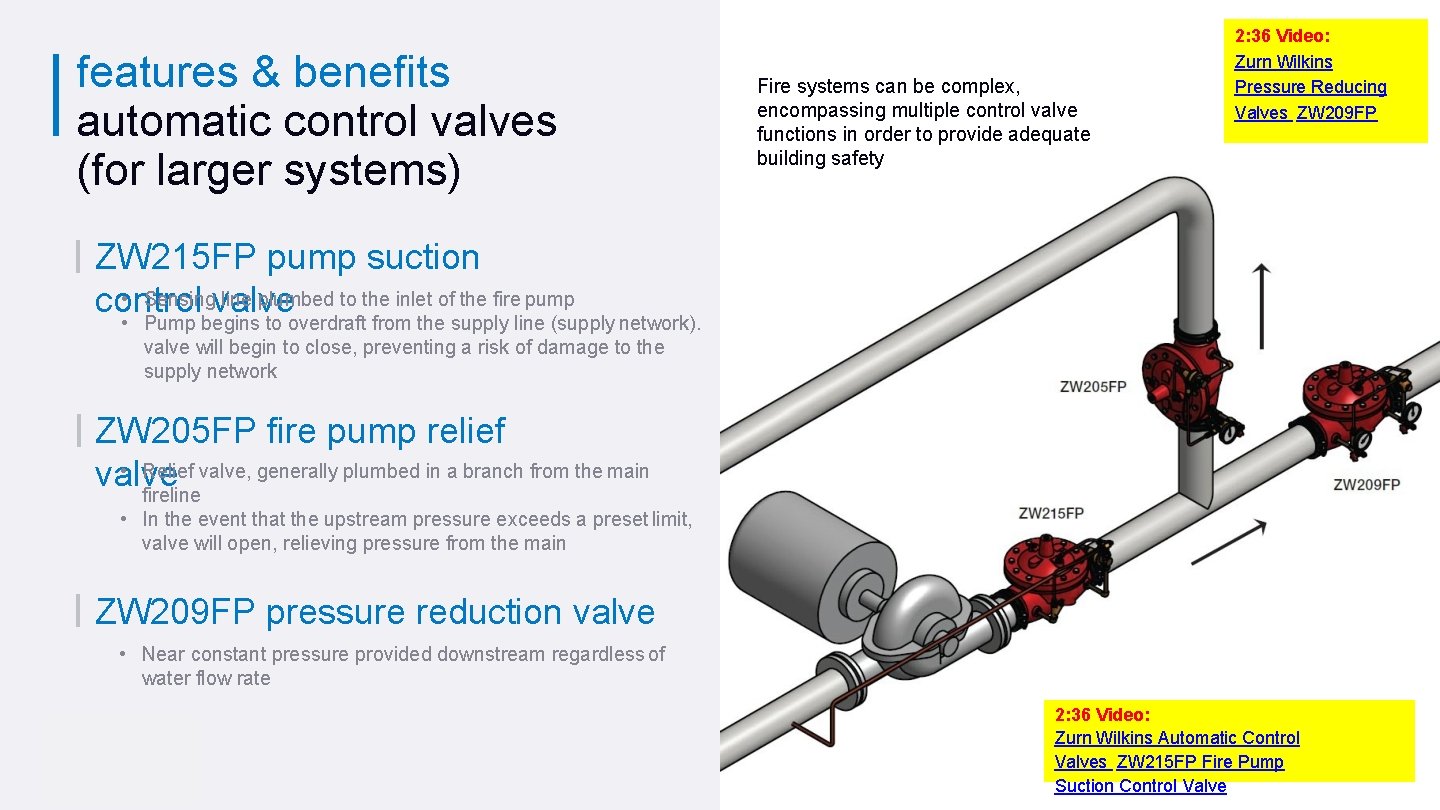

features & benefits automatic control valves (for larger systems) Fire systems can be complex, encompassing multiple control valve functions in order to provide adequate building safety 2: 36 Video: Zurn Wilkins Pressure Reducing Valves ZW 209 FP ZW 215 FP pump suction • Sensingvalve line plumbed to the inlet of the fire pump control • Pump begins to overdraft from the supply line (supply network). valve will begin to close, preventing a risk of damage to the supply network ZW 205 FP fire pump relief • Relief valve, generally plumbed in a branch from the main valve fireline • In the event that the upstream pressure exceeds a preset limit, valve will open, relieving pressure from the main ZW 209 FP pressure reduction valve • Near constant pressure provided downstream regardless of water flow rate 2: 36 Video: Zurn Wilkins Automatic Control Valves ZW 215 FP Fire Pump Suction Control Valve page 027

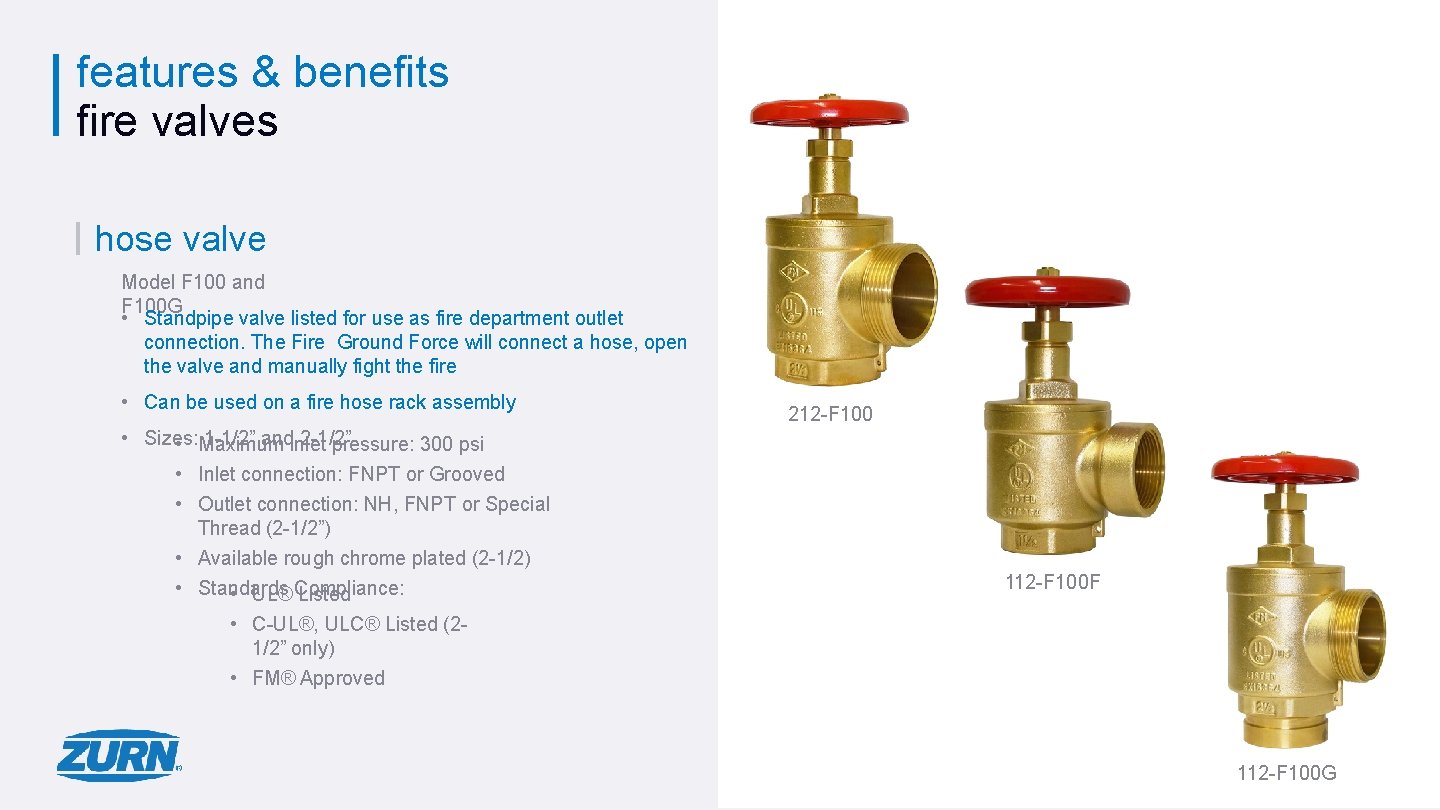

features & benefits fire valves hose valve Model F 100 and F 100 G • Standpipe valve listed for use as fire department outlet connection. The Fire Ground Force will connect a hose, open the valve and manually fight the fire • Can be used on a fire hose rack assembly • Sizes: 1 -1/2” andinlet 2 -1/2” • Maximum pressure: 300 psi • Inlet connection: FNPT or Grooved • Outlet connection: NH, FNPT or Special Thread (2 -1/2”) • Available rough chrome plated (2 -1/2) • Standards • UL® Compliance: Listed 212 -F 100 112 -F 100 F • C-UL®, ULC® Listed (21/2” only) • FM® Approved page 112 -F 100 G 028

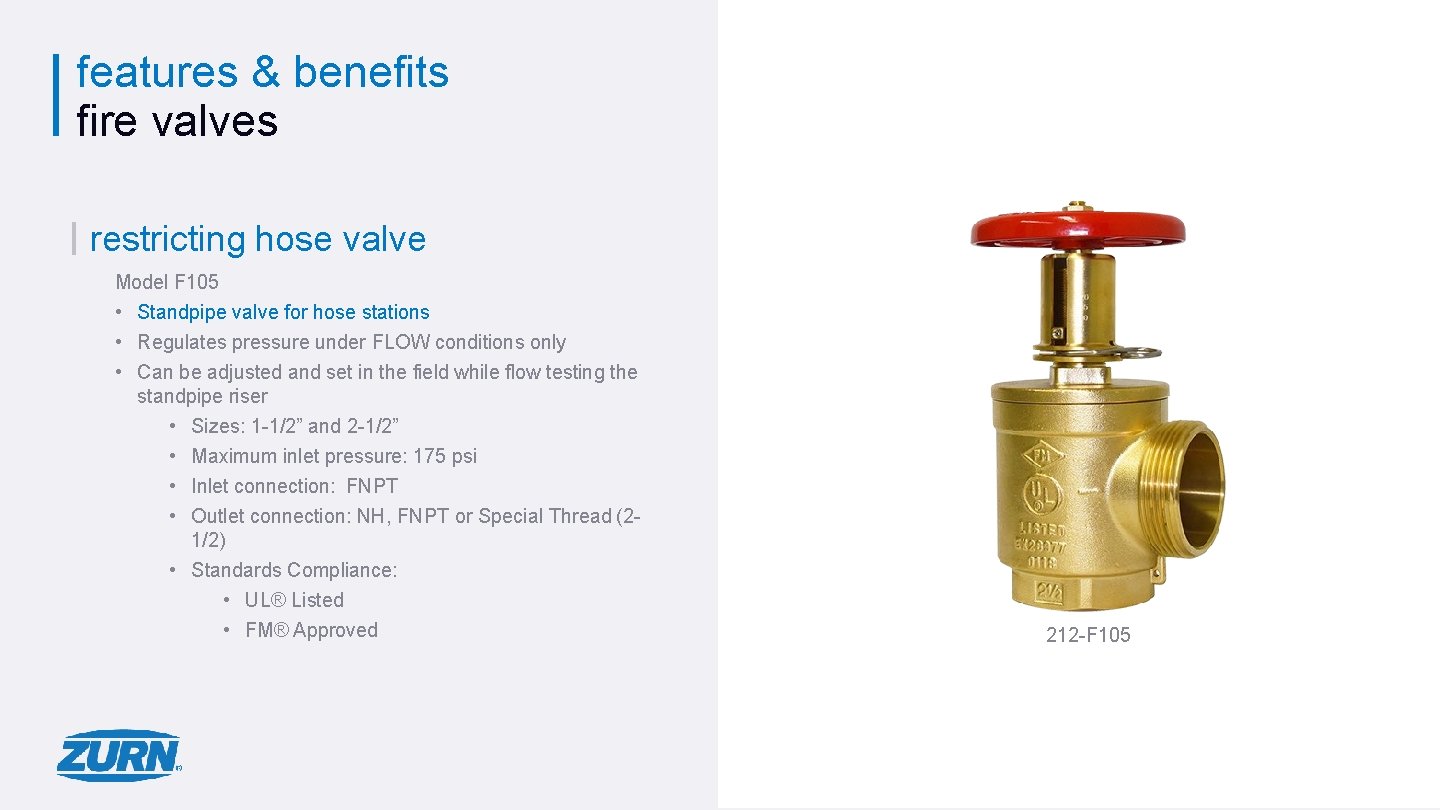

features & benefits fire valves restricting hose valve Model F 105 • Standpipe valve for hose stations • Regulates pressure under FLOW conditions only • Can be adjusted and set in the field while flow testing the standpipe riser • Sizes: 1 -1/2” and 2 -1/2” • Maximum inlet pressure: 175 psi • Inlet connection: FNPT • Outlet connection: NH, FNPT or Special Thread (21/2) • Standards Compliance: • UL® Listed • FM® Approved 212 -F 105 page 029

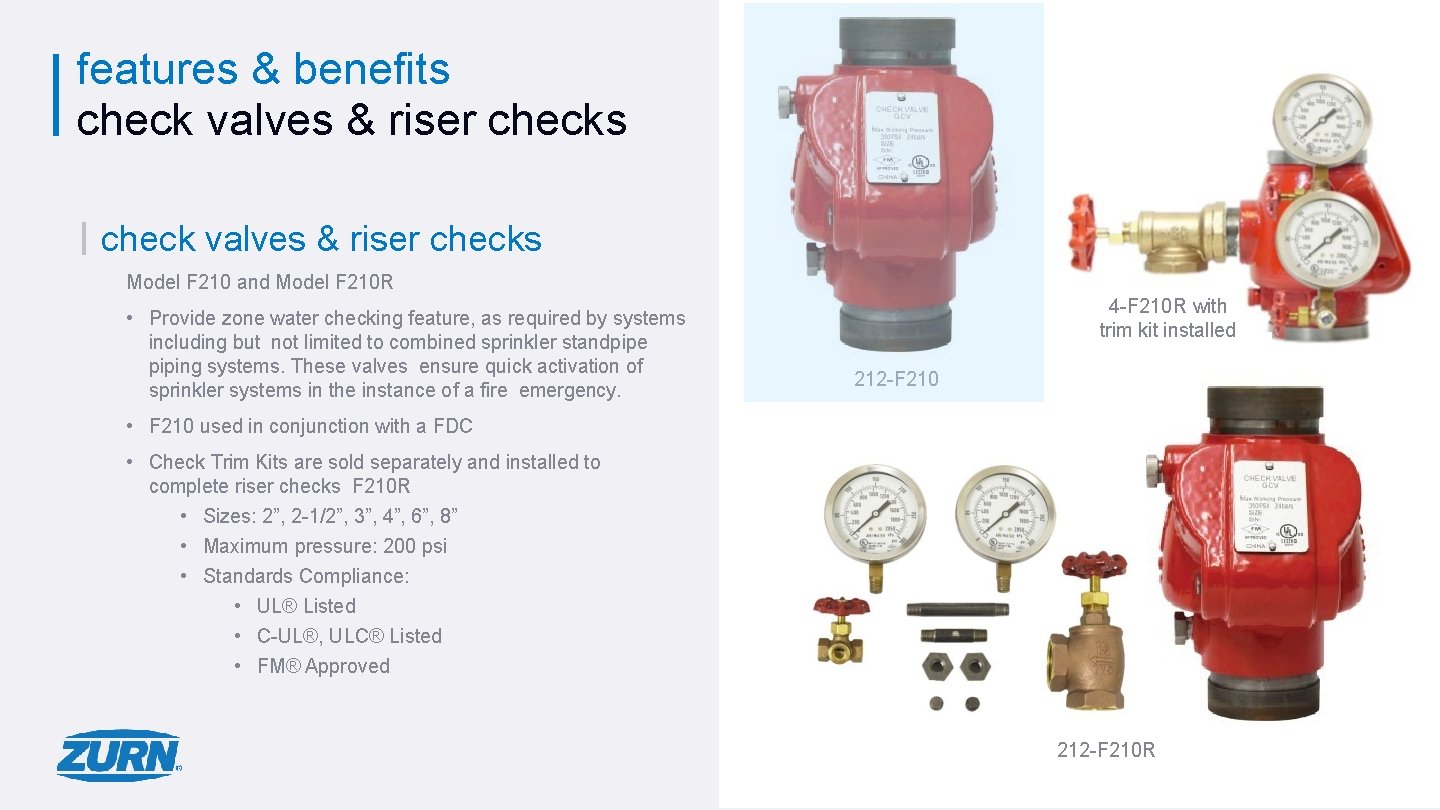

features & benefits check valves & riser checks Model F 210 and Model F 210 R • Provide zone water checking feature, as required by systems including but not limited to combined sprinkler standpipe piping systems. These valves ensure quick activation of sprinkler systems in the instance of a fire emergency. 4 -F 210 R with trim kit installed 212 -F 210 • F 210 used in conjunction with a FDC • Check Trim Kits are sold separately and installed to complete riser checks F 210 R • Sizes: 2”, 2 -1/2”, 3”, 4”, 6”, 8” • Maximum pressure: 200 psi • Standards Compliance: • UL® Listed • C-UL®, ULC® Listed • FM® Approved 212 -F 210 R page 030

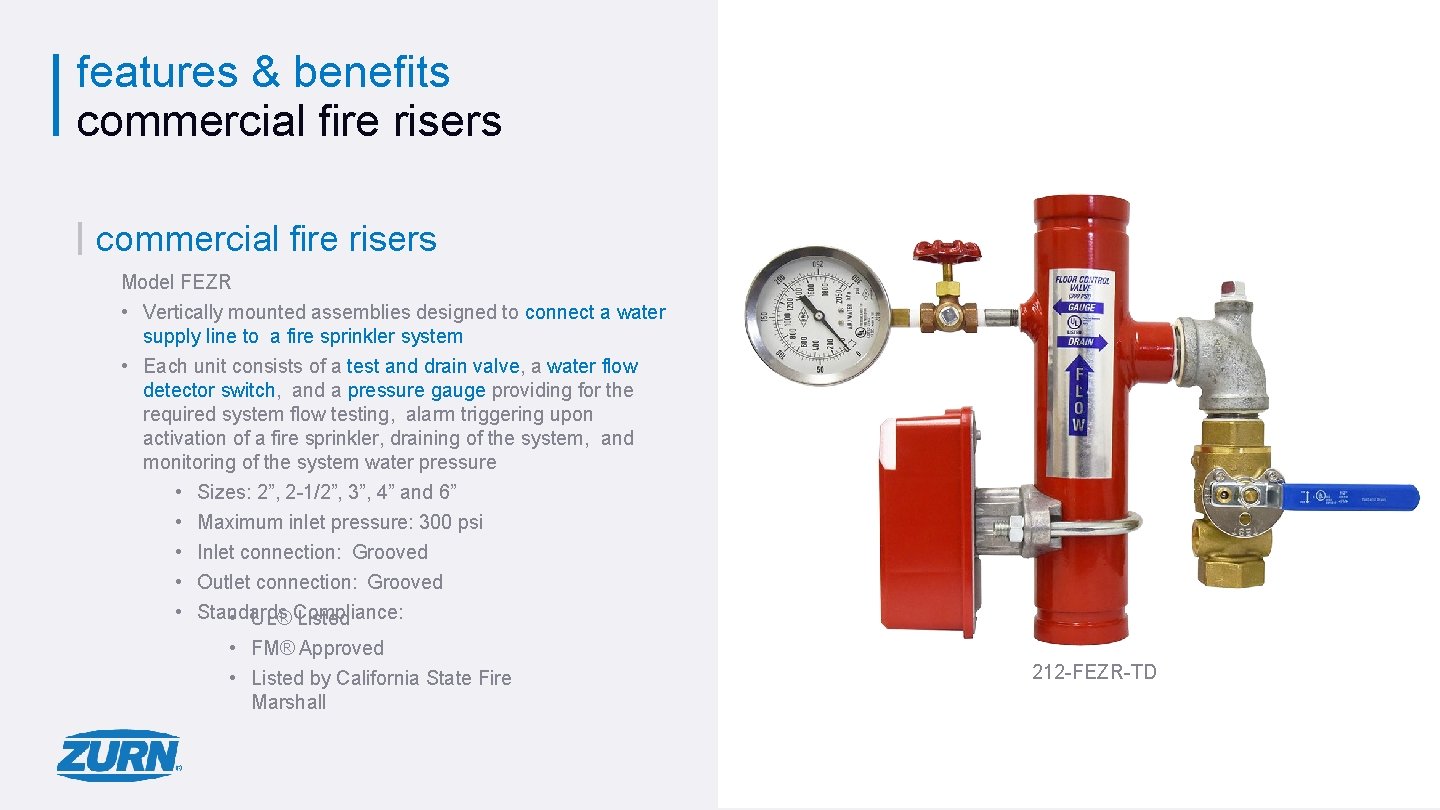

features & benefits commercial fire risers Model FEZR • Vertically mounted assemblies designed to connect a water supply line to a fire sprinkler system • Each unit consists of a test and drain valve, a water flow detector switch, and a pressure gauge providing for the required system flow testing, alarm triggering upon activation of a fire sprinkler, draining of the system, and monitoring of the system water pressure • • • Sizes: 2”, 2 -1/2”, 3”, 4” and 6” Maximum inlet pressure: 300 psi Inlet connection: Grooved Outlet connection: Grooved Standards • UL® Compliance: Listed • FM® Approved • Listed by California State Fire Marshall 212 -FEZR-TD page 031

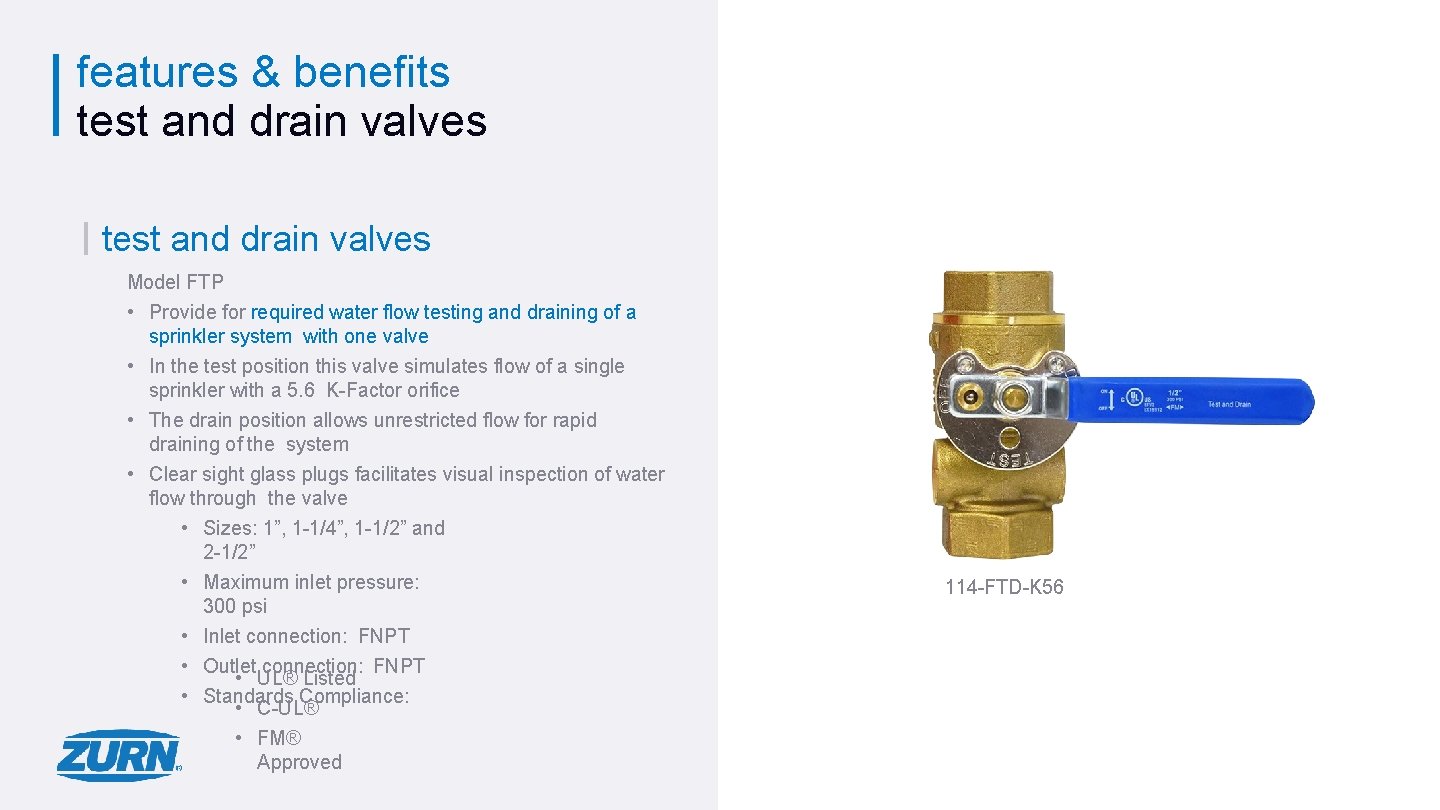

features & benefits test and drain valves Model FTP • Provide for required water flow testing and draining of a sprinkler system with one valve • In the test position this valve simulates flow of a single sprinkler with a 5. 6 K-Factor orifice • The drain position allows unrestricted flow for rapid draining of the system • Clear sight glass plugs facilitates visual inspection of water flow through the valve • Sizes: 1”, 1 -1/4”, 1 -1/2” and 2 -1/2” • Maximum inlet pressure: 300 psi • Inlet connection: FNPT • Outlet connection: FNPT • UL® Listed • Standards Compliance: • C-UL® • FM® Approved 114 -FTD-K 56 page 032

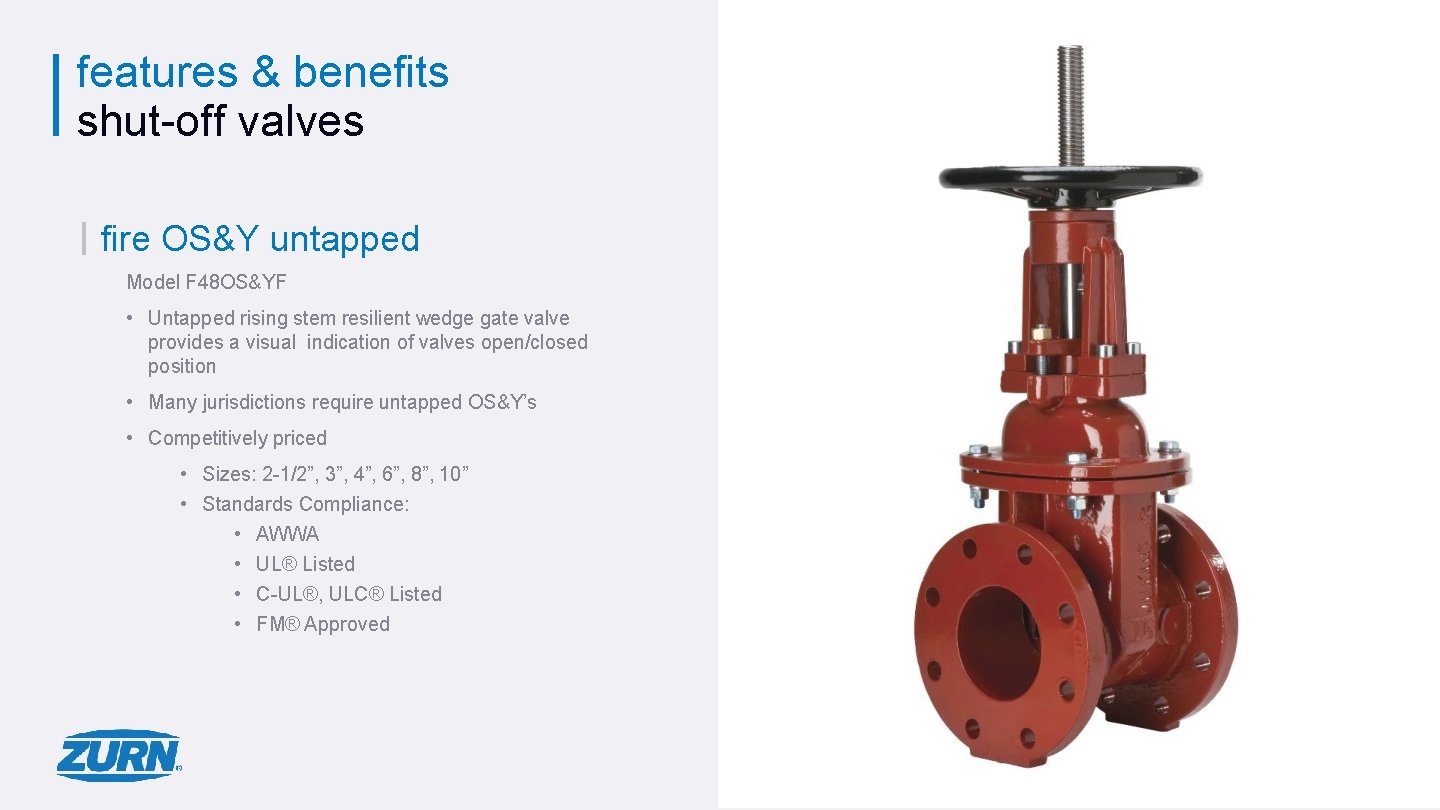

features & benefits shut-off valves fire OS&Y untapped Model F 48 OS&YF • Untapped rising stem resilient wedge gate valve provides a visual indication of valves open/closed position • Many jurisdictions require untapped OS&Y’s • Competitively priced • Sizes: 2 -1/2”, 3”, 4”, 6”, 8”, 10” • Standards Compliance: • AWWA • UL® Listed • C-UL®, ULC® Listed • FM® Approved page 033

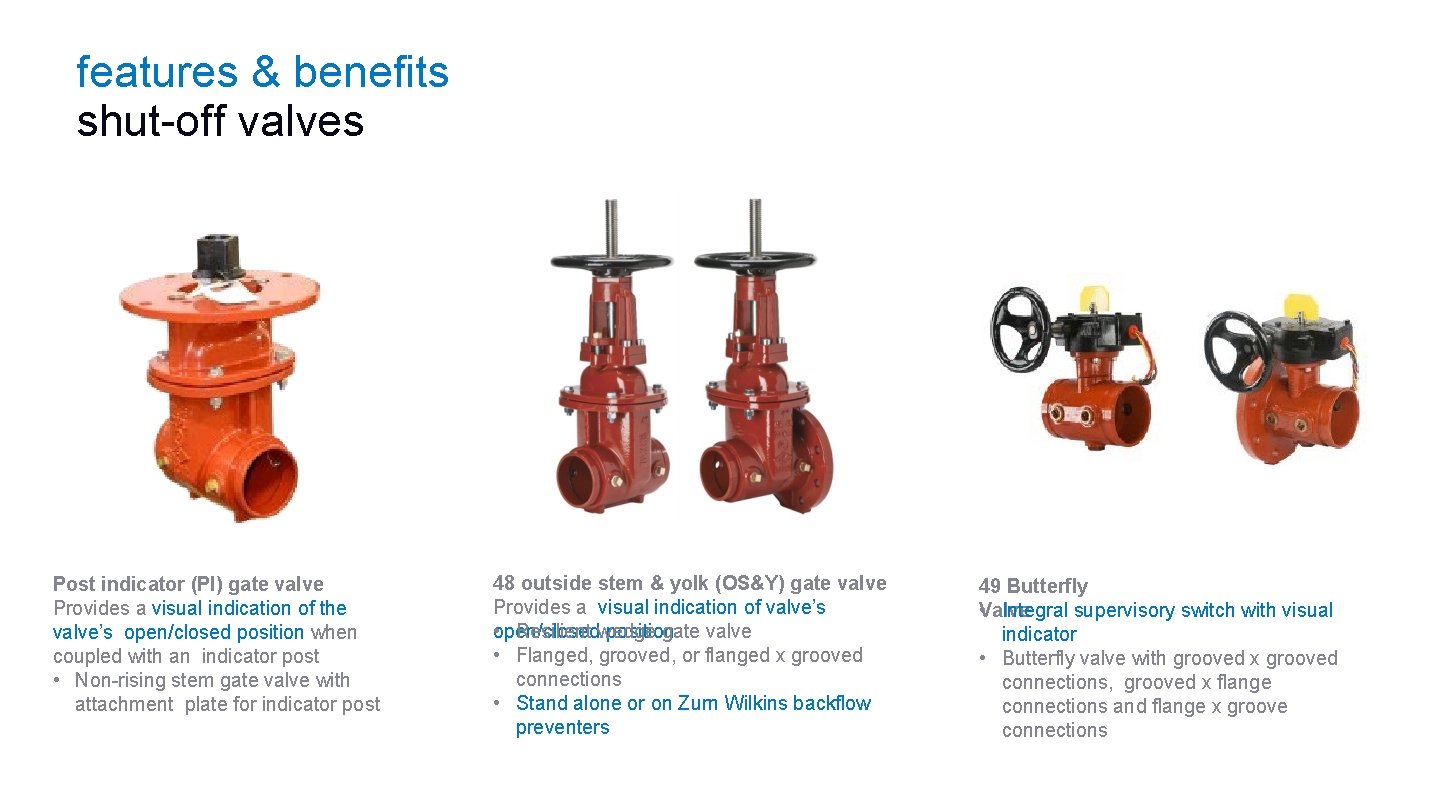

features & benefits shut-off valves Post indicator (PI) gate valve Provides a visual indication of the valve’s open/closed position when coupled with an indicator post • Non-rising stem gate valve with attachment plate for indicator post 48 outside stem & yolk (OS&Y) gate valve Provides a visual indication of valve’s • open/closed Resilient wedge gate valve position • Flanged, grooved, or flanged x grooved connections • Stand alone or on Zurn Wilkins backflow preventers 49 Butterfly Valve • Integral supervisory switch with visual indicator • Butterfly valve with grooved x grooved connections, grooved x flange connections and flange x groove connections

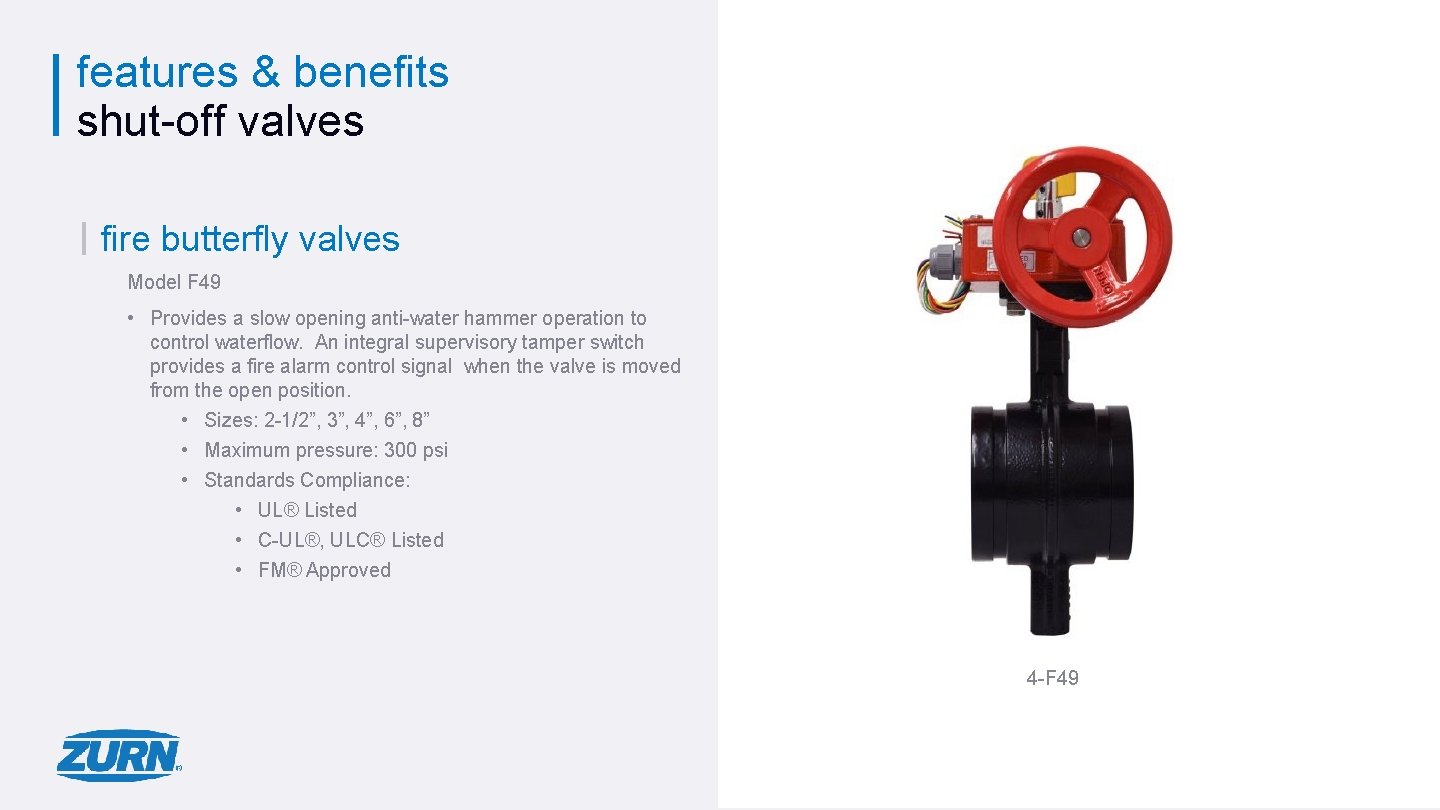

features & benefits shut-off valves fire butterfly valves Model F 49 • Provides a slow opening anti-water hammer operation to control waterflow. An integral supervisory tamper switch provides a fire alarm control signal when the valve is moved from the open position. • Sizes: 2 -1/2”, 3”, 4”, 6”, 8” • Maximum pressure: 300 psi • Standards Compliance: • UL® Listed • C-UL®, ULC® Listed • FM® Approved 4 -F 49 page 035

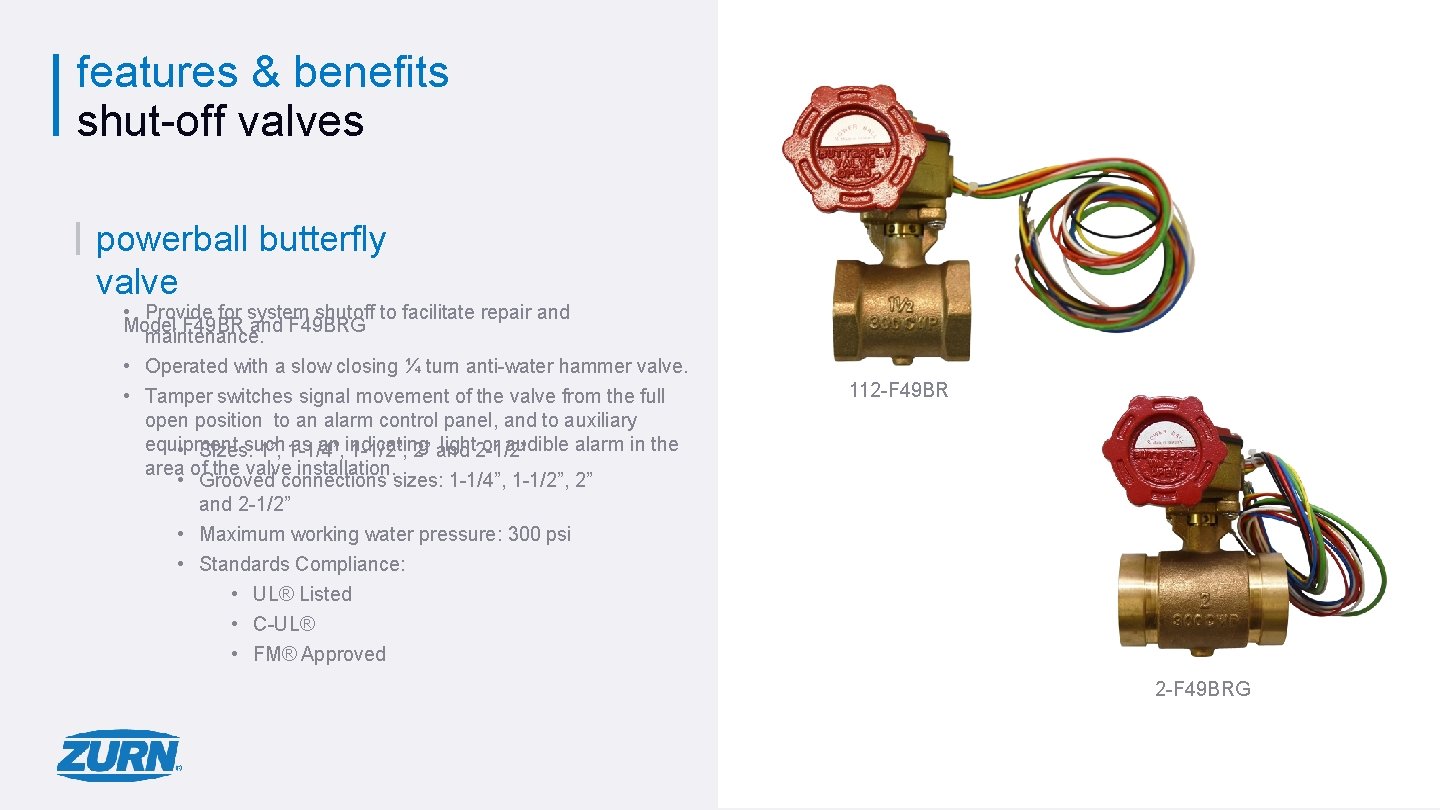

features & benefits shut-off valves powerball butterfly valve • Provide for system shutoff to facilitate repair and Model F 49 BR and F 49 BRG maintenance. • Operated with a slow closing ¼ turn anti-water hammer valve. • Tamper switches signal movement of the valve from the full open position to an alarm control panel, and to auxiliary equipment as an indicating light 2 -1/2” or audible alarm in the • Sizes: such 1”, 1 -1/4”, 1 -1/2”, 2” and area of the valve installation. • Grooved connections sizes: 1 -1/4”, 1 -1/2”, 2” and 2 -1/2” • Maximum working water pressure: 300 psi • Standards Compliance: • UL® Listed • C-UL® • FM® Approved 112 -F 49 BRG page 036

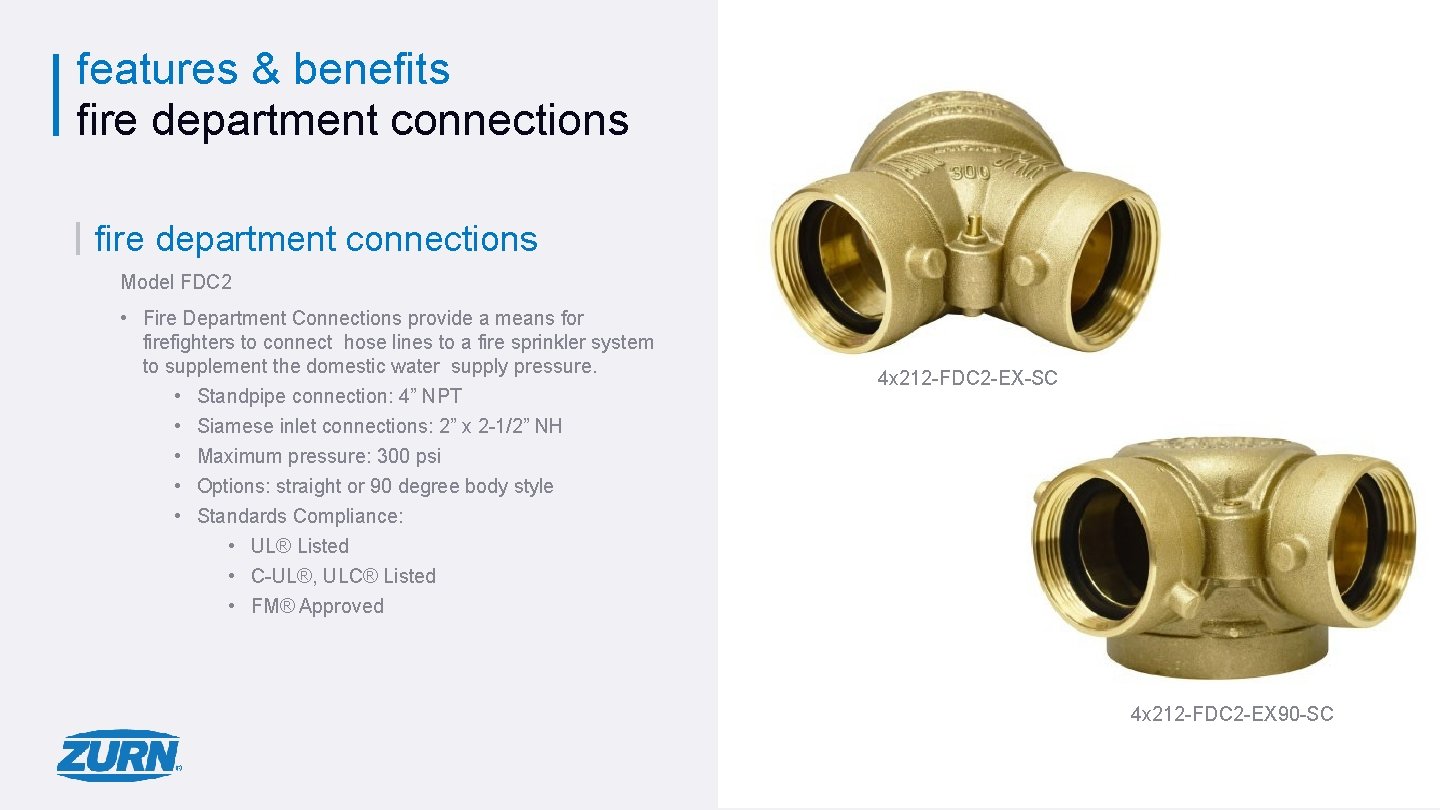

features & benefits fire department connections Model FDC 2 • Fire Department Connections provide a means for firefighters to connect hose lines to a fire sprinkler system to supplement the domestic water supply pressure. • Standpipe connection: 4” NPT • Siamese inlet connections: 2” x 2 -1/2” NH • Maximum pressure: 300 psi • Options: straight or 90 degree body style • Standards Compliance: • UL® Listed • C-UL®, ULC® Listed • FM® Approved 4 x 212 -FDC 2 -EX-SC 4 x 212 -FDC 2 -EX 90 -SC page 037

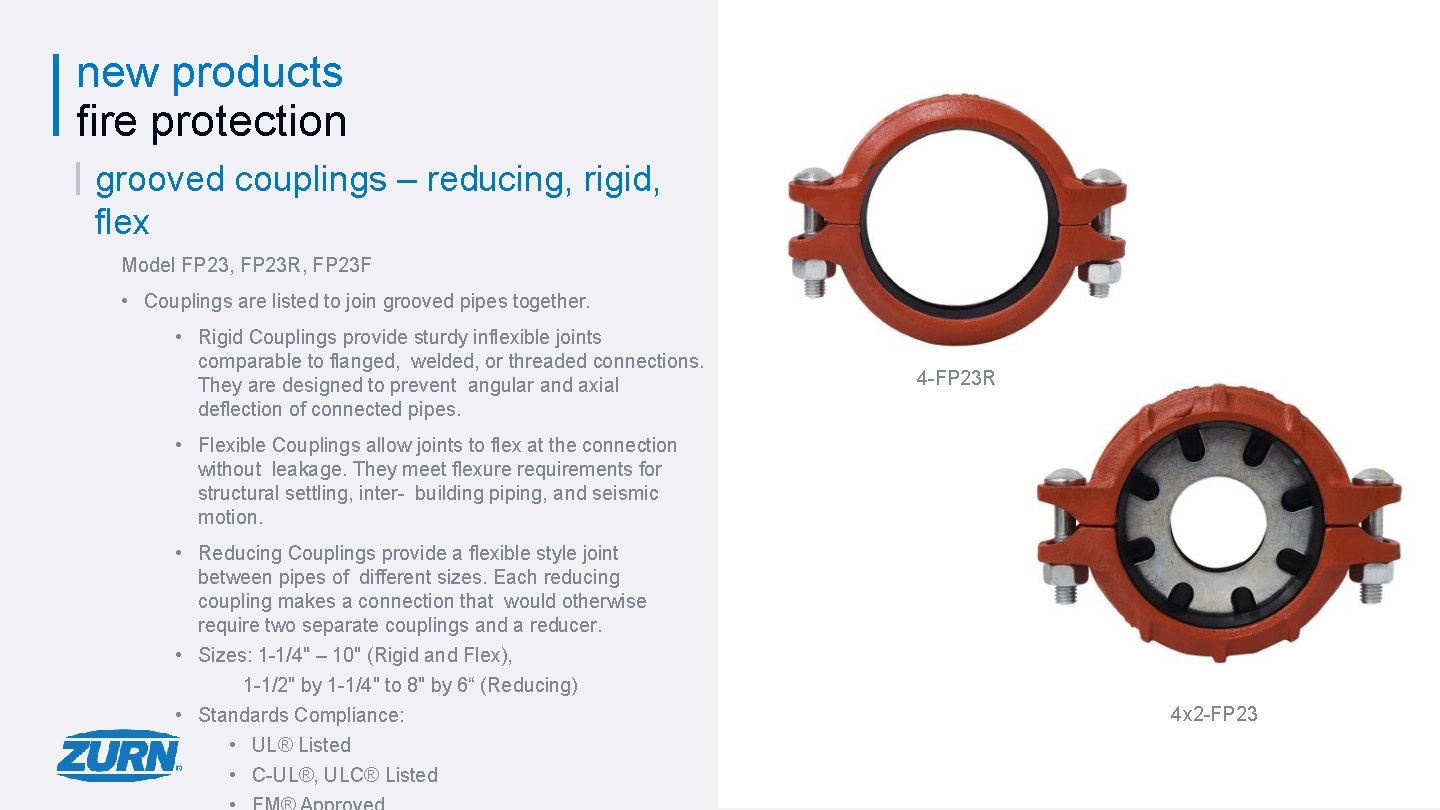

new products fire protection grooved couplings – reducing, rigid, flex Model FP 23, FP 23 R, FP 23 F • Couplings are listed to join grooved pipes together. • Rigid Couplings provide sturdy inflexible joints comparable to flanged, welded, or threaded connections. They are designed to prevent angular and axial deflection of connected pipes. 4 -FP 23 R • Flexible Couplings allow joints to flex at the connection without leakage. They meet flexure requirements for structural settling, inter- building piping, and seismic motion. • Reducing Couplings provide a flexible style joint between pipes of different sizes. Each reducing coupling makes a connection that would otherwise require two separate couplings and a reducer. • Sizes: 1 -1/4" – 10" (Rigid and Flex), 1 -1/2" by 1 -1/4" to 8" by 6“ (Reducing) • Standards Compliance: • UL® Listed • C-UL®, ULC® Listed 4 x 2 -FP 23 page 038

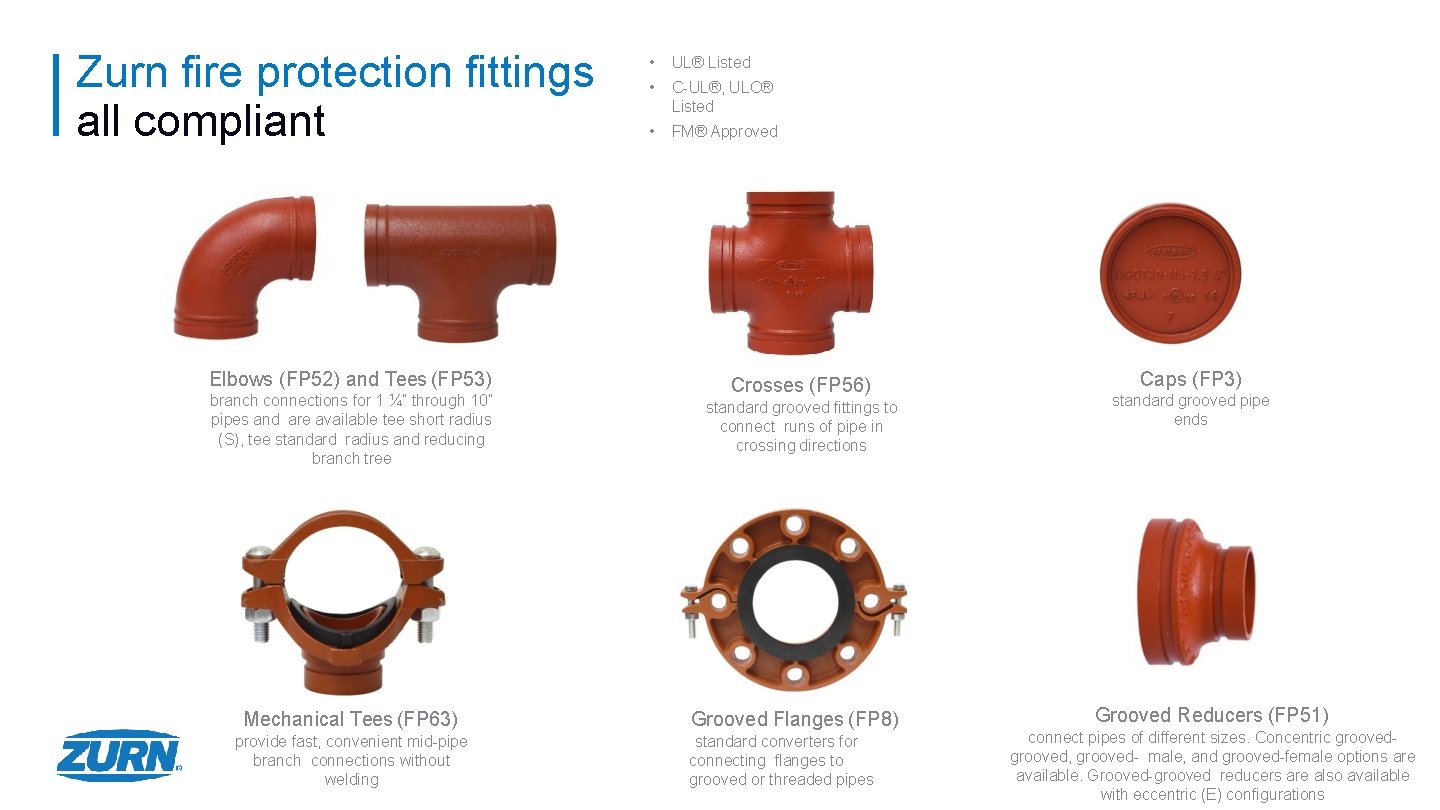

Zurn fire protection fittings all compliant Elbows (FP 52) and Tees (FP 53) branch connections for 1 ¼” through 10” pipes and are available tee short radius (S), tee standard radius and reducing branch tree Mechanical Tees (FP 63) provide fast, convenient mid-pipe branch connections without welding • UL® Listed • C-UL®, ULC® Listed • FM® Approved Crosses (FP 56) standard grooved fittings to connect runs of pipe in crossing directions Grooved Flanges (FP 8) standard converters for connecting flanges to grooved or threaded pipes Caps (FP 3) standard grooved pipe ends Grooved Reducers (FP 51) page 039 connect pipes of different sizes. Concentric grooved, grooved- male, and grooved-female options are available. Grooved-grooved reducers are also available with eccentric (E) configurations

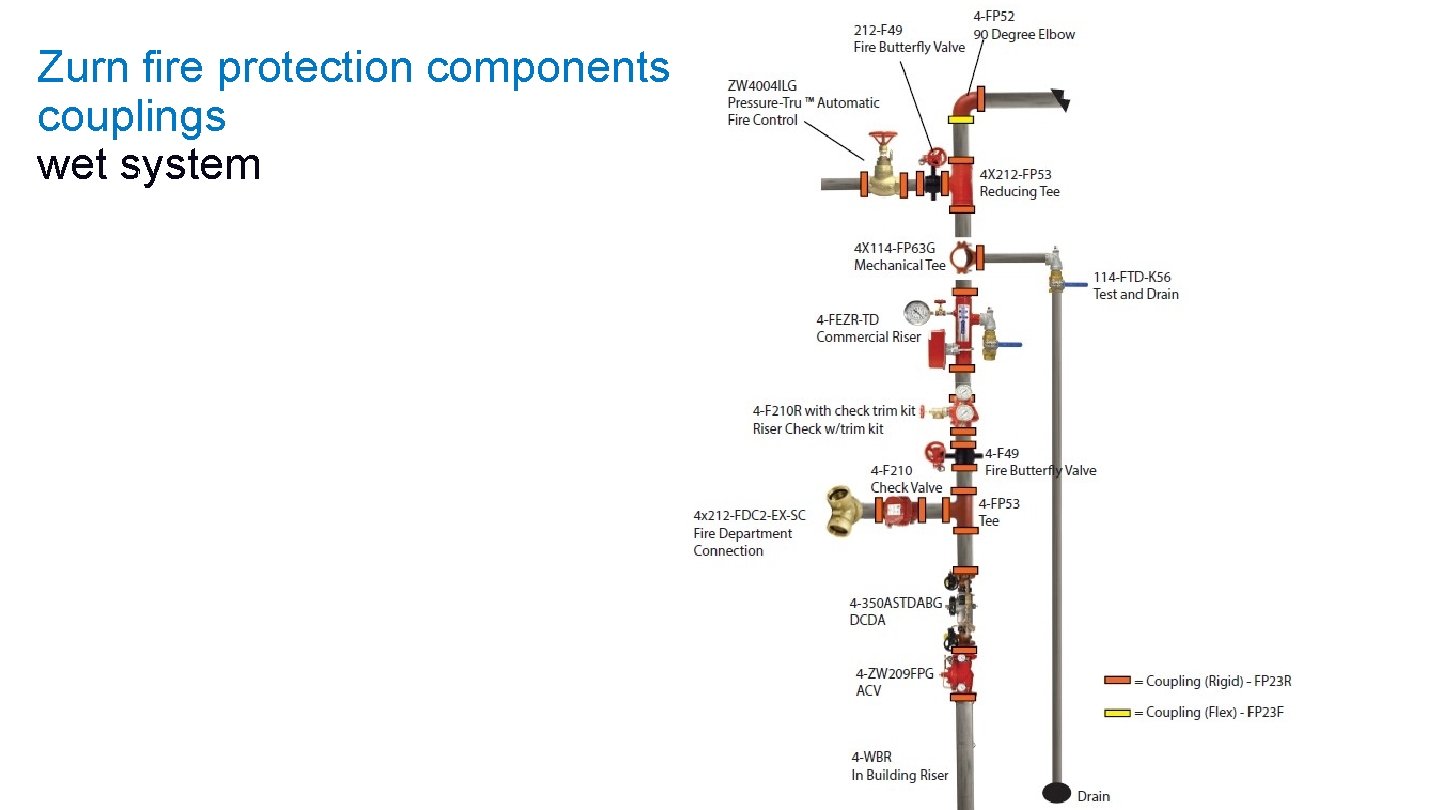

Zurn fire protection components couplings wet system

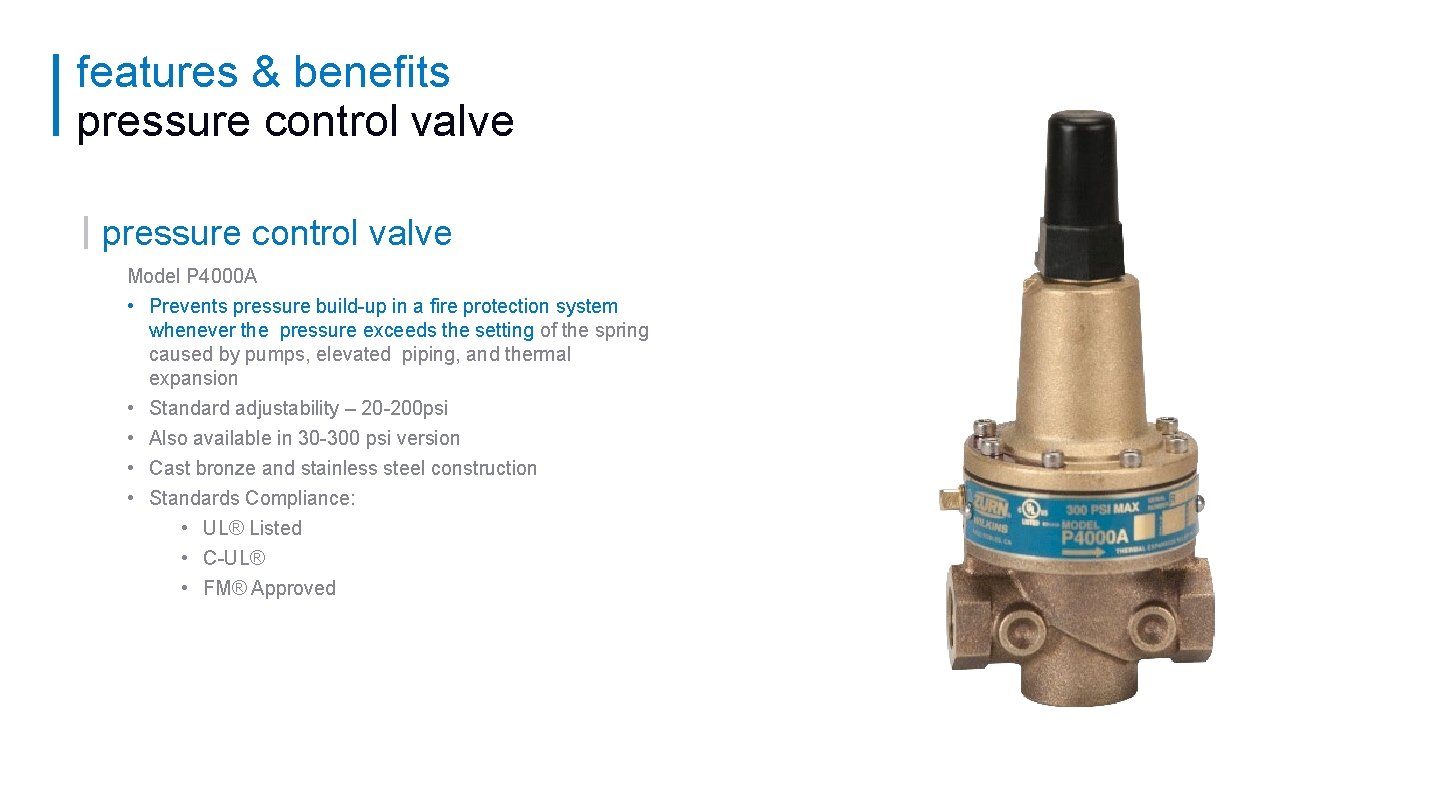

features & benefits pressure control valve Model P 4000 A • Prevents pressure build-up in a fire protection system whenever the pressure exceeds the setting of the spring caused by pumps, elevated piping, and thermal expansion • Standard adjustability – 20 -200 psi • Also available in 30 -300 psi version • Cast bronze and stainless steel construction • Standards Compliance: • UL® Listed • C-UL® • FM® Approved

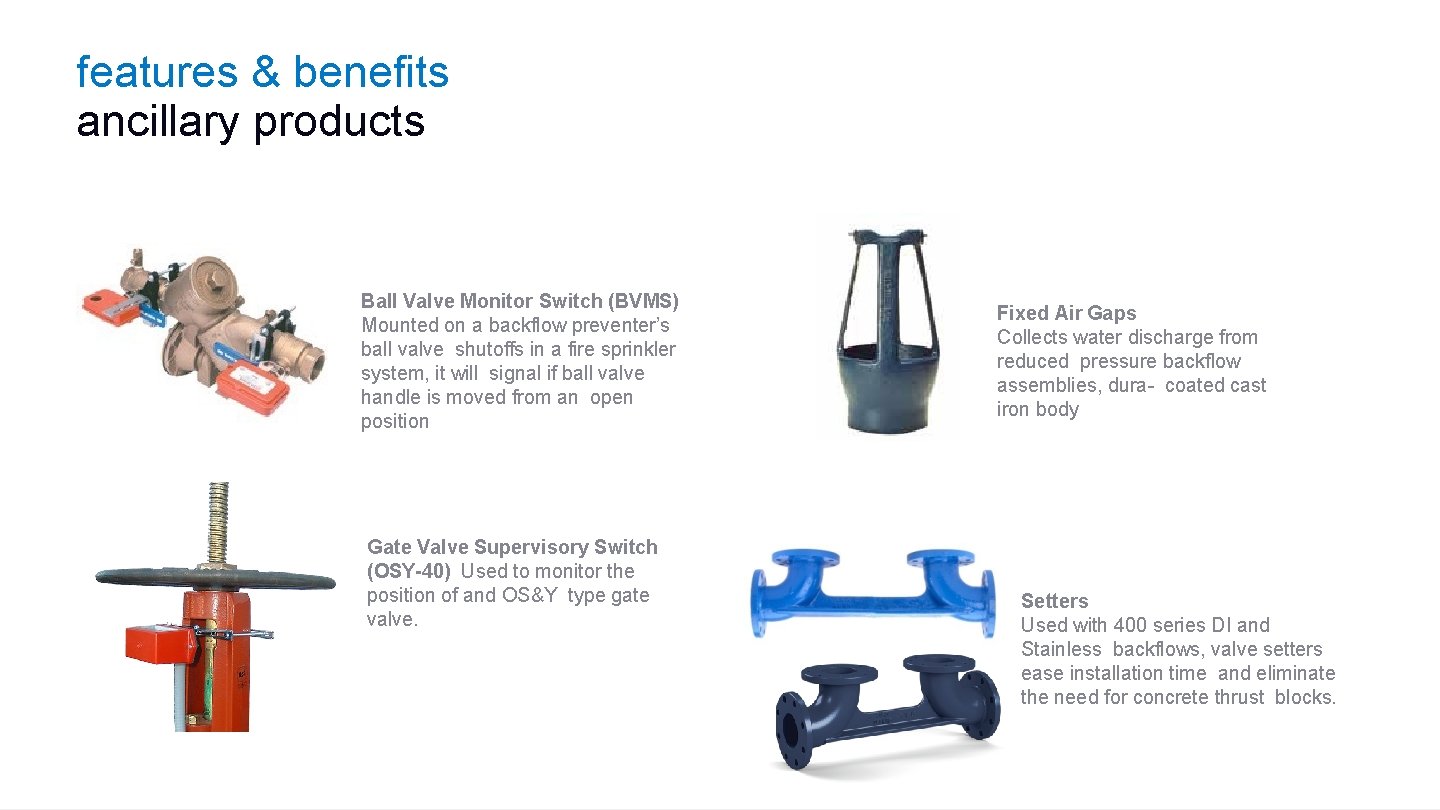

features & benefits ancillary products Ball Valve Monitor Switch (BVMS) Mounted on a backflow preventer’s ball valve shutoffs in a fire sprinkler system, it will signal if ball valve handle is moved from an open position Gate Valve Supervisory Switch (OSY-40) Used to monitor the position of and OS&Y type gate valve. Fixed Air Gaps Collects water discharge from reduced pressure backflow assemblies, dura- coated cast iron body Setters Used with 400 series DI and Stainless backflows, valve setters ease installation time and eliminate the need for concrete thrust blocks.

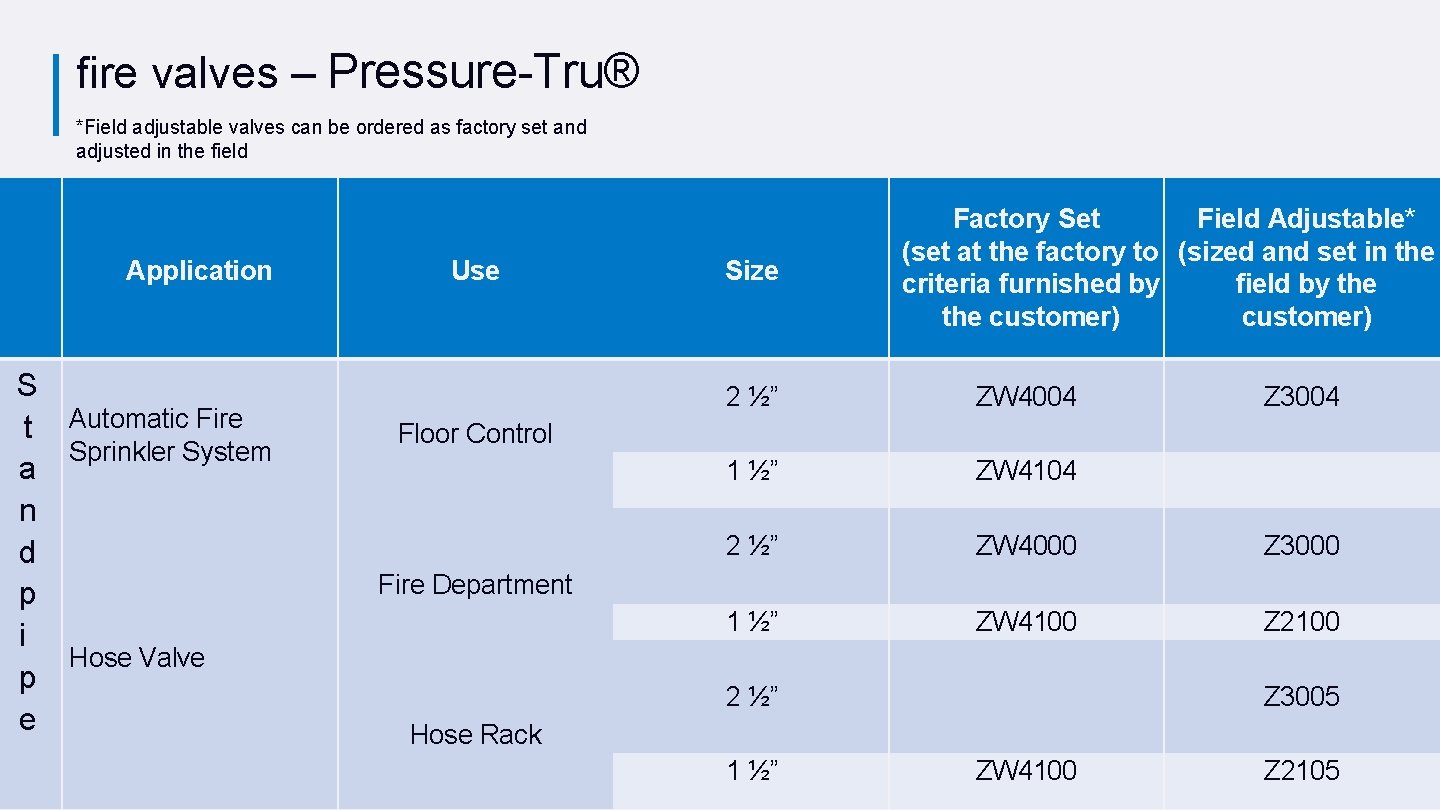

fire valves – Pressure-Tru® *Field adjustable valves can be ordered as factory set and adjusted in the field Application S t Automatic Fire Sprinkler System a n d p i Hose Valve p e Use Size Factory Set Field Adjustable* (set at the factory to (sized and set in the criteria furnished by field by the customer) 2 ½” ZW 4004 Z 3004 1 ½” ZW 4104 2 ½” ZW 4000 Z 3000 1 ½” ZW 4100 Z 2100 ZW 4100 Z 3005 page Z 2105043 Floor Control Fire Department 2 ½” Hose Rack 1 ½”
features & benefits control valves for fire systems Typical High Rise Fire Sprinkler System As the industry leader, with 60 -70% market share in smart fire protection solutions, we deliver water safety, and pressure management solutions with backflow prevention assemblies and pressure reducing valves that are easily serviced and provide the lowest life-cycle costs. types Hose Valves • On / Off • Pressure Size 2 Range 125 – 175 Restricting ½” psi Size 1 hose Range 100 – 175 Multiple thread ½” psi. Pressure Reducing options • Direct Acting All sizes Range over 175 Sprinkler Floor Control psi • Valves Direct Acting Pressure Reducing All sizes Range over 175 psi Sprinkler Floor Control Valve pressure reducing key • Used when fire sprinkler system pressure exceeds 175 psi to features reduce pressure below 175 psi • • • Provide water on/off control Provide check feature for sprinkler applications Inline globe (IL) and angle bodies Threaded and grooved connections; multiple thread options Tapped and plugged for gauges Commonly in risers in stairways Hose Valve

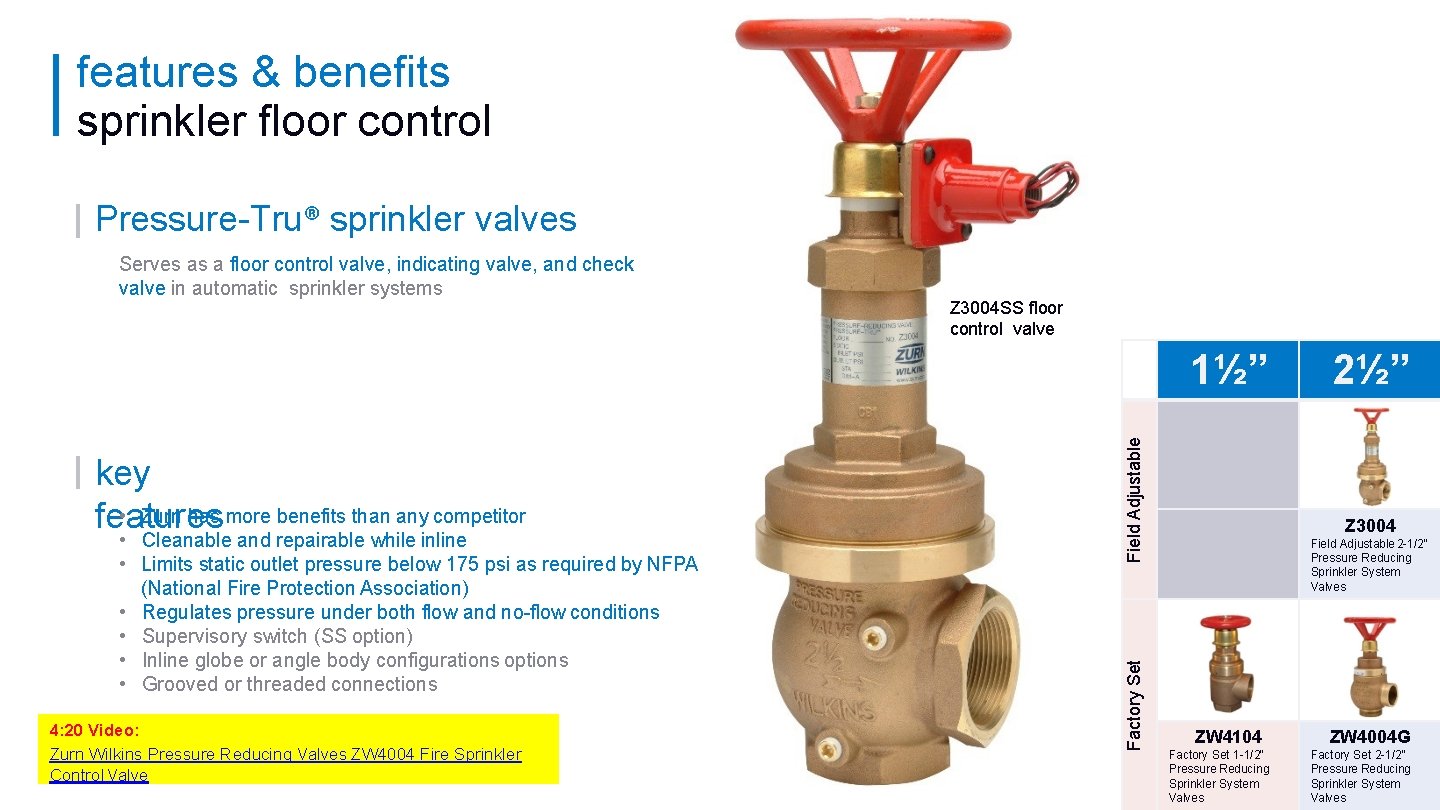

features & benefits sprinkler floor control Pressure-Tru® sprinkler valves Serves as a floor control valve, indicating valve, and check valve in automatic sprinkler systems Z 3004 SS floor control valve • Cleanable and repairable while inline • Limits static outlet pressure below 175 psi as required by NFPA (National Fire Protection Association) • Regulates pressure under both flow and no-flow conditions • Supervisory switch (SS option) • Inline globe or angle body configurations options • Grooved or threaded connections 4: 20 Video: Zurn Wilkins Pressure Reducing Valves ZW 4004 Fire Sprinkler Control Valve Factory Set key • Zurn has more benefits than any competitor features Field Adjustable 1½” 2½” Z 3004 Field Adjustable 2 -1/2" Pressure Reducing Sprinkler System Valves ZW 4104 Factory Set 1 -1/2" Pressure Reducing Sprinkler System Valves ZW 4004 G page Factory Set 2 -1/2" Pressure Reducing Sprinkler System Valves 045

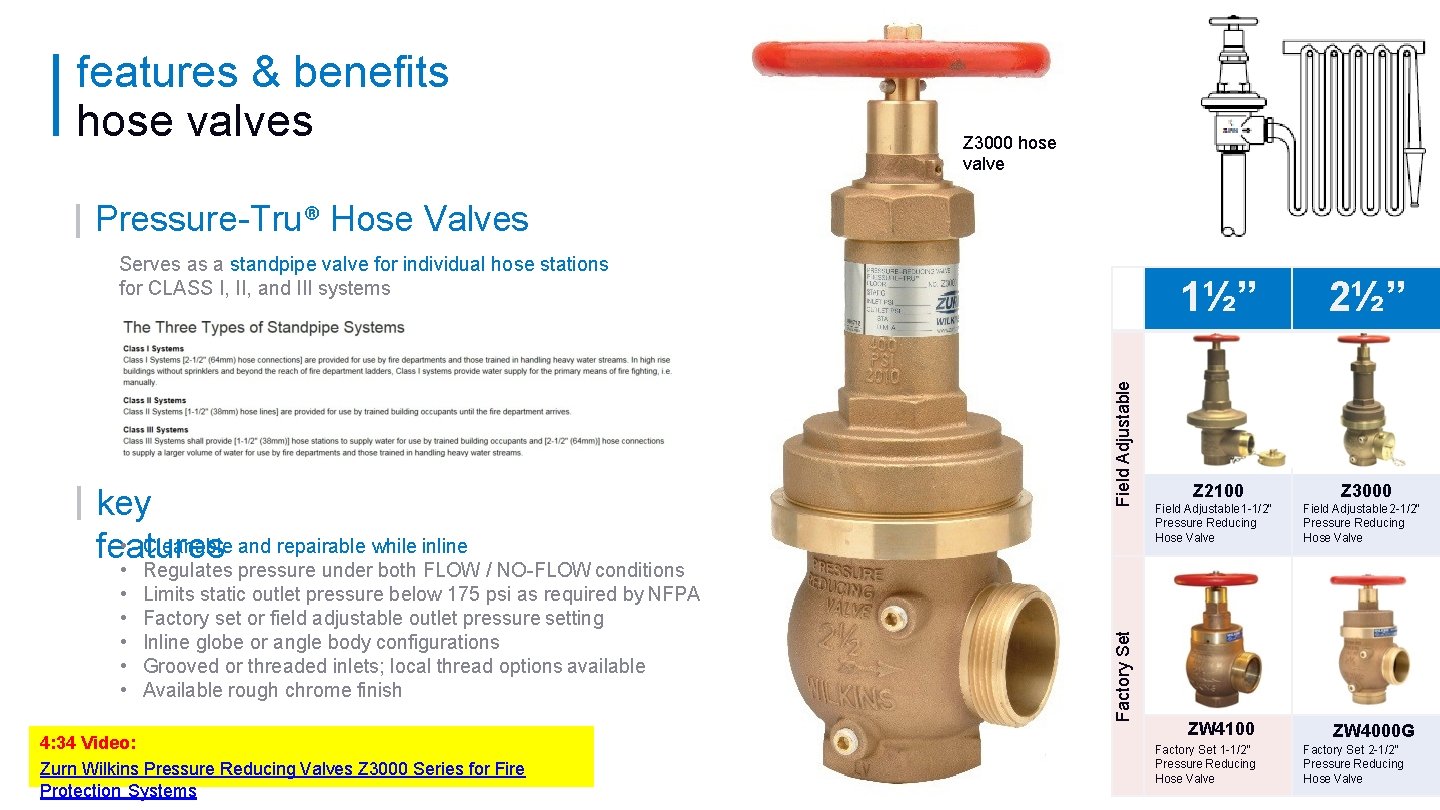

features & benefits hose valves Z 3000 hose valve Pressure-Tru® Hose Valves • • • Regulates pressure under both FLOW / NO-FLOW conditions Limits static outlet pressure below 175 psi as required by NFPA Factory set or field adjustable outlet pressure setting Inline globe or angle body configurations Grooved or threaded inlets; local thread options available Available rough chrome finish 4: 34 Video: Zurn Wilkins Pressure Reducing Valves Z 3000 Series for Fire Protection Systems Factory Set key • Cleanable and repairable while inline features Field Adjustable Serves as a standpipe valve for individual hose stations for CLASS I, II, and III systems 1½” 2½” Z 2100 Z 3000 Field Adjustable 1 -1/2" Pressure Reducing Hose Valve ZW 4100 Z 4100 Factory Set 1 -1/2" Pressure Reducing Hose Valve Field Adjustable 2 -1/2" Pressure Reducing Hose Valve ZW 4000 G Z 4000 page Factory Set 2 -1/2" Pressure Reducing Hose Valve 046

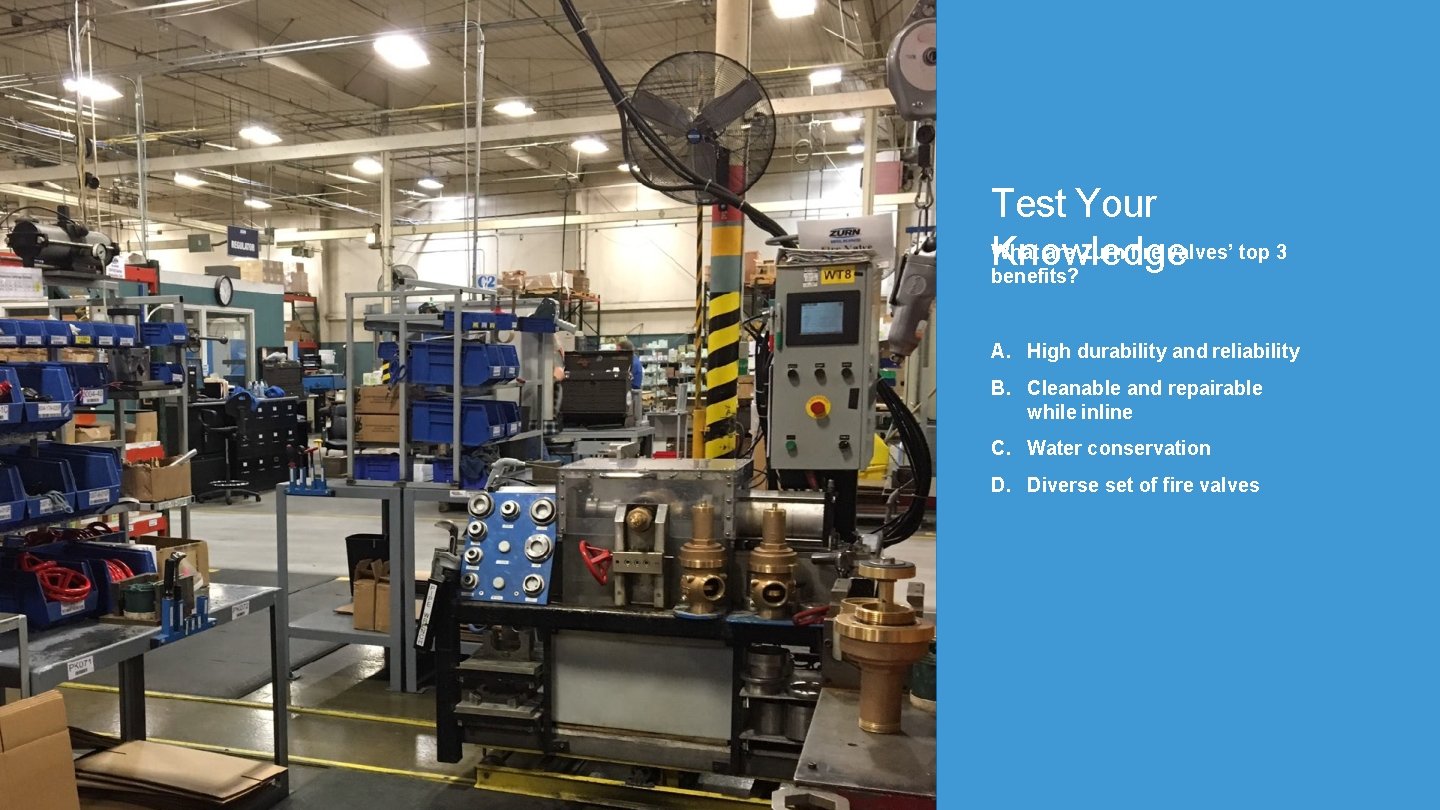

Test Your What are Zurn fire valves’ top 3 Knowledge benefits? A. High durability and reliability B. Cleanable and repairable while inline C. Water conservation D. Diverse set of fire valves

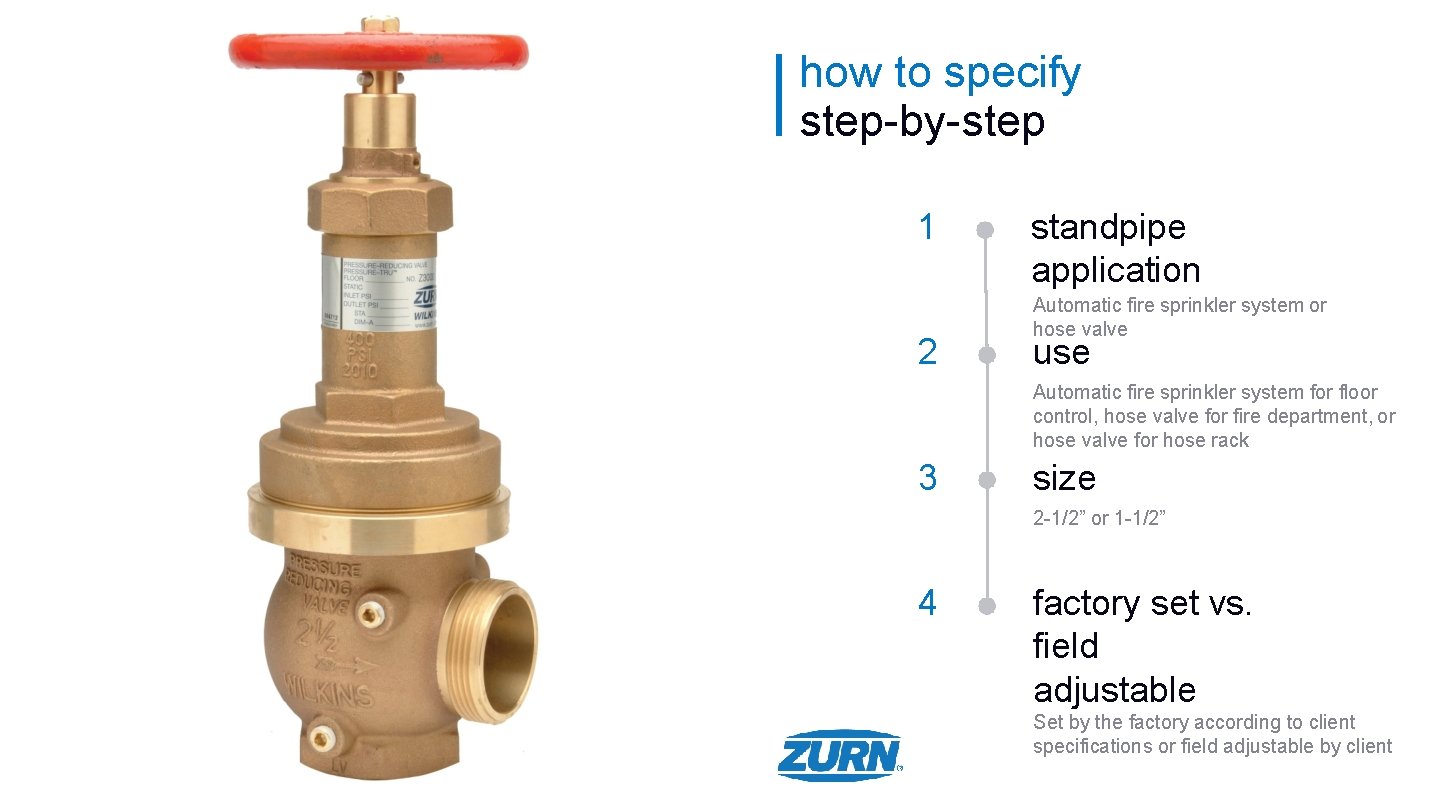

how to specify step-by-step 1 2 standpipe application Automatic fire sprinkler system or hose valve use Automatic fire sprinkler system for floor control, hose valve for fire department, or hose valve for hose rack 3 size 2 -1/2” or 1 -1/2” 4 factory set vs. field adjustable Set by the factory according to client specifications or field adjustable by client

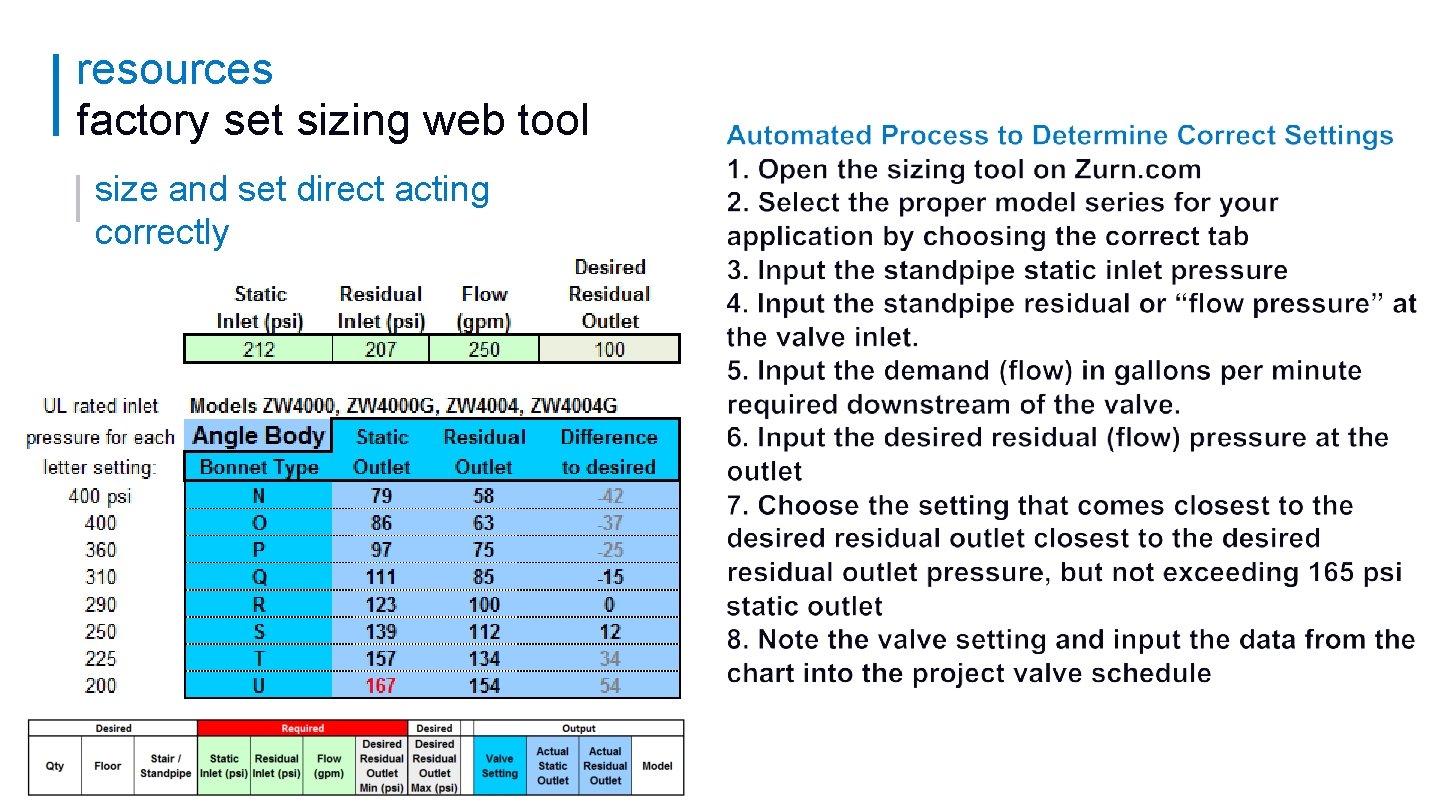

resources factory set sizing web tool size and set direct acting correctly page 056

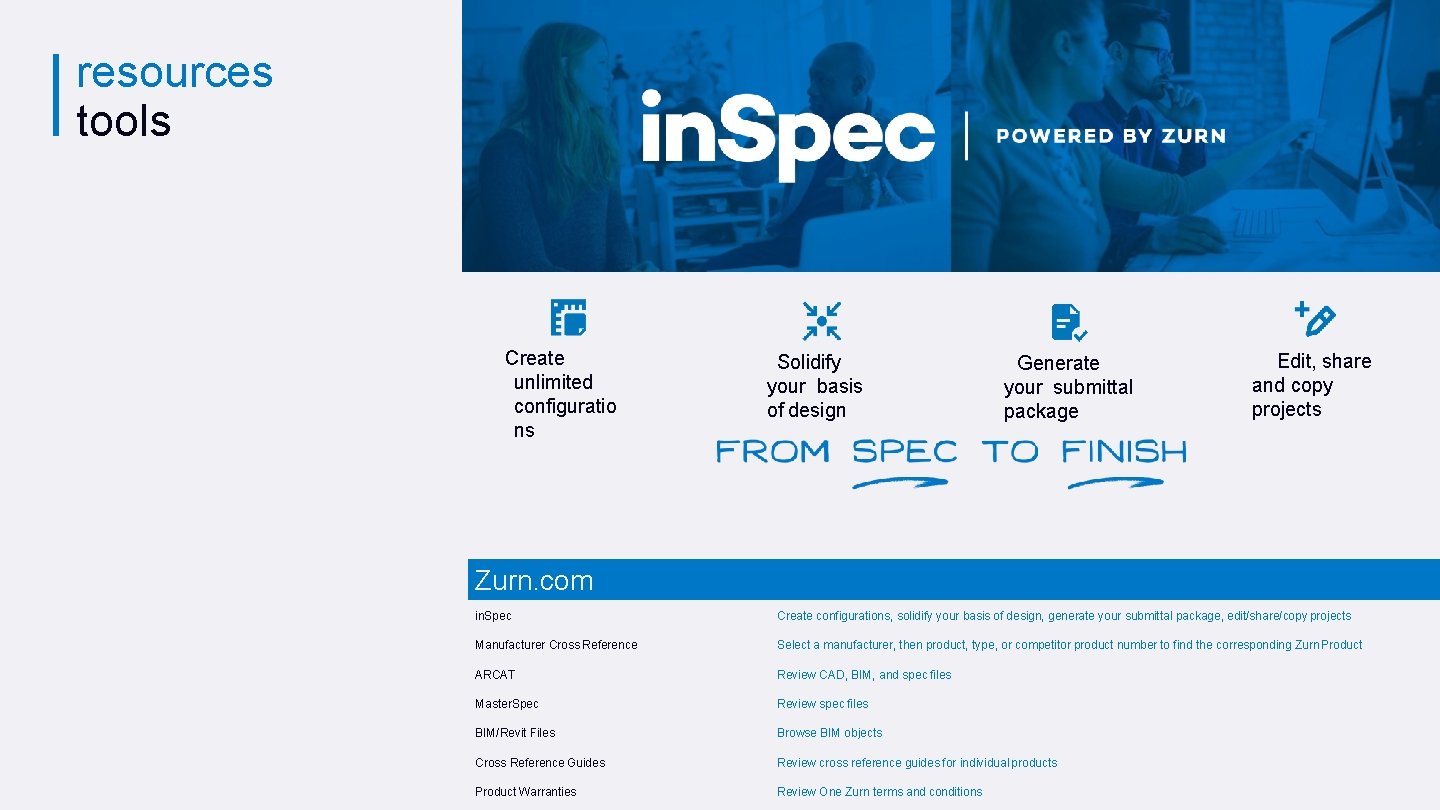

resources tools Create unlimited configuratio ns Zurn. com in. Spec tools Solidify your basis of design Generate your submittal package Edit, share and copy projects Create configurations, solidify your basis of design, generate your submittal package, edit/share/copy projects Manufacturer Cross Reference Select a manufacturer, then product, type, or competitor product number to find the corresponding Zurn Product ARCAT Review CAD, BIM, and spec files Master. Spec Review spec files BIM/Revit Files Browse BIM objects Cross Reference Guides Review cross reference guides for individual products Product Warranties Review One Zurn terms and conditions page 057

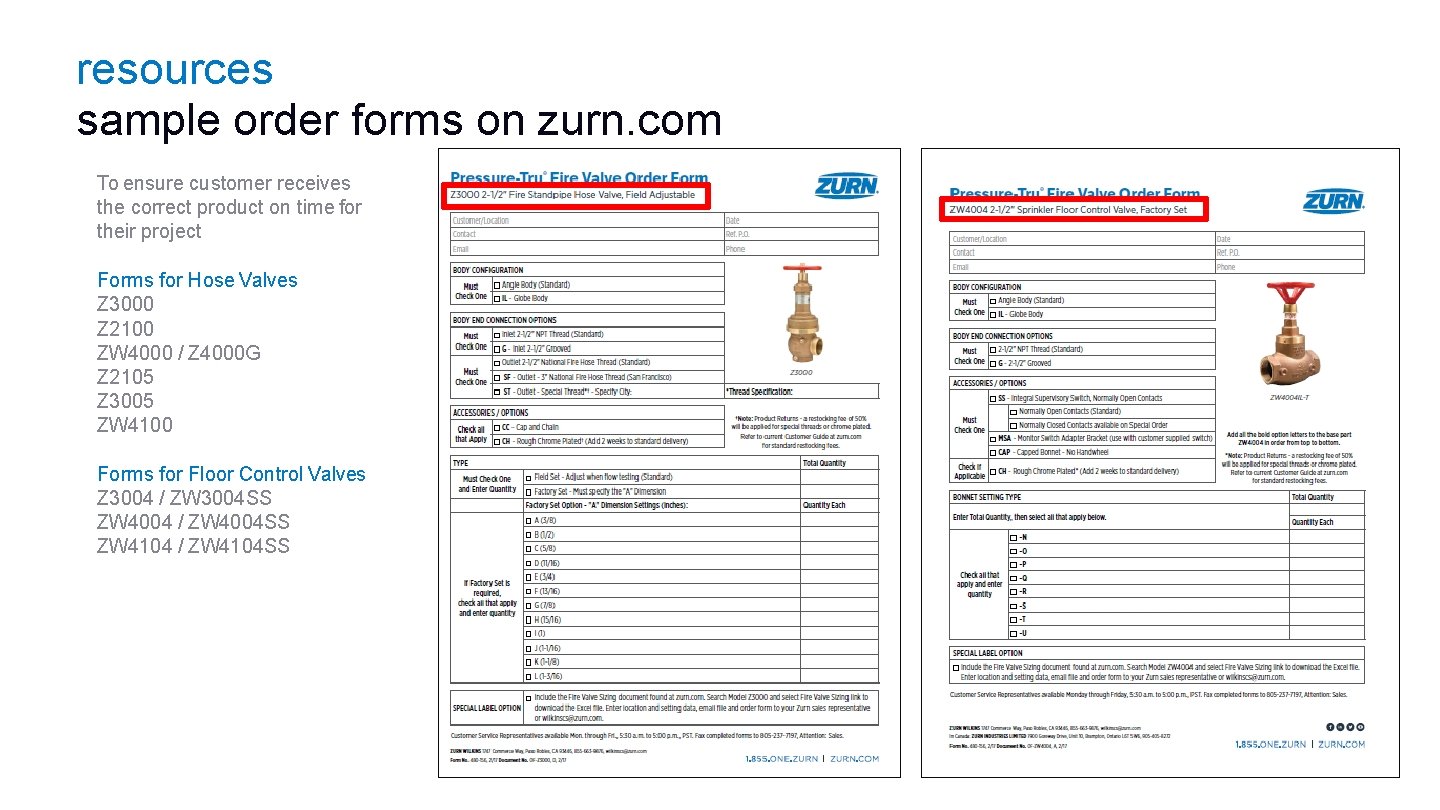

resources sample order forms on zurn. com To ensure customer receives the correct product on time for their project Forms for Hose Valves Z 3000 Z 2100 ZW 4000 / Z 4000 G Z 2105 Z 3005 ZW 4100 Forms for Floor Control Valves Z 3004 / ZW 3004 SS ZW 4004 / ZW 4004 SS ZW 4104 / ZW 4104 SS

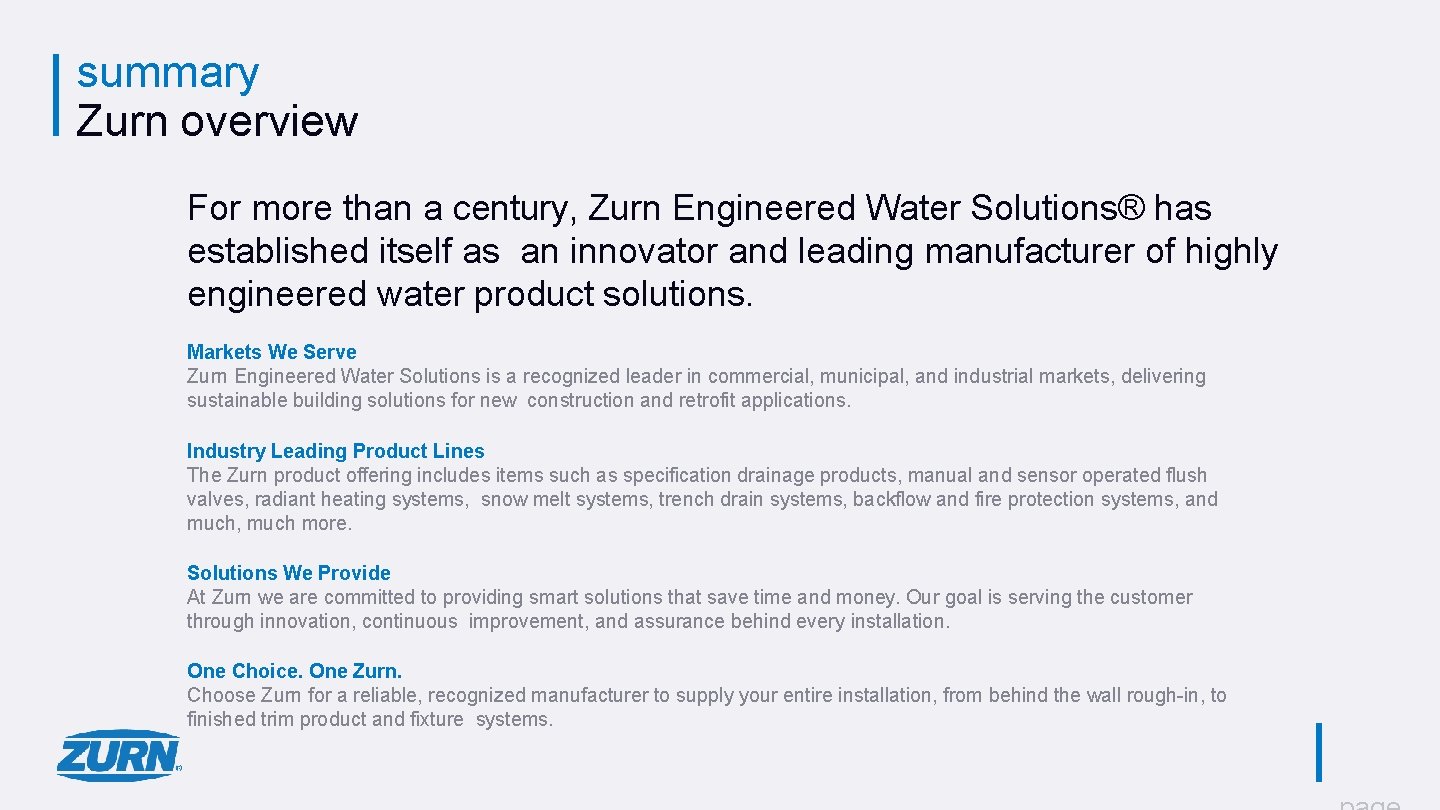

summary Zurn overview For more than a century, Zurn Engineered Water Solutions® has established itself as an innovator and leading manufacturer of highly engineered water product solutions. Markets We Serve Zurn Engineered Water Solutions is a recognized leader in commercial, municipal, and industrial markets, delivering sustainable building solutions for new construction and retrofit applications. Industry Leading Product Lines The Zurn product offering includes items such as specification drainage products, manual and sensor operated flush valves, radiant heating systems, snow melt systems, trench drain systems, backflow and fire protection systems, and much, much more. Solutions We Provide At Zurn we are committed to providing smart solutions that save time and money. Our goal is serving the customer through innovation, continuous improvement, and assurance behind every installation. One Choice. One Zurn. Choose Zurn for a reliable, recognized manufacturer to supply your entire installation, from behind the wall rough-in, to finished trim product and fixture systems.
resources support addre ss phon e onlin e 511 Freshwater Way toll-free 1 -855 -ONE-ZURN zurn. com Milwaukee, WI 53204 Product Pages | Tools, Specifications, & Resources | Vertical Market Solutions in. Spec | Manufacturer Cross Reference | ARCAT | Master. Spec | Spec. Builder | Specifiers | BIM/Revit Files zurn. com/resources/product-training Zurn Product Overview How to Install and Support facebook. com/Zurn. Industries twitter. com/Zurn. Industries linkedin. com/company/Zurn. Industries youtube. com/Zurn. Industries. LLC page 062
