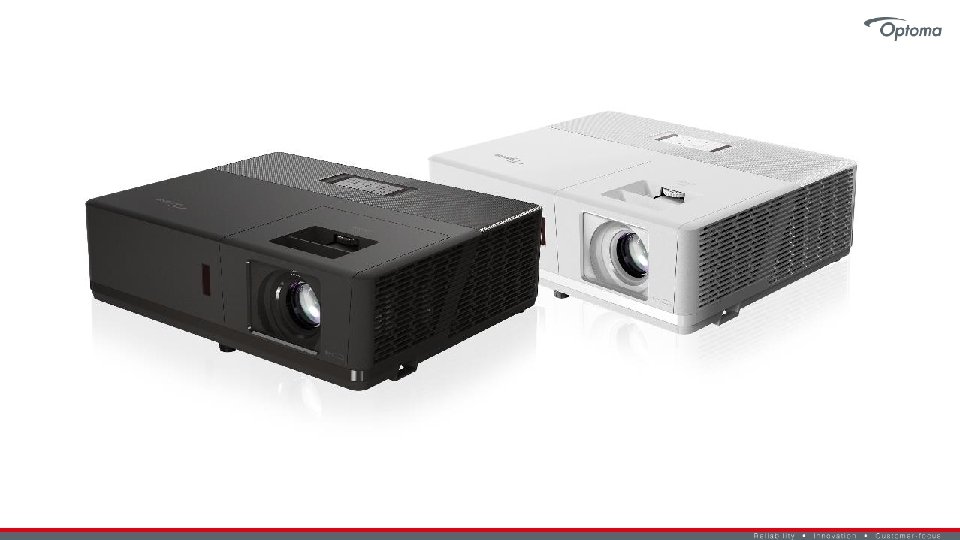

ZU 506 / ZH 506 Positioning Focusing on its brightness and useful vertical lens shift, the ZU 506 / ZH 506 is offering best value for the entry professional installation market. The ZU 506 and ZH 506 are perfect for those applications that simply require the brightness level with minimum maintenance for up to 30, 000 hours.

ZU 506 / ZH 506 • • • Install and forget -- 30, 000 hrs laser light source life and virtually zero maintenance for system Optoma Dura. Core Technology – IP 5 X certified system that provides great brightness maintenance & reliability 4 K & HDR compatible Amazing colors – 99% Rec. 709 color gamut coverage to render lifelike images Flexible orientation* including portrait mode Easy installation – impressive 1. 6 x zoom & vertical lens shift within a compact easy to install design Target Market Business applications, conference rooms, higher education, houses of worship, auditoriums, museums, digital signage, exhibitions…. .

Features : ZU 506 / ZH 506 Optoma DURECORE Laser Technology Ultra bright 5, 000 Lumens 300, 000: 1 Contrast Flexible Installation Portrait Mode, Vertically up, Vertically down. (Also at any angle in-between with 70% light output and full fan setting) Professional Applications Designed for 24/7 operation, for ultimate reliability in any professional application Airtight Optical Engine Maintenance Free IP 5 X Certified, dust resistant, high performance sealed optics The lampless light source rated for 30, 000 hours enables a low cost of ownership Silent Operation Superior Colour At 29 d. B, operation is quieter than a whisper 99% Rec. 709 colour gamut coverage Vertical Lens Shift

4 K / HDR Compatible ZU 506 / ZH 506 are capable to accept native 4 K signals and compatible with HDR. High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.

Robust & Reliable Optoma DURACORE & Amazing Colors Optoma DURACORE Optoma Amazing Colors • • • Ultimate brightness consistency and reliability IP 5 X certified systems 30, 000 hours or longer laser light source life Low total cost of ownership Optoma DURACORE Laser Technology 99% Rec. 709 coverage to render lifelike images ZU 506 & ZH 506 REC. 709 99% REC. 709 Coverage

Low TCO and maintenance due to IP 5 X Optical Engine The series is designed with Optoma’s Duracore Optical Engine with independently tested IP 5 X certification. The engine resists dust particles and ensures a long lasting, reliable and maintenance free experience. The Mercury free laser light source is rated for up to 30, 000 hours enabling a low total cost of ownership. Optoma Lamp-less Laser Light Source Life Up to 30, 000 hours No maintenance Lamp-based Light Source Life 3, 000 hours 3, 000 hours Airtight Optical Engine x 9 lamps + x 9 labor costs + *Light source life is dependent on many factors, including display mode, usage, environmental conditions and more. Light source brightness will decrease over time. *30, 000 hours operating in full brightness mode. At 30, 000 hours, the light output will be approx. 50% of original brightness 3, 000 hours x 9 down times

Precision Optics (ZU 506 / ZH 506) Big Zoom Range Vertical Lens Shift A large zoom range enables multiple placement possibilities at a variety of distances from the projection screen. An advantage to this is that expensive interchangeable lens projectors can be substituted with a more cost effective solution whilst still retaining a diverse choice of positioning options. Simplify installation with lens shift, which provides a wide range of projector placement possibilities. Vertical lens shift : ZU 506 8% (99%~107%) ZH 506 15% (103%~118%) Vs 1. 6 x WUXGA 8% ; 1080 p 15% Lens shift range

Versatile Installation FLEXIBLE INSTALLATION Designed for Continuous 24/7 Operation PORTRAIT MODE COMPACT FORM FACTOR *50% of NEC’s PA 502 HL size *62% of Sony’s VP-PHZ 10 size *65% of Epson’s Power. Lite L 510 U size *approximate values; for reference only

Installation Friendly 4 - Corner Adjustment By individually adjusting each corner of the image, it eliminates any crooked or distorted images in off-angle or restricted space installations for that perfect picture.

Installation Friendly Highlights Color Matching Mode The colour matching system, combines accurate measurements across multiple projectors creates seamless blends every time. Without color matching With color matching

Network control protocols Versatile System Integration Control Protocols Crestron Room. View, Extron’s IP Link, AMX dynamic device discovery, PJ-Link, Telnet and HTTP protocols are fully supported, allowing the series to be controlled across a network, keeping you in control, wherever you are. AV Mute In situations where only absolute darkness is required, the ZU 506 and ZH 506 series can provide a total blackout that functions like mechanical shutter. The change between normal projection to a total black image and vice versa is instantaneous.

Low Noise: Quieter than a Whisper 28 d. B ZU 506 & ZH 506 1 d. B Lowest perceivable change in volume 10 d. B 20 d. B 30 d. B 40 d. B 50 d. B Normal Breathing Whisper Library / Office Outdoor Suburban Neighborhood W H I S P E R - S I L E N T. U N O B T R U S I V E. S U P E R I O R V I E W I N G E X P E R I E N C E.

Professional Installation Applications Delivering outstanding reliability, high intensity brightness, stunning colors and spectacular image quality, the 506 series are precision engineered to power larger than life experiences. Optoma’s ZU 506 & ZH 506 are the perfect solution for businesses, museums, conference rooms, higher education, auditoriums, houses of worship, entertainment venues, projection mapping, digital signage, exhibitions.

Specifications Model ZU 506 / ZH 506 Native Resolution 1920 x 1200 / 1920 x 1080 Brightness (lm) 5000 / 5000 Contrast 300, 000: 1 Speaker 2 x 10 W Noise (Eco ) 28 d. B Weight / Size 5. 5 +-0. 5 Kg / 374 x 302 x 107 mm (elevator excluded) 12. 13 lb / 14. 72” x 11. 89” x 4. 21” Lens shift (tolerance ± 5 %) ZU 506 : V. : +8% ZH 506 : V. : +15% Throw Ratio 1. 4 -2. 24 / 1. 4 -2. 24 Zoom Lens 1. 6 x Light Source Life 30, 000 hours I/O HDMI x 1, HDMI/MHL x 1, VGA in x 1, VGA out x 1, RS 232, Audio in 1/ Mic x 1, Audio in 2 x 1, Audio out x 1, USB Power (5 V/1. 5 A), RJ-45, RS 232 3 D Full HD 3 D Keystone correction ± 30° vertical, ± 30° horizontal

Avg Street Price (USD) MSRP (USD) Brightness (lumens) Contrast (Full On/Off) Native Resolution Aspect Ratio Display Type Audible Noise Size (cm) (Hx. Wx. D) Weight Warranty First Shipment Throw Dist (m) Image Size (cm) Throw Ratio (D: W) Standard Zoom Lens Standard Lens Focus Optional Lenses Lens Shift Digital Zoom Lamp Life (Full Power) Lamp Life (ECO) Lamp Type Speakers 3 D Modes Power Usage HDMI HDBase T VGA / RGB In VGA / RGB Out Wired Networking DVI Audio In Audio Out 12 -Volt Trigger USB RS 232 Composite 3 D Sync Sony NEC Panasonic Hitachi Epson Optoma VPL-PHZ 10 P 502 HL-2 PT-RZ 570 WU LP-WU 6500 Power. Lite L 510 U ZU 506 $3, 049 $5, 000 500, 000: 1 1920 x 1200 16: 10 (WUXGA) 0. 8" 3 LCD ** 11 x 51 x 35 8. 7 kg ** Jul-17 1. 6 - 16. 4 up to 300" 1. 27: 1 - 1. 88: 1 Manual, 1. 45: 1 Manual Fixed lens Horiz + Vert Yes 20, 000 hours Laser Phosphor ** ** 424 W 2 1 1 x 2 1 x USB-A x 1 (for wireless dongle) USB-B x 1 (for USB Display) 1 1 x $3, 099 $5, 999 5, 000 15, 000: 1 1920 x 1080 16: 9 (HD) 0. 7" 1 DLP 39. 0 d. B / 33 d. B (Eco) 14 x 47 x 37 8. 8 kg 5 Years Jun-17 1. 4 - 8. 2 up to 300" 1. 24: 1 - 2. 10: 1 Manual, 1. 70: 1 Manual Fixed lens Horiz + Vert ** 20, 000 hours Laser Phosphor 20. 0 W Mono Full HD 3 D 464 Watts 2 1 1 x Yes 1 x $4, 299 $8, 999 5, 200 20, 000: 1 1920 x 1200 16: 10 (WUXGA) 0. 7" 1 DLP 33. 0 d. B 17 x 50 x 49 16. 3 kg 3 Years Jun-16 2. 5 - 12. 2 up to 388" 1. 46: 1 - 2. 93: 1 Manual, 2. 00: 1 Manual Fixed lens Horiz + Vert ** 20, 000 hours Laser Phosphor x ** ** 2 1 (shared with VGA-in) 1 1 Yes 1 x $2, 799 5, 000 2, 500, 000: 1 1920 x 1200 16: 10 (WUXGA) 0. 7" 3 LCD 37. 0 d. B 14 x 44 x 30 8. 5 kg 3 Years Aug-18 2. 4 - 14. 9 up to 500" 1. 38: 1 - 2. 24: 1 Manual, 1. 60: 1 Manual Fixed lens Horiz + Vert Yes 20, 000 hours 30, 000 hours Laser Phosphor 10. 0 W Mono ** 353 Watts 2 1 1 x Yes 1 x USB-A x 1 USB-B x 1 1 x x 　 　 5, 000　 300, 000　 1920 x 1200 16: 10 (WUXGA) DLP　 　28 db 10. 7 x 37. 4 x 30. 2 5. 5 kg 　 Nov-18 1. 4 – 10 m　 　up to 300” 1. 4: 1 - 2. 24: 1 Manual, 1. 60: 1 Manual Fixed lens Vertical Yes 30, 000 hours Laser Phosphor 10 W x 2 Full 3 D　 Typ 310, Max 341　 2 x 1 1 1 x Yes 1 x USB-A x 1 1 $3, 599 ** 5, 000 20, 000: 1 1920 x 1200 16: 10 (WUXGA) 1 DLP ** 15 x 36 x 44 10. 5 kg 3 Years Nov-17 1. 2 - 7. 4 up to 300" 1. 15: 1 - 1. 90: 1 Manual, 1. 65: 1 Manual Fixed lens Horiz + Vert Yes 20, 000 hours Laser Phosphor 10. 0 W Mono Full HD 3 D 460 Watts 3 1 1 x Yes 1 x USB-A x 1 (for power, 5 V 1. 5 A) USB-A x 1 (for power, 5 V 0. 9 A) USB for service x 1 1 1 x 1 USB-A x 1 1 1 x

I/O 1. HDMI 2 2. HDMI 1/ MHL 3. USB A for power (5 V, 1. 5 A) 4. VGA in 5. Composite 6. Audio in 1 / Mic 7. Kensington Lock 8. Audio out 9. Audio in 2 10. VGA out 11. RS 232 12. RJ 45 13. Power Socket

Remote 1. Power On 2. Geometric Correction 3. Function button F 1 (assignable) 4. Mode 5. Four Directional Select Keys 6. Information 7. Function button F 3 (assignable) 8. Source 9. Menu 10. Volume +/11. Freeze 12. Format 13. VGA 14. S-Video (not supported) 15. HDBase. T (SKU dependent) 16. Video 17. BNC (not supported) 18. YPb. Pr (not supported) 19. Numeric keypad 20. Display port (not supported) 21. 3 D 22. DVI (not supported) 23. HDMI 3 (not supported) 24. HDMI 1 25. HDMI 2 26. Remote ID / Remote all 27. Digital zoom +/28. Resync 29. Laser (not supported) 30. Enter 31. AV Mute 32. Function button F 2 (assignable) 33. PIP/PBP (not supported) 34. Power off Note: Some keys may have no function for models that do not support these features.

Keypad 1. Lamp LED 2. Power and Power LED 3. Menu 4. Keystone Correction 5. Enter 6. Temp LED 7. Re-Sync 8. Four Directional Select Keys 9. Source 10. Information

Features Overview: ZU 506 / ZH 506 Standard Features Additional Features DLP Technology √ Full HD 1080 p √ LED Technology - Crestron √ Blending Mode - Brilliant. Color √ HD Ready - LED+ Technology - PJ Link √ Media Player - Full 3 D √ Dynamic Black √ Laser Technology √ Telnet √ Four Corner Adjustment √ 3 D Ready - 24 p √ Integrated Speaker √ Extron √ HDBase. T - High Contrast √ Gaming Mode √ Pro. Cinema Sound - LAN Display √ Dual Lamp - Top Loading Lamp - Superwide Mode - SRS WOW HD - Wireless - WPS - Lamp Relay - Sleep Timer √ Ultra-Wide Projection - Touch. Beam Interactive - Wireless - USB Dongle - Lamp Pulsing - Direct Power On √ Pure. Motion - IR Pen Interactive - Wireless - WHD 200 √ Edge Blending Tools - Direct Power Off √ Ultra. Detail - 12 V Trigger - MHL √ Black Level Uplift - Pure. Color - Short Throw - Remote Mouse - Image Stacking - HDMI Link √ Ultra Short Throw - Remote Mouse & Laser - Interchangeable CW - Eco Features Eco+ - 2 D-3 D Conversion - Vertical Lens Shift √ USB Display - Pi. P / Pb. P - Quick Resume - CMS - Full Lens Shift - USB Reader - Wire Remote - Eco AV mute √ ISF modes - Motorized Lens Shift - USB-A Power √ DICOM Simulation Mode √ Image Life - DARBEE - Motorized Zoom & Focus - Signal Power On √ Mechanical Shutter - Lamp SPA - REC. 709 Color √ Pure. Shift - Logo Capture √ Portrait Projection √ Education Cycle - Audio EQ Presets - RS 232 √ Digital Signage Mode - Flexible Projection √ Auto Power Off √ Pro. Connect AMX √ Auto Keystone √ 24/7 Operation √ Networking √ Horizontal Keystone √ HDMI EQ - -
