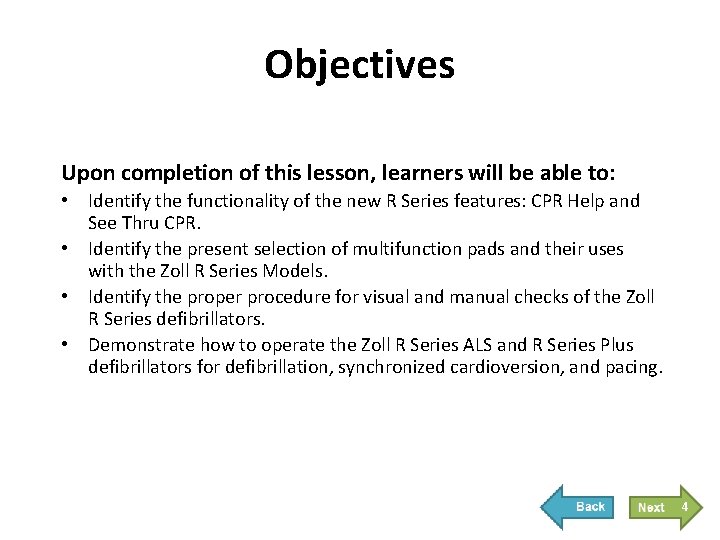

Objectives Upon completion of this lesson, learners will be able to: • Identify the functionality of the new R Series features: CPR Help and See Thru CPR. • Identify the present selection of multifunction pads and their uses with the Zoll R Series Models. • Identify the proper procedure for visual and manual checks of the Zoll R Series defibrillators. • Demonstrate how to operate the Zoll R Series ALS and R Series Plus defibrillators for defibrillation, synchronized cardioversion, and pacing. 4

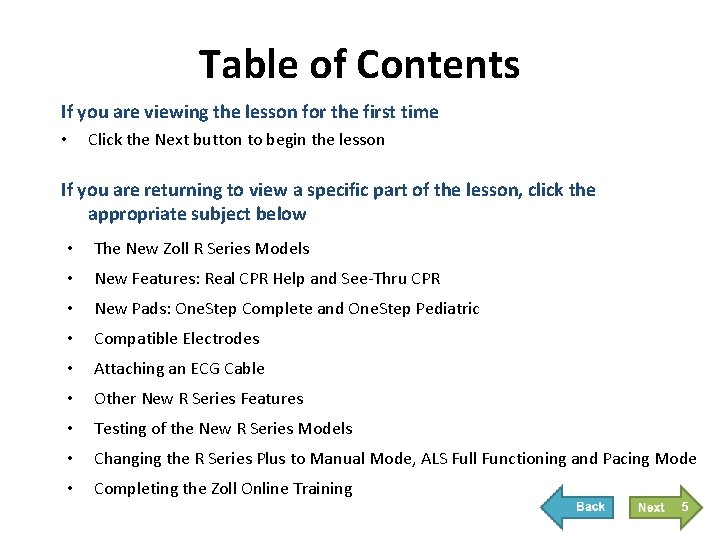

Table of Contents If you are viewing the lesson for the first time • Click the Next button to begin the lesson If you are returning to view a specific part of the lesson, click the appropriate subject below • The New Zoll R Series Models • New Features: Real CPR Help and See-Thru CPR • New Pads: One. Step Complete and One. Step Pediatric • Compatible Electrodes • Attaching an ECG Cable • Other New R Series Features • Testing of the New R Series Models • Changing the R Series Plus to Manual Mode, ALS Full Functioning and Pacing Mode • Completing the Zoll Online Training 5

New R Series Models There are two new R Series models: the ALS and the Plus Models. Both models contain new features of Real CPR Help and See-Thru CPR. Let’s begin learning about the R Series ALS model. Click the Next button to continue. R Series ALS Model R Series Plus Model 6

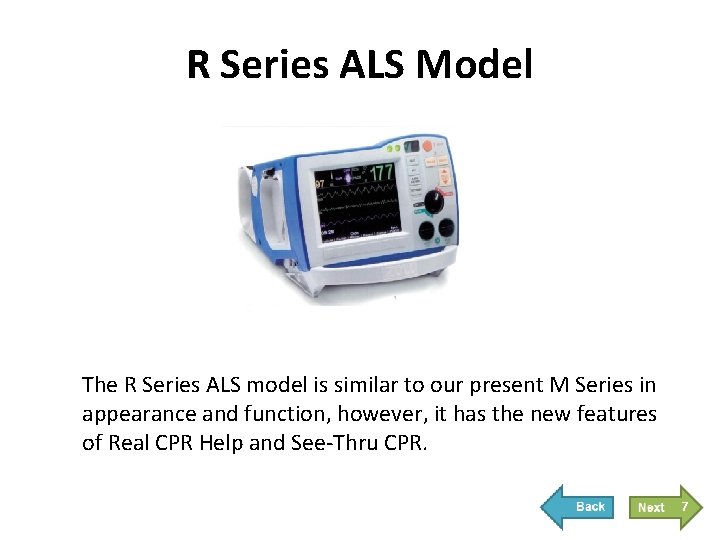

R Series ALS Model The R Series ALS model is similar to our present M Series in appearance and function, however, it has the new features of Real CPR Help and See-Thru CPR. 7

R Series ALS Model This machine will be utilized in higher acuity areas such as ICU, PACU, ED and areas that have internal response to codes with ALS trained staff. 8

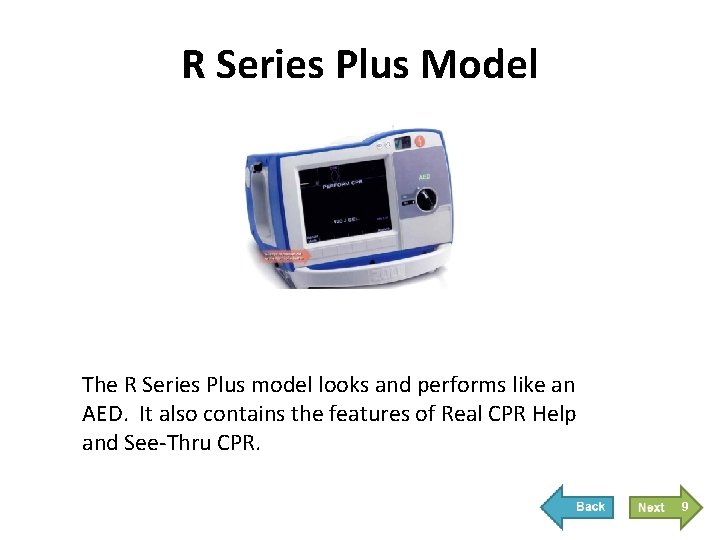

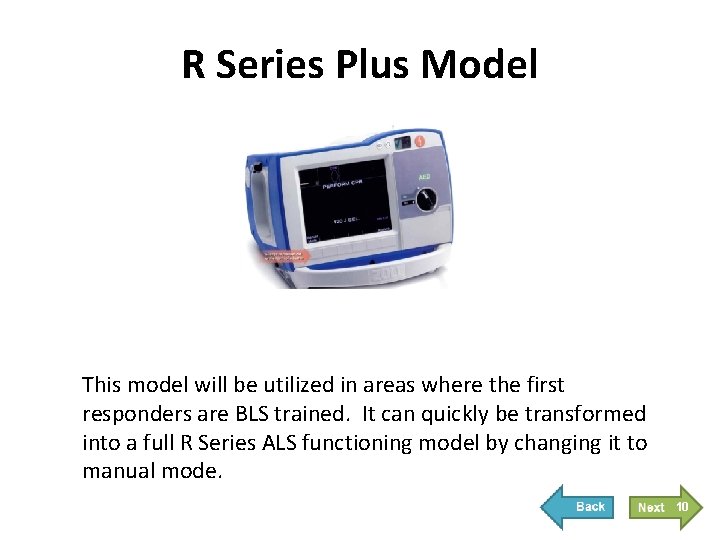

R Series Plus Model The R Series Plus model looks and performs like an AED. It also contains the features of Real CPR Help and See-Thru CPR. 9

R Series Plus Model This model will be utilized in areas where the first responders are BLS trained. It can quickly be transformed into a full R Series ALS functioning model by changing it to manual mode. 10

New R Series Features Real CPR Help See-Thru CPR As we discussed previously, the new R Series models have Real CPR Help and See-Thru CPR. Let’s explore these further. Click on the Real CPR Help picture above. 11

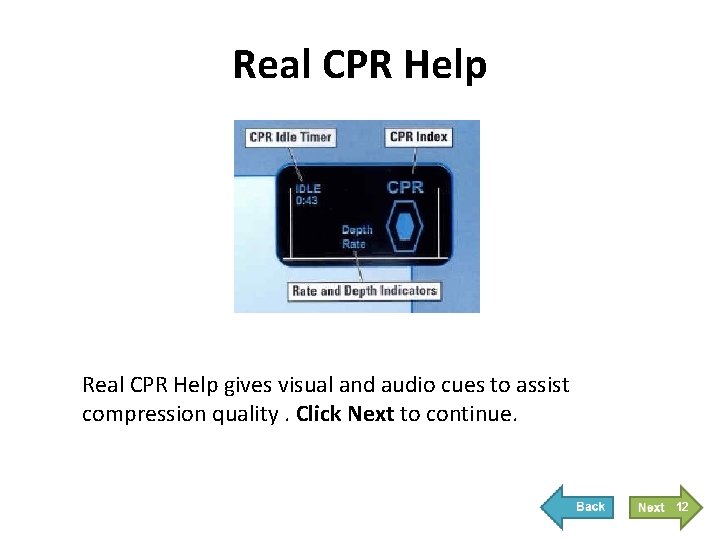

Real CPR Help gives visual and audio cues to assist compression quality. Click Next to continue. 12

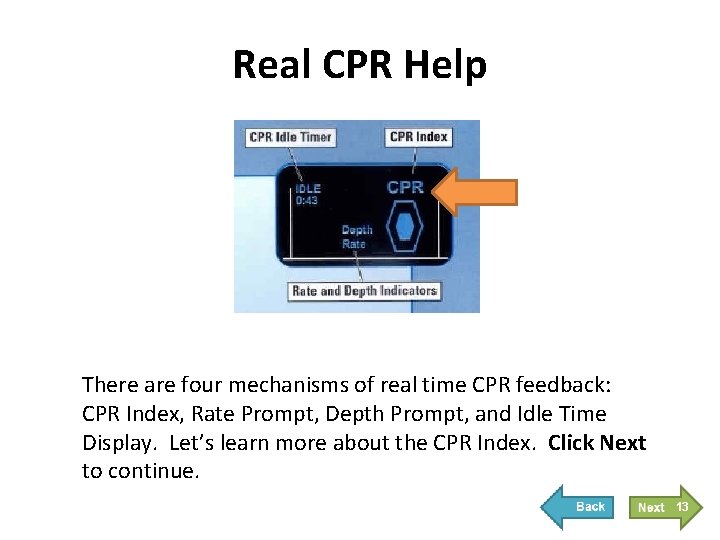

Real CPR Help There are four mechanisms of real time CPR feedback: CPR Index, Rate Prompt, Depth Prompt, and Idle Time Display. Let’s learn more about the CPR Index. Click Next to continue. 13

CPR Index The CPR Index is a visual representation of the quality of compressions being performed. It provides feedback after 8 good quality compressions in the form of a filling hexagon. It takes 20 -25 good quality compressions before the index fully fills. 14

Rate Prompt The Rate Prompt is a visual and audible prompt that lets the compressor know that compressions are less than 90 bpm. 15

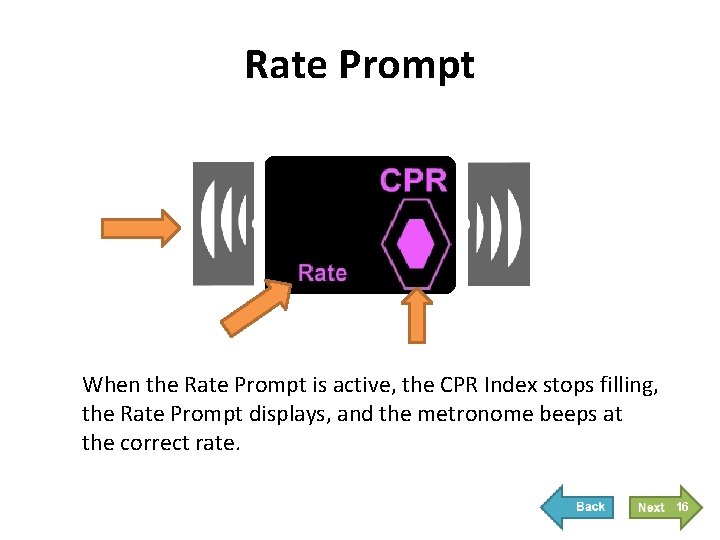

Rate Prompt When the Rate Prompt is active, the CPR Index stops filling, the Rate Prompt displays, and the metronome beeps at the correct rate. 16

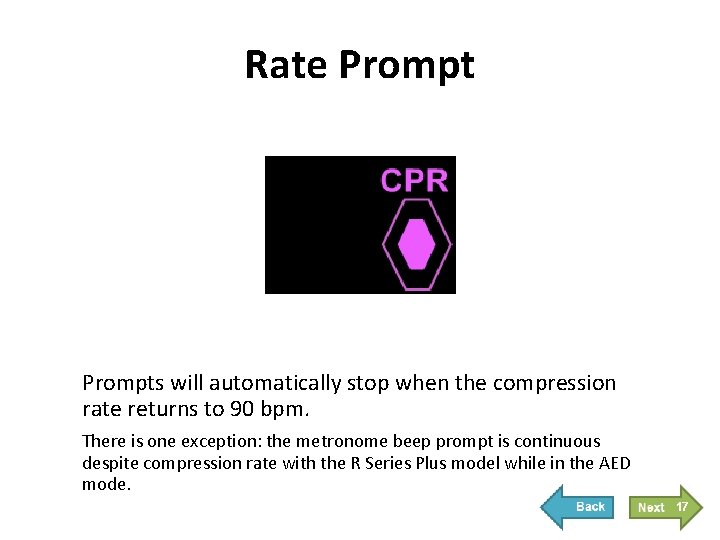

Rate Prompts will automatically stop when the compression rate returns to 90 bpm. There is one exception: the metronome beep prompt is continuous despite compression rate with the R Series Plus model while in the AED mode. 17

Depth Prompt The Depth Prompt is a visual and audible prompt to let the compressor know that compressions are less than 2 inches in depth. 18

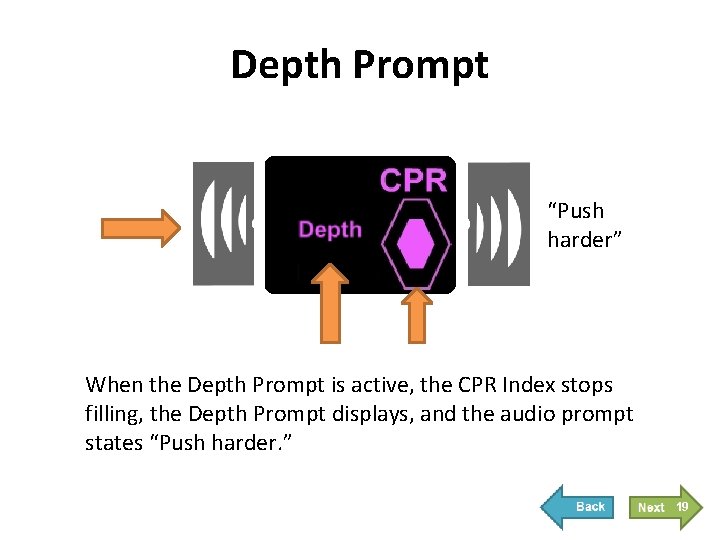

Depth Prompt “Push harder” When the Depth Prompt is active, the CPR Index stops filling, the Depth Prompt displays, and the audio prompt states “Push harder. ” 19

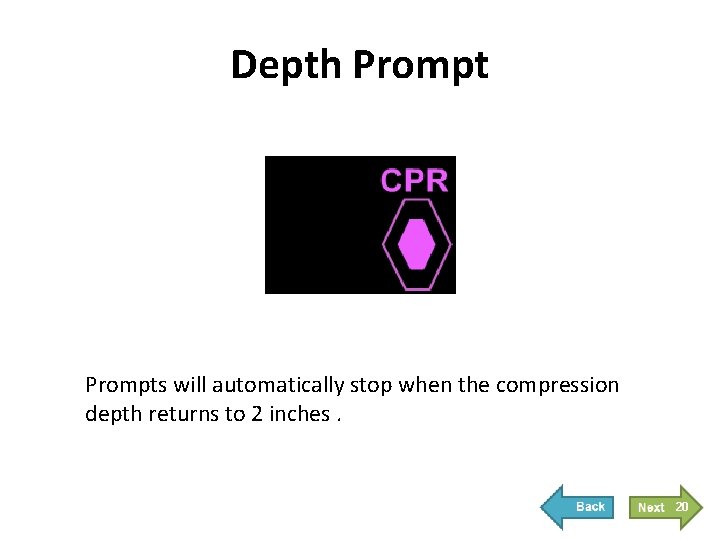

Depth Prompts will automatically stop when the compression depth returns to 2 inches. 20

Idle Time Display The Idle Time Display is a visual prompt that displays after compressions have been interrupted for more than 10 seconds. The time displays in minutes and seconds (mm: ss). 21

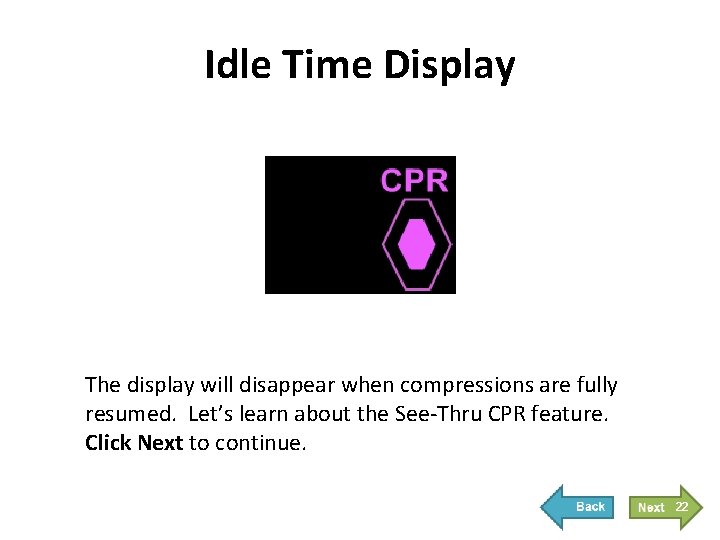

Idle Time Display The display will disappear when compressions are fully resumed. Let’s learn about the See-Thru CPR feature. Click Next to continue. 22

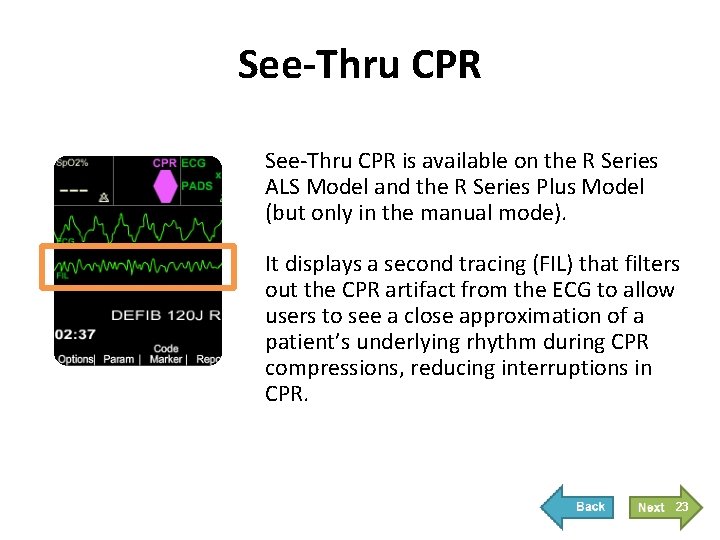

See-Thru CPR is available on the R Series ALS Model and the R Series Plus Model (but only in the manual mode). It displays a second tracing (FIL) that filters out the CPR artifact from the ECG to allow users to see a close approximation of a patient’s underlying rhythm during CPR compressions, reducing interruptions in CPR. 23

See-Thru CPR does not replace human assessment; it is meant to be a tool in the process. See-Thru CPR does not work in the advisory/analyze mode. 24

Quick Review Let’s do a quick review of the content we just learned. Click the host, Quinn, to begin. 25

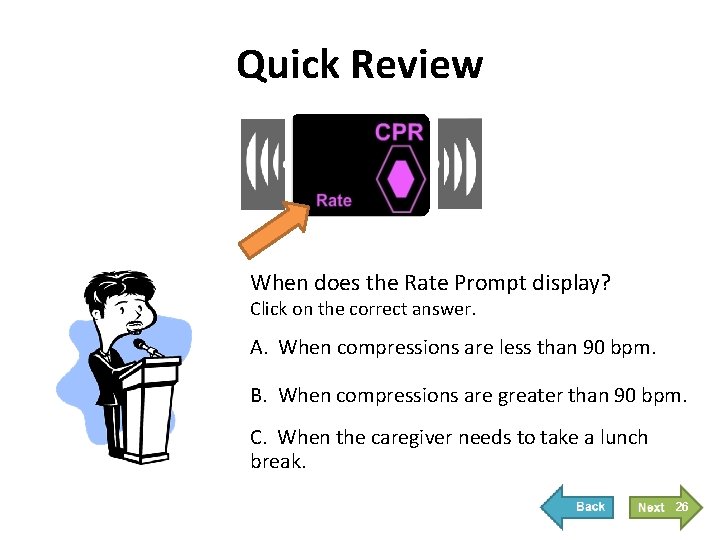

Quick Review When does the Rate Prompt display? Click on the correct answer. A. When compressions are less than 90 bpm. B. When compressions are greater than 90 bpm. C. When the caregiver needs to take a lunch break. 26

Quick Review Correct! Click Next to continue. 27

Quick Review Good try! That was not the answer I was looking for. The correct answer is A: when compressions are less than 90 bpm. Click Next to continue. 28

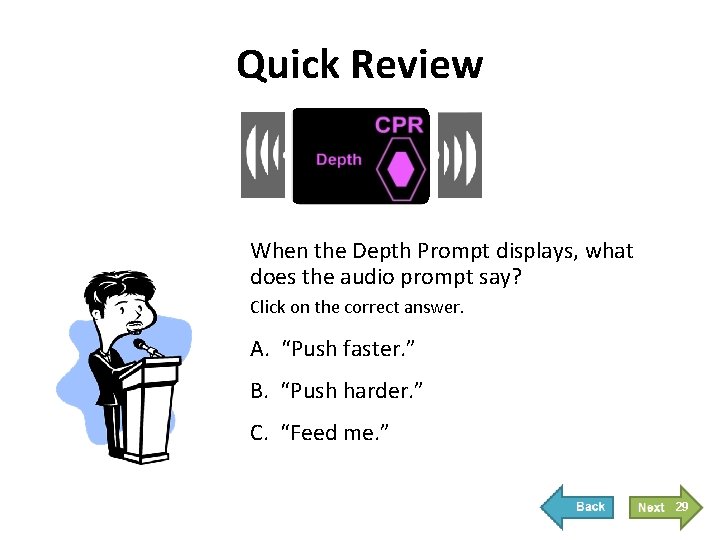

Quick Review When the Depth Prompt displays, what does the audio prompt say? Click on the correct answer. A. “Push faster. ” B. “Push harder. ” C. “Feed me. ” 29

Quick Review Yes! That’s it! Click Next to continue. 30

Quick Review I’m sorry, that is incorrect. The correct answer is B: “Push harder. ” Click Next to continue. 31

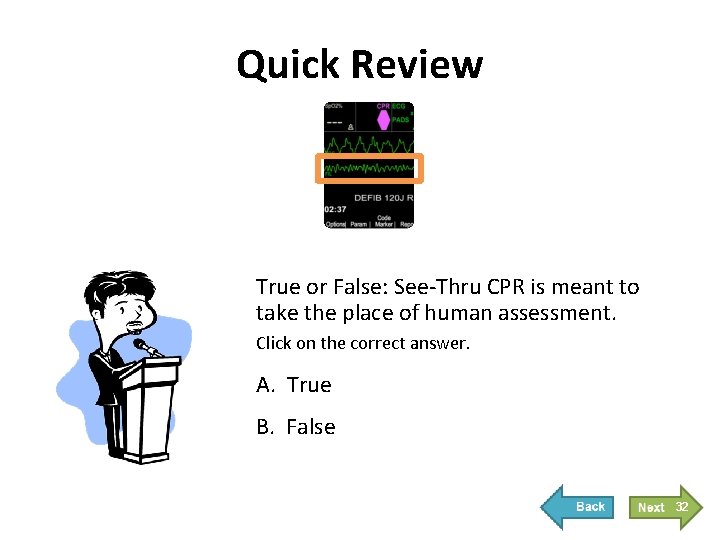

Quick Review True or False: See-Thru CPR is meant to take the place of human assessment. Click on the correct answer. A. True B. False 32

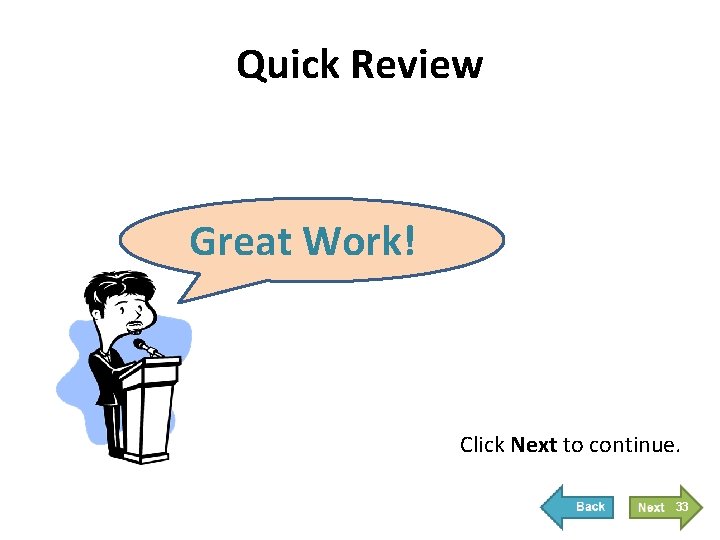

Quick Review Great Work! Click Next to continue. 33

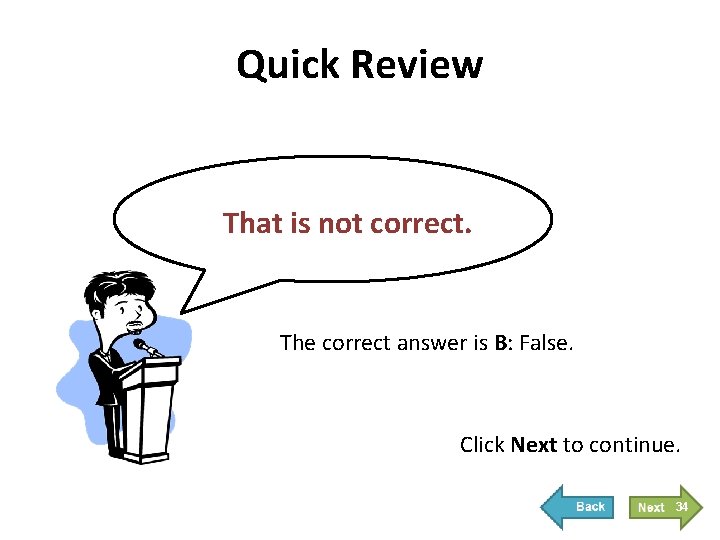

Quick Review That is not correct. The correct answer is B: False. Click Next to continue. 34

Quick Review That concludes our quick review for this section. I will resume our review later in the lesson. Click Next to continue. 35

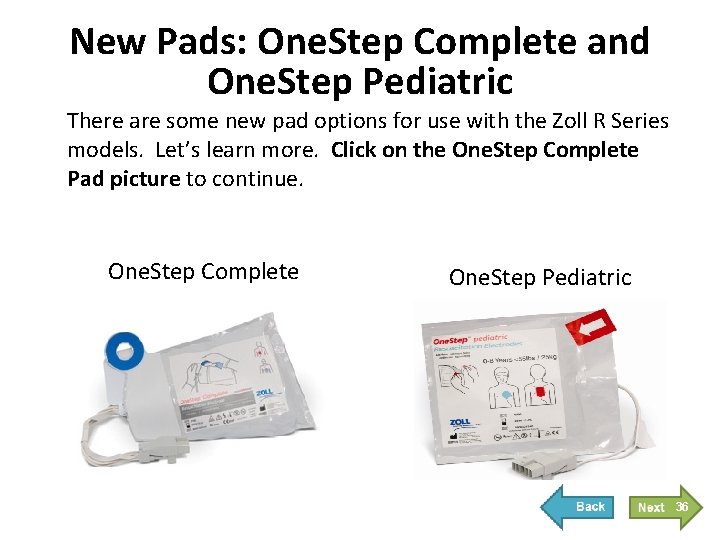

New Pads: One. Step Complete and One. Step Pediatric There are some new pad options for use with the Zoll R Series models. Let’s learn more. Click on the One. Step Complete Pad picture to continue. One. Step Complete One. Step Pediatric 36

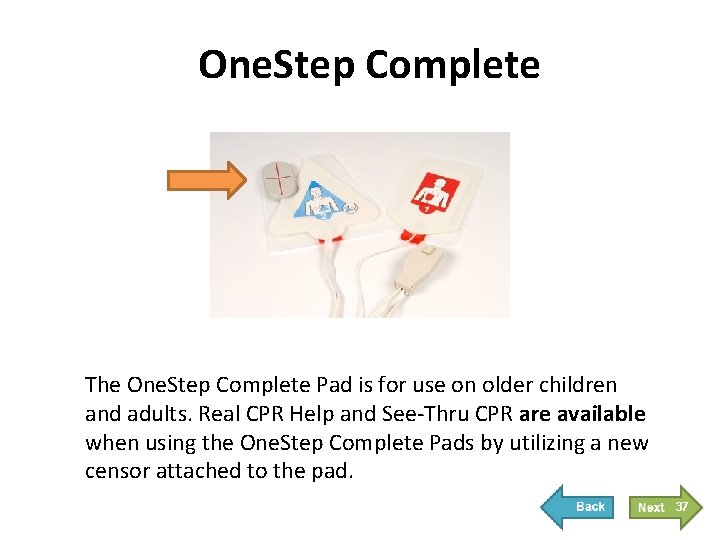

One. Step Complete The One. Step Complete Pad is for use on older children and adults. Real CPR Help and See-Thru CPR are available when using the One. Step Complete Pads by utilizing a new censor attached to the pad. 37

One. Step Complete ECG leads are internal in the pad. It is not necessary to put leads on to perform pacing or urgent synchronized cardioversion UNLESS you are using anterior/anterior placement. 38

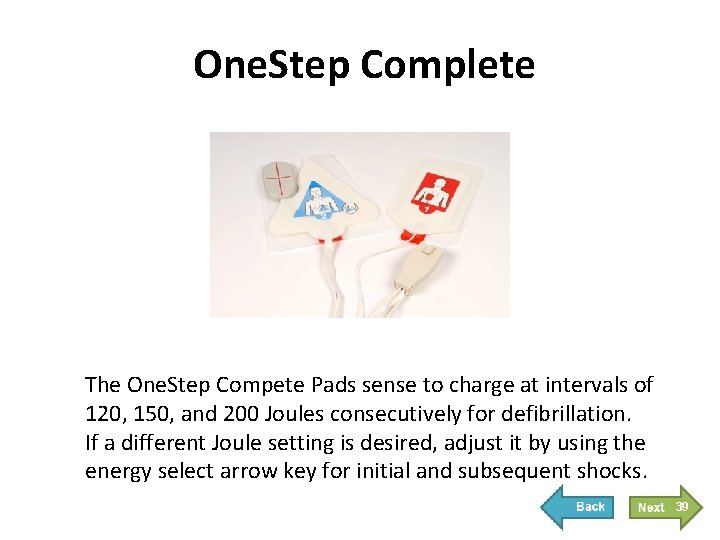

One. Step Complete The One. Step Compete Pads sense to charge at intervals of 120, 150, and 200 Joules consecutively for defibrillation. If a different Joule setting is desired, adjust it by using the energy select arrow key for initial and subsequent shocks. 39

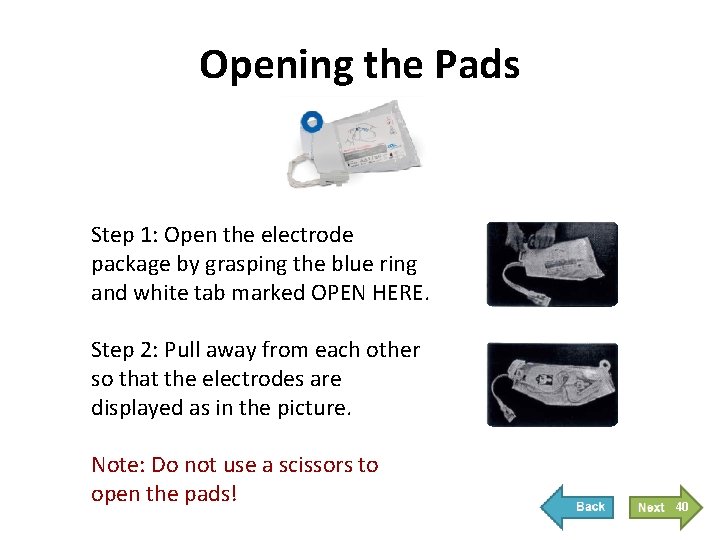

Opening the Pads Step 1: Open the electrode package by grasping the blue ring and white tab marked OPEN HERE. Step 2: Pull away from each other so that the electrodes are displayed as in the picture. Note: Do not use a scissors to open the pads! 40

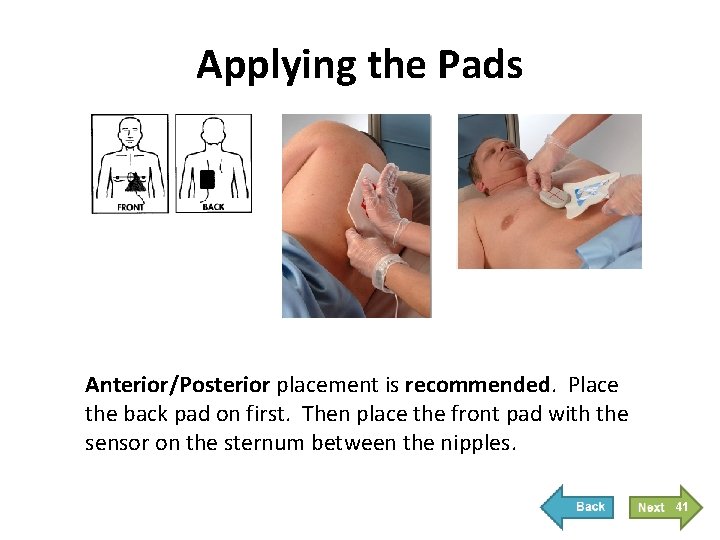

Applying the Pads Anterior/Posterior placement is recommended. Place the back pad on first. Then place the front pad with the sensor on the sternum between the nipples. 41

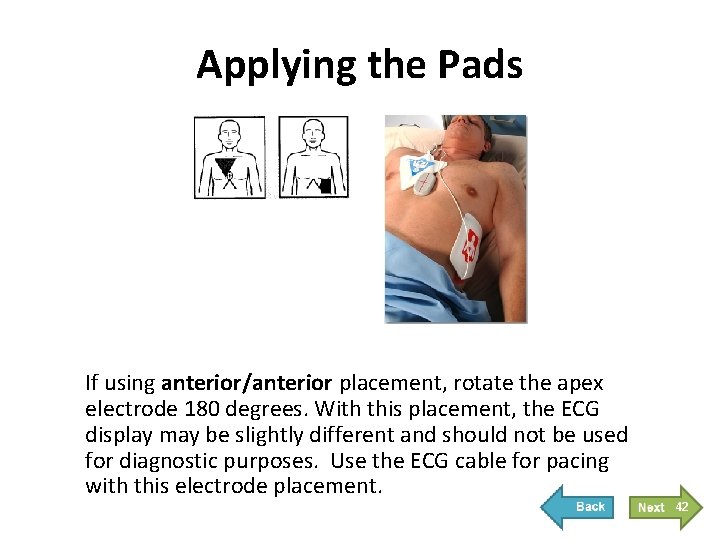

Applying the Pads If using anterior/anterior placement, rotate the apex electrode 180 degrees. With this placement, the ECG display may be slightly different and should not be used for diagnostic purposes. Use the ECG cable for pacing with this electrode placement. 42

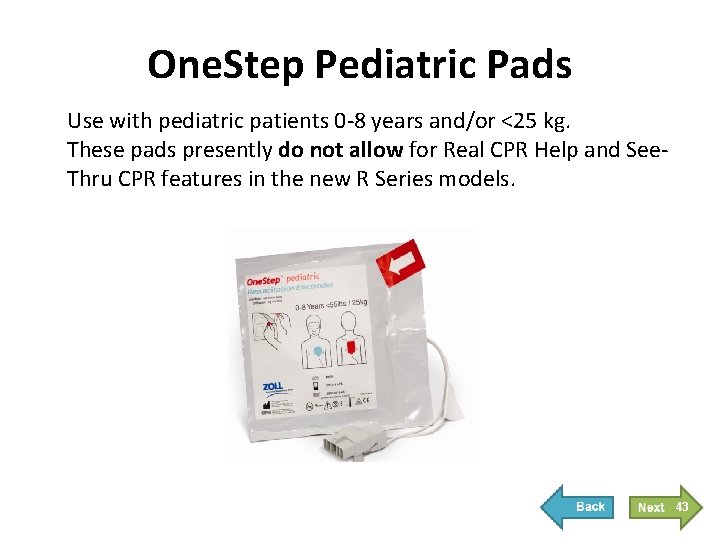

One. Step Pediatric Pads Use with pediatric patients 0 -8 years and/or <25 kg. These pads presently do not allow for Real CPR Help and See. Thru CPR features in the new R Series models. 43

One. Step Pediatric Pads ECG leads are NOT internal in the pad. Switch to Pedi Padz to perform pacing or urgent synchronized cardioversion and add an ECG cable. 44

One. Step Pediatric Pads The One. Step Pediatric Pads sense to charge at intervals of 50, 70, and 85 Joules consecutively for defibrillation. If a different Joule setting is needed based on the patient’s weight and AHA guidelines, 2 J per kilo, adjust it by using the energy select arrow key for initial and subsequent shocks. 45

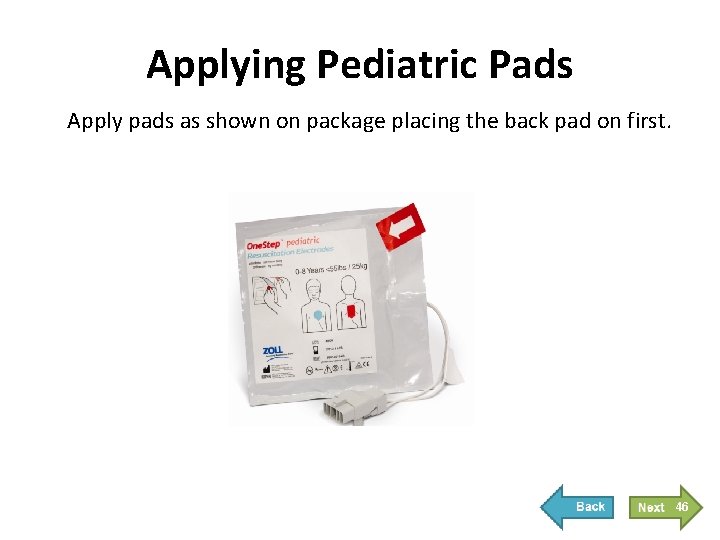

Applying Pediatric Pads Apply pads as shown on package placing the back pad on first. 46

One. Step Pad Connections Both the One. Step Complete Pad and the One. Step Pediatric Pad attach the same way to the multifunction cable on the R Series Models. 47

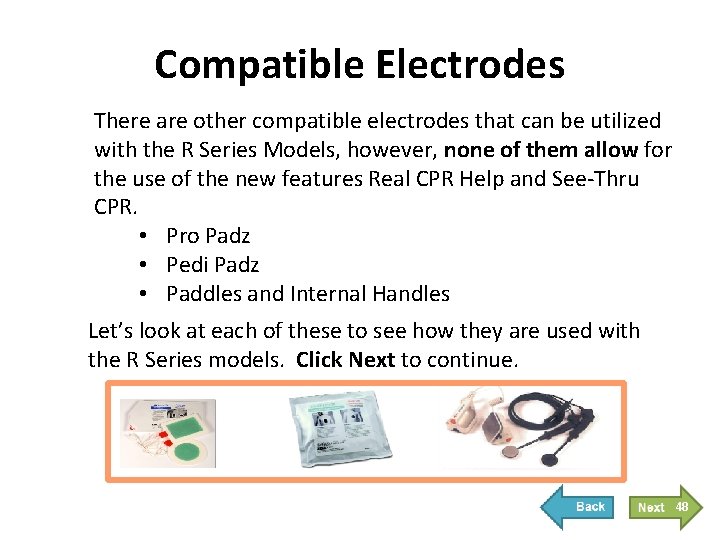

Compatible Electrodes There are other compatible electrodes that can be utilized with the R Series Models, however, none of them allow for the use of the new features Real CPR Help and See-Thru CPR. • Pro Padz • Pedi Padz • Paddles and Internal Handles Let’s look at each of these to see how they are used with the R Series models. Click Next to continue. 48

Pro Padz You can use these for elective synchronized cardioversion along with 3 lead ECG cables in older pediatric patients or adults. The energy selection must be adjusted manually when using these pads. 49

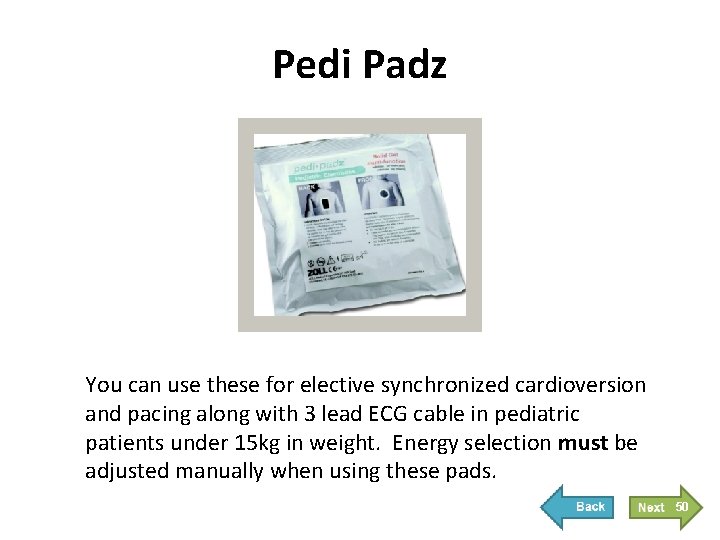

Pedi Padz You can use these for elective synchronized cardioversion and pacing along with 3 lead ECG cable in pediatric patients under 15 kg in weight. Energy selection must be adjusted manually when using these pads. 50

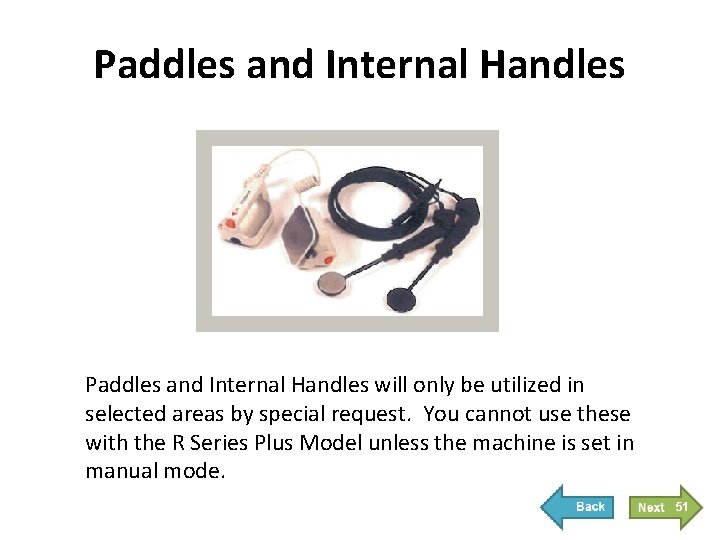

Paddles and Internal Handles will only be utilized in selected areas by special request. You cannot use these with the R Series Plus Model unless the machine is set in manual mode. 51

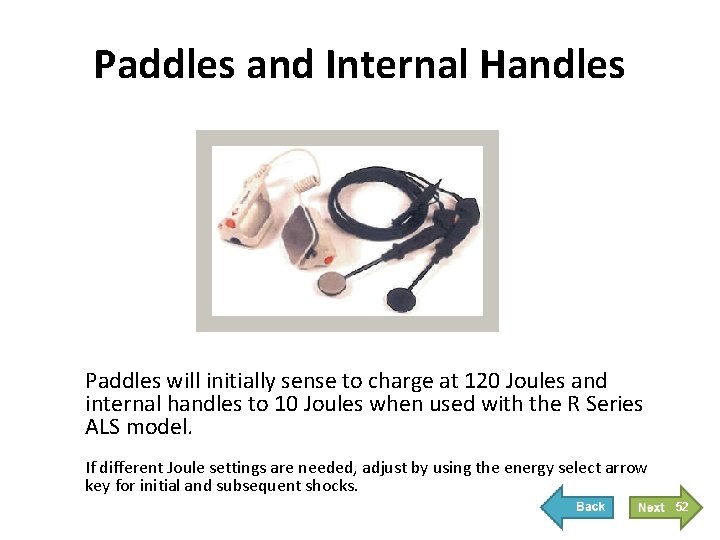

Paddles and Internal Handles Paddles will initially sense to charge at 120 Joules and internal handles to 10 Joules when used with the R Series ALS model. If different Joule settings are needed, adjust by using the energy select arrow key for initial and subsequent shocks. 52

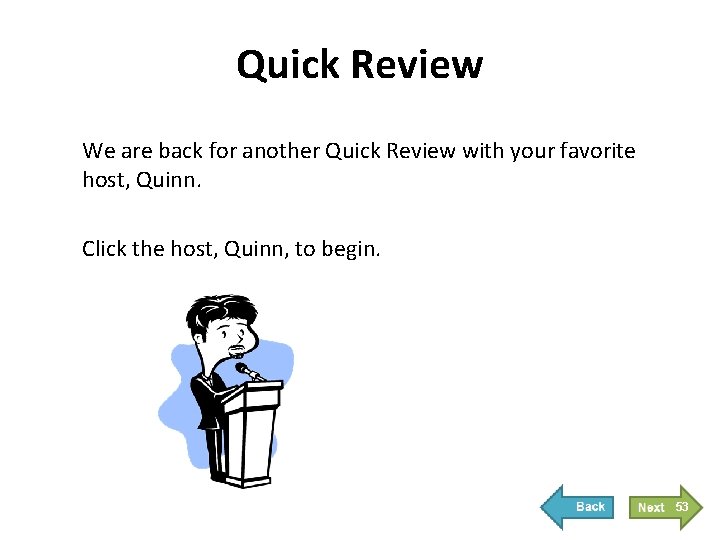

Quick Review We are back for another Quick Review with your favorite host, Quinn. Click the host, Quinn, to begin. 53

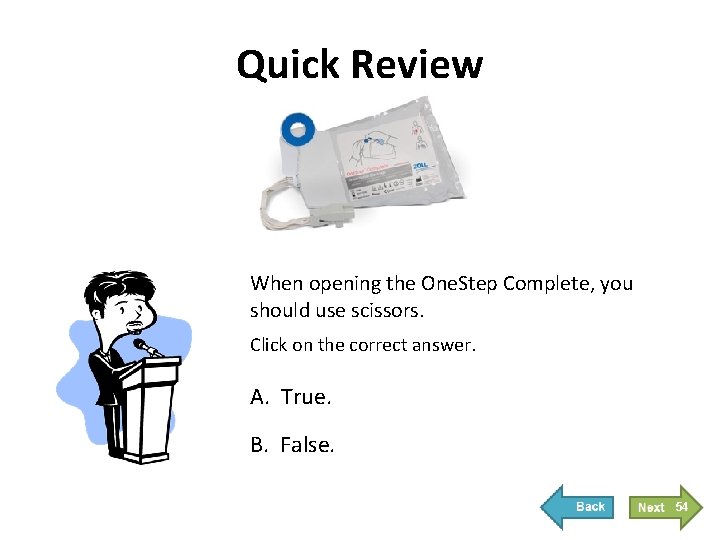

Quick Review When opening the One. Step Complete, you should use scissors. Click on the correct answer. A. True. B. False. 54

Quick Review Correct! Click Next to continue. 55

Quick Review Good try! That was not the answer I was looking for. The correct answer is B: False. Click Next to continue. 56

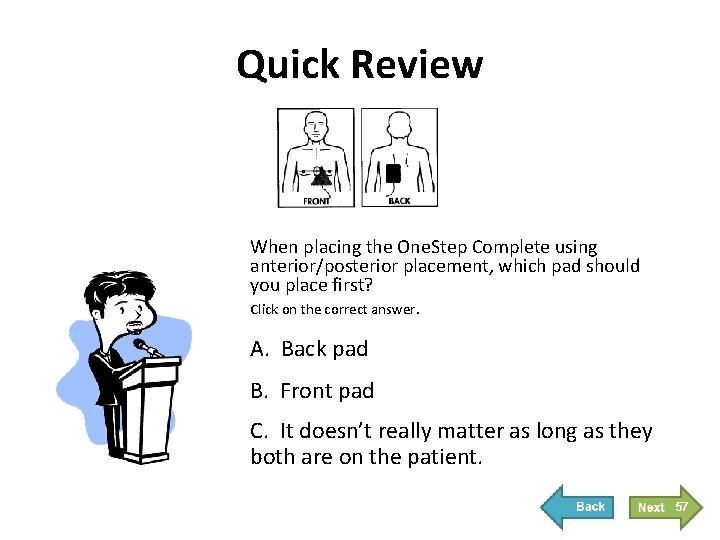

Quick Review When placing the One. Step Complete using anterior/posterior placement, which pad should you place first? Click on the correct answer. A. Back pad B. Front pad C. It doesn’t really matter as long as they both are on the patient. 57

Quick Review Yes! That’s it! Click Next to continue. 58

Quick Review I’m sorry, that is incorrect. The correct answer is A: Back Pad Click Next to continue. 59

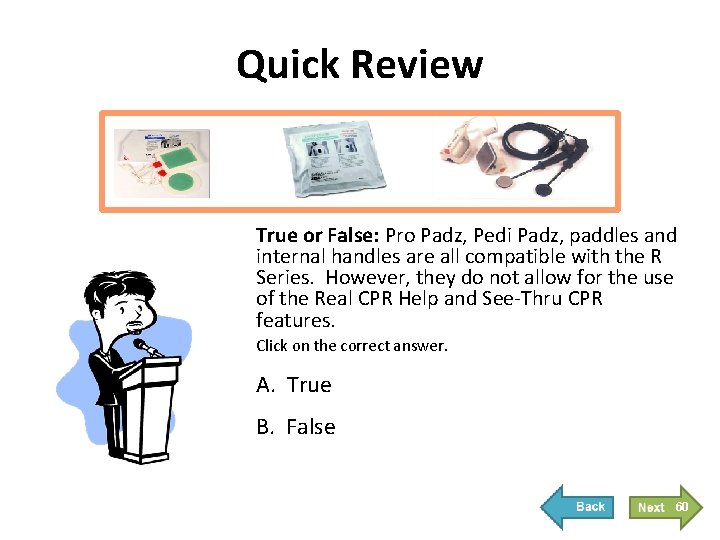

Quick Review True or False: Pro Padz, Pedi Padz, paddles and internal handles are all compatible with the R Series. However, they do not allow for the use of the Real CPR Help and See-Thru CPR features. Click on the correct answer. A. True B. False 60

Quick Review Great Work! Click Next to continue. 61

Quick Review That is not correct. The correct answer is B: False. Click Next to continue. 62

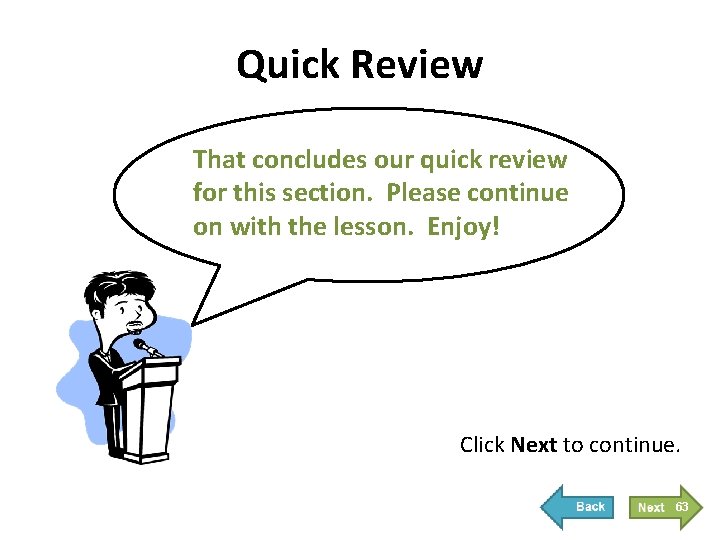

Quick Review That concludes our quick review for this section. Please continue on with the lesson. Enjoy! Click Next to continue. 63

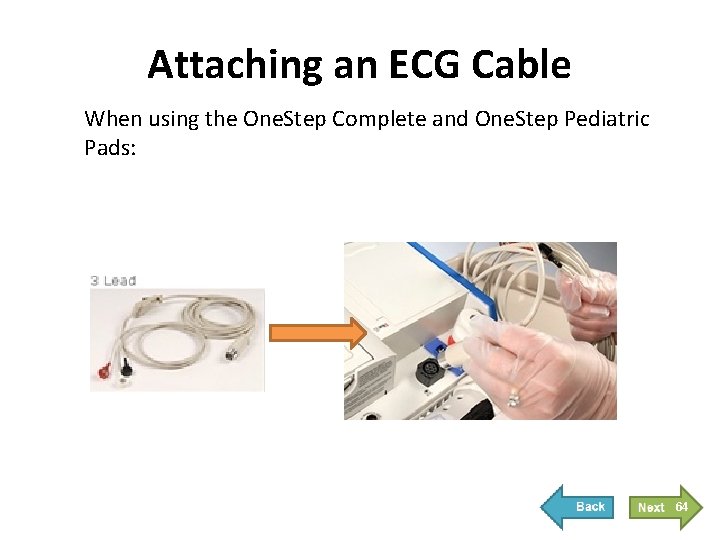

Attaching an ECG Cable When using the One. Step Complete and One. Step Pediatric Pads: 64

Attaching an ECG Cable When using the Pro Padz, Pedi Padz, Internal Pads and Paddles, use the 3 lead adapter cable and attach as shown. The pad adaptor is attached to the back side of the connection. 65

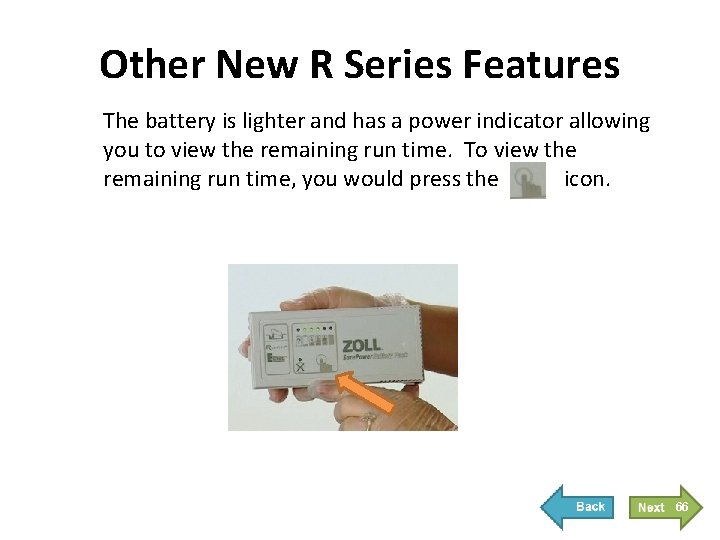

Other New R Series Features The battery is lighter and has a power indicator allowing you to view the remaining run time. To view the remaining run time, you would press the icon. 66

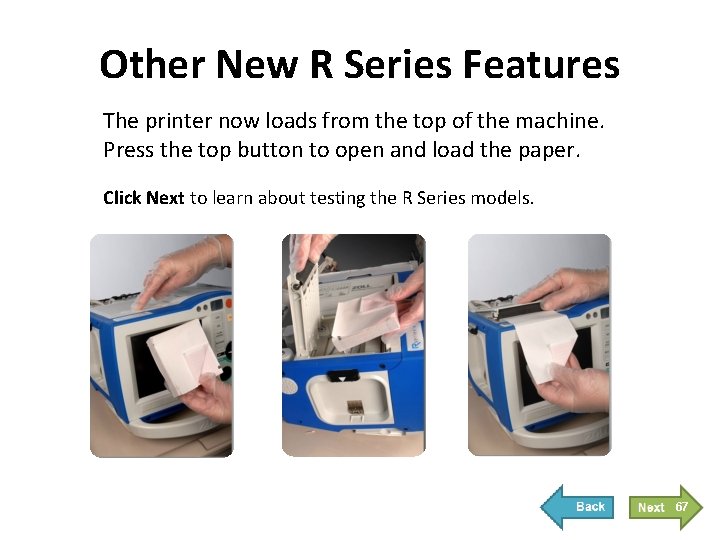

Other New R Series Features The printer now loads from the top of the machine. Press the top button to open and load the paper. Click Next to learn about testing the R Series models. 67

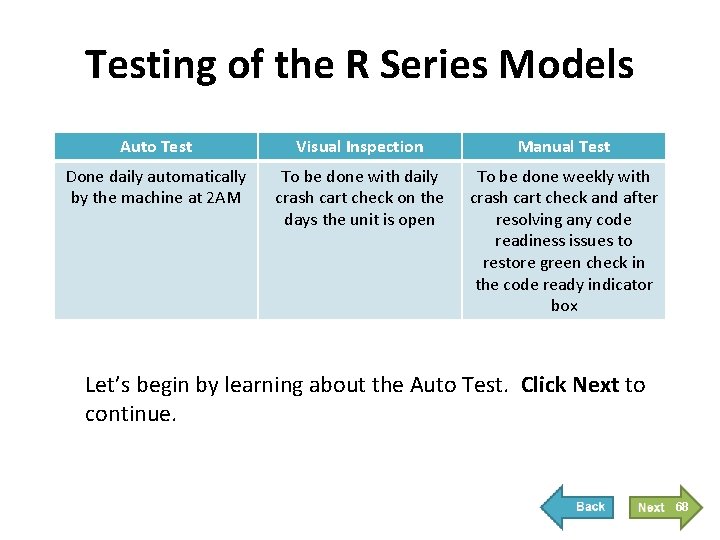

Testing of the R Series Models Auto Test Visual Inspection Manual Test Done daily automatically by the machine at 2 AM To be done with daily crash cart check on the days the unit is open To be done weekly with crash cart check and after resolving any code readiness issues to restore green check in the code ready indicator box Let’s begin by learning about the Auto Test. Click Next to continue. 68

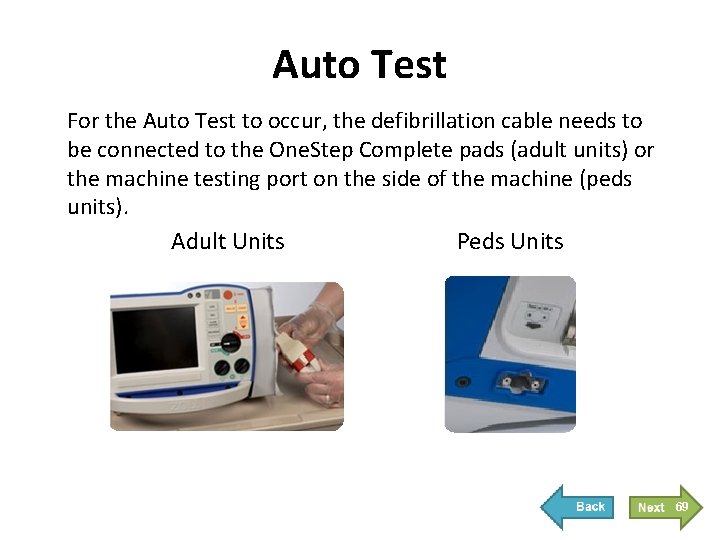

Auto Test For the Auto Test to occur, the defibrillation cable needs to be connected to the One. Step Complete pads (adult units) or the machine testing port on the side of the machine (peds units). Adult Units Peds Units 69

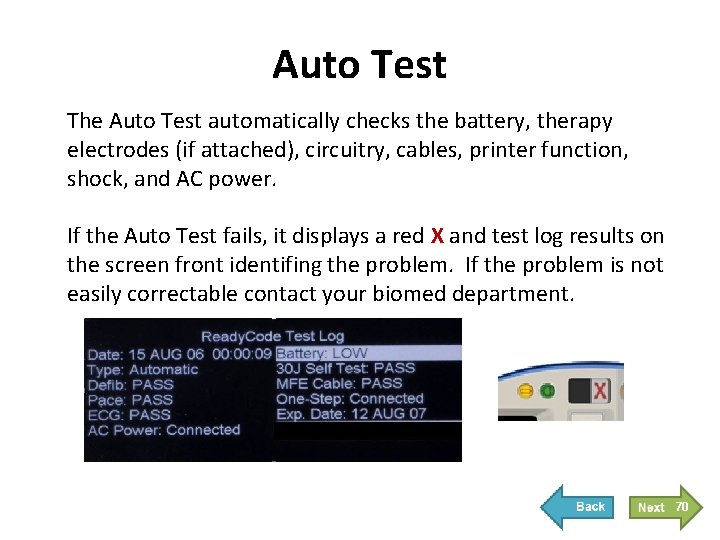

Auto Test The Auto Test automatically checks the battery, therapy electrodes (if attached), circuitry, cables, printer function, shock, and AC power. If the Auto Test fails, it displays a red X and test log results on the screen front identifing the problem. If the problem is not easily correctable contact your biomed department. 70

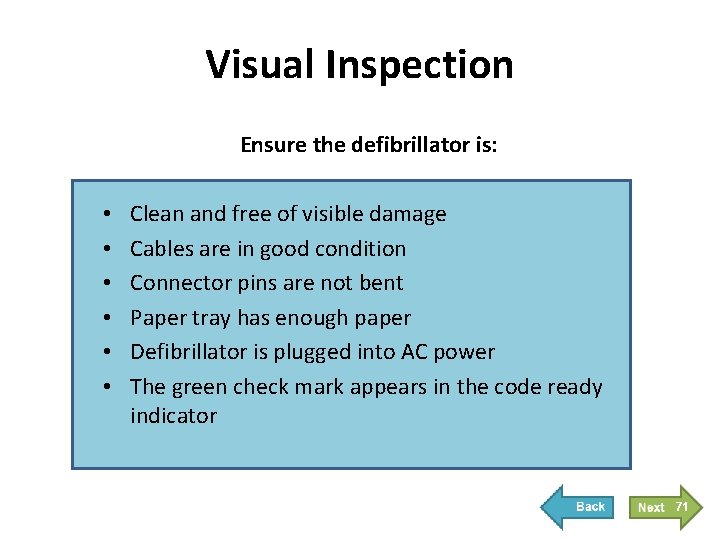

Visual Inspection Ensure the defibrillator is: • • • Clean and free of visible damage Cables are in good condition Connector pins are not bent Paper tray has enough paper Defibrillator is plugged into AC power The green check mark appears in the code ready indicator 71

Manual Defibrillator Self-Test Complete the following: 1. The defibrillation cable must be connected to the One. Step Complete Pads (adult units) or machine testing port (peds units) on the side of the machine. 2. Turn the machine to defib mode (in the R Series Plus machine you must first put in the manual mode). 3. Select 30 J as the energy level. 4. Click CHARGE. 5. Click SHOCK. 6. Watch for the words TEST OK on the front of the screen and on the print out. 72

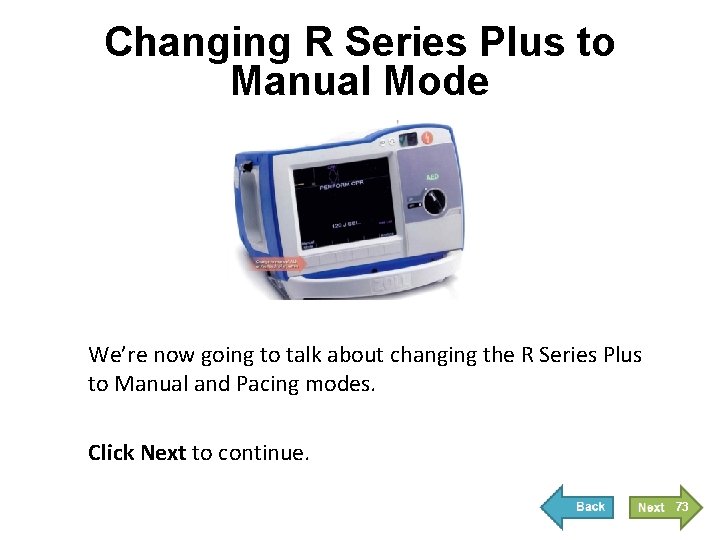

Changing R Series Plus to Manual Mode We’re now going to talk about changing the R Series Plus to Manual and Pacing modes. Click Next to continue. 73

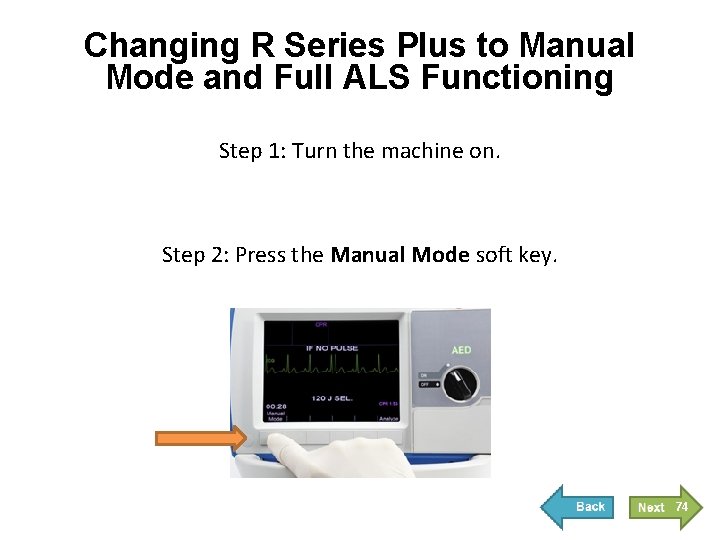

Changing R Series Plus to Manual Mode and Full ALS Functioning Step 1: Turn the machine on. Step 2: Press the Manual Mode soft key. 74

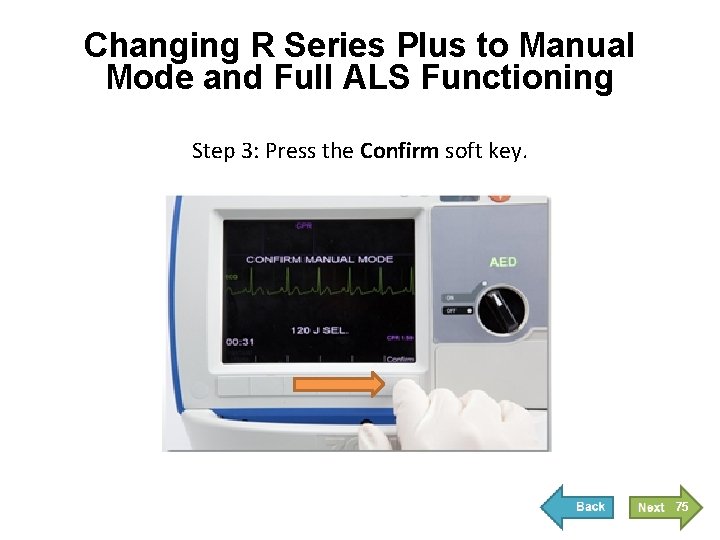

Changing R Series Plus to Manual Mode and Full ALS Functioning Step 3: Press the Confirm soft key. 75

Changing R Series Plus to Pacing Mode Once the machine is in manual mode, you can perform pacing operations by moving the dial to Pacing. You can adjust the rate and m. A by using the lower control area. 76

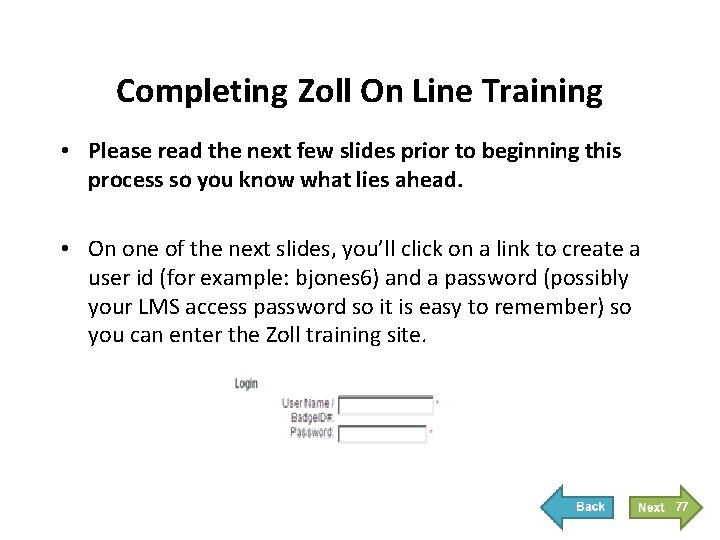

Completing Zoll On Line Training • Please read the next few slides prior to beginning this process so you know what lies ahead. • On one of the next slides, you’ll click on a link to create a user id (for example: bjones 6) and a password (possibly your LMS access password so it is easy to remember) so you can enter the Zoll training site. 77

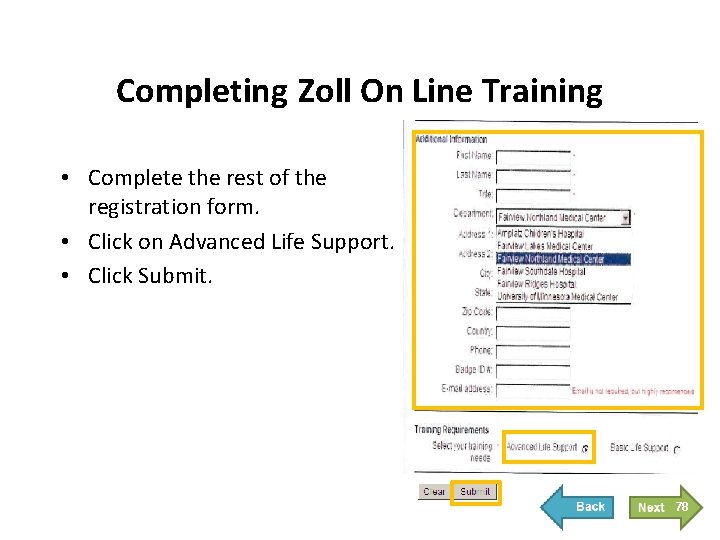

Completing Zoll On Line Training • Complete the rest of the registration form. • Click on Advanced Life Support. • Click Submit. 78

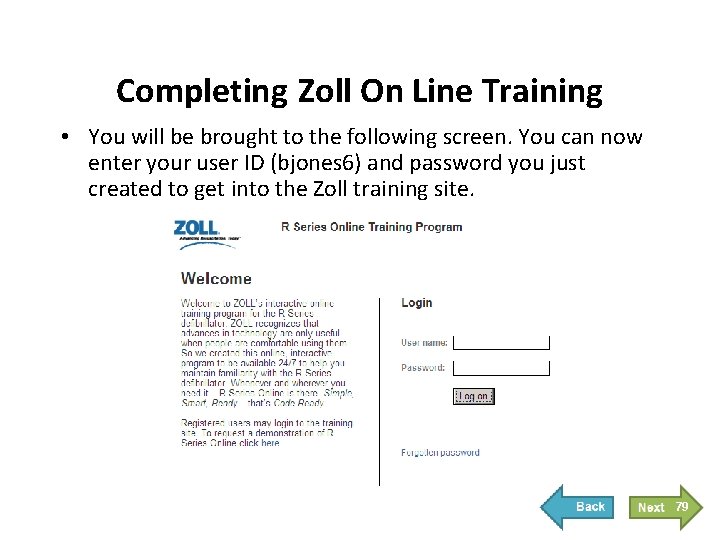

Completing Zoll On Line Training • You will be brought to the following screen. You can now enter your user ID (bjones 6) and password you just created to get into the Zoll training site. 79

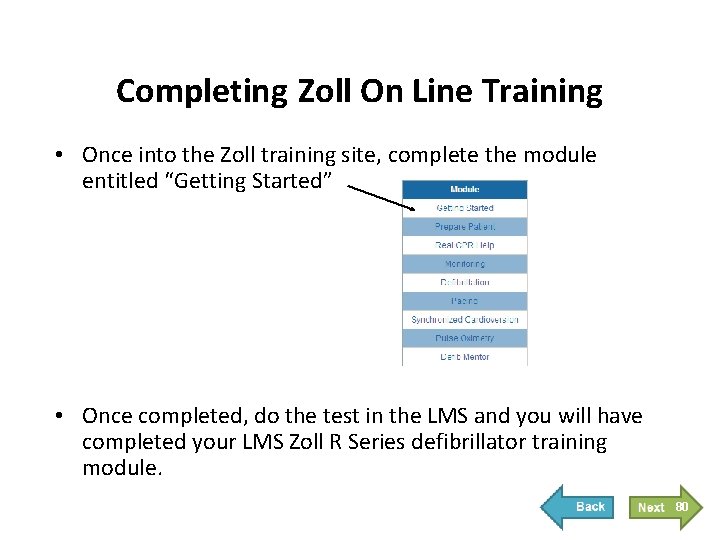

Completing Zoll On Line Training • Once into the Zoll training site, complete the module entitled “Getting Started” • Once completed, do the test in the LMS and you will have completed your LMS Zoll R Series defibrillator training module. 80

Completing Zoll On Line Training • Click here to begin the login process: • Click here if you’ve previously logged in and created your user id and password: Initial Zoll Training Site 81

Conclusion and Evaluation Thank you for completing this lesson. You are on your way to becoming an expert in the Zoll R Series Models! Congratulations! Please complete the test in the LMS to document your learning. Click here to complete an evaluation of this learning activity. 82
