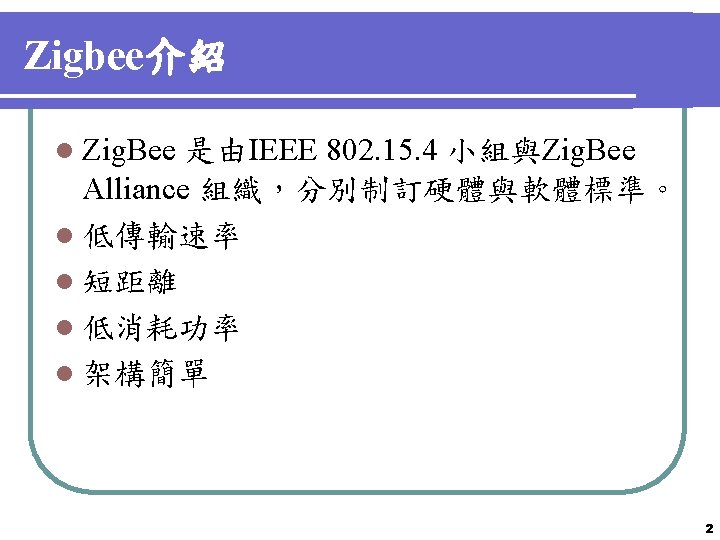

Zigbee 3 Zig Bee l V 1 0
Zigbee的頻段 3
Zig. Bee版本 l V 1. 0: 2004 -12 l V 1. 1: 2006 -12 l V 1. 2: 2007(Zig. Bee Pro) 4
無線技術比較 電源持續 節點數 傳輸距離 網路拓樸 傳輸率 安全性 Wi. Fi 802. 11 x hours Bluetooth 802. 15. 1 days Zig. Bee 802. 15. 4 years 32 7 65536 100 m star、 mesh 11 Mbps SSID 10 m piconet 10 m~300 m star、mesh、 cluster tree 1 Mbps 250 Kbps 64 bit, 128 bit AES 5
Zig. Bee Network Topologies Mesh Star Cluster Tree Zig. Bee Alliance PPT Zig. Bee Coordinator Zig. Bee Router Zig. Bee End Device 6
Zig. Bee 發起的廠商 Zig. Bee Alliance PPT 7

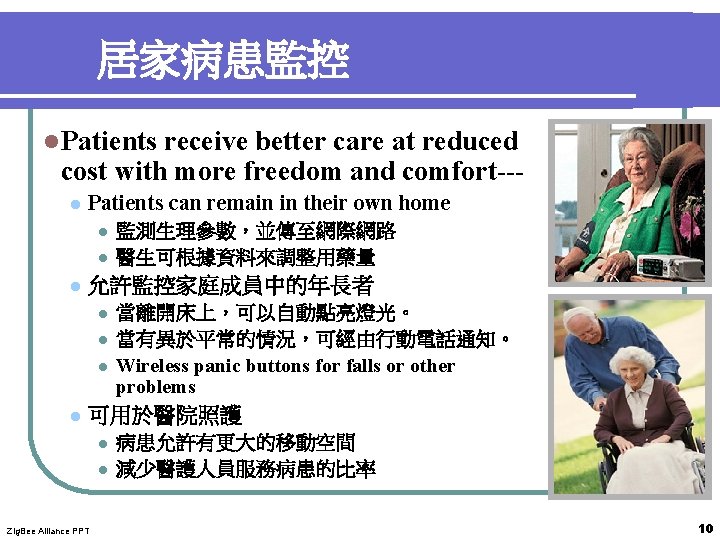

Zig. Bee Applications security HVAC AMR lighting control access control 建築物自動化 病人監控 健康監視 Zig. Bee Wireless Control that Simply Works TV VCR DVD/CD remote 消費性電子 mouse keyboard joystick PC & 周邊裝置 個人健康看護 資產管理 加 控制 環境監控 能源管理 Zig. Bee Alliance PPT 行動通訊服務 業控制 m-commerce info services object interaction (Internet of Things) 家庭控制 security HVAC lighting control access control 8
Some Application Profiles l 家庭自動化 [HA] l Defines set of devices used in home automation l l l 燈光開關 自動調溫器 遮陽廉 加熱器 etc. l 廠監控 l Consists of device definitions for sensors used in industrial control l l Zig. Bee Alliance PPT 溫度 壓力感測 紅外線 etc. 9

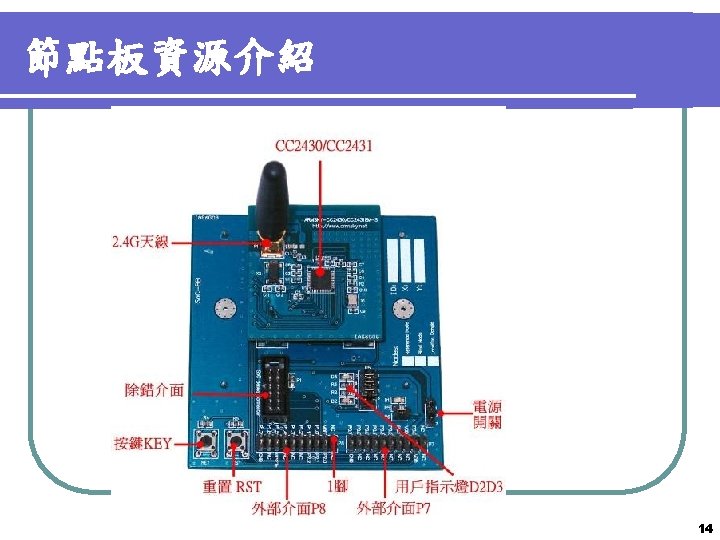

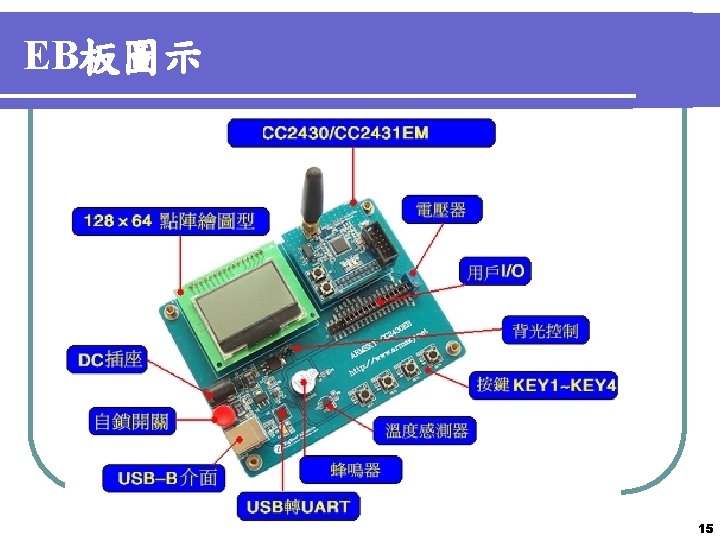

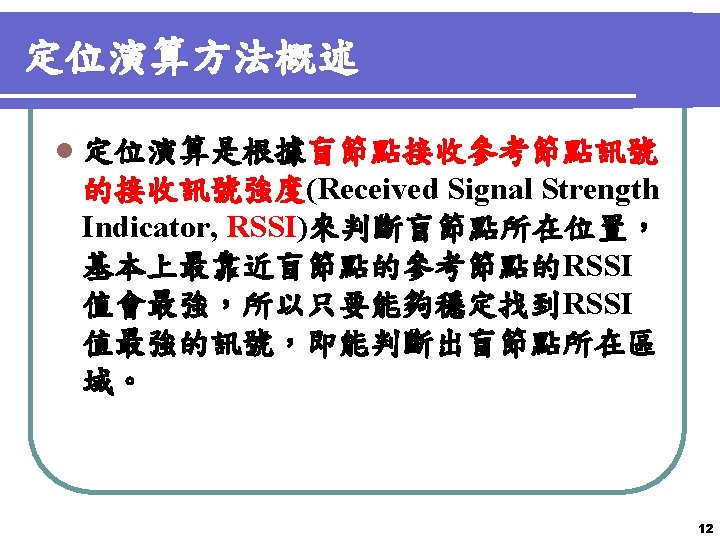

CC 2430/31除錯器 16
Z-Stack/Simple. Stack協定分析 17

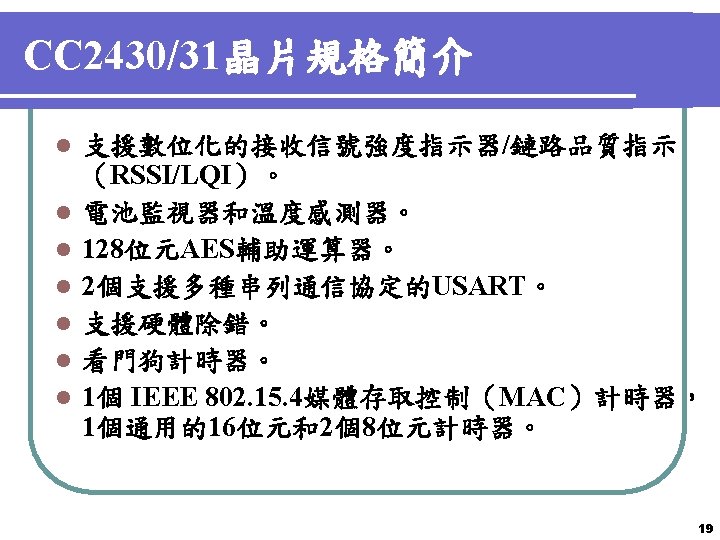

20
SOC腳位圖 21

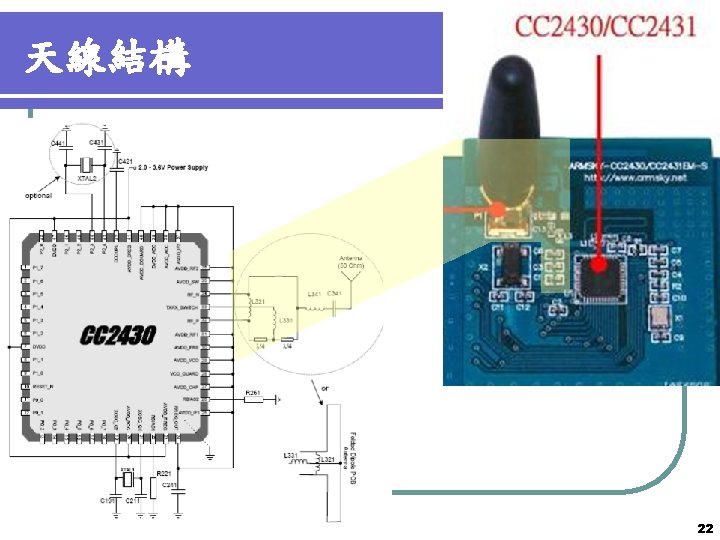

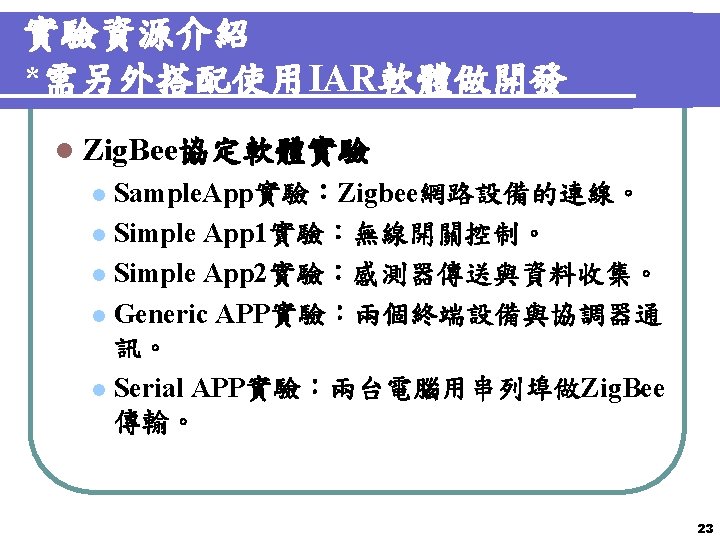

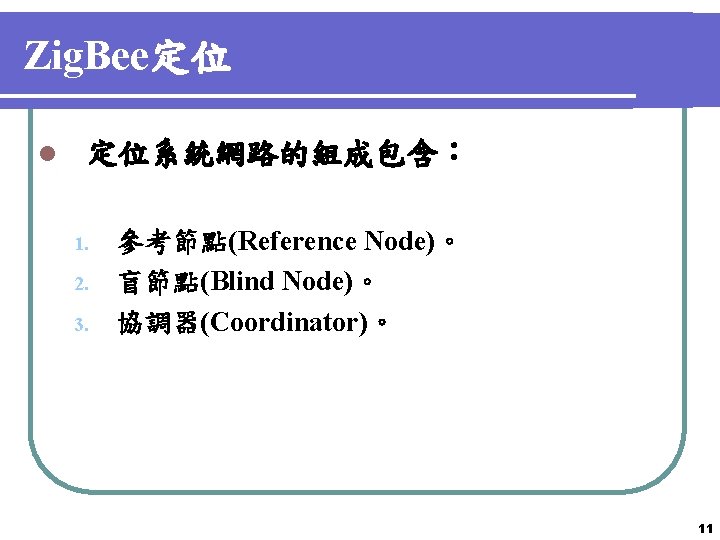

Zig. Bee協定軟體實驗 Transmit App實驗:封包互傳實驗。 l Home Automation實驗:同Simple App 1,但 使用Home Automation規範。 l Zig. Bee-2006定位實驗:利用參考節點 (Reference Node)、盲節點(Blind Node)、協 調者(Coordinator)來構建Zig. Bee定位網路。 l l 註:實驗指導書,實驗內容 24

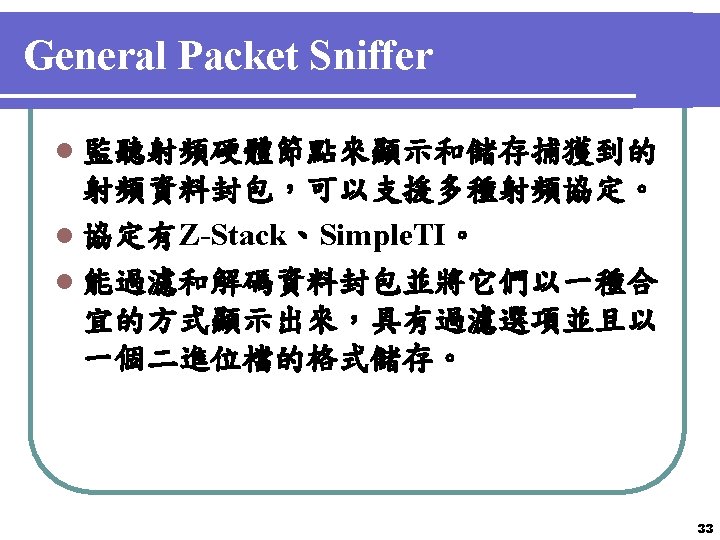

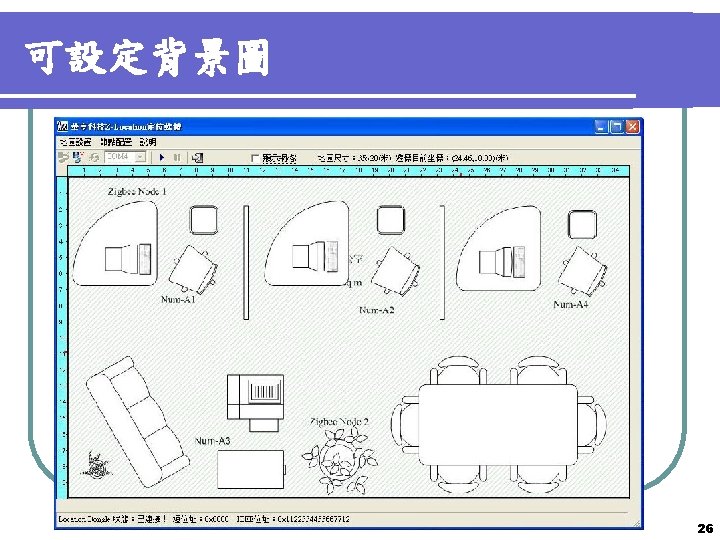

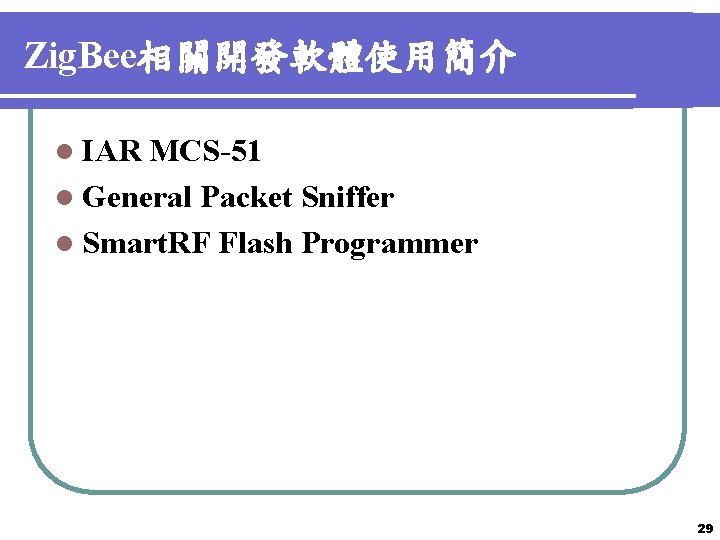

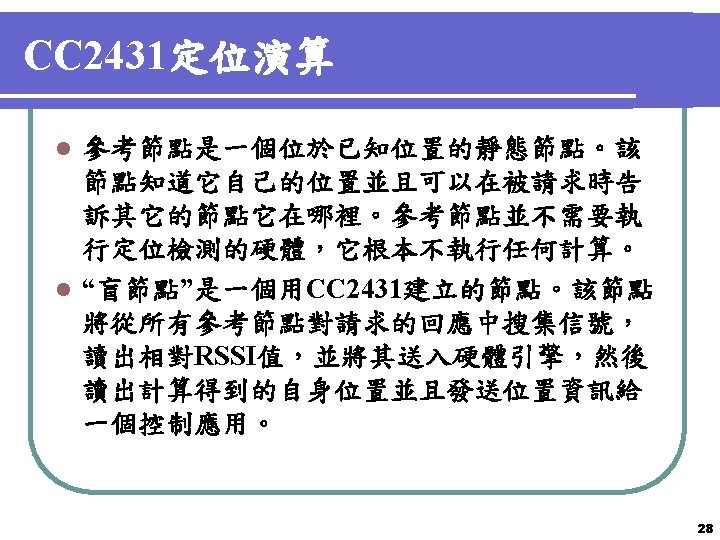

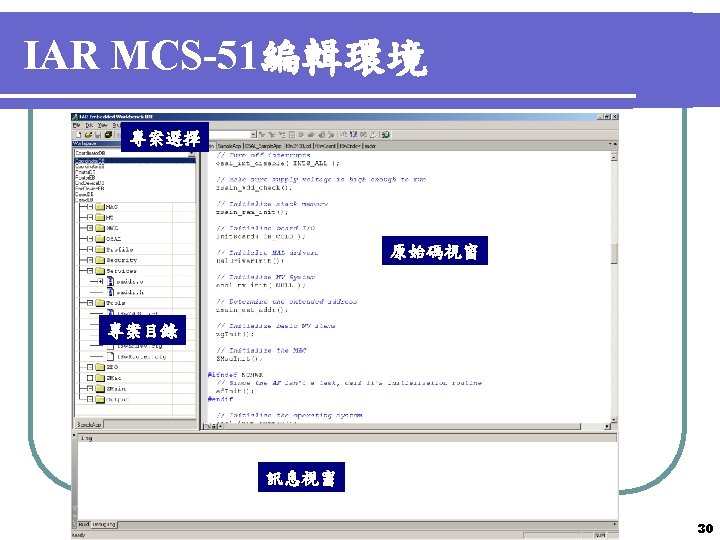

Zig. Bee相關開發軟體使用簡介 l IAR MCS-51 l General Packet Sniffer l Smart. RF Flash Programmer 29

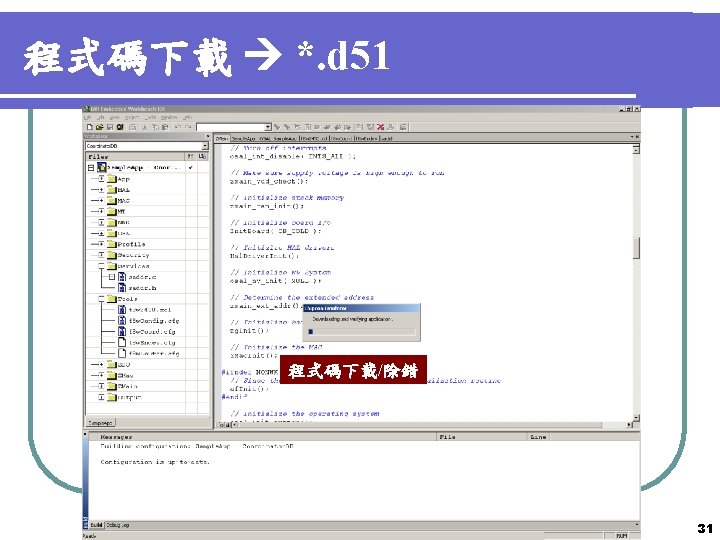

Zig. Bee Package顯示 35
Select fields選項 36
Smart. RF Flash Programmer 37
Smart. RF Flash Programmer 38
Smart. RF Flash Programmer 39
投影片引用 l Zig. Bee Alliance PPT: Zig. Bee Alliance l http: //www. zigbee. org/en/index. asp l l TI l CC 2430/31 datasheet www. ti. com l 華亨科技Zig. Bee產品使用手冊 l www. hhnet. com. tw 40
END 41
