Zig Bee Standards Adoption in Market Inyoung Edward
Zig. Bee Standards & Adoption in Market Inyoung Edward Cho Greenvity Communications edward_cho@greenvity. com © 2013 Zig. Bee Alliance. All rights reserved.
Zig. Bee Alliance at Ten Years Organized as an independent, neutral, nonprofit corporation in October 2002 Open and global – Anyone can join and participate – More than 400 companies worldwide are members – Membership is global- approx. 40% Americas, 30% EMEA, 30% Asia Activities include: – Wireless sensor and control network standards – Certification and compliance programs – Branding, market development & user education © 2013 Zig. Bee Alliance. All rights reserved. 2
Geographical Interest © 2013 Zig. Bee Alliance. All rights reserved. 3
Gather the Motivated: 400 Members and Growing Promoter Companies © 2013 Zig. Bee Alliance. All rights reserved. Participant Companies

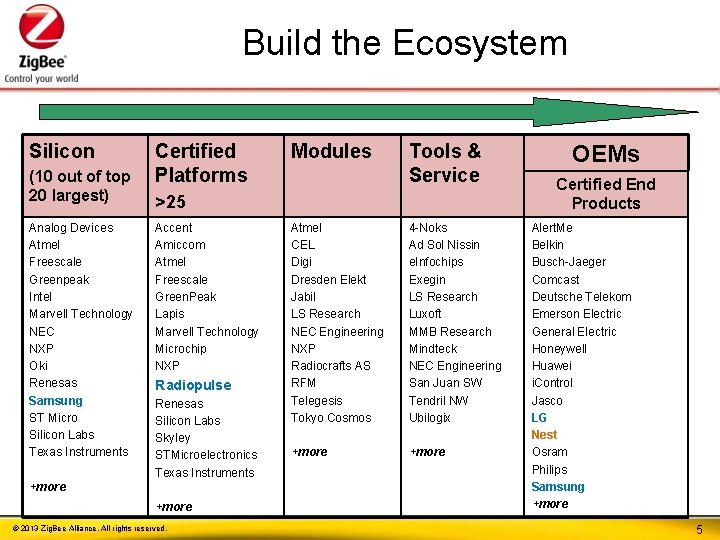

Build the Ecosystem Silicon (10 out of top 20 largest) Analog Devices Atmel Freescale Greenpeak Intel Marvell Technology NEC NXP Oki Renesas Samsung ST Micro Silicon Labs Texas Instruments Certified Platforms Modules Tools & Service >25 Accent Amiccom Atmel Freescale Green. Peak Lapis Marvell Technology Microchip NXP Radiopulse Renesas Silicon Labs Skyley STMicroelectronics Texas Instruments +more © 2013 Zig. Bee Alliance. All rights reserved. Atmel CEL Digi Dresden Elekt Jabil LS Research NEC Engineering NXP Radiocrafts AS RFM Telegesis Tokyo Cosmos 4 -Noks Ad Sol Nissin e. Infochips Exegin LS Research Luxoft MMB Research Mindteck NEC Engineering San Juan SW Tendril NW Ubilogix +more OEMs Certified End Products Alert. Me Belkin Busch-Jaeger Comcast Deutsche Telekom Emerson Electric General Electric Honeywell Huawei i. Control Jasco LG Nest Osram Philips Samsung +more 5

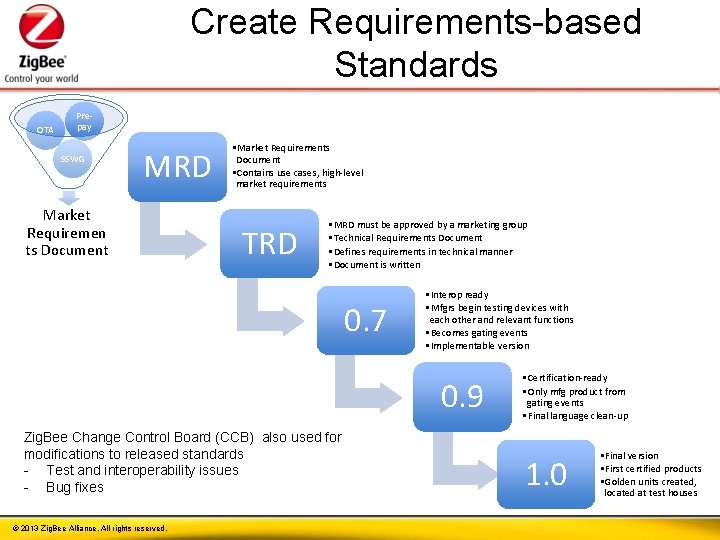

Create Requirements-based Standards OTA Prepay SSWG MRD Market Requiremen ts Document • Market Requirements Document • Contains use cases, high-level market requirements TRD • MRD must be approved by a marketing group • Technical Requirements Document • Defines requirements in technical manner • Document is written 0. 7 • Interop ready • Mfgrs begin testing devices with each other and relevant functions • Becomes gating events • Implementable version 0. 9 Zig. Bee Change Control Board (CCB) also used for modifications to released standards - Test and interoperability issues - Bug fixes © 2013 Zig. Bee Alliance. All rights reserved. • Certification-ready • Only mfg product from gating events • Final language clean-up 1. 0 • Final version • First certified products • Golden units created, located at test houses

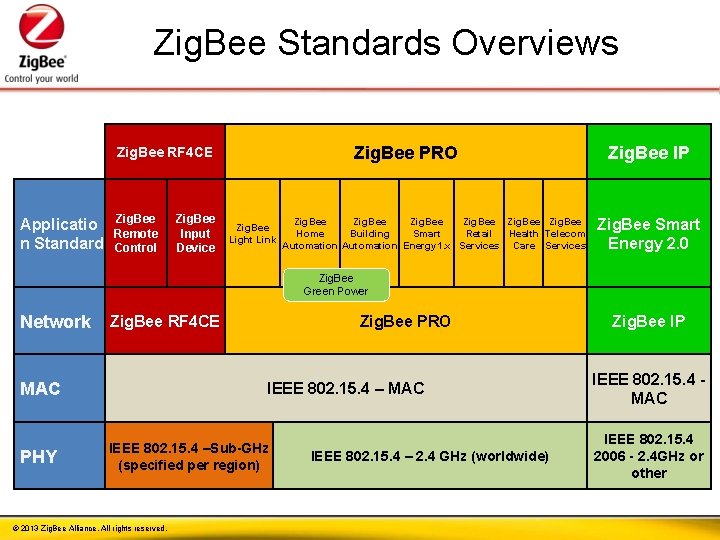

Zig. Bee Standards Overviews Zig. Bee RF 4 CE Applicatio n Standard Zig. Bee Remote Control Zig. Bee Input Device Zig. Bee PRO Zig. Bee Light Link Zig. Bee Home Building Smart Retail Health Telecom Automation Energy 1. x Services Care Services Zig. Bee IP Zig. Bee Smart Energy 2. 0 Zig. Bee Green Power Network Zig. Bee RF 4 CE MAC PHY Zig. Bee PRO IEEE 802. 15. 4 – MAC IEEE 802. 15. 4 –Sub-GHz (specified per region) © 2013 Zig. Bee Alliance. All rights reserved. IEEE 802. 15. 4 – 2. 4 GHz (worldwide) Zig. Bee IP IEEE 802. 15. 4 MAC IEEE 802. 15. 4 2006 - 2. 4 GHz or other
Key Io. T Network Attributes No new wires Low Cost (open standard, many suppliers) Easy to install and maintain (mesh, self organizing, self healing) Long battery life (years on an AA battery) Scalable to thousands of nodes Reliable (mesh, multiple channels, demonstrated interference tolerance) Secure (AES 128) © 2013 Zig. Bee Alliance. All rights reserved. 8
Zig. Bee Home Automation Ecosystem Service providers Platform providers Hardware manufacturers © 2013 Zig. Bee Alliance. All rights reserved. 9
Where is Zig. Bee RF 4 CE being adopted? A strong eco-system of technology providers, product developers and (cable) operators have shipped millions of Zig. Bee RF 4 CE TV’s, set-top boxes, gateways and remote controls © 2013 Zig. Bee Alliance. All rights reserved. 10
The Standard for Connected Lighting Zig. Bee Light Link delivers interoperable and very easy-to-use consumer lighting and control products Provides wireless control for LED fixtures, light bulbs, timers, remotes and switches. Controls lighting to reflect ambiance, task or season, all while managing energy use and making their homes greener © 2013 Zig. Bee Alliance. All rights reserved. 11
Connected Lighting Ecosystem © 2013 Zig. Bee Alliance. All rights reserved. 12
WPAN Technologies Zig. Bee Wi-Fi Bluetooth Standard IEEE 802. 15. 4 IEEE 802. 11 b/g/n IEEE 802. 15. 1 Operating Frequency 868 MHz / 900 -928 MHz 2. 4 GHz (worldwide) 2. 4 GHz (11 b/g/n) 5 GHz (11 n) 2. 4 GHz Modulation DSSS(11 b/g), OFDM(11 g/n) FHSS Data Rate 20/40/250 Kbps 11/54/600 Mbps 1 Mbps Range 10 ~ 300 meters 10 ~ 100 meters Networking Topology Ad-hoc, p 2 p, star, mesh Point to hub, star Ad-hoc, star Network Join Time 1 ms - 3 sec Nodes Per Network ~ 65535 ~ 32 ~ 8 Typical Applications © 2013 Zig. Bee Alliance. All rights reserved. • Home/building automation • Sensor networks • Smart Energy Management • Wireless LAN connectivity • Broadband Internet access • Wireless connectivity between Mobile devices • Wireless Audio • Healthcare devices 13

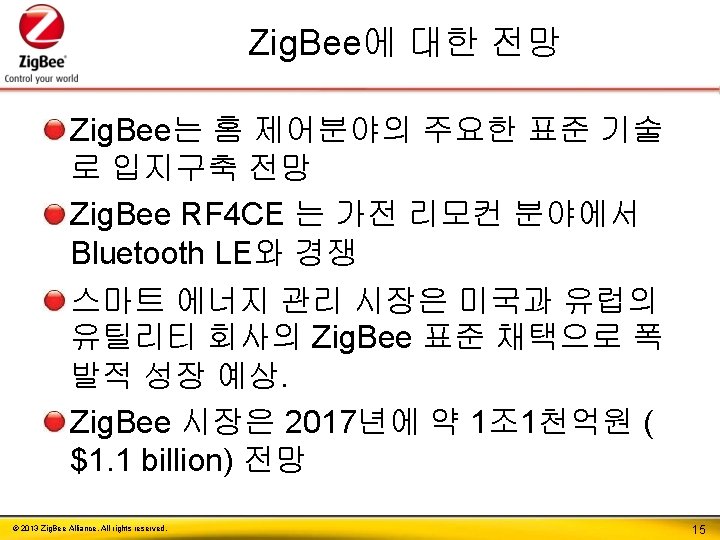

Zig. Bee Market Adoption © 2013 Zig. Bee Alliance. All rights reserved.
Zig. Bee Market Projection (5 -Year) Smart meters make up majority of shipments in 2013, but in 2017 remote controls account for over 35% of Zig. Bee shipments Lighting also comprises a large segment of the market by 2017, representing 20% of the market Smart meter 시장 견인 @ 2013 Remote controls 매출 비중 35% 2017 Lighting Control: 매출비중 20% @ 2017 © 2013 Zig. Bee Alliance. All rights reserved. 16
Target Markets © 2013 Zig. Bee Alliance. All rights reserved. 17
Zig. Bee @ CES 2014 § Samsung Smart Home with Zig. Bee and Wi-Fi § Haier Smart Home with Zig. Bee and Wi-Fi (source : CES 2014 ) § (source : CES 2014 ) Changhong Smart Home with Zig. Bee and Wi-Fi (source : CES 2014 ) © 2013 Zig. Bee Alliance. All rights reserved. Radio. Pulse Confidential 18

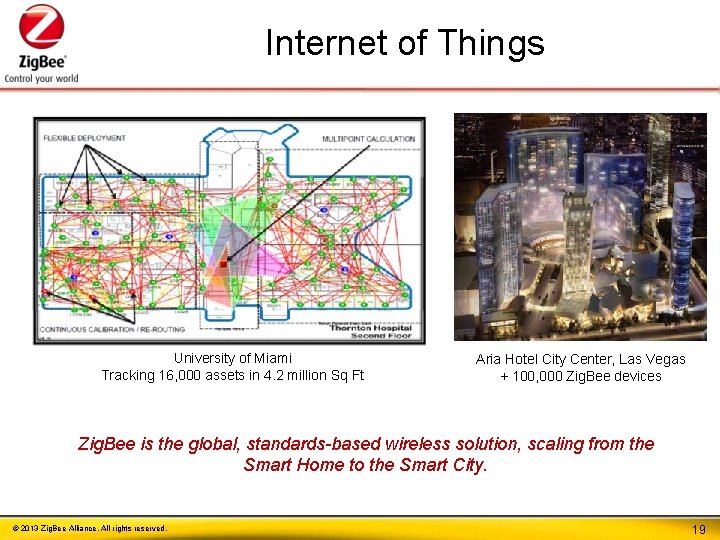

Internet of Things University of Miami Tracking 16, 000 assets in 4. 2 million Sq Ft Aria Hotel City Center, Las Vegas + 100, 000 Zig. Bee devices Zig. Bee is the global, standards-based wireless solution, scaling from the Smart Home to the Smart City. © 2013 Zig. Bee Alliance. All rights reserved. 19
Energy Management with Toshiba Pluzzy © 2013 Zig. Bee Alliance. All rights reserved. 20
Security Monitoring with Deutsche Telekom Qivicon © 2013 Zig. Bee Alliance. All rights reserved. 21
Aria MGM City Center Hotel Las Vegas Easy Control One simple remote sets the systems in the room to personal preferences, including: • Lighting levels • Room temperature • Television/video systems • Music • Wake-up scenes • Drapes • Service requests © 2013 Zig. Bee Alliance. All rights reserved. 4, 200 Zig. Bee automated rooms • 100, 000+ Zig. Bee devices in the building • 3 concurrent Wi. Fi Networks 22
Io. T and Intelligent Buildings: Hotels Zig. Bee Example Installations • City Center – Aria • Over 100, 000 devices • City Center – Mandarin Oriental • Over 5, 000 devices • City Center – Vdara & Vere • Over 2, 000 devices • Trump SOHO – New York • Over 3, 000 Devices • Montage - Beverly Hills • Over 3, 000 Devices • Rosewood – Menlo Park • Over 1, 000 Devices • Planet Hollywood – Las Vegas • Over 8, 000 Devices • Golden Nugget – Las Vegas • Over 1, 000 Devices © 2013 Zig. Bee Alliance. All rights reserved.
Zig. Bee Smart Energy and Great Britain HAN Architectures Typical Zig. Bee Smart Energy Architecture © 2013 Zig. Bee Alliance. All rights reserved. Great Britain HAN Architecture 24
Zig. Bee Certified Product 14 Categories & 120 Companies © 2013 Zig. Bee Alliance. All rights reserved. 25
Appliances 9 Products from 5 Companies © 2013 Zig. Bee Alliance. All rights reserved. 26
Batteryless & Green Power 8 Products from 4 Companies © 2013 Zig. Bee Alliance. All rights reserved. 27
Healthcare Continua Certified professional blood pressure monitor with Zig. Bee wireless technology. © 2013 Zig. Bee Alliance. All rights reserved. 28
Lightings 1 G Ulti-Zig. Bee double pole relay switch is an E-format electronic switch which can be operated by local buttons and Schneider. Electric/Clipsal Zig. Bee RF remote The Philips Light. Strips - Friends of Hue - is a flexible color LED device that can be controlled wirelessly via Zig. Bee Light Link complaint controllers. The Philips Light. Strips Friends of Hue supports dimming and is able to reach 16 M colors. The Philips Connected Lamp Bridge is an Ethernet control gateway for easy control of Zig. Bee Light Link Standard compliant devices. The Philips Connected Lamp Bridge allows control of your home from any device with an IP connection such as smartphones and tablets. © 2013 Zig. Bee Alliance. All rights reserved. 29
Power Plug SZ-ESW 01 is an electrical power measuring device, which with its embedded radio frequency (RF) technology that is compatible with Zig. Bee Home Automation compliant devices, regardless of the manufacturer. Furthermore, SZ-ESW 01 can works as a signal repeater that will extend the wireless transmission range and increase the reliability of your network. With a Zig. Bee Home Automation compatible gateway. The ULTI ZB 500 VA G Plug Adapter Dimmer is a Zig. Bee Home Automation Dimmable Light featuring a 500 W Universal Dimmer suitable for controlling most lighting loads. © 2013 Zig. Bee Alliance. All rights reserved. 30
Switches The shutter switch is a Zig. Bee actuator able to control shutter and curtain up, down and stop. It provides an attractive design, usage simplicity and flexibility Worldwide availability in different BTicino ranges as LIGHT, LIVING and AXOLUTE. ULTI ZB is a Schneider Electric Concept. It is a state-ofthe-art lighting control and electrical automation scheme for residential, hotel and office use, offering sophisticated design, operational simplicity and flexibility to control electrical devices. The ULTI Zig. Bee 1 Gang 300 VA Curtain Switch is a Zig. Bee Home Automation Level Controllable Light or controlling curtain up, down and stop © 2013 Zig. Bee Alliance. All rights reserved. 31
Samsung Electronics DR Gateway © 2013 Zig. Bee Alliance. All rights reserved. DR Modem 32
Smart Meter a. Meter 100 is the high-end smart energy meter that Wasion Group customized for international high-end AMI market. use zigbee wireless communication module, support Zig. Bee Smart Energy Standard 1. 1 b. April 2014 © 2013 Zig. Bee Alliance. All rights reserved. 33
Door Lock Timelox - for hotels and the hospitality industry Timelox is a leading edge developer and manufacturer of electronic locking systems for the international hotel industry Kwikset Smart. Code Deadbolt with Home Connect Technology enables the door lock to wirelessly communicate with other devices in the home. This allows homeowners to monitor and control their door locks using either a web enabled device or their home automation system. Powered by 4 AA batteries, the lock offers true remote locking and unlocking features due its motorized driven deadbolt. © 2013 Zig. Bee Alliance. All rights reserved. 34
Energy Joule & Energy Orb The Ambient Energy Joule is a simple, elegant display that equips utility companies to relay information about energy consumption and demand to customers in real time, encouraging smarter energy consumption choices. Through convenient alerts that supply and demand may be reaching a critical point, or that a demand response event is imminent, Ambient In Home Displays can help spread power demand more evenly through the day, while improving overall customer satisfaction. . © 2013 Zig. Bee Alliance. All rights reserved. 35

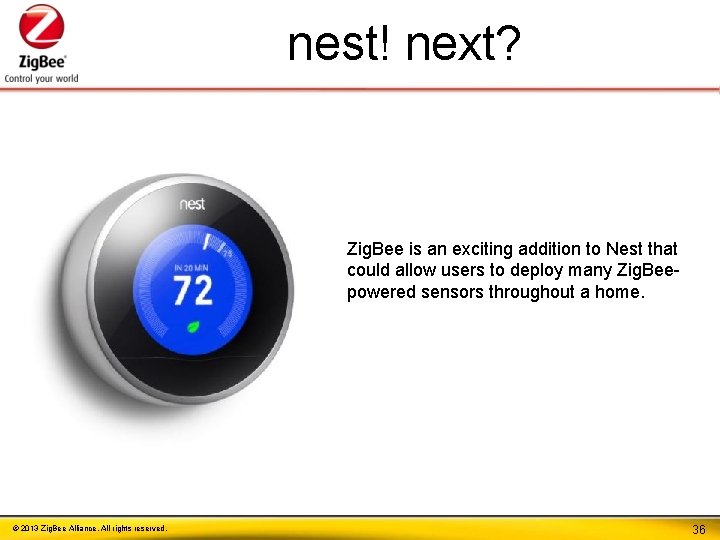

nest! next? Zig. Bee is an exciting addition to Nest that could allow users to deploy many Zig. Beepowered sensors throughout a home. © 2013 Zig. Bee Alliance. All rights reserved. 36
Application Products with Radio. Pulse Set Top Box & Remote Controller-1 KT IP Set Top Box By Samsung Ohsung HA Remote Controller Daum TV Set Top Box & RC NTT Docomo West Hikari STB SK Broadband IPTV STB Nikon Camera Remote Controller C&M Cable TV Remote Controller Bouygues. Tel Remote Controller by Samsung Kaon Media STB & Remote Controller Samsung LED TV 8000 Series LGU+ IPTV Set Top Box & RCU LGU+ Google TV Set Top Box & RCU © 2013 Zig. Bee Alliance. All rights reserved.
Application products with Radiopulse Voice Transmission Device Learning Curve Baby Monitoring Multak Wireless Microphone Daytona Motorcycle Headset Digital Walkie. Talkie Yonhwa Com. Wireless Sensor Network LGU+ Kids Care System SNR Parking Lot Management System LED Light Control Aurora Design LED Light Control 19/32 © 2013 Zig. Bee Alliance. All rights reserved. KOCOM LED Light Control System SNR Museum Guide System Temperature Sensor Network Security Samsung SNS Digital Door Lock Security Sensor CDMA Phone Security Sensor RF Hitech
Kickstarter(1) Robot © 2013 Zig. Bee Alliance. All rights reserved. Smart Home Hub Home Gateway Touch Switch 39
Kickstarter(2) © 2013 Zig. Bee Alliance. All rights reserved. 40
Zig. Bee Solution Selection Guide Hz Gree nvity f Gain span or Zig for Z 8 Bee + PL C + W i. F Z Mh 15 9 Hz 2. 4 G C So i d bri y H Sub -GH z Frequency p Ap Ch ip V tion Zig. Bee § Home Automation § Building Automation Input r & § Remote Controlle Device § LED Control art Energy § Smart Metering & Sm Management § Healthcare § Retail § Telecom § Smart Appliances © 2013 Zig. Bee Alliance. All rights reserved. Chi p C om po ne nt s o. C S ee g. B Zi ices Dev g o l l Ana Atme scale Free k npea St Gree ntel an I da y g o l rd no h c e ell T EC v r N a M NXP sas Rene e s 5. 4 o. Pul EE 802. 1 IE Radi 118 Rohm C/ITU 15 IE M E sung SEP 2. 0 o Sam r c i net ST M s me Echo o b h a @ L y n nerg Silico ent. E Continua s m u tr s Ins Texa lica en do r ig. Bee M 68 Hyb Mu lt Pac i-chip kag e rid Ne So. C twork (Gr een vity ) SIP ch. X en Mo (Te dule ) 41
Topics for Zig. Bee Technology 6 Lo. WPAN, Zig. Bee IP and ZEP 2. 0? Multi-protocol supporting platform & Chip Multi-PHY integrates Hybrid So. C – Zig. Bee + PLC – Zig. Bee + Wi. Fi Low power consumption – RFIC on >1 volt operation Nano power energy harvesting IC © 2013 Zig. Bee Alliance. All rights reserved. 42
Questions / Discussion www. Zig. Bee. org © 2013 Zig. Bee Alliance. All rights reserved. 43
