Zero Cash Zero Coin meets SCIPRlab www zerocoin

Bitcoin’s Anonimity Problem (BAP) • BAP: – If Alice pays Bob in Bitcoins, she gains information about his spending of those coins … – … And Bob gains information about Alice’s spending of her other Bitcoins • How? Analyze transaction-graph [Reid, Harrigan`11; …] • Solution: Use a bitcoin mix/laundry/tumbler – give Bitcoins to trusted pool, retrieve later – Problems: (1) every tx must go thru mix, (2) trust mix? – Acceptable if have much to hide, not so for average honest user • Zero. Cash practically solves Bitcoin’s anonymity problem

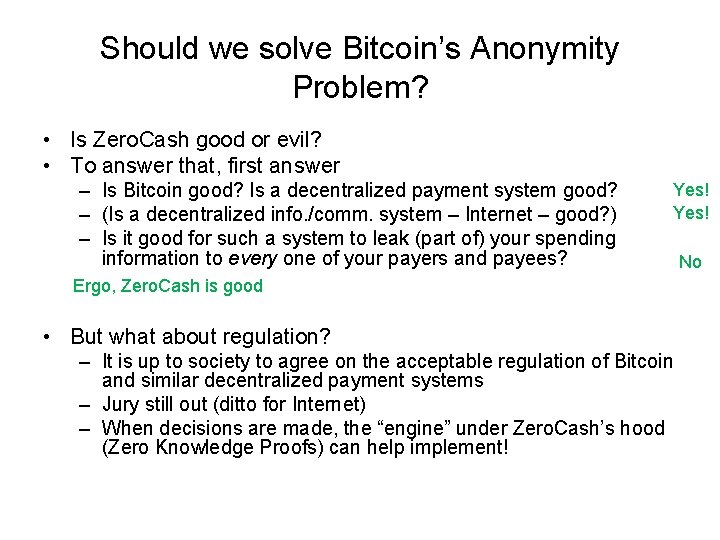

Should we solve Bitcoin’s Anonymity Problem? • Is Zero. Cash good or evil? • To answer that, first answer – Is Bitcoin good? Is a decentralized payment system good? – (Is a decentralized info. /comm. system – Internet – good? ) – Is it good for such a system to leak (part of) your spending information to every one of your payers and payees? Yes! Ergo, Zero. Cash is good • But what about regulation? – It is up to society to agree on the acceptable regulation of Bitcoin and similar decentralized payment systems – Jury still out (ditto for Internet) – When decisions are made, the “engine” under Zero. Cash’s hood (Zero Knowledge Proofs) can help implement! No

Talk outline • Anonymous electronic payments – Pre-bitcoin – e-cash and beyond – Post-bitcoin – Zerocoin, Pinnochio. Coin – Introducing Zero. Cash • Zero Knowledge (ZK) – SNARKs – SCIPR-lab • Zero. Cash: a peek under the hood

Pre-bitcoin anonymous e-cash (BAP: Blockchain structure leaks information to payer and payee) • E-cash [Chaum `82, …] – Anonymous – Blind signatures by bank’s secret key used to mint coins – Problems: (1) central secret, (2) central trusted party • [Sander, Ta-Shma `99] removed need for secret – Bank mints coins using Zero-Knowledge (ZK) arguments and Merkle trees (more on these later) – Anonymous, secret-less, efficient* e-cash system – Problems: (2) central trusted party, (3) divisibility * Assuming efficient non-interactive ZK arguments of knowledge.

• • • Post-bitcoin anonymous e-cash Zerocash: divisible anonymous e-cash [based onof. Sander Ta-Shma `99] Solves the problems zerocoin and pinnochio-coin: – Efficiency Zero. Coin Garman, Green, Rubin `13] * at 128 -bit • 288[Miers, bytes/spend security level, – – –– – • Uses efficient* ZK 9 ms/spend proofs and * RSA-accumulator • Verification: Extends Bitcoin 3 min. /spend with `decentralized laundry’ * on single • Tx created core i 7 @ 2. 7 GHz No Bank, only trusted ledger (e. g. , Blockchain) Tx-generation scales logarithmically with #coins (up Implemented as Bitcoin extension! Fine print – – Relatively new crypto assumptions – pairingbased cryptography, knowledge-of-exponent, … -- can use more cryptanalysis To spend, need (public) key of size 0. 9 Gb (downloaded only once) Public key must be set up (only once) by trusted party using a random trapdoor which must be destroyed (no secrets afterwards) … otherwise party with trapdoor can forge tx, but cannot break anonymity to 264 coins) – Fungible and divisible, hides payer, payee, and denomination • Usual restrictions and disclaimers, read fine print Problems • • Fine print – Efficiency: 25 Kb/spend, must appear on blockchain • –– Relatively new crypto assumptions – pairing-based Non-fungible, non-divisible, single-denomination system (allowingcryptography, fungibility/divisibility compromises anonymity) knowledge-of-exponent, … -- can use more cryptanalysis – To spend, need (public) key of size 0. 9 Gb (downloaded only once) Pinocchio-Coin [Danezis, Fournet, Kohlweiss, Parno ‘ 13] –– Public key mustto, beand setindependently up (only once) by trusted party using a Done concurrently of, Zero. Cash * ! trapdoor which must be destroyed (no secrets afterwards) – random Solves efficiency problem: 344 bytes/spend based on “Pinnochio” [Parno et al. `13] –– … otherwise party. ZK with trapdoor can forge tx, but cannot break – anonymity Scalability problem: tx-generation time grows linearly with #coins – Non-fungible/divisble, single-denomination (same as Zerocoin) * Size of the ZK-proof part of a spend-tx; actual spend-tx size is larger

Talk outline • Anonymous electronic payments – Pre-bitcoin – e-cash and beyond – Post-bitcoin – Zerocoin, Pinnochio. Coin – Introducing Zero. Cash • Zero Knowledge (ZK) – SNARKs – SCIPR-lab • Zero. Cash: a peek under the hood

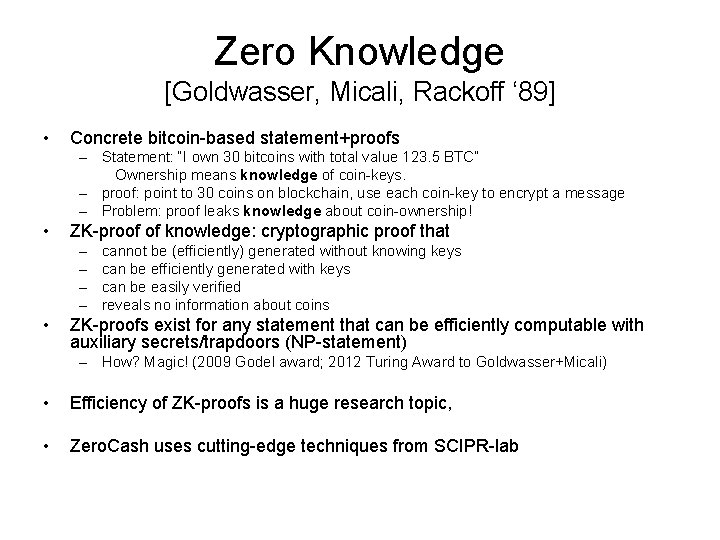

Zero Knowledge [Goldwasser, Micali, Rackoff ‘ 89] • Concrete bitcoin-based statement+proofs – Statement: “I own 30 bitcoins with total value 123. 5 BTC” Ownership means knowledge of coin-keys. – proof: point to 30 coins on blockchain, use each coin-key to encrypt a message – Problem: proof leaks knowledge about coin-ownership! • ZK-proof of knowledge: cryptographic proof that – – • cannot be (efficiently) generated without knowing keys can be efficiently generated with keys can be easily verified reveals no information about coins ZK-proofs exist for any statement that can be efficiently computable with auxiliary secrets/trapdoors (NP-statement) – How? Magic! (2009 Godel award; 2012 Turing Award to Goldwasser+Micali) • Efficiency of ZK-proofs is a huge research topic, • Zero. Cash uses cutting-edge techniques from SCIPR-lab

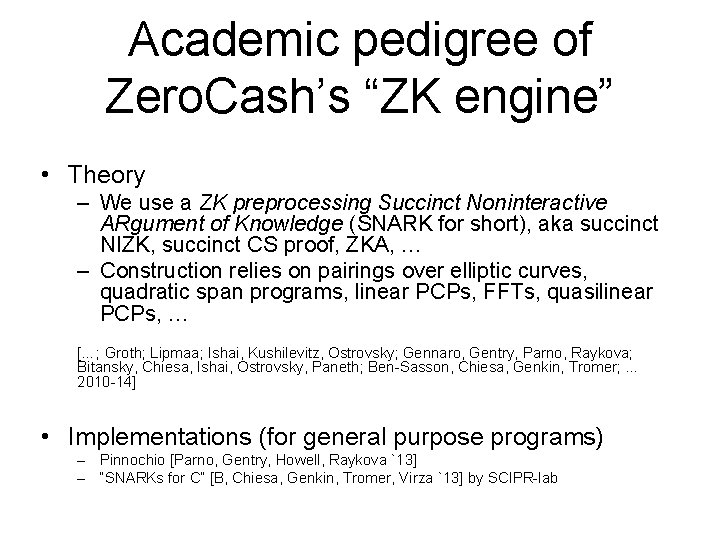

Academic pedigree of Zero. Cash’s “ZK engine” • Theory – We use a ZK preprocessing Succinct Noninteractive ARgument of Knowledge (SNARK for short), aka succinct NIZK, succinct CS proof, ZKA, … – Construction relies on pairings over elliptic curves, quadratic span programs, linear PCPs, FFTs, quasilinear PCPs, … […; Groth; Lipmaa; Ishai, Kushilevitz, Ostrovsky; Gennaro, Gentry, Parno, Raykova; Bitansky, Chiesa, Ishai, Ostrovsky, Paneth; Ben-Sasson, Chiesa, Genkin, Tromer; … 2010 -14] • Implementations (for general purpose programs) – Pinnochio [Parno, Gentry, Howell, Raykova `13] – “SNARKs for C” [B, Chiesa, Genkin, Tromer, Virza `13] by SCIPR-lab

www. SCIPR-lab. org “… is an academic collaboration of researchers from MIT, Technion, and Tel Aviv University, seeking to bring to practice cryptographic proof systems that provide Succinct Computational Integrity and PRrivacy. ” • Started in summer 2009 with Eran Tromer (co-PI), Alessandro Chiesa, Daniel Genkin. Madars Virza joined 2012 • Initial funding: European Research Council (grant # 240258), major source of support for programming team: Ohad Barta*, Lior Greenblat, Shaul Kfir, Michael Riabzev, Gil Timnat, Arnon Yogev* (* emeritus) [Ad: seeking superb crypto+math programmer!]

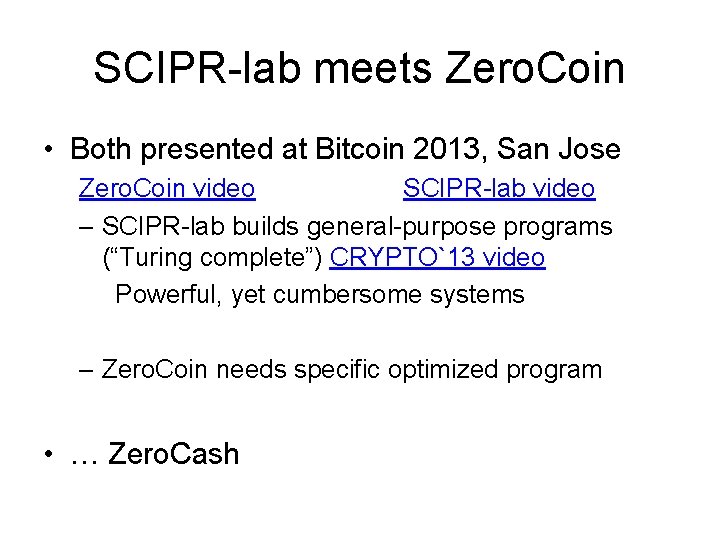

SCIPR-lab meets Zero. Coin • Both presented at Bitcoin 2013, San Jose Zero. Coin video SCIPR-lab video – SCIPR-lab builds general-purpose programs (“Turing complete”) CRYPTO`13 video Powerful, yet cumbersome systems – Zero. Coin needs specific optimized program • … Zero. Cash

Talk outline • Anonymous electronic payments – Pre-bitcoin – e-cash and beyond – Post-bitcoin – Zerocoin, Pinnochio. Coin – Introducing Zero. Cash • Zero Knowledge (ZK) – SNARKs – SCIPR-lab • Zero. Cash: a peek under the hood

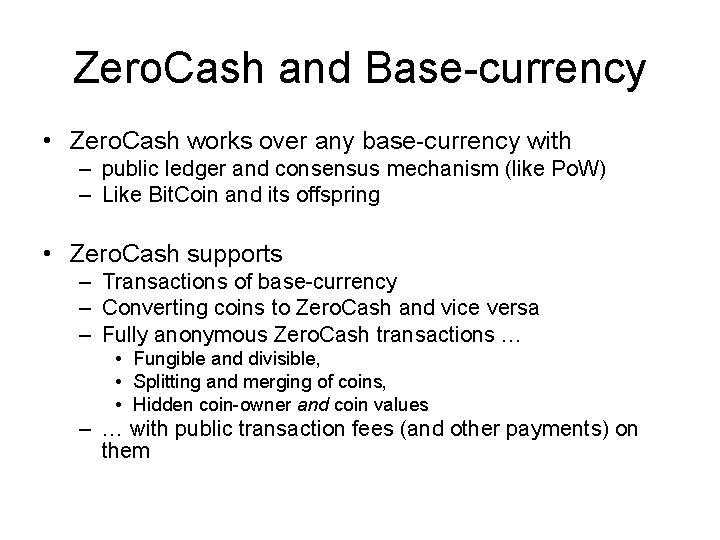

Zero. Cash and Base-currency • Zero. Cash works over any base-currency with – public ledger and consensus mechanism (like Po. W) – Like Bit. Coin and its offspring • Zero. Cash supports – Transactions of base-currency – Converting coins to Zero. Cash and vice versa – Fully anonymous Zero. Cash transactions … • Fungible and divisible, • Splitting and merging of coins, • Hidden coin-owner and coin values – … with public transaction fees (and other payments) on them

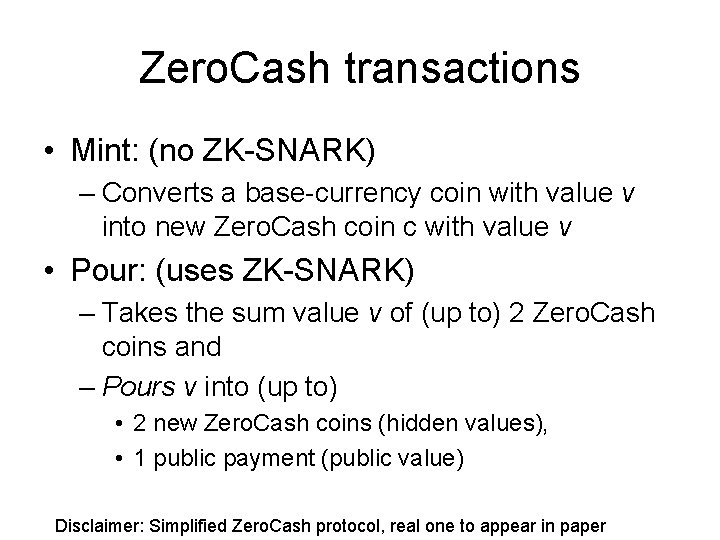

Zero. Cash transactions • Mint: (no ZK-SNARK) – Converts a base-currency coin with value v into new Zero. Cash coin c with value v • Pour: (uses ZK-SNARK) – Takes the sum value v of (up to) 2 Zero. Cash coins and – Pours v into (up to) • 2 new Zero. Cash coins (hidden values), • 1 public payment (public value) Disclaimer: Simplified Zero. Cash protocol, real one to appear in paper

Pour-tx, viewed by Full-node (verifier) • • – – • addrpub = f(addrsec), f is pseudorandom function (PRF) Serial number is sn = f(addrsec, rserial), “destroys” coin when displayed on ledger Full-nodes (verifiers) maintain a 1= H(c 1, c 2) a 2= H(c 3, c 4) Pour-tx is (sn, sn’, r, vpub, c’’’, π, …) – – – • … – Merkle tree of all previous coins – List of all previously exposed serial numbers – Crucial: observer cannot link sn to c ! • r= H(z 1, z 2) Coin is commitment c: = hash(val, rserial , addrpub), controlled by secret address addrsec sn, sn’ destroy 2 old coins (preventing double-spend) c 1 r is root of (current) Merkle tree vpub is public value (used, e. g. , for tx-fee) c’’, c’’’ new coins π is a 288 -byte long ZK-SNARK for a statement described later c 2 c 3 L={sn 1, sn 2, … } When full-node sees new pour-tx: 1. 2. 3. c 4 … Verifies π (9 ms) Checks that sn, sn’ haven’t appeared and adds them to L If 1, 2 pass, then adds c’’, c’’’ to tree, updates root r, and collects vpub Disclaimer: Simplified Zero. Cash protocol, real one to appear in paper

Constructing Pour-tx (prover) • Coin is commitment c: = hash(val, rserial , addrpub) r= H(z 1, z 2) • controlled by secret address addrsec – addrpub = f(addrsec), f is pseudorandom function (PRF) – Serial number is sn = f(addrsec, rserial), “destroys” coin when displayed on ledger • Inputs … – 2 coins c, c’, hidden information, and location in tree – Information for new coins: • values v’’, v’’’, vpub • Public addresses of payees addr’’pub, addr’’’pub – Proving key (0. 9 Gb long) • Pour-tx is (sn, sn’, r, vpub, c’’’, π, …) π is a ZK-SNARK proof of statement: • What about Bitcoin/Zero. Cash regulation? c 1 c 2 c 3 c 4 … L={sn 1, sn 2, … } – When society decides on appropriate measures, efficient ZK-proofs can help implement them “know location of coins c, c’ in tree with root r, know coin values v, v’ and computed correctly serial numbers as sn, sn’, know hidden values v’’, v’’’ of c’’, c’’’ and sum of old coins (v+v’) equals that of new ones (v’’+v’’’+vpub) and … “ and paid due taxes and contributed 10% to charity …“ Disclaimer: Simplified Zero. Cash protocol, real one to appear in paper

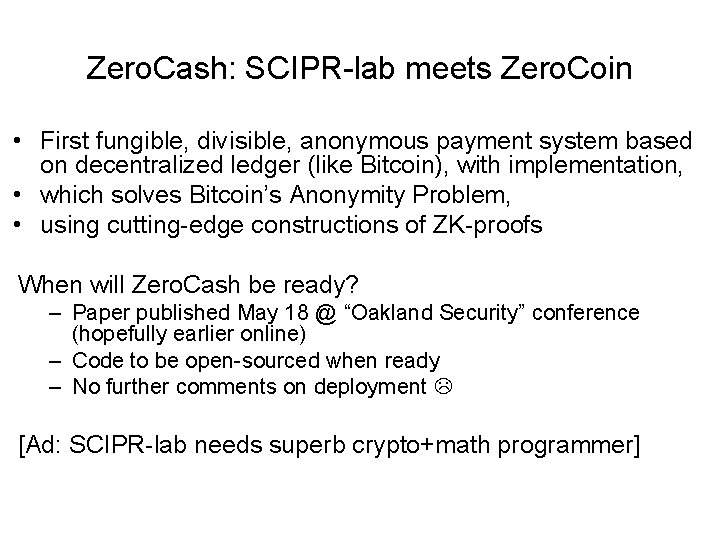

Zero. Cash: SCIPR-lab meets Zero. Coin • First fungible, divisible, anonymous payment system based on decentralized ledger (like Bitcoin), with implementation, • which solves Bitcoin’s Anonymity Problem, • using cutting-edge constructions of ZK-proofs When will Zero. Cash be ready? – Paper published May 18 @ “Oakland Security” conference (hopefully earlier online) – Code to be open-sourced when ready – No further comments on deployment [Ad: SCIPR-lab needs superb crypto+math programmer]
