Zelflex QR 266 x 380 with adapter Step by Step User Guide, version 1,

Slides: 9

Download presentation

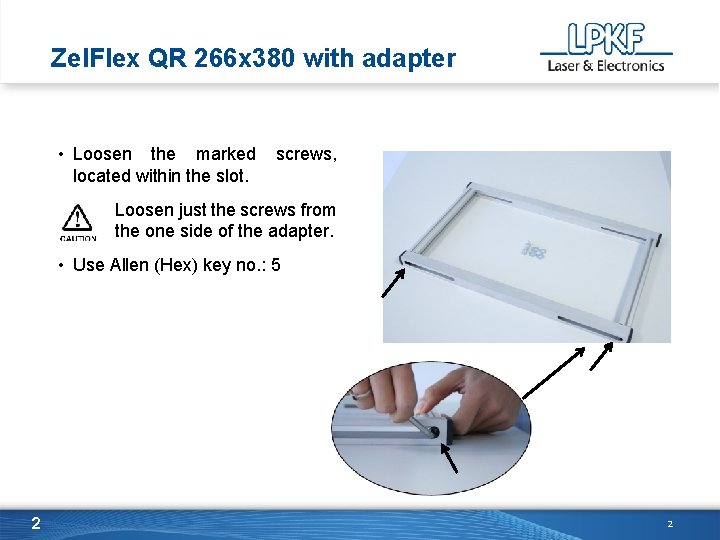

Zel. Flex QR 266 x 380 with adapter • Loosen the marked located within the slot. screws, Loosen just the screws from the one side of the adapter. • Use Allen (Hex) key no. : 5 2 2

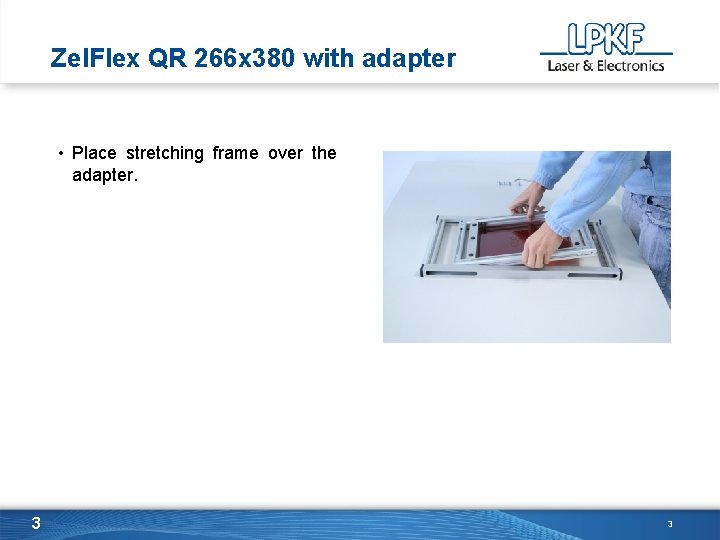

Zel. Flex QR 266 x 380 with adapter • Place stretching frame over the adapter. 3 3

Zel. Flex QR 266 x 380 with adapter • Insert new screws together with the washers in the slots at all four sides. • Tighten them into the groove nuts, inserted in the longer profile of the stretching frame. • Use Allen (Hex) key no. : 5 NOTE: Zel. Flex QR 266 x 380 frames have to be equipped with the groove nuts, inserted on the both longer profiles of the frame. In case the nuts are not in that positions, contact us. 4 4

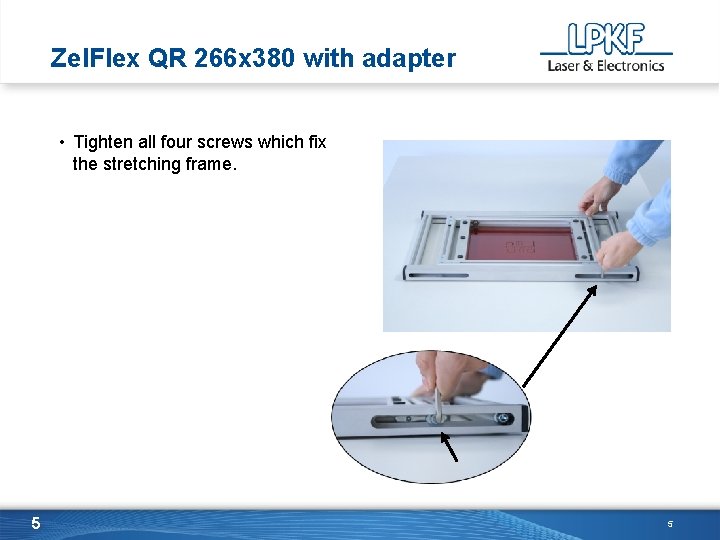

Zel. Flex QR 266 x 380 with adapter • Tighten all four screws which fix the stretching frame. 5 5

Zel. Flex QR 266 x 380 with adapter • Tighten the screws of the sliding rails. 6 6

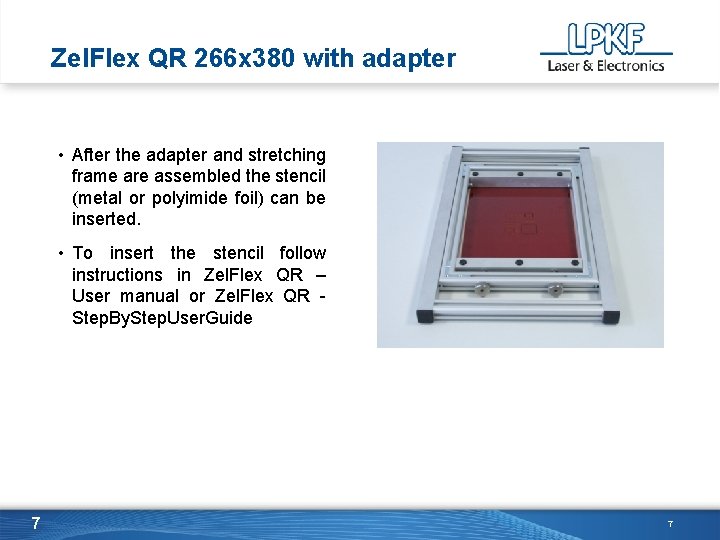

Zel. Flex QR 266 x 380 with adapter • After the adapter and stretching frame are assembled the stencil (metal or polyimide foil) can be inserted. • To insert the stencil follow instructions in Zel. Flex QR – User manual or Zel. Flex QR Step. By. Step. User. Guide 7 7

Zel. Flex QR 266 x 380 with adapter Zel. Flex QR 266 x 380 frame is specially designed for direct clamping A 4 polymer stencils. 8 8
