Zebra OSPFv 3 status Yasuhiro Ohara yasusfc wide
Zebra OSPFv 3 status Yasuhiro Ohara yasu@sfc. wide. ad. jp WIDE Project
Implementation • RFC 2740 - OSPF for IPv 6 • A free, open source code from scratch – about 17, 000 lines in C • A common platform : “Zebra” – – Uses Zebra’s Library (tasking, timers, etc. ) Portability (tested on *BSD) Configurable via Telnet Routing info can be exchanged with other protocols (RIPng, BGP 4+)
Functionality • Stability improved after IETF 48 • Supported – OSPF Backbone (0. 0) routing – Route exchange with other protocols • Not yet supported – Area function – SNMP • Full support before 2001/04
Sendai Fukuoka To: Losangels Komatsu Osaka Kyoto Nezu Otemachi Tokyo Nara Kurasiki Hiroshima Fujisawa. Karigome
pana. net SOUM NAIST Kyoto-u K-ISIT For. US Kyushu-u Kyutech Sakyo Nara KARIN JAIST nui. org 3 Si KDD Lab NTT SC ura MCI Titech Yokogawa SES Hiroshima Fujisawa YDC Otemachi KEK Tokyo IRI KAME. NET KAME Nezu MGCS Fujitsu Keio SFC Sendai NEC Fujitsu Lab nekomimi TDI Komatsu SONY Toshiba Osaka Kyoto Fuji Xerox NTT Do. Co. Mo Fukuoka Hitachi Kurashiki Ritsumei-u Hiroshima-cu Hiroshima-u U-Aizu Nihon-u U-Tokyo UEC LAX i. Si. D itojun. org Keio ST ATM Ether T 1 128 k 64 k ISDN Tunnel
The testbed network • • 33 Routers currently running this system Maximum 13 hops Many Point-To-Point Links with ATM 9 Transit Broadcast Segments 170 LSAs (AS: 95, Area: 75) 143 routes (ASE: 93, Intra: 50) Default advertised from AS Border

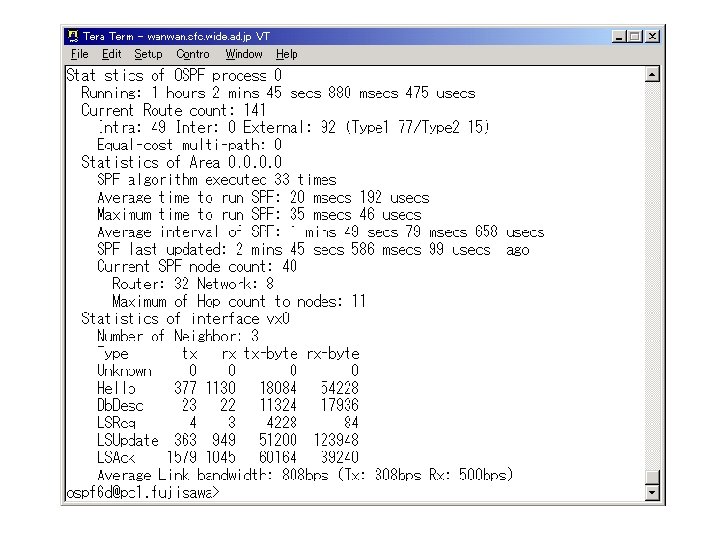

Statistics • Data gathering (duration): 72 hour • CPU load – SPF frequency: • maximum interval: 15 hours (at least) • average interval: 13 minutes – Time taken to run SPF • maximum: 66 mili-seconds • average: 25 mili-seconds
Statistics(Link bandwidth) • OSPFv 3 (statistics) – Point-To-Point: • 209 bps (Tx: 104 bps Rx: 105 bps) – Broadcast (DR, 3 neighbors): • 430 bps (Tx: 212 bps Rx: 218 bps) • RIPng (calculated) – 143 routes * 20 bytes * 8 (bits/byte) / 30 seconds • 762 bps
TODOs to Full support • Synchronization with BGP • Area – Transit, Stub, NSSA, Virtual link • SNMP(MIB) • What else?
Let's try • • • Available as a part of Zebra GPL 2 copyrighted http: //www. wide. ad. jp/ http: //www. zebra. org/ Zebra@zebra. org Please use CVS version
