Yvon Houariki marketing 06 2013 HTP 500 V

Yvon Houariki, marketing 06 -2013 HTP 500 V 2 Thermal transfer printer © ABB Month DD, YYYY | Slide 1

HTP 500 V 2 Application © ABB Month DD, YYYY | Slide 2 § HTP 500 V 2 printer has been designed by 3 M for the identification requirements on the electrical market and offered a complement to the ABB marking solutions. § HTP 500 V 2 is a high resolution printer based on thermal transfer technology which provides: § A Fast printing process § A high printing volume § High quality printing

HTP 500 V 2 Thermal transfer technology § § Operating principle : § A heat transfer through an ink ribbon to the support § The heat melting ink (62°C) § The transition of the ink from the solid state to the liquid state = marking § Ink absorbed on the card, nonerasable Benefits § Solid ink (ribbon) which does not dry § No solvent Compact printer : dimensions Depth=235 mm, Length=418 mm, Height=210 mm § § © ABB Month DD, YYYY | Slide 3 Weight = 9, 5 kgs

HTP 500 V 2 Functioning § Automatic recognition of the height of the printable card § Flexible selection mode: automatic, semi-automatic or manual § Ribbon available in black or red

HTP 500 V 2 Key points Conveniences § Importing data (. txt, . csv, . xls…) and images § Compatible with all Windows fonts Reliability § Excellent accuracy and print quality § Excellent print stability over time Speed § Print up to 8500 markers per hour § Immediate use, no drying time Flexibility © ABB Month DD, YYYY | Slide 5 § Print many types of markers and labels § Compact printer

HTP 500 V 2 Marking support Terminal blocks identification Panel identification Components and Equipment identification Wire identification Cable identification Push buttons identification © ABB Month DD, YYYY | Slide 6

HTP 500 V 2 Terminal blocks identification RC. . TT & MC. . § Polycarbonate markers available in white or yellow § RC. . TT compatible with ABB terminal blocks SNA series § MC. . Compatible with ABB terminal blocks SNK series § Markers for top marking or side marking § Sizes : markers for different terminal block sizes RC. . TT MC. . © ABB Month DD, YYYY | Slide 7

HTP 500 V 2 Wire identification WMTT 12 & WMTT 18 § ABS / Polycarbonate material to be inserted in the marker holder RING. § 2 Sizes : 4 x 12 mm (WMTT 12) 4 x 18 mm (WMTT 18) RING § Transparent sealed marker holder for WMTT 12 & WMTT 18 markers § Ø of wire from 1. 5 to 10 mm § Length : 12 mm (WMTT 12) 18 mm (WMTT 18) 23 mm (WMTT 12 & WMTT 18) © ABB Month DD, YYYY | Slide 8

HTP 500 V 2 Cable identification PCGS 209 § ABS / Polycarbonate material to be inserted in the marker holder RINGT § Size : 9. 3 x 20 mm card with 60 markers RINGT © ABB Month DD, YYYY | Slide 9 § Transparent sealed marker holder for PCGS 209 markers § Length : 20 mm

HTP 500 V 2 Components and equipment identification PAM § Self adhesive labels in PVC + ACR § Available in white color only § Sizes : 15 x 215 mm. . 20 x 215 mm 15 x 430 mm. . 20 x 430 mm PCT 100015 PAM 100015 © ABB Month DD, YYYY | Slide 10 § Can be used with : adhesive marking profile (PAM 100015) & Transparent cover (PCT 100015)

HTP 500 V 2 Push buttons identifications PPB § Plate in Methyl Methacrylate (MMA) material § To be tightened in the plate-holder or with front face of push button § Available in : Black and white Silver and black KA 1 § Plate-holder § Compatible with ABB push button plates type KA 1 -8120. PPB KA 1 © ABB Month DD, YYYY | Slide 11

HTP 500 V 2 Panel identification PPT § Perforated plate used to identify outside section of panels § To be snapped onto the suitable surface § Dimensions: 30 x 120 mm 50 x 180 mm PAT © ABB Month DD, YYYY | Slide 12 § Self adhesive plate for panel plate identification § To be used directly on a suitable surface § Dimensions: 60 x 100 mm

HTP 500 V 2 Kit composition List of items included in the kit 1 SNA 235700 R 1500 : § 1 Thermal transfer printer HTP 500 V 2 § 1 Support table § 1 Power supply cable § 1 USB cable § 1 Software CD § 1 Black ribbon cassette § 1 Cleaning cassette § 1 Universal feeder for marker cards 1 Support plate for ABB Terminal block markers § 1 Universal support plate for wire markers §

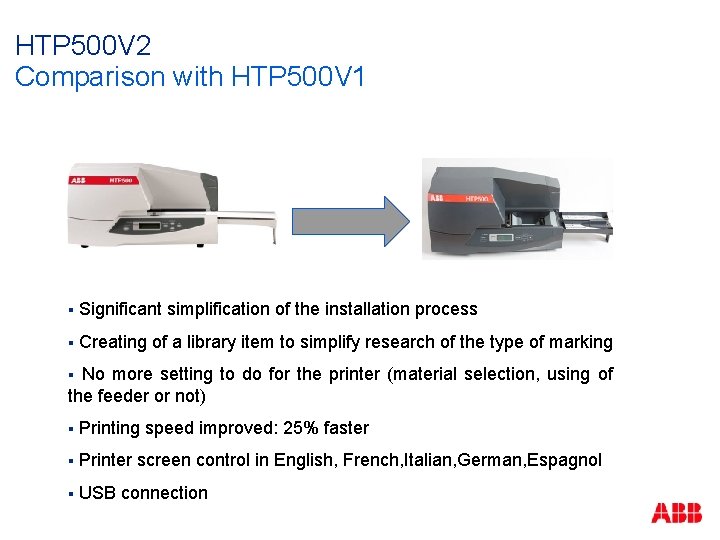

HTP 500 V 2 Comparison with HTP 500 V 1 § Significant simplification of the installation process § Creating of a library item to simplify research of the type of marking No more setting to do for the printer (material selection, using of the feeder or not) § § Printing speed improved: 25% faster § Printer screen control in English, French, Italian, German, Espagnol § USB connection
