Your Safe Zone Ace Armor Electronic Security Solutions

Your Safe Zone Ace Armor Electronic Security Solutions Pvt. Ltd 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 1

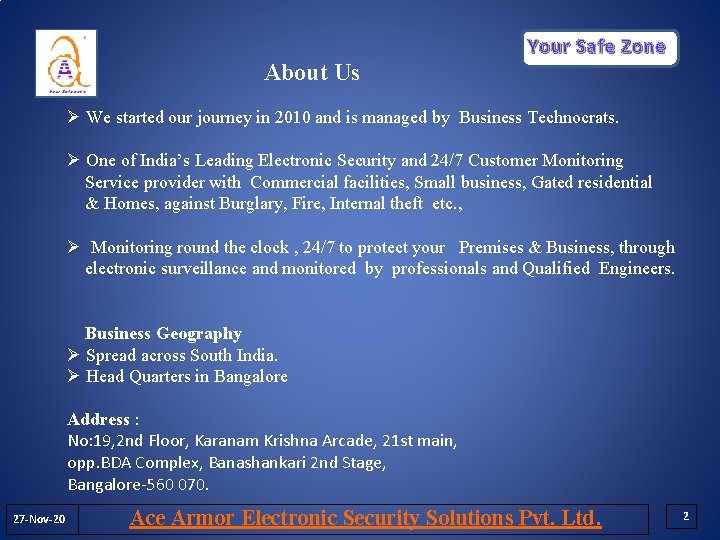

Your Safe Zone About Us Ø We started our journey in 2010 and is managed by Business Technocrats. Ø One of India’s Leading Electronic Security and 24/7 Customer Monitoring Service provider with Commercial facilities, Small business, Gated residential & Homes, against Burglary, Fire, Internal theft etc. , Ø Monitoring round the clock , 24/7 to protect your Premises & Business, through electronic surveillance and monitored by professionals and Qualified Engineers. Business Geography Ø Spread across South India. Ø Head Quarters in Bangalore Address : No: 19, 2 nd Floor, Karanam Krishna Arcade, 21 st main, opp. BDA Complex, Banashankari 2 nd Stage, Bangalore-560 070. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 2

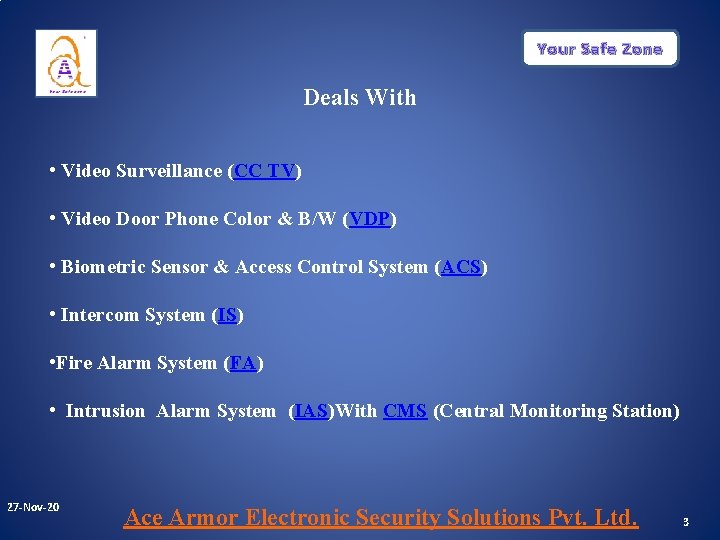

Your Safe Zone Deals With • Video Surveillance (CC TV) • Video Door Phone Color & B/W (VDP) • Biometric Sensor & Access Control System (ACS) • Intercom System (IS) • Fire Alarm System (FA) • Intrusion Alarm System (IAS)With CMS (Central Monitoring Station) 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 3

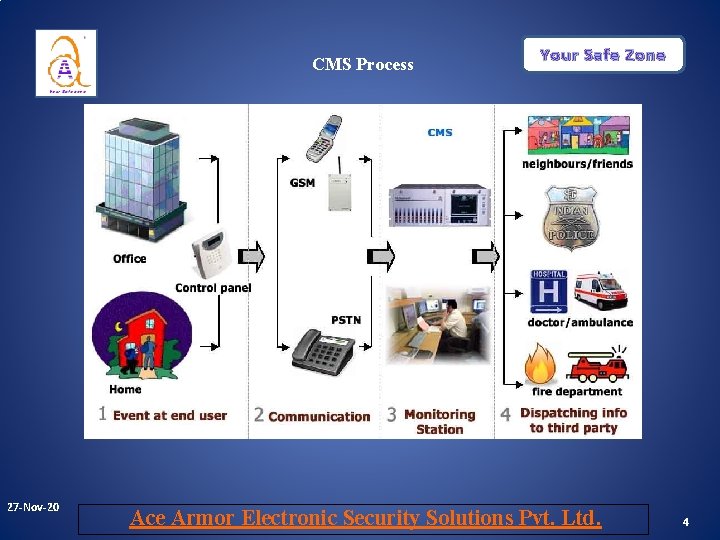

CMS Process 27 -Nov-20 Your Safe Zone Ace Armor Electronic Security Solutions Pvt. Ltd. 4

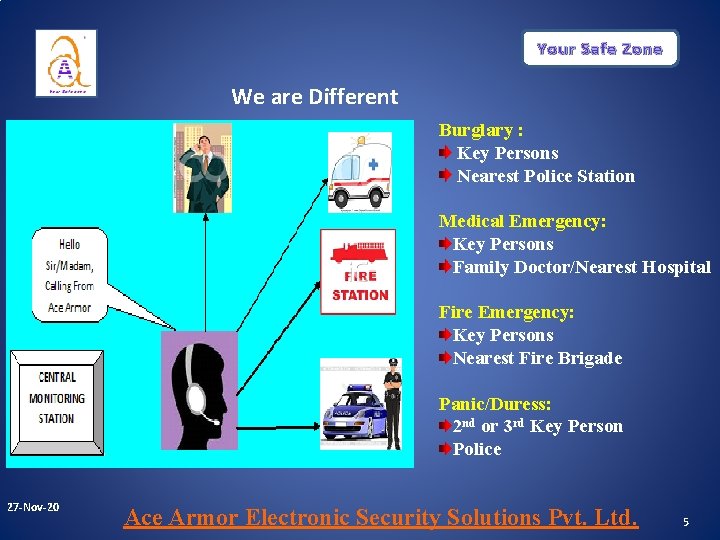

Your Safe Zone We are Different Burglary : Key Persons Nearest Police Station Medical Emergency: Key Persons Family Doctor/Nearest Hospital Fire Emergency: Key Persons Nearest Fire Brigade Panic/Duress: 2 nd or 3 rd Key Person Police 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 5

Your Safe Zone Customer Base • Corporate Segments • Traffic Management • Shopping Malls • Banking • Jewelers • Mobile Store • Apartments/Premises • Villas • Individual Residences and many more……. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 6

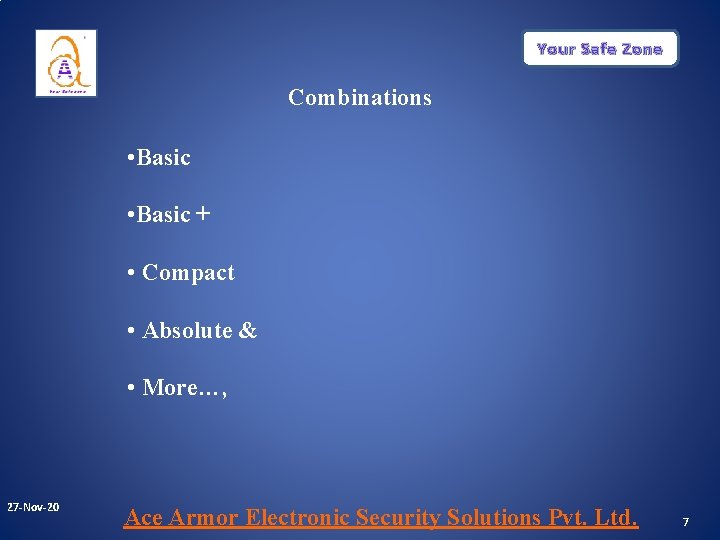

Your Safe Zone Combinations • Basic + • Compact • Absolute & • More…, 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 7

Your Safe Zone Continuing With Products for you…, 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 8

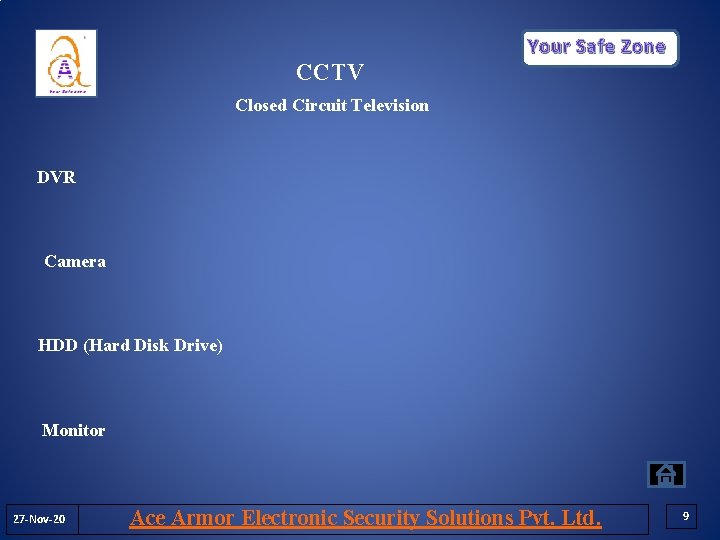

Your Safe Zone CCTV Closed Circuit Television DVR Camera HDD (Hard Disk Drive) Monitor 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 9

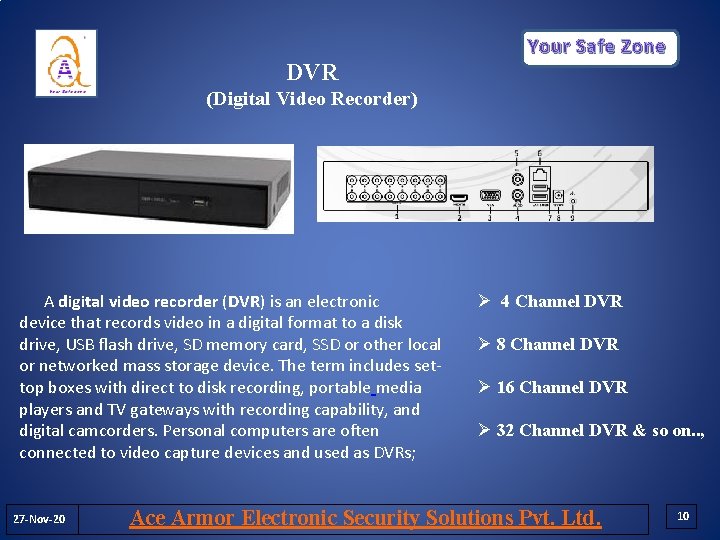

Your Safe Zone DVR (Digital Video Recorder) A digital video recorder (DVR) is an electronic device that records video in a digital format to a disk drive, USB flash drive, SD memory card, SSD or other local or networked mass storage device. The term includes settop boxes with direct to disk recording, portable media players and TV gateways with recording capability, and digital camcorders. Personal computers are often connected to video capture devices and used as DVRs; 27 -Nov-20 Ø 4 Channel DVR Ø 8 Channel DVR Ø 16 Channel DVR Ø 32 Channel DVR & so on. . , Ace Armor Electronic Security Solutions Pvt. Ltd. 10

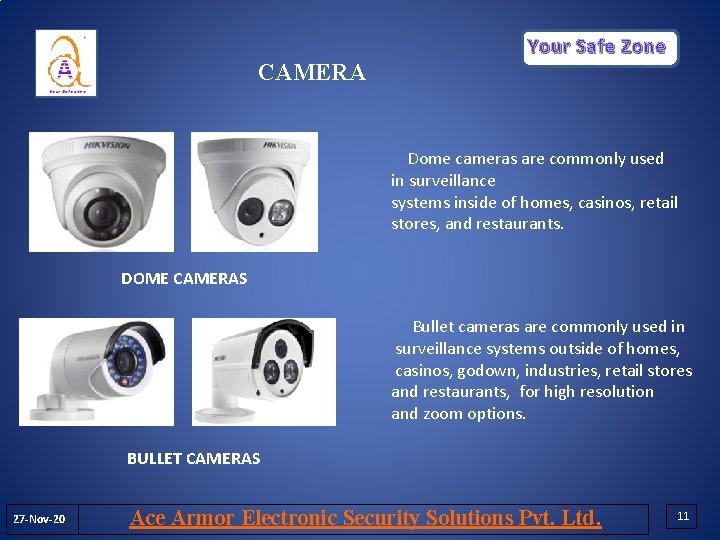

Your Safe Zone CAMERA Dome cameras are commonly used in surveillance systems inside of homes, casinos, retail stores, and restaurants. DOME CAMERAS Bullet cameras are commonly used in surveillance systems outside of homes, casinos, godown, industries, retail stores and restaurants, for high resolution and zoom options. BULLET CAMERAS 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 11

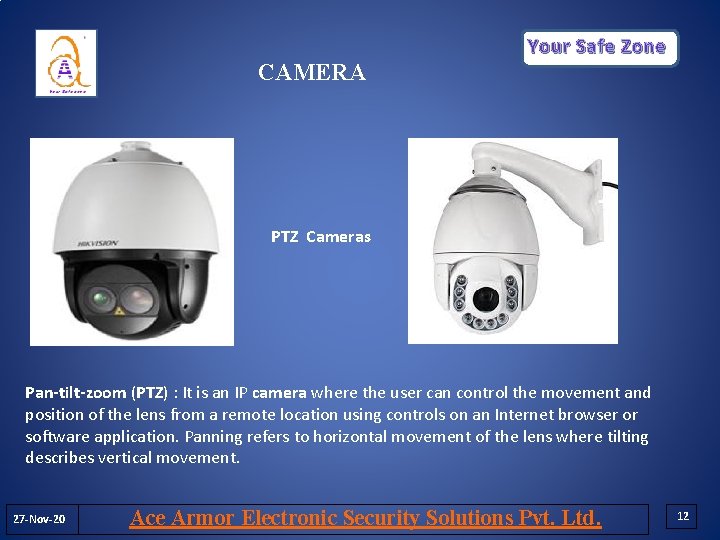

Your Safe Zone CAMERA PTZ Cameras Pan-tilt-zoom (PTZ) : It is an IP camera where the user can control the movement and position of the lens from a remote location using controls on an Internet browser or software application. Panning refers to horizontal movement of the lens where tilting describes vertical movement. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 12

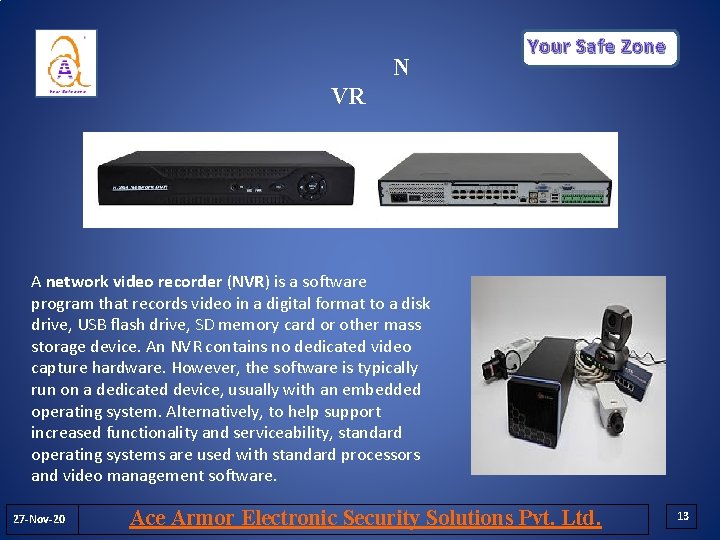

N Your Safe Zone VR A network video recorder (NVR) is a software program that records video in a digital format to a disk drive, USB flash drive, SD memory card or other mass storage device. An NVR contains no dedicated video capture hardware. However, the software is typically run on a dedicated device, usually with an embedded operating system. Alternatively, to help support increased functionality and serviceability, standard operating systems are used with standard processors and video management software. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 13

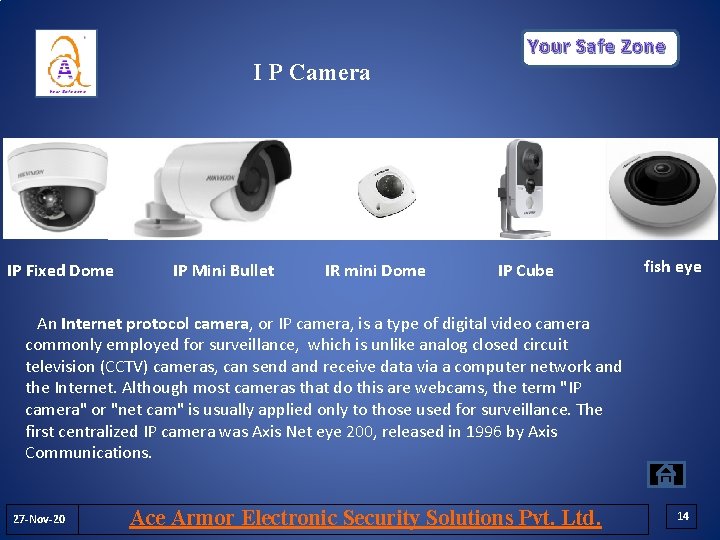

Your Safe Zone I P Camera IP Fixed Dome IP Mini Bullet IR mini Dome IP Cube fish eye An Internet protocol camera, or IP camera, is a type of digital video camera commonly employed for surveillance, which is unlike analog closed circuit television (CCTV) cameras, can send and receive data via a computer network and the Internet. Although most cameras that do this are webcams, the term "IP camera" or "net cam" is usually applied only to those used for surveillance. The first centralized IP camera was Axis Net eye 200, released in 1996 by Axis Communications. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 14

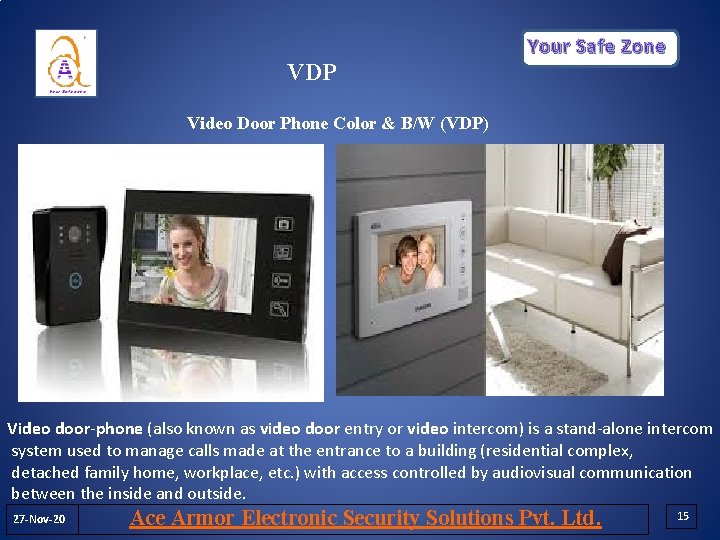

Your Safe Zone VDP Video Door Phone Color & B/W (VDP) Video door-phone (also known as video door entry or video intercom) is a stand-alone intercom system used to manage calls made at the entrance to a building (residential complex, detached family home, workplace, etc. ) with access controlled by audiovisual communication between the inside and outside. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 15

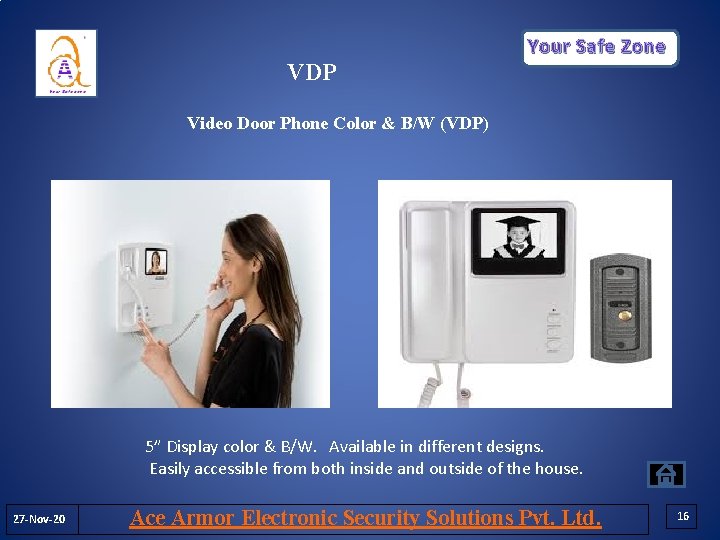

Your Safe Zone VDP Video Door Phone Color & B/W (VDP) 5” Display color & B/W. Available in different designs. Easily accessible from both inside and outside of the house. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 16

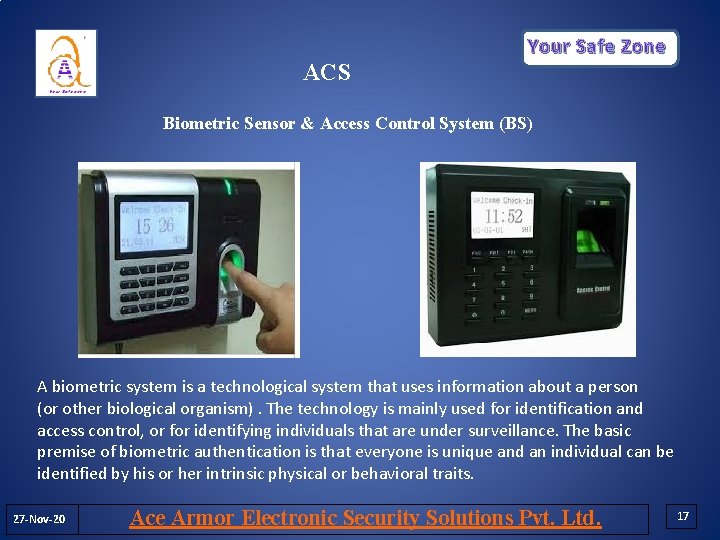

Your Safe Zone ACS Biometric Sensor & Access Control System (BS) A biometric system is a technological system that uses information about a person (or other biological organism). The technology is mainly used for identification and access control, or for identifying individuals that are under surveillance. The basic premise of biometric authentication is that everyone is unique and an individual can be identified by his or her intrinsic physical or behavioral traits. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 17

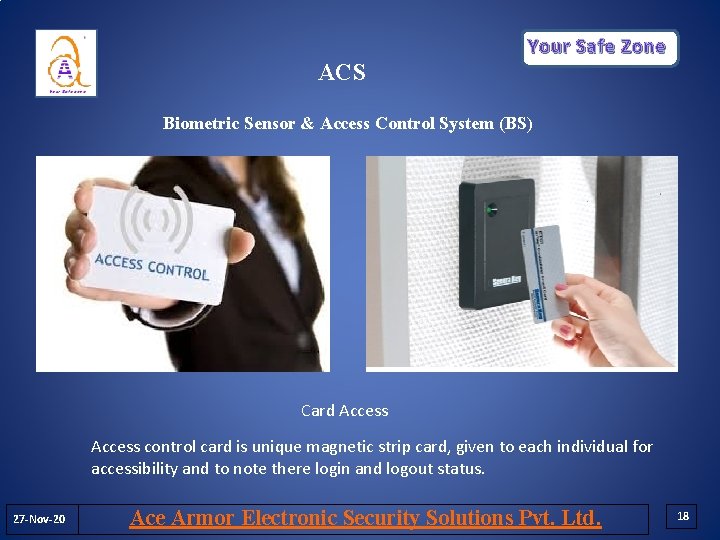

Your Safe Zone ACS Biometric Sensor & Access Control System (BS) Card Access control card is unique magnetic strip card, given to each individual for accessibility and to note there login and logout status. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 18

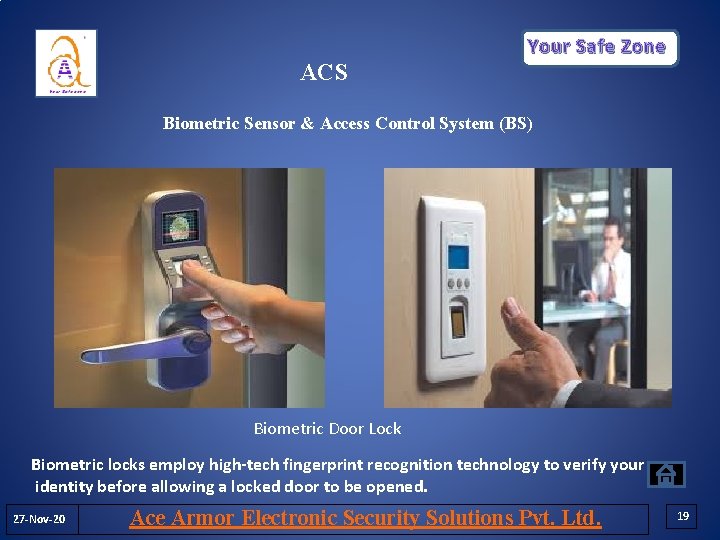

Your Safe Zone ACS Biometric Sensor & Access Control System (BS) Biometric Door Lock Biometric locks employ high-tech fingerprint recognition technology to verify your identity before allowing a locked door to be opened. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 19

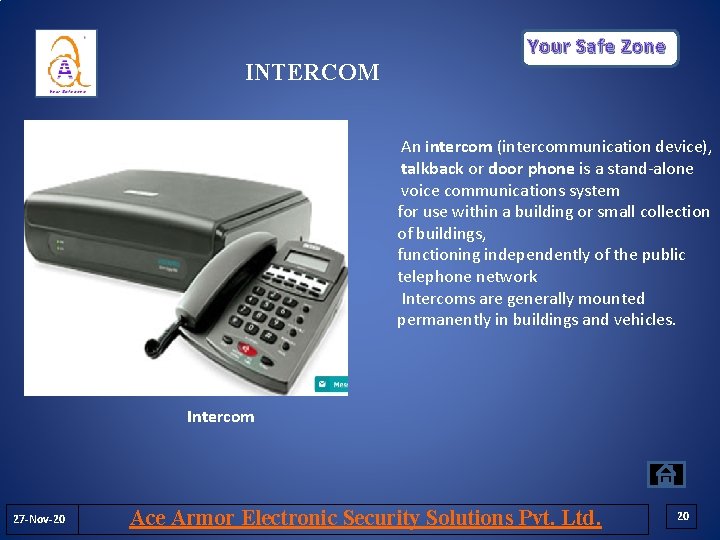

Your Safe Zone INTERCOM An intercom (intercommunication device), talkback or door phone is a stand-alone voice communications system for use within a building or small collection of buildings, functioning independently of the public telephone network Intercoms are generally mounted permanently in buildings and vehicles. Intercom 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 20

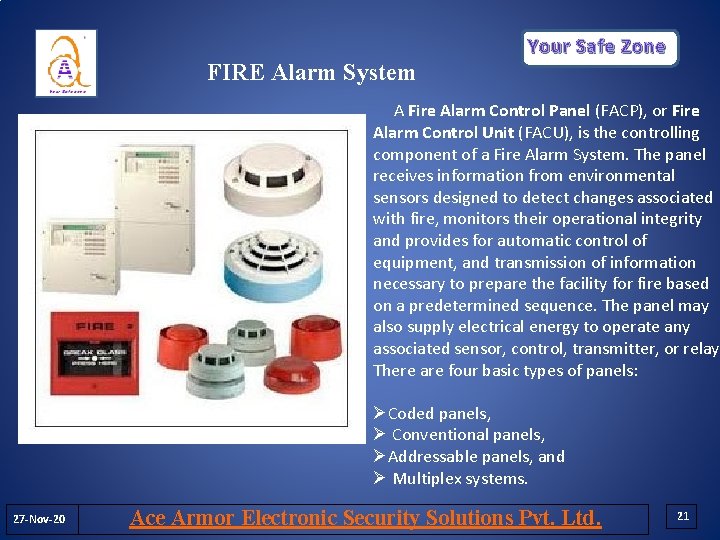

Your Safe Zone FIRE Alarm System A Fire Alarm Control Panel (FACP), or Fire Alarm Control Unit (FACU), is the controlling component of a Fire Alarm System. The panel receives information from environmental sensors designed to detect changes associated with fire, monitors their operational integrity and provides for automatic control of equipment, and transmission of information necessary to prepare the facility for fire based on a predetermined sequence. The panel may also supply electrical energy to operate any associated sensor, control, transmitter, or relay. There are four basic types of panels: ØCoded panels, Ø Conventional panels, ØAddressable panels, and Ø Multiplex systems. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 21

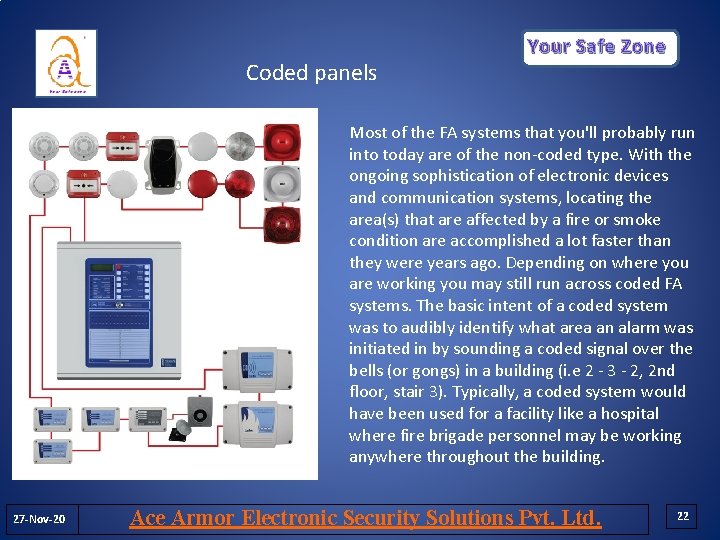

Coded panels Your Safe Zone Most of the FA systems that you'll probably run into today are of the non-coded type. With the ongoing sophistication of electronic devices and communication systems, locating the area(s) that are affected by a fire or smoke condition are accomplished a lot faster than they were years ago. Depending on where you are working you may still run across coded FA systems. The basic intent of a coded system was to audibly identify what area an alarm was initiated in by sounding a coded signal over the bells (or gongs) in a building (i. e 2 - 3 - 2, 2 nd floor, stair 3). Typically, a coded system would have been used for a facility like a hospital where fire brigade personnel may be working anywhere throughout the building. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 22

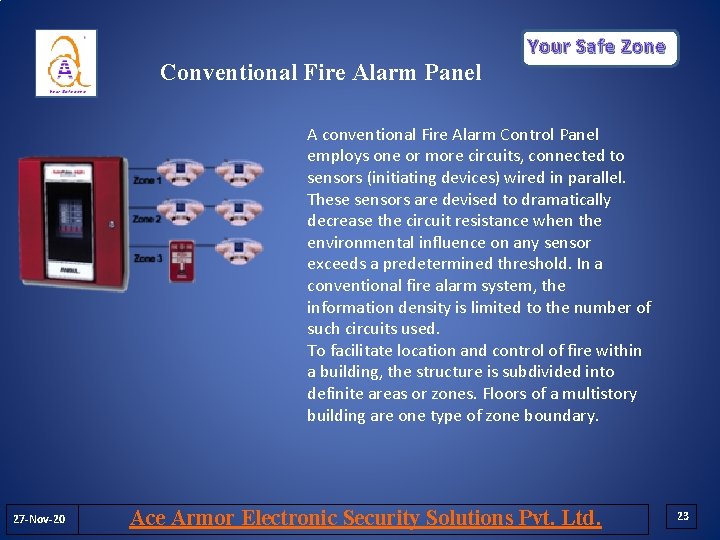

Your Safe Zone Conventional Fire Alarm Panel A conventional Fire Alarm Control Panel employs one or more circuits, connected to sensors (initiating devices) wired in parallel. These sensors are devised to dramatically decrease the circuit resistance when the environmental influence on any sensor exceeds a predetermined threshold. In a conventional fire alarm system, the information density is limited to the number of such circuits used. To facilitate location and control of fire within a building, the structure is subdivided into definite areas or zones. Floors of a multistory building are one type of zone boundary. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 23

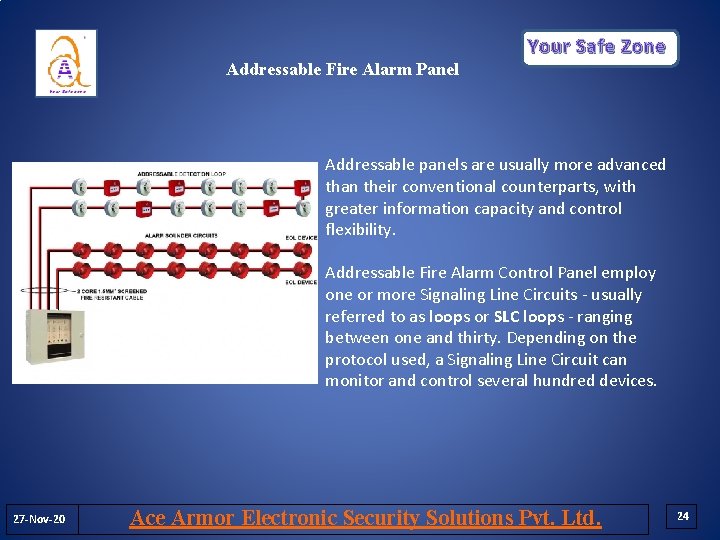

Your Safe Zone Addressable Fire Alarm Panel Addressable panels are usually more advanced than their conventional counterparts, with greater information capacity and control flexibility. Addressable Fire Alarm Control Panel employ one or more Signaling Line Circuits - usually referred to as loops or SLC loops - ranging between one and thirty. Depending on the protocol used, a Signaling Line Circuit can monitor and control several hundred devices. 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 24

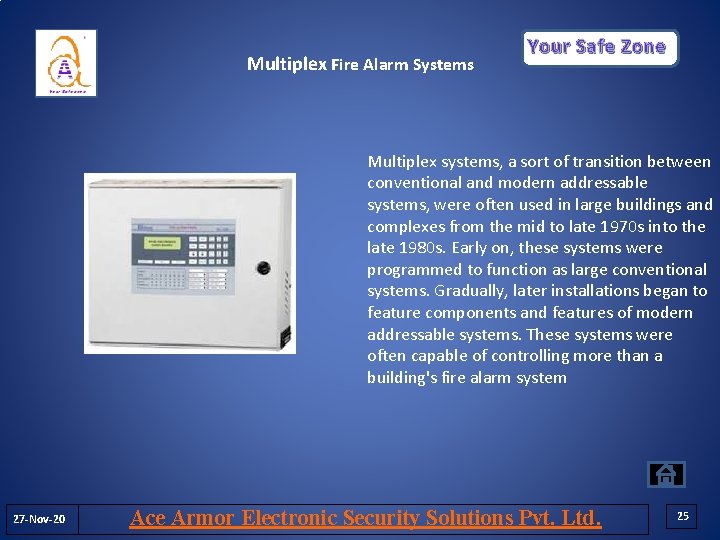

Multiplex Fire Alarm Systems Your Safe Zone Multiplex systems, a sort of transition between conventional and modern addressable systems, were often used in large buildings and complexes from the mid to late 1970 s into the late 1980 s. Early on, these systems were programmed to function as large conventional systems. Gradually, later installations began to feature components and features of modern addressable systems. These systems were often capable of controlling more than a building's fire alarm system 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 25

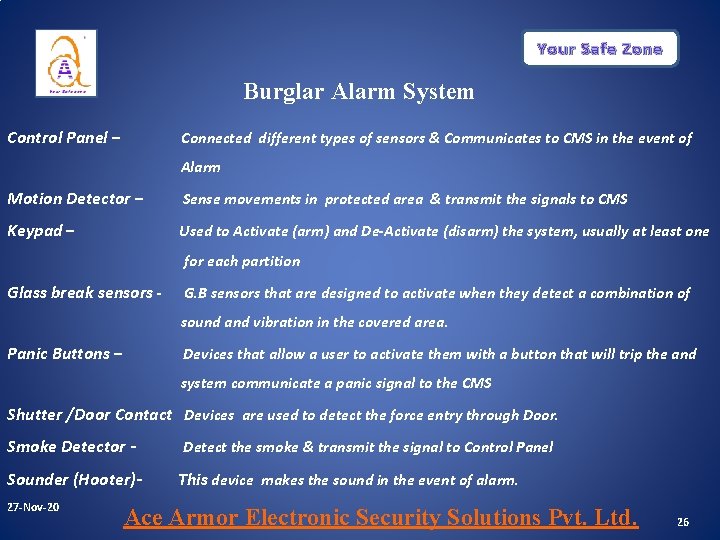

Your Safe Zone Burglar Alarm System Control Panel – Connected different types of sensors & Communicates to CMS in the event of Alarm Motion Detector – Sense movements in protected area & transmit the signals to CMS Keypad – Used to Activate (arm) and De-Activate (disarm) the system, usually at least one for each partition Glass break sensors - G. B sensors that are designed to activate when they detect a combination of sound and vibration in the covered area. Panic Buttons – Devices that allow a user to activate them with a button that will trip the and system communicate a panic signal to the CMS Shutter /Door Contact Devices are used to detect the force entry through Door. Smoke Detector Sounder (Hooter)27 -Nov-20 Detect the smoke & transmit the signal to Control Panel This device makes the sound in the event of alarm. Ace Armor Electronic Security Solutions Pvt. Ltd. 26

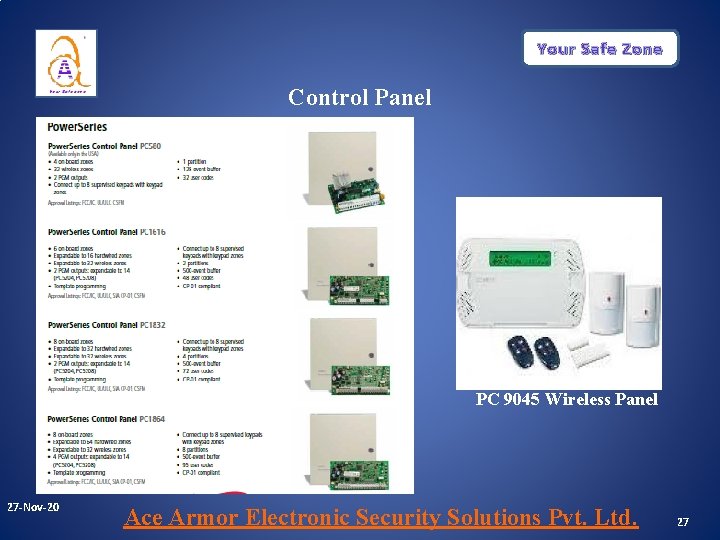

Your Safe Zone Control Panel PC 9045 Wireless Panel 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 27

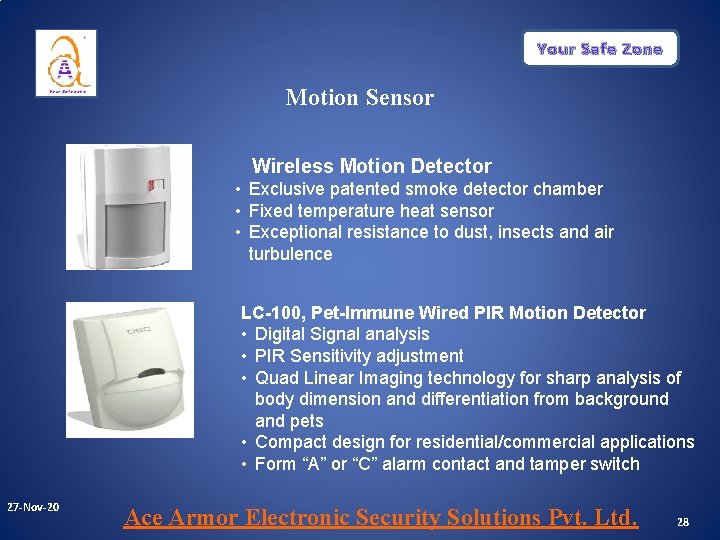

Your Safe Zone Motion Sensor Wireless Motion Detector • Exclusive patented smoke detector chamber • Fixed temperature heat sensor • Exceptional resistance to dust, insects and air turbulence LC-100, Pet-Immune Wired PIR Motion Detector • Digital Signal analysis • PIR Sensitivity adjustment • Quad Linear Imaging technology for sharp analysis of body dimension and differentiation from background and pets • Compact design for residential/commercial applications • Form “A” or “C” alarm contact and tamper switch 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 28

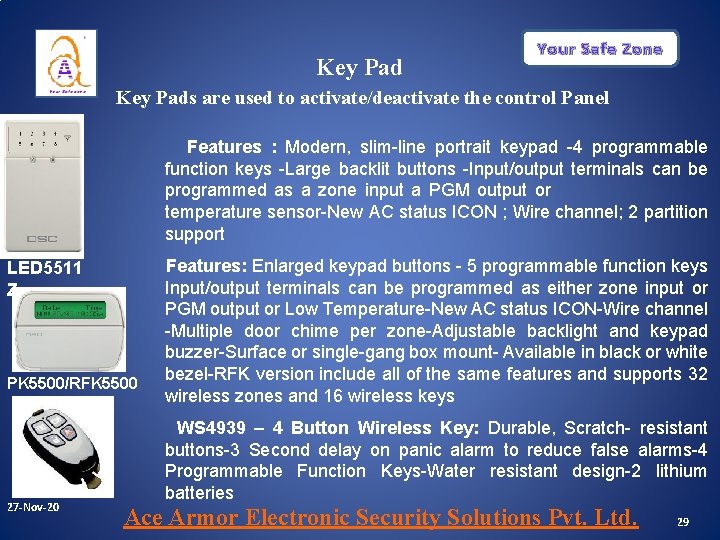

Key Pad Your Safe Zone Key Pads are used to activate/deactivate the control Panel Features : Modern, slim-line portrait keypad -4 programmable function keys -Large backlit buttons -Input/output terminals can be programmed as a zone input a PGM output or temperature sensor-New AC status ICON ; Wire channel; 2 partition support LED 5511 Z PK 5500/RFK 5500 27 -Nov-20 Features: Enlarged keypad buttons - 5 programmable function keys Input/output terminals can be programmed as either zone input or PGM output or Low Temperature-New AC status ICON-Wire channel -Multiple door chime per zone-Adjustable backlight and keypad buzzer-Surface or single-gang box mount- Available in black or white bezel-RFK version include all of the same features and supports 32 wireless zones and 16 wireless keys WS 4939 – 4 Button Wireless Key: Durable, Scratch- resistant buttons-3 Second delay on panic alarm to reduce false alarms-4 Programmable Function Keys-Water resistant design-2 lithium batteries Ace Armor Electronic Security Solutions Pvt. Ltd. 29

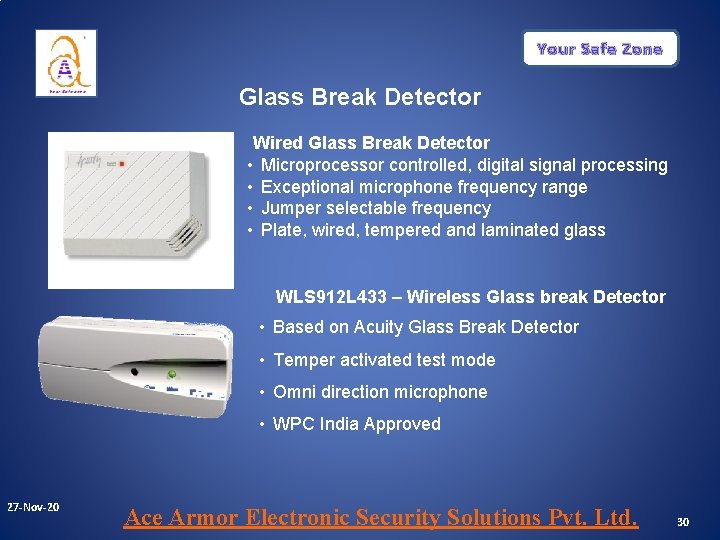

Your Safe Zone Glass Break Detector Wired Glass Break Detector • Microprocessor controlled, digital signal processing • Exceptional microphone frequency range • Jumper selectable frequency • Plate, wired, tempered and laminated glass WLS 912 L 433 – Wireless Glass break Detector • Based on Acuity Glass Break Detector • Temper activated test mode • Omni direction microphone • WPC India Approved 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 30

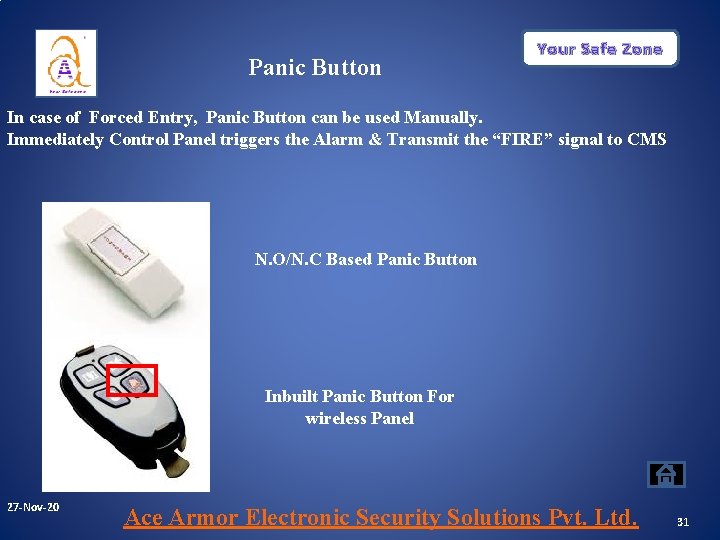

Panic Button Your Safe Zone In case of Forced Entry, Panic Button can be used Manually. Immediately Control Panel triggers the Alarm & Transmit the “FIRE” signal to CMS N. O/N. C Based Panic Button Inbuilt Panic Button For wireless Panel 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 31

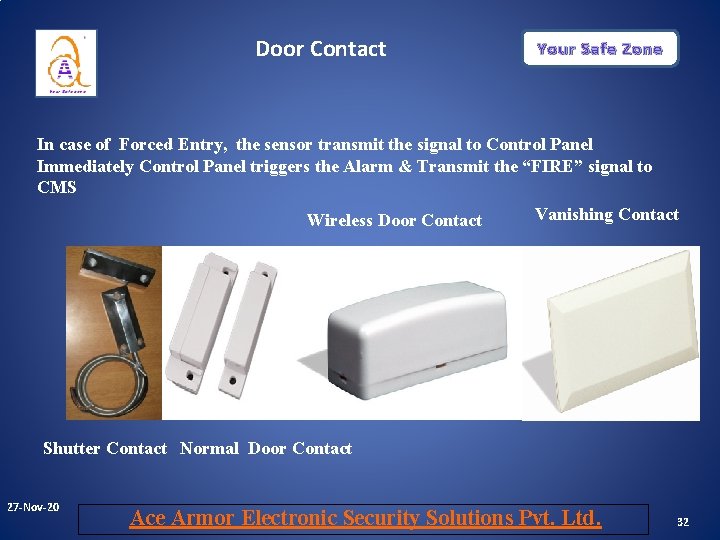

Door Contact Your Safe Zone In case of Forced Entry, the sensor transmit the signal to Control Panel Immediately Control Panel triggers the Alarm & Transmit the “FIRE” signal to CMS Vanishing Contact Wireless Door Contact Shutter Contact Normal Door Contact 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 32

Smoke Detector Your Safe Zone Smoke Detector is the device which detect the smoke & transmit the signal to Control Panel Immediately Control Panel triggers the Alarm & Transmit the “ FIRE ” signal to CMS Wireless Smoke Detector Wired Smoke Detector 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 33

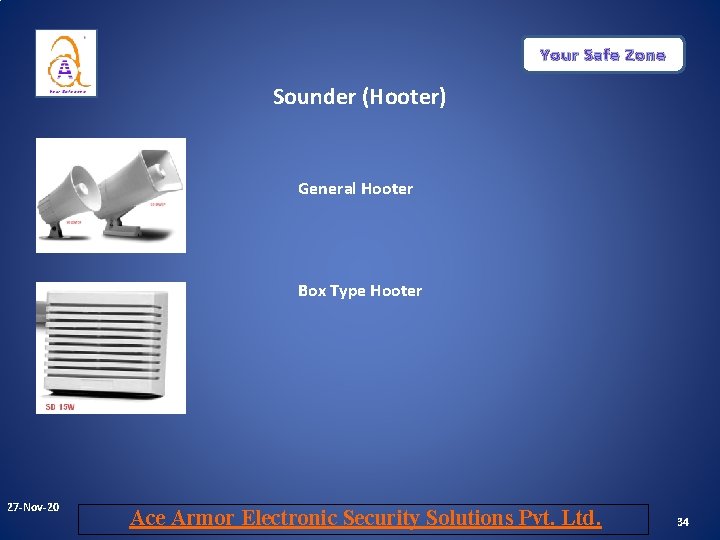

Your Safe Zone Sounder (Hooter) General Hooter Box Type Hooter 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 34

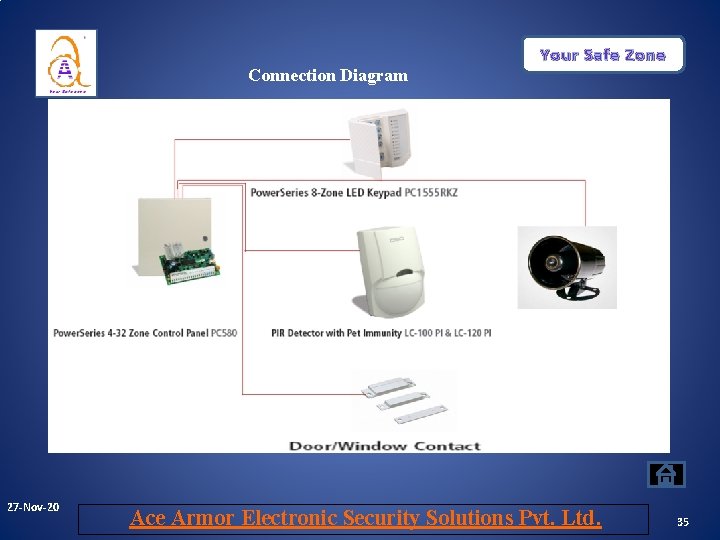

Connection Diagram 27 -Nov-20 Your Safe Zone Ace Armor Electronic Security Solutions Pvt. Ltd. 35

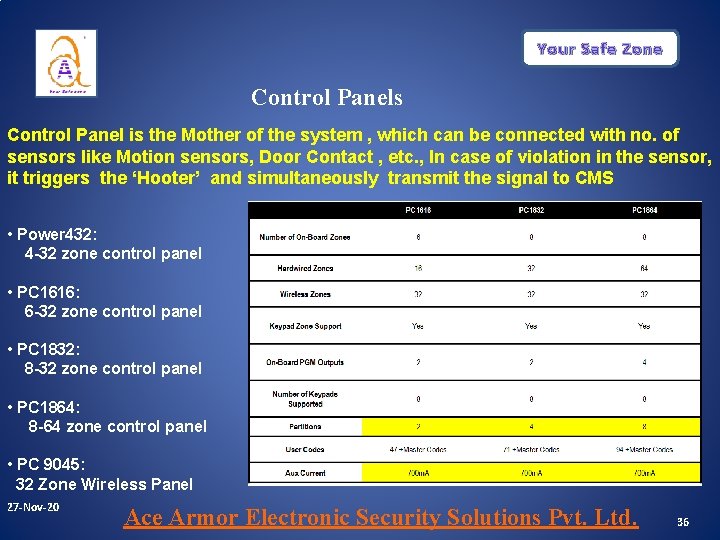

Your Safe Zone Control Panels Control Panel is the Mother of the system , which can be connected with no. of sensors like Motion sensors, Door Contact , etc. , In case of violation in the sensor, it triggers the ‘Hooter’ and simultaneously transmit the signal to CMS • Power 432: 4 -32 zone control panel • PC 1616: 6 -32 zone control panel • PC 1832: 8 -32 zone control panel • PC 1864: 8 -64 zone control panel • PC 9045: 32 Zone Wireless Panel 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 36

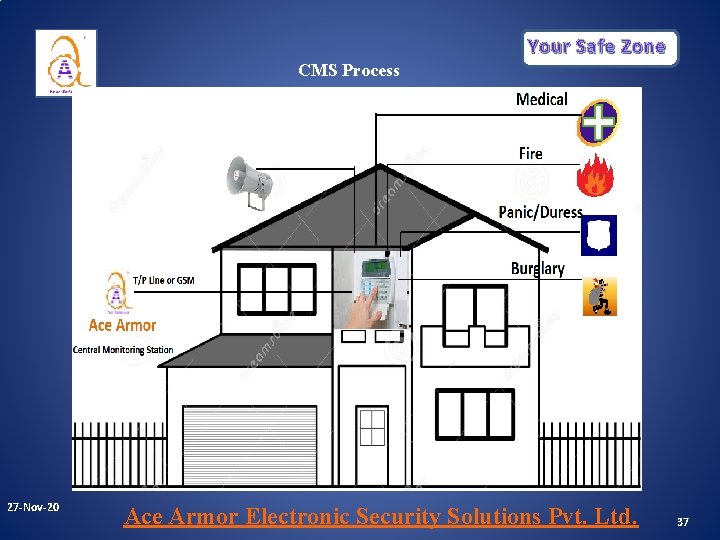

Your Safe Zone CMS Process Sounder (Hooter) 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 37

Your Safe Zone Thank you…, 27 -Nov-20 Ace Armor Electronic Security Solutions Pvt. Ltd. 38
