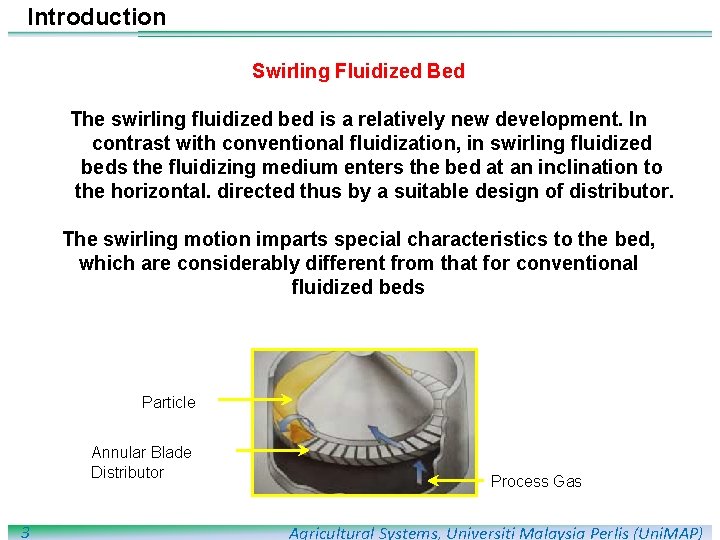

Introduction Swirling Fluidized Bed The swirling fluidized bed is a relatively new development. In contrast with conventional fluidization, in swirling fluidized beds the fluidizing medium enters the bed at an inclination to the horizontal. directed thus by a suitable design of distributor. The swirling motion imparts special characteristics to the bed, which are considerably different from that for conventional fluidized beds Particle Annular Blade Distributor 3 Process Gas Agricultural Systems, Universiti Malaysia Perlis (Uni. MAP)

Problem Statement & Objective Problem Statement [1] Even though commercially available, they have not received their due share in terms publication. [2] Lack of publications on the swirling fluidized bed; large room for various parametric studies [3] Despite of the high potentials for industrial application, no parametric studies have been reported Objective [1] To design a new concept of fluidization via annular blade distributor [2] To study air flow distribution in a swirling fluidized bed via numerical investigation. 4 Agricultural Systems, Universiti Malaysia Perlis (Uni. MAP)

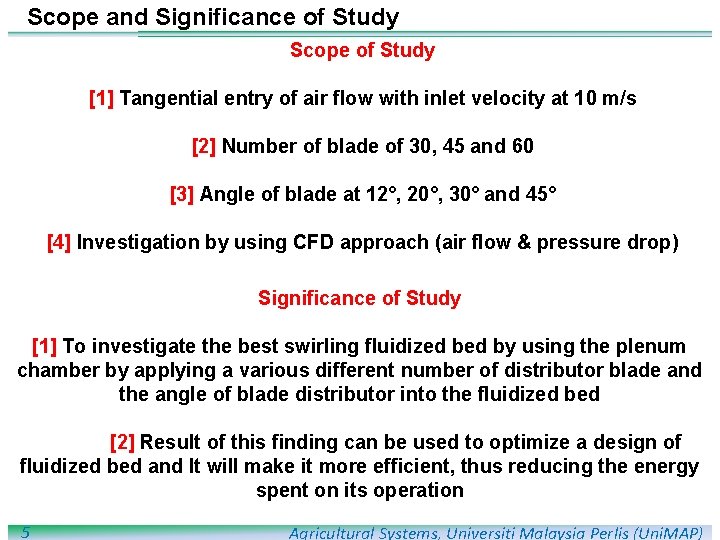

Scope and Significance of Study Scope of Study [1] Tangential entry of air flow with inlet velocity at 10 m/s [2] Number of blade of 30, 45 and 60 [3] Angle of blade at 12°, 20°, 30° and 45° [4] Investigation by using CFD approach (air flow & pressure drop) Significance of Study [1] To investigate the best swirling fluidized by using the plenum chamber by applying a various different number of distributor blade and the angle of blade distributor into the fluidized bed [2] Result of this finding can be used to optimize a design of fluidized bed and It will make it more efficient, thus reducing the energy spent on its operation 5 Agricultural Systems, Universiti Malaysia Perlis (Uni. MAP)

Literature Review Author Year Title J. R. Howard 1989 Fluidized Bed Technology: Principles and Application (Adam Hilger Publication, Bristol, UK) Binod Sreenivasan, Vijay R. Raghavan 2002 Hydrodynamics of a Swirling Fluidised Bed (Int. Journal of Chemical Processing) 2009 Statistical Analysis on the Design of Flow Modifying Centre-Bodies in a Plenum Chamber. (CFD Letters) 2009 Validation by PIV of the Numerical Study of Flow in the Plenum Chamber of a Swirling Fluidized Bed. (CFD Letters) 2011 Experimental Studies on a Swirling Fluidized Bed with Annular Distributor. (Journal of Applied Sciences) 2010 Numerical Investigation of Air Flow Distribution in a Swirling Fluidized Bed. (UTHM: Degree’s Tesis) Safiah bt Othman, Abas b Abdul Wahab, Vijay R. Raghavan Mohd Faizal B. Mohideen Batcha, Vijay R. Raghavan Sheikh Ezamuddin Sheikh Mohd Mustaffa 6 Agricultural Systems, Universiti Malaysia Perlis (Uni. MAP)

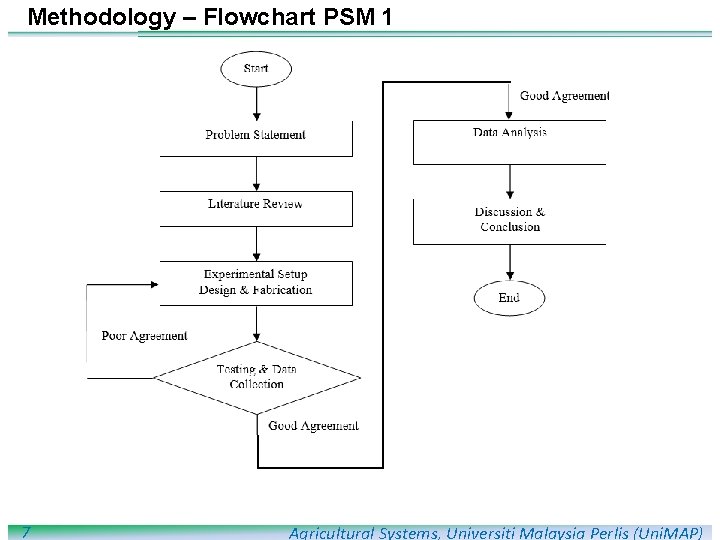

Methodology – Flowchart PSM 1 7 Agricultural Systems, Universiti Malaysia Perlis (Uni. MAP)

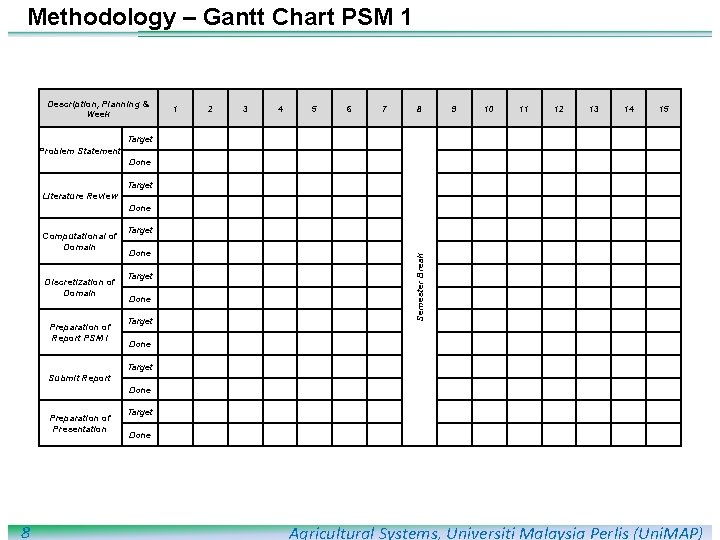

Methodology – Gantt Chart PSM 1 Description, Planning & Week 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Target Problem Statement Done Target Literature Review Done Discretization of Domain Preparation of Report PSM I Target Done Target Semester Break Computational of Domain Done Target Submit Report Done Preparation of Presentation 8 Target Done Agricultural Systems, Universiti Malaysia Perlis (Uni. MAP)

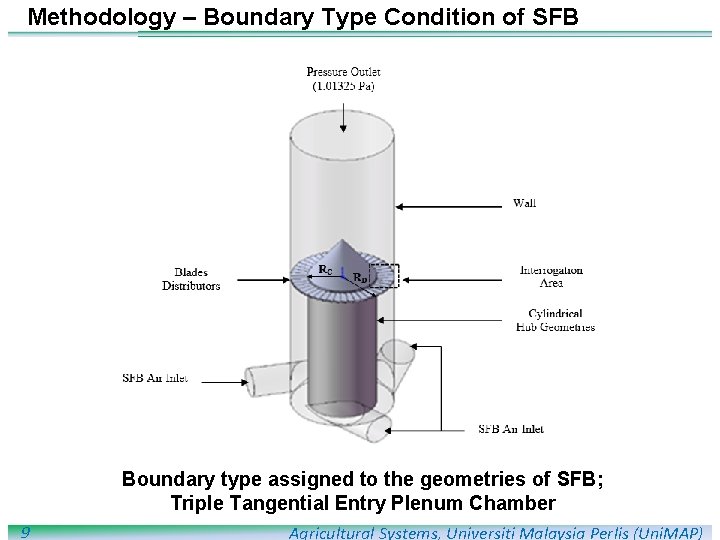

Methodology – Boundary Type Condition of SFB Boundary type assigned to the geometries of SFB; Triple Tangential Entry Plenum Chamber 9 Agricultural Systems, Universiti Malaysia Perlis (Uni. MAP)
