Your analytical partner Company Introduction Company Profile Experience

Your analytical partner ! Company Introduction Company Profile: • Experience • Customers Products: • Reducing Compound Photometer • Flame Ionization Detector • Span Gas Blender Services: • Existing Product Support • Custom Services

Your analytical partner ! Company Profile Experience: • Design, Manufacturing, Service since 1986 • Design of Peak Performer 1 (FID & RCP), RGA 5, ta 7000 R, ta 7000 F, RGA 7, custom analyzers and support equipment • Only company personnel with manufacturing experience with ALL listed analyzers. • Installation and / or Support of over 60 systems in Taiwan, Singapore, Japan, China, Korea • More service and training experience than any other company

Your analytical partner ! Company Profile Partial List of Customers: • Air Liquide America Corporation • Texas Instruments • ASU/Gas Plants • Air Products and Chemicals, Inc. • Intel • ASU/Gas Plants • Praxair, Inc. • ST Microelectronics • ASU/Gas Plants • BOC Gases • Intel • ASU/Gas Plants • United States Army • University of California at Berkeley • Stanford University

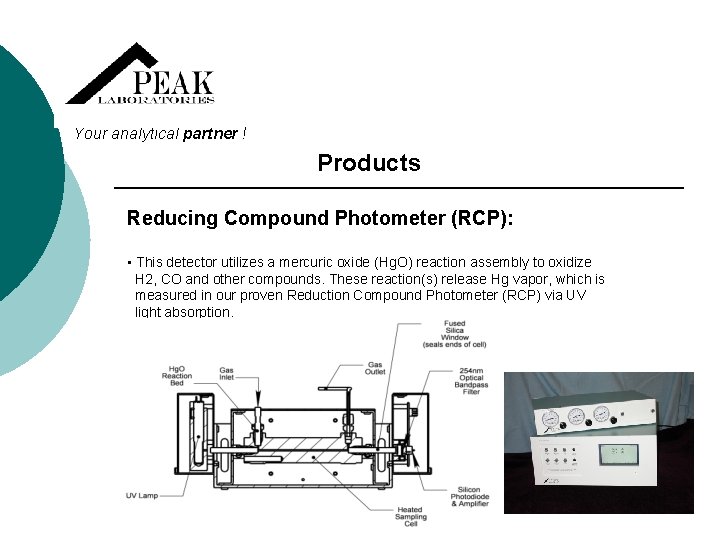

Your analytical partner ! Products Reducing Compound Photometer (RCP): • This detector utilizes a mercuric oxide (Hg. O) reaction assembly to oxidize H 2, CO and other compounds. These reaction(s) release Hg vapor, which is measured in our proven Reduction Compound Photometer (RCP) via UV light absorption.

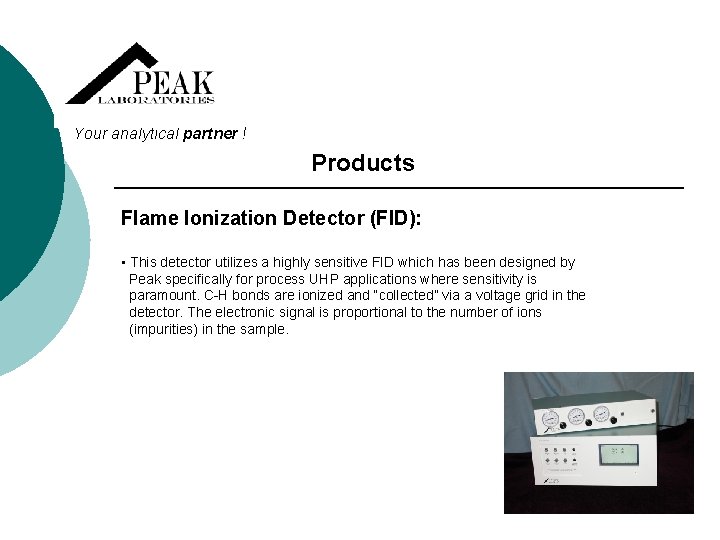

Your analytical partner ! Products Flame Ionization Detector (FID): • This detector utilizes a highly sensitive FID which has been designed by Peak specifically for process UHP applications where sensitivity is paramount. C-H bonds are ionized and “collected” via a voltage grid in the detector. The electronic signal is proportional to the number of ions (impurities) in the sample.

Your analytical partner ! Products Peak Span Gas Blender (PSB): • The Peak Span Gas Blender operation is based on fixed restrictors. It was developed to provide an accurate, reliable and linear device to calibrate the PP 1 in your range of interest while lowering the cost of ownership. The Peak Blender minimizes calibration variances by utilizing one certified calibration cylinder to calibrate across the entire dynamic range of the PP 1.

Your analytical partner ! Products Features: • User friendly interface • Multi-point calibration • Multiple communication options • Low cost of ownership • Proven technology

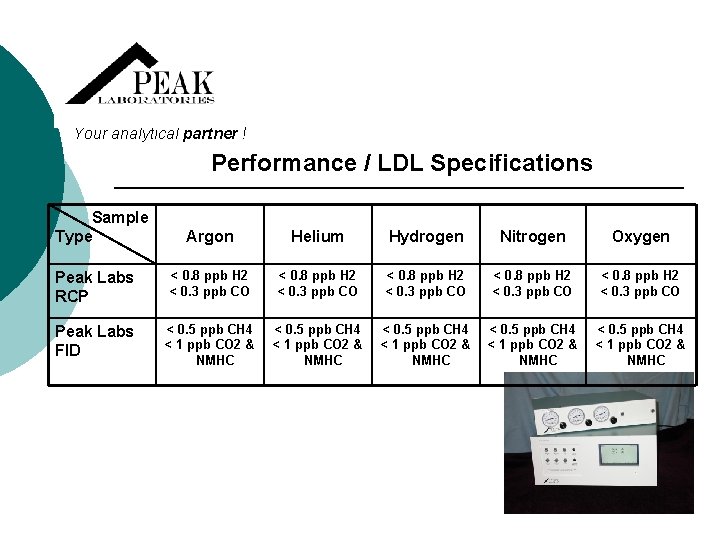

Your analytical partner ! Performance / LDL Specifications Sample Type Argon Helium Hydrogen Nitrogen Oxygen Peak Labs RCP < 0. 8 ppb H 2 < 0. 3 ppb CO Peak Labs FID < 0. 5 ppb CH 4 < 1 ppb CO 2 & NMHC

Your analytical partner ! Services Existing Product Support: • Peak Labs currently services existing analyzers with similar technologies all over the world. Spare parts and technical training are available for all RCP and FID type products. • “Trade-ups” are available.

Your analytical partner ! Services Custom Services: • System integration • Full analytical solutions • Specialized Analyzer Offerings • Non-Peak Labs product service and support
