전화 및 케이블네트워크 Young-Tae Han {han 0 tae@gmail. com}

전화 및 케이블네트워크 Young-Tae Han {han 0 tae@gmail. com}

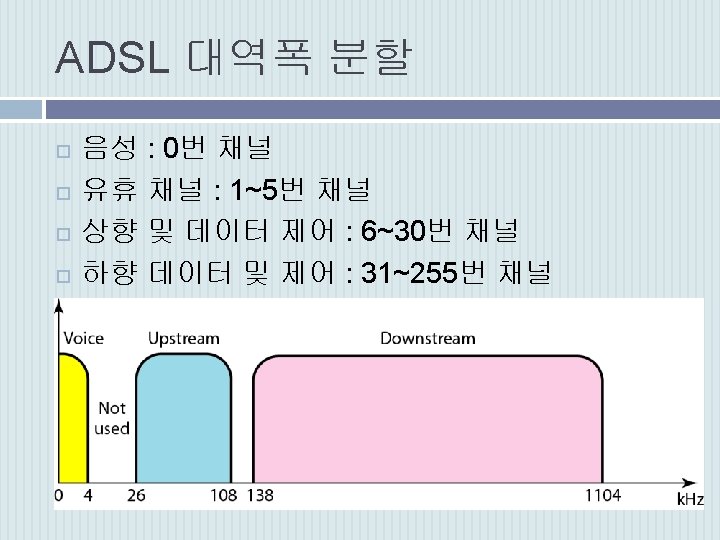

변조기법 이산 다중음조 기술(DMT, Distance Multitone Technique)기법 이용 QAM과 FDM 결합 1. 104 Mhz/256

변조기법 이산 다중음조 기술(DMT, Distance Multitone Technique)기법 이용 QAM과 FDM 결합 1. 104 Mhz/256 Channels

ADSL 모뎀 가입자 전화회사 Digital subscriber line access multiplexer (DSLAM)

ADSL 모뎀 가입자 전화회사 Digital subscriber line access multiplexer (DSLAM)

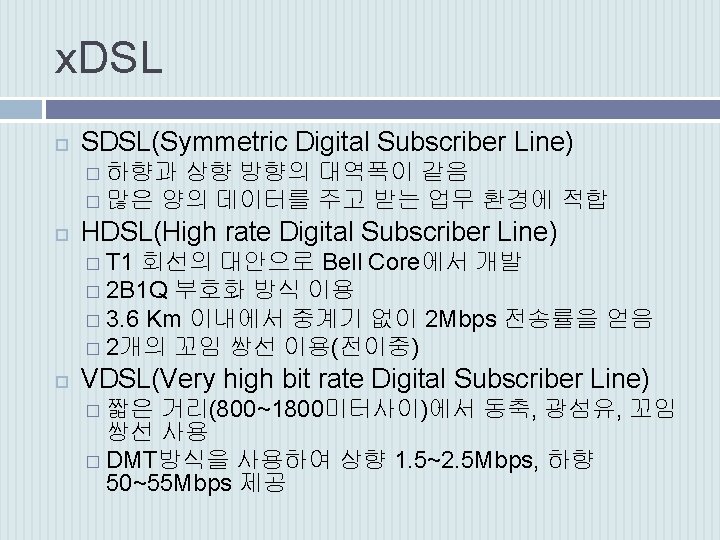

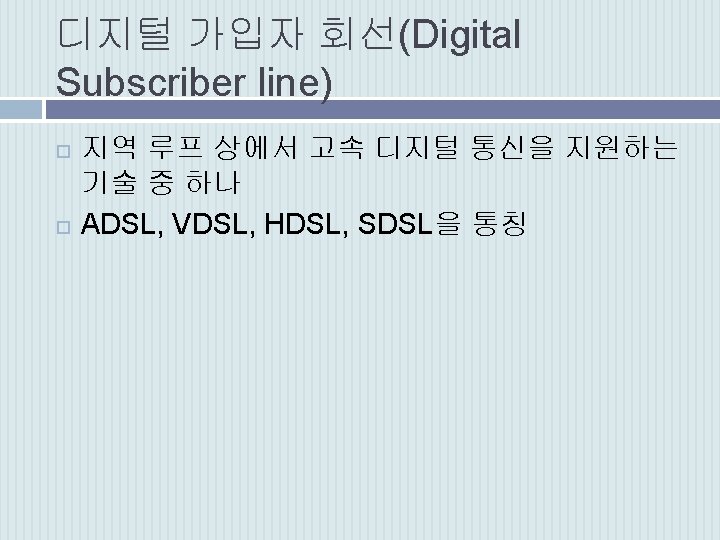

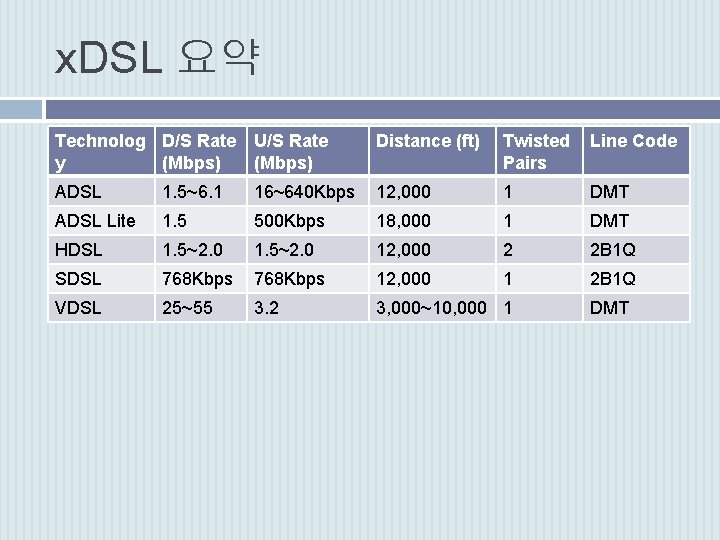

x. DSL 요약 Technolog D/S Rate U/S Rate y (Mbps) Distance (ft) Twisted Pairs

x. DSL 요약 Technolog D/S Rate U/S Rate y (Mbps) Distance (ft) Twisted Pairs Line Code ADSL 1. 5~6. 1 16~640 Kbps 12, 000 1 DMT ADSL Lite 1. 5 500 Kbps 18, 000 1 DMT HDSL 1. 5~2. 0 12, 000 2 2 B 1 Q SDSL 768 Kbps 12, 000 1 2 B 1 Q VDSL 25~55 3. 2 3, 000~10, 000 1 DMT

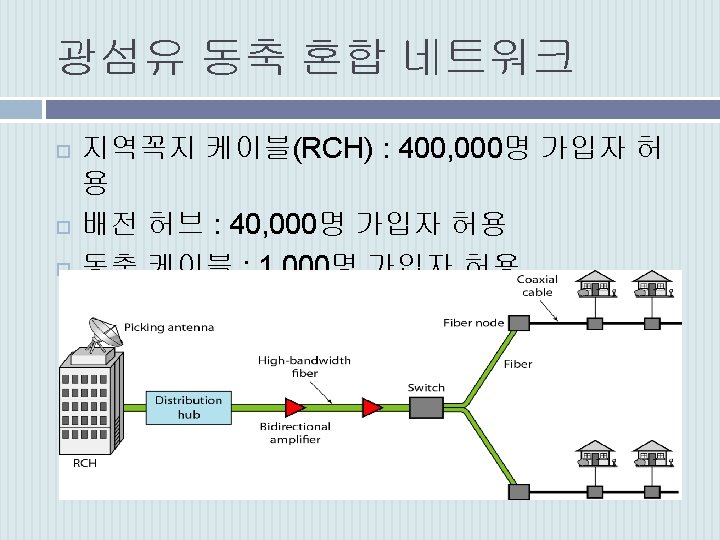

케이블 모뎀 전송 시스템 (CMTS) Cable Model Transmission System

케이블 모뎀 전송 시스템 (CMTS) Cable Model Transmission System
