You are using a wrench and trying to
- Slides: 15
You are using a wrench and trying to loosen a rusty nut. Which of the arrangements shown is most effective in loosening the nut? Least effective in loosening the nut?
Objects moving in a circle V = ωR Linear speed = V the distance moved per unit of time S=Vt Angular speed = ω the angle moved per unit of time φ=ωt Period = T the time required for one revolution Frequency = f the number of revolutions per unit time R φ

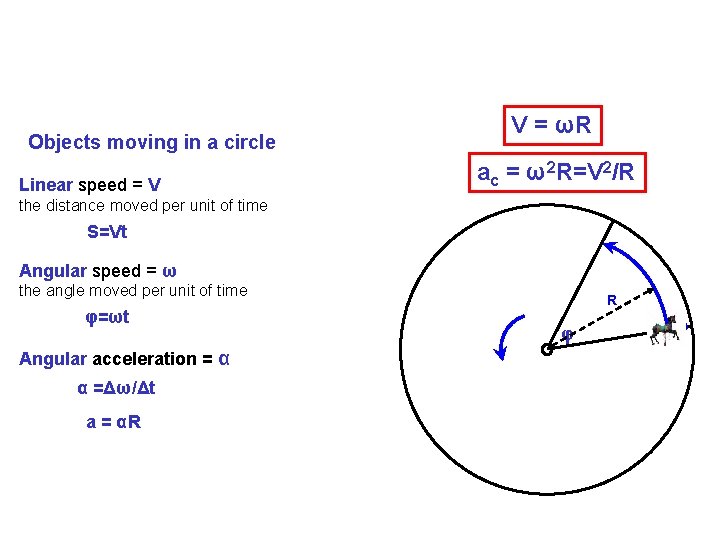

Objects moving in a circle Linear speed = V V = ωR ac = ω2 R=V 2/R the distance moved per unit of time S=Vt Angular speed = ω the angle moved per unit of time φ=ωt Angular acceleration = α α =Δω/Δt a = αR R φ

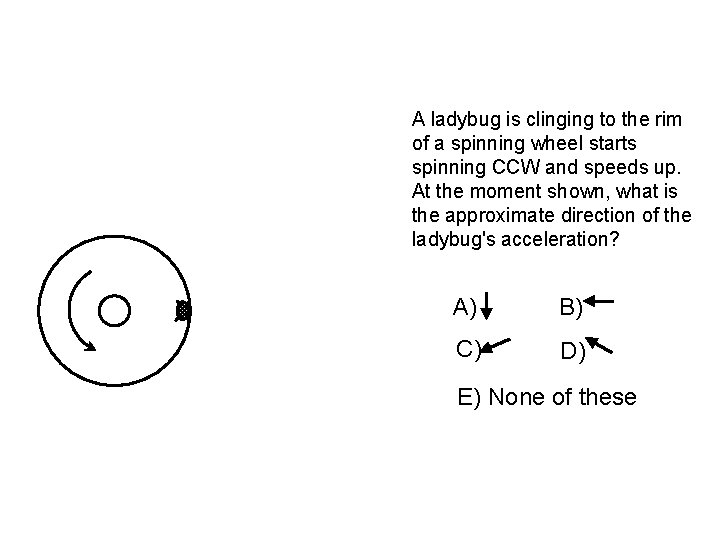

A ladybug is clinging to the rim of a spinning wheel starts spinning CCW and speeds up. At the moment shown, what is the approximate direction of the ladybug's acceleration? A) B) C) D) E) None of these

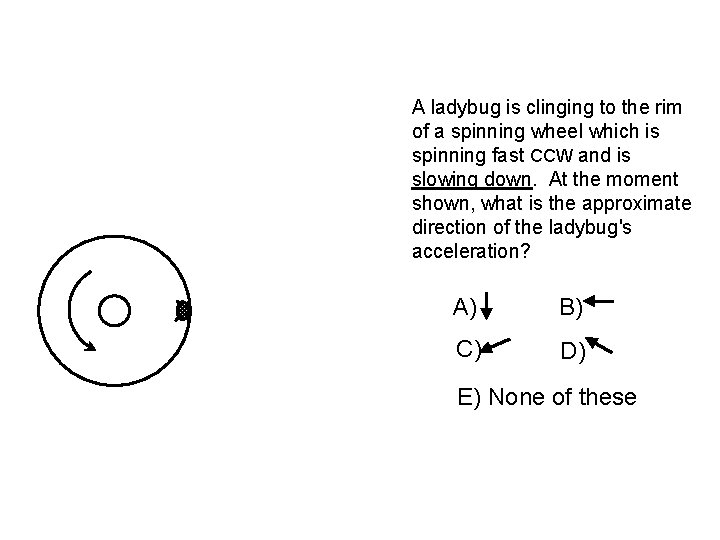

A ladybug is clinging to the rim of a spinning wheel which is spinning fast CCW and is slowing down. At the moment shown, what is the approximate direction of the ladybug's acceleration? A) B) C) D) E) None of these

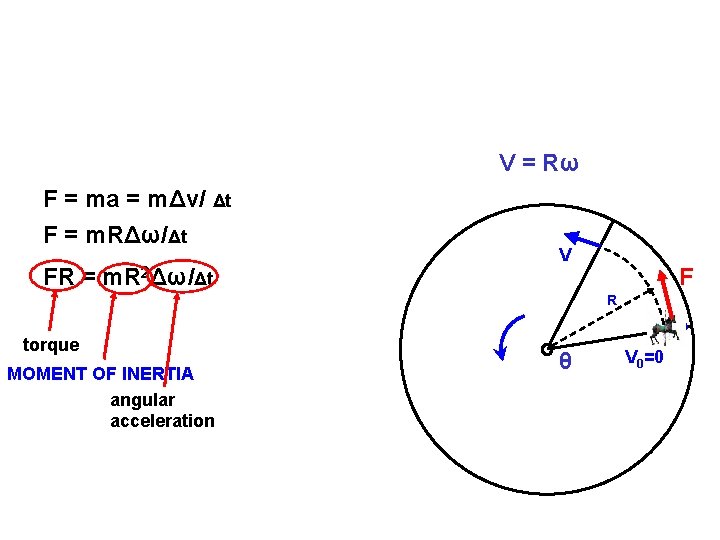

V = Rω F = ma = mΔv/ Δt F = m. RΔω/Δt FR = m. R 2Δω/Δt V F R torque MOMENT OF INERTIA angular acceleration θ V 0=0

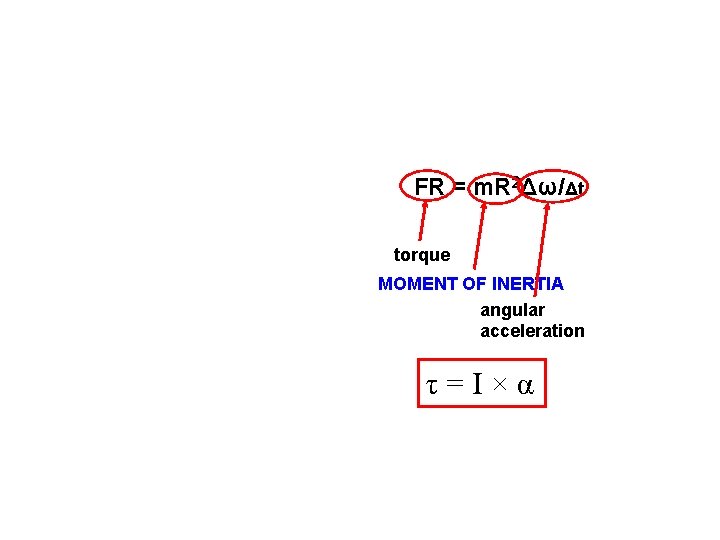

FR = m. R 2Δω/Δt torque MOMENT OF INERTIA angular acceleration τ=I×α

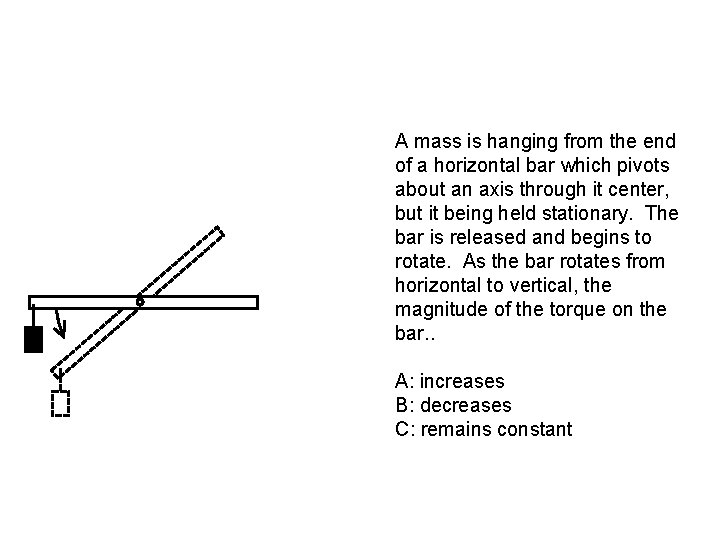

A mass is hanging from the end of a horizontal bar which pivots about an axis through it center, but it being held stationary. The bar is released and begins to rotate. As the bar rotates from horizontal to vertical, the magnitude of the torque on the bar. . A: increases B: decreases C: remains constant

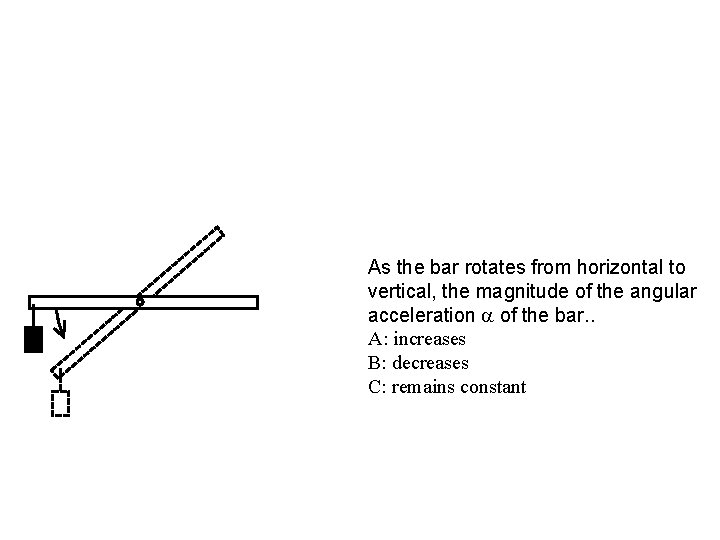

As the bar rotates from horizontal to vertical, the magnitude of the angular acceleration of the bar. . A: increases B: decreases C: remains constant

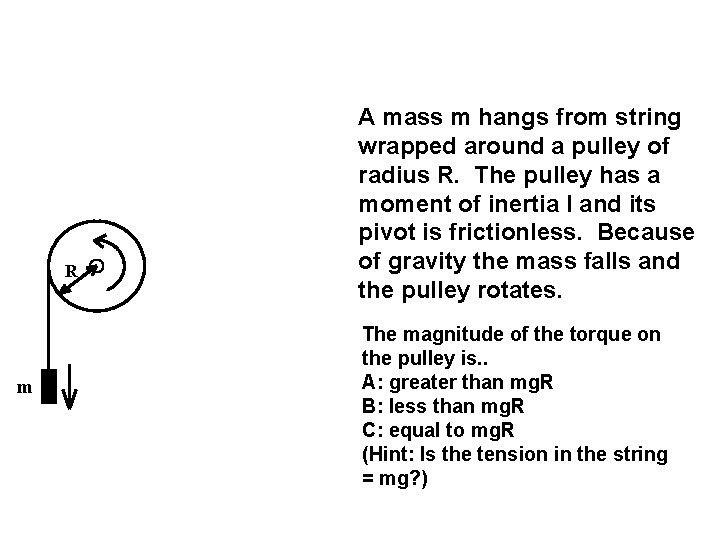

R m A mass m hangs from string wrapped around a pulley of radius R. The pulley has a moment of inertia I and its pivot is frictionless. Because of gravity the mass falls and the pulley rotates. The magnitude of the torque on the pulley is. . A: greater than mg. R B: less than mg. R C: equal to mg. R (Hint: Is the tension in the string = mg? )

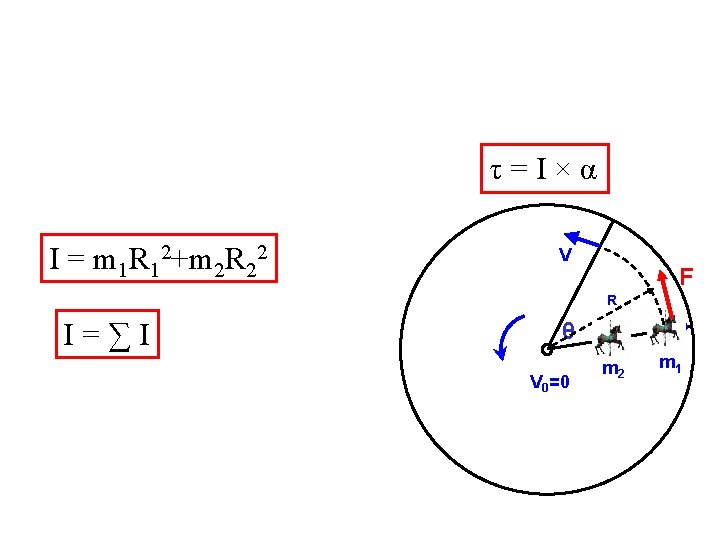

τ=I×α I = m 1 R 12+m 2 R 22 V F R I=∑I θ V 0=0 m 2 m 1
M, R, L Moment of inertia is larger in situation: A B C the same A B C

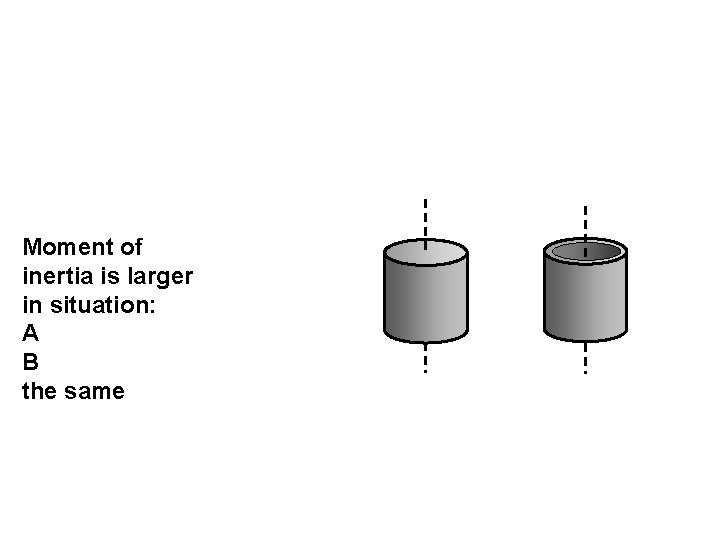

Moment of inertia is larger in situation: A B the same

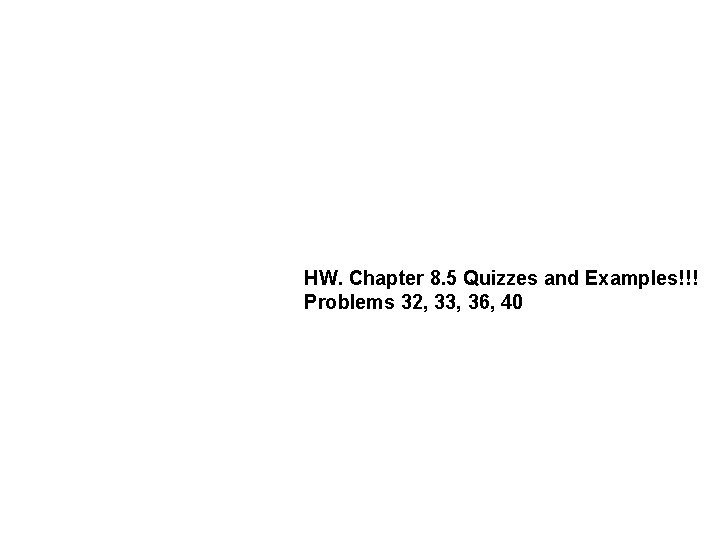

HW. Chapter 8. 5 Quizzes and Examples!!! Problems 32, 33, 36, 40
