Year 7 Graphics CAD CAM Logos Symbols Pictograms

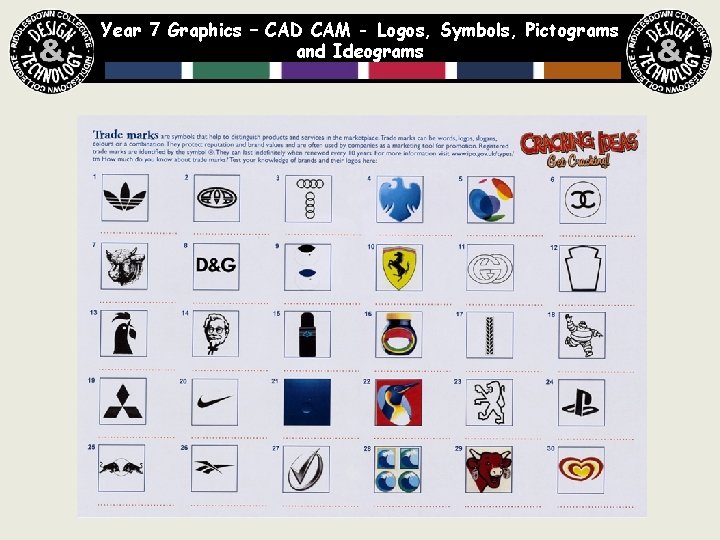

Year 7 Graphics – CAD CAM - Logos, Symbols, Pictograms and Ideograms Objective: • To understand what Logos, Symbols, Pictograms and Ideograms are and why they are used. Outcome: • To be able to use them to communicate and inform. Starter How many can you identify in 2 mins? Level Level 3 c: 3 b: 3 a: 4 c: 4 b: 4 a: 5 c: 1 -6 7 -9 10 -12 13 -15 16 -18 19 -24 25 -30

Year 7 Graphics – CAD CAM - Logos, Symbols, Pictograms and Ideograms

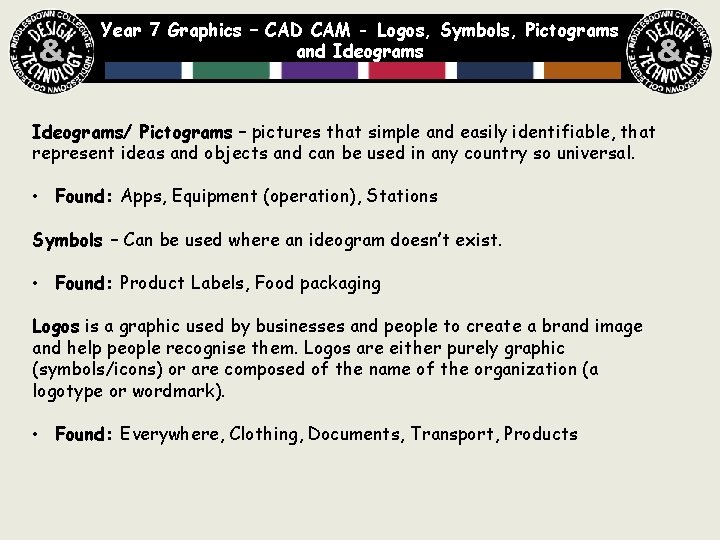

Year 7 Graphics – CAD CAM - Logos, Symbols, Pictograms and Ideograms/ Pictograms – pictures that simple and easily identifiable, that represent ideas and objects and can be used in any country so universal. • Found: Apps, Equipment (operation), Stations Symbols – Can be used where an ideogram doesn’t exist. • Found: Product Labels, Food packaging Logos is a graphic used by businesses and people to create a brand image and help people recognise them. Logos are either purely graphic (symbols/icons) or are composed of the name of the organization (a logotype or wordmark). • Found: Everywhere, Clothing, Documents, Transport, Products

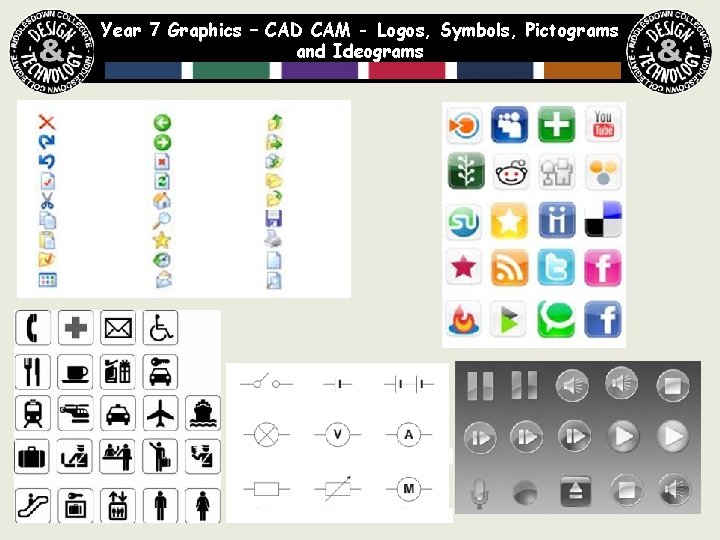

Year 7 Graphics – CAD CAM - Logos, Symbols, Pictograms and Ideograms

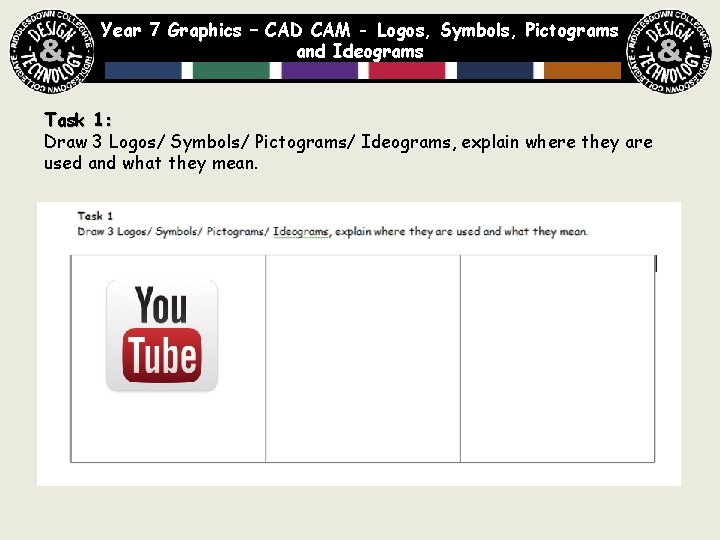

Year 7 Graphics – CAD CAM - Logos, Symbols, Pictograms and Ideograms Task 1: Draw 3 Logos/ Symbols/ Pictograms/ Ideograms, explain where they are used and what they mean.

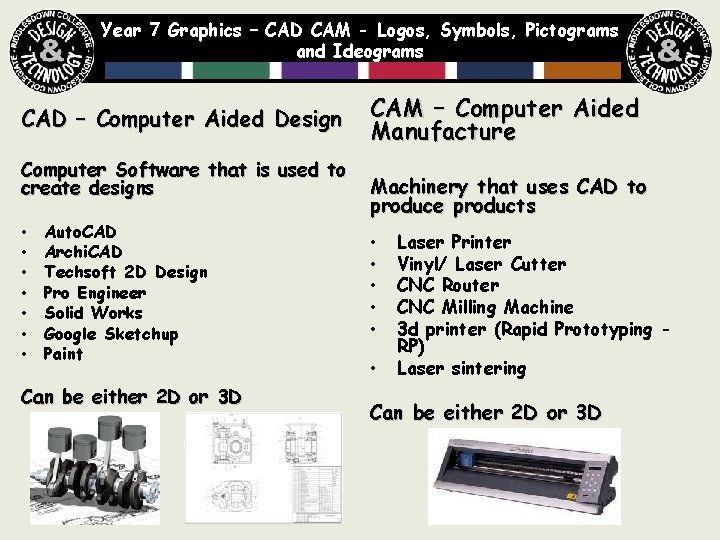

Year 7 Graphics – CAD CAM - Logos, Symbols, Pictograms and Ideograms CAD – Computer Aided Design Computer Software that is used to create designs • • Auto. CAD Archi. CAD Techsoft 2 D Design Pro Engineer Solid Works Google Sketchup Paint Can be either 2 D or 3 D CAM – Computer Aided Manufacture Machinery that uses CAD to produce products • • • Laser Printer Vinyl/ Laser Cutter CNC Router CNC Milling Machine 3 d printer (Rapid Prototyping RP) Laser sintering Can be either 2 D or 3 D

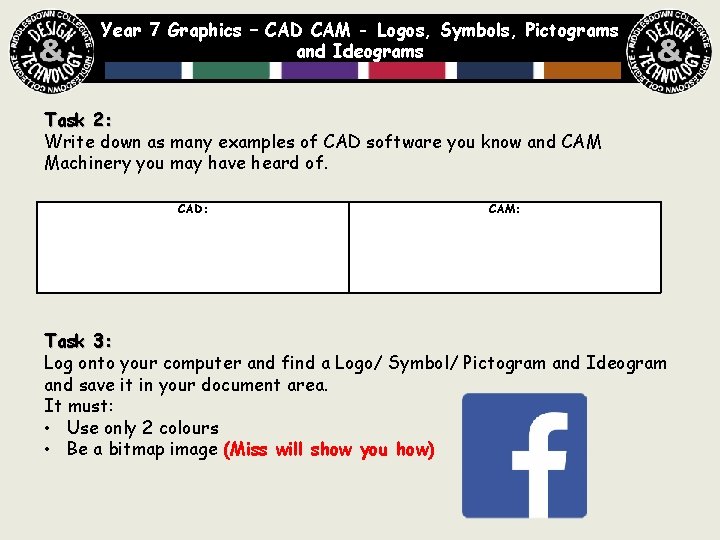

Year 7 Graphics – CAD CAM - Logos, Symbols, Pictograms and Ideograms Task 2: Write down as many examples of CAD software you know and CAM Machinery you may have heard of. CAD: CAM: Task 3: Log onto your computer and find a Logo/ Symbol/ Pictogram and Ideogram and save it in your document area. It must: • Use only 2 colours • Be a bitmap image (Miss will show you how)

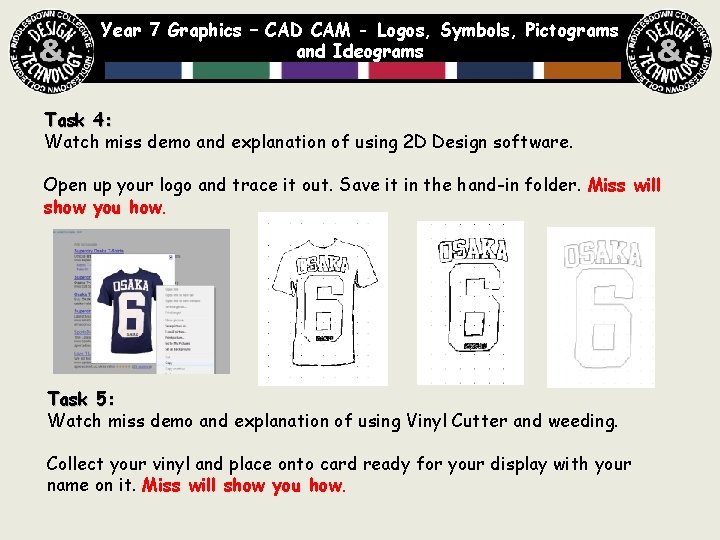

Year 7 Graphics – CAD CAM - Logos, Symbols, Pictograms and Ideograms Task 4: Watch miss demo and explanation of using 2 D Design software. Open up your logo and trace it out. Save it in the hand-in folder. Miss will show you how. Task 5: Watch miss demo and explanation of using Vinyl Cutter and weeding. Collect your vinyl and place onto card ready for your display with your name on it. Miss will show you how.

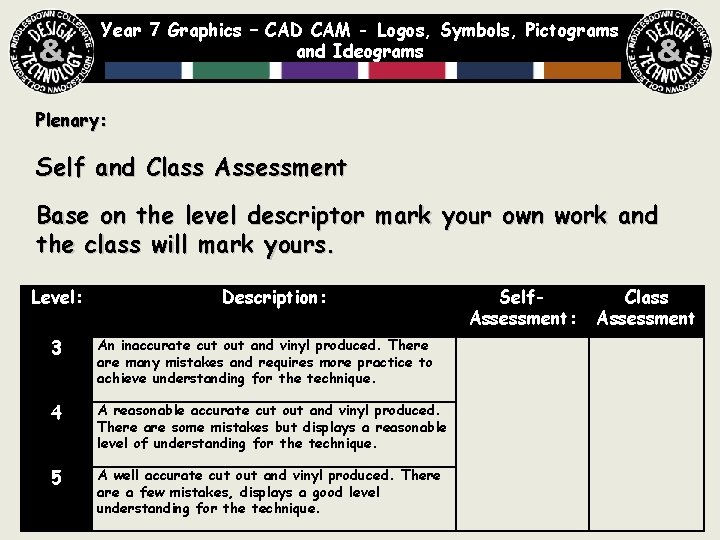

Year 7 Graphics – CAD CAM - Logos, Symbols, Pictograms and Ideograms Plenary: Self and Class Assessment Base on the level descriptor mark your own work and the class will mark yours. Level: Description: 3 An inaccurate cut out and vinyl produced. There are many mistakes and requires more practice to achieve understanding for the technique. 4 A reasonable accurate cut out and vinyl produced. There are some mistakes but displays a reasonable level of understanding for the technique. 5 A well accurate cut out and vinyl produced. There a few mistakes, displays a good level understanding for the technique. Self. Assessment: Class Assessment

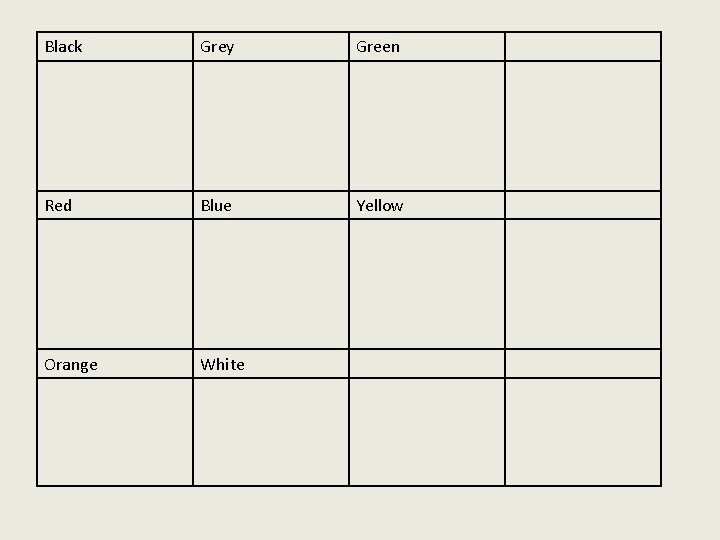

Black Grey Green Red Blue Yellow Orange White

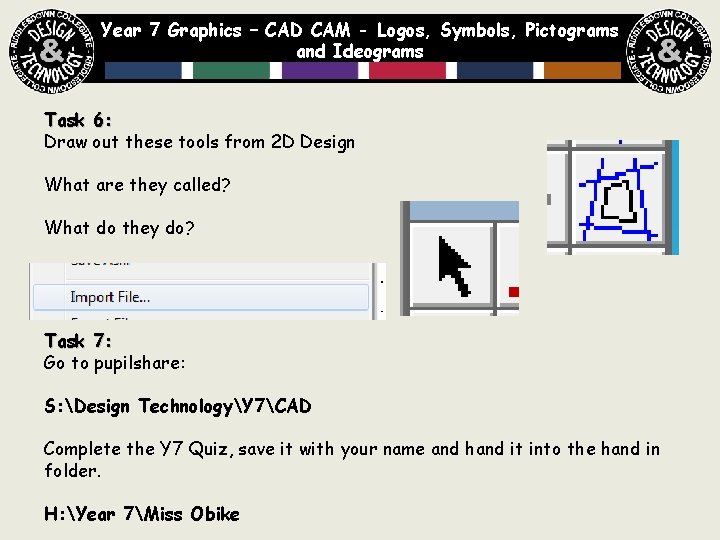

Year 7 Graphics – CAD CAM - Logos, Symbols, Pictograms and Ideograms Task 6: Draw out these tools from 2 D Design What are they called? What do they do? Task 7: Go to pupilshare: S: Design TechnologyY 7CAD Complete the Y 7 Quiz, save it with your name and hand it into the hand in folder. H: Year 7Miss Obike
