XVS8000 New MVS Hybrid Processor Copyright 2015 Sony
XVS-8000 New MVS Hybrid Processor Copyright 2015 Sony Corporation
MVS Line up and control panel choice XVS-8000 ICP-X 7000 Series Control Panel Flagship MVS Switchers 4 K Capable MVS-8000 X Up to 5 ME 3 G & IP Ready 4 K support Up to 10 ME MVS-7000 X Up to 6 ME 3 G Ready Cost Effective MVS Switchers MVS-6530 3 ME MVS-3000 A 2 ME ICP-6500/3000 Series Control Panel # 3 G Ready
New IP Switcher Processor • MVS Series switcher with IP Interface • Powerful 4 K resources • Part of MVS Family • Mixed SDI and IP I/O • Scalable and flexible live system configuration IP Live Production System Current Live System SDI Router Common matrix for Router/Switcher Matrix Transmission Network Router (NMI) # Transmission
Key Features • Multiple format support • 4 K, 1080/50 P (Level A, Level B), HD, 24 P, 25 P, 50 i, 720 P • Flexible format conversion at I/P and O/P • Choice of SDI or IP connection • Improved internal clip store • Non-volatile • Improved capacity with 16 channel playback • Still store via keyer resizers • Improved multiviewer • Choice of new patterns • Audio level meter • Continuation of MVS-7/8000 X features • Available – End Dec 2015 #

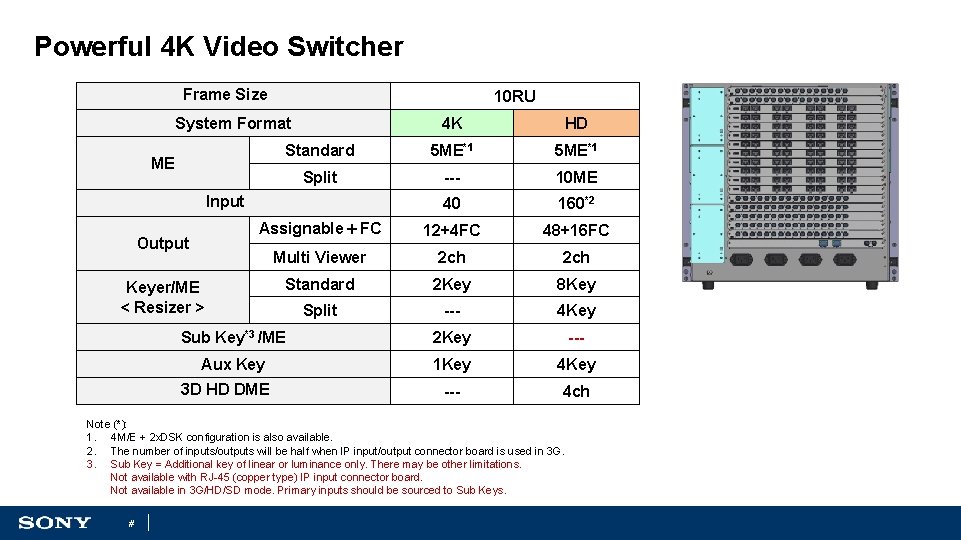

Powerful 4 K Video Switcher Frame Size 10 RU System Format 4 K HD Standard 5 ME*1 Split --- 10 ME 40 160*2 Assignable+FC 12+4 FC 48+16 FC Multi Viewer 2 ch Standard 2 Key 8 Key Split --- 4 Key Sub Key*3 /ME 2 Key --- Aux Key 1 Key 4 Key --- 4 ch ME Input Output Keyer/ME < Resizer > 3 D HD DME Note (*): 1. 4 M/E + 2 x. DSK configuration is also available. 2. The number of inputs/outputs will be half when IP input/output connector board is used in 3 G. 3. Sub Key = Additional key of linear or luminance only. There may be other limitations. Not available with RJ-45 (copper type) IP input connector board. Not available in 3 G/HD/SD mode. Primary inputs should be sourced to Sub Keys. #

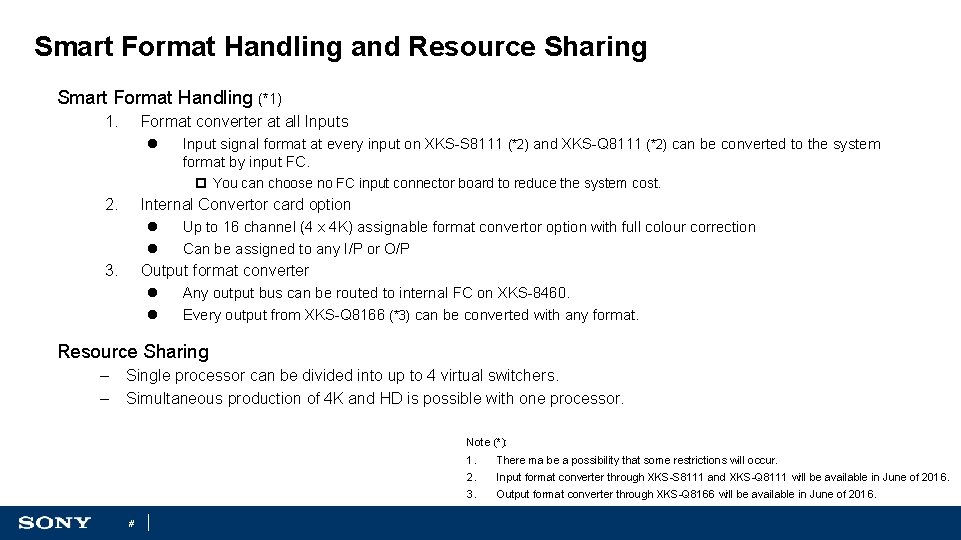

Smart Format Handling and Resource Sharing Smart Format Handling (*1) 1. Format converter at all Inputs l Input signal format at every input on XKS-S 8111 (*2) and XKS-Q 8111 (*2) can be converted to the system format by input FC. p You can choose no FC input connector board to reduce the system cost. 2. Internal Convertor card option l Up to 16 channel (4 x 4 K) assignable format convertor option with full colour correction l Can be assigned to any I/P or O/P Output format converter l Any output bus can be routed to internal FC on XKS-8460. l Every output from XKS-Q 8166 (*3) can be converted with any format. 3. Resource Sharing – – Single processor can be divided into up to 4 virtual switchers. Simultaneous production of 4 K and HD is possible with one processor. Note (*): 1. 2. 3. # There ma be a possibility that some restrictions will occur. Input format converter through XKS-S 8111 and XKS-Q 8111 will be available in June of 2016. Output format converter through XKS-Q 8166 will be available in June of 2016.
Frame Memory (FM) – Faster, More Capacity, Non-volatile Up to 20 -CH in HD • Still image and video clip data handling • More PB-Channels for HD and 4 K • Advanced FM-Capacity. Approx. 160 seconds* (5000 frames*) of HD picture data can be stored in the on-board memory. Those picture can be instantly recalled at 20 FM channels. • • Large and non-volatile “on board SSD” can save picture data and support fast data transfer from/to the on-board memory. Still store will available per Keyer. ( # On Board Memory (32 GB) Work-Buffer More Capacity Gb. E CPU Hi-Speed Save/Load On-Board SSD (512 GB) Non Volatile

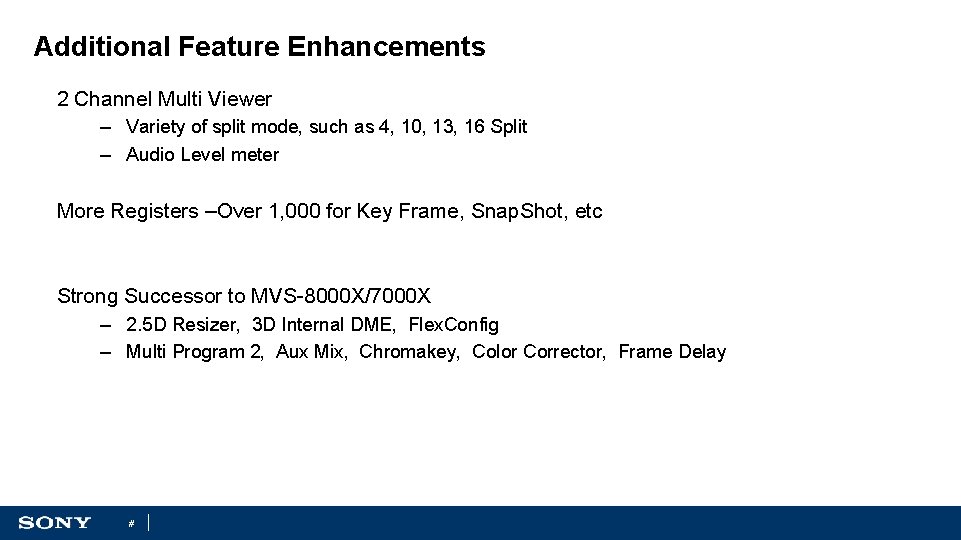

Additional Feature Enhancements 2 Channel Multi Viewer – Variety of split mode, such as 4, 10, 13, 16 Split – Audio Level meter More Registers –Over 1, 000 for Key Frame, Snap. Shot, etc Strong Successor to MVS-8000 X/7000 X – 2. 5 D Resizer, 3 D Internal DME, Flex. Config – Multi Program 2, Aux Mix, Chromakey, Color Corrector, Frame Delay #
Mechanical Design
Product Photos #
Dimension and Weight 440 mm Dimension – H 443. 6 x W 440 x D 585 (mm) Weight 585 mm 443. 6 mm – Approx. 67 kg (fully loaded) #

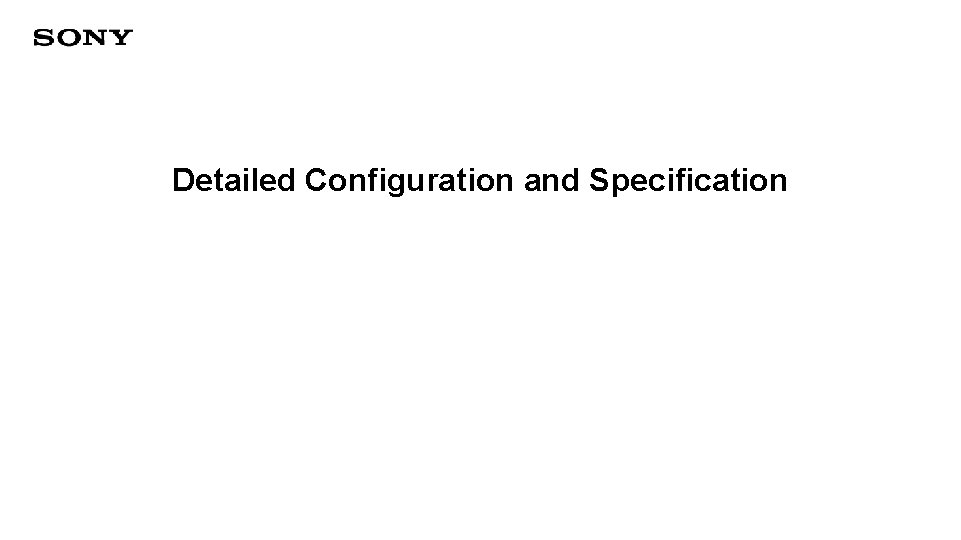

Detailed Configuration and Specification
Product Configuration Type Software Front Board Rear Board Frame Input Connector Board (*1) Model Code Model Name SDI/ IP FC # of Boards --- 0– 1 XVS-8000 Multi Format Switcher XKS-S 8110 SDI Input Connector Board SDI No XKS-S 8111 SDI Input and FC Connector Board SDI Yes total 0 – 10 Description # of Ports/Channels 10 RU Frame, XPTx 2, OUTx 1, PSUx 4 (2 primary + 2 redundant) --- BNCx 16, No input FC/CCR 4 K: 4, 3 G/HD/SD: 16 BNCx 16, Input FC/CCR at any input 4 K: 4, 3 G/HD/SD: 16 RJ-45 x 8 (4 primary + 4 redundant), No input FC/CCR 4 K: 4, 3 G: 8, HD: 16 QSFP+x 2 (1 primary + 1 redundant), Input FC/CCR at any input 4 K: 4, 3 G: 8, HD: 16 BNCx 16, No output FC 4 K: 3+1, 3 G/HD/SD: 12+4 RJ-45 x 8 (4 primary + 4 redundant), No output FC 4 K: 3+1, 3 G: 8, HD: 12+4 QSFP+x 2 (1 primary + 1 redundant), Output FC at any output 4 K: 3+1, 3 G: 8, HD: 12+4 XKS-T 8110 (*4) IP Input Connector Board IP No XKS-Q 8111 (*4) QSFP IP Input and FC Connector Board IP Yes XKS-S 8165 SDI Output Connector Board SDI No XKS-T 8165 IP Output Connector Board IP No XKS-Q 8166 (*4) QSFP IP Output and FC Connector Board IP Yes Out XKS-8160 Output Processor Board --- 0– 1 2 nd output processor board if more than 2 output connector boards installed. Every assignable output (12 output per board) can apply output CCR. --- ME XKS-8210 Mix Effect Board --- 0– 5 1 M/E board, 4 K: 2 full keyers + 2 sub keyers, 3 G/HD/SD: 8 full keyers --- FM XKS-8440 Frame Memory Board --- 0– 1 4 K: 600 Frames, Approx. 20 sec, HD: 5, 000 Frames, Approx. 160 sec --- FC (*3) XKS-8460 Format Converter Board --- 0– 1 4 K: Internal FCx 4, Internal CCRx 1, 3 G/HD/SD: Internal FCx 16, Internal CCRx 4 All Internal FC/CCR enable to assign to any input or output. DME XKS-8470 HD DME Board --- 0– 2 3 D HD DME, 3 G/HD/SD: w/ Non-linear Effect --- XZS-8510 Switcher Upgrade Software --- 0– 1 Upgrade 1 st M/E board to 4 K --- XZS-8520 Switcher Upgrade Software --- 0– 1 Upgrade 2 nd M/E board to 4 K --- XZS-8530 Switcher Upgrade Software --- 0– 1 Upgrade 3 rd M/E board to 4 K --- XZS-8540 Switcher Upgrade Software --- 0– 1 Upgrade 4 th M/E board to 4 K --- XZS-8550 Switcher Upgrade Software --- 0– 1 Upgrade 5 th M/E board to 4 K --- XZS-8200 Multi Program 2 Software --- 0– 1 Multi Program 2 mode available --- Output Connector Board (*2) 4 K/3 G MP 2 total 0– 5 (incl. MV) 4 K 3 G/HD: 4(FC), 1(CCR) 3 G HD: 16(FC), 4(CCR) HD SD: 16(FC), 4(CCR) Note (*): 1. Any input boards can install into the frame within the maximum installable number of boards. 2. Any output boards can install into the frame within the maximum installable number of boards. # 3. Limited type of formats will be available in the launch timing of December, 2015 and the other formats will be supported later. 4. XKS-S 8111, XKS-Q 8166 will be available in June, 2016.

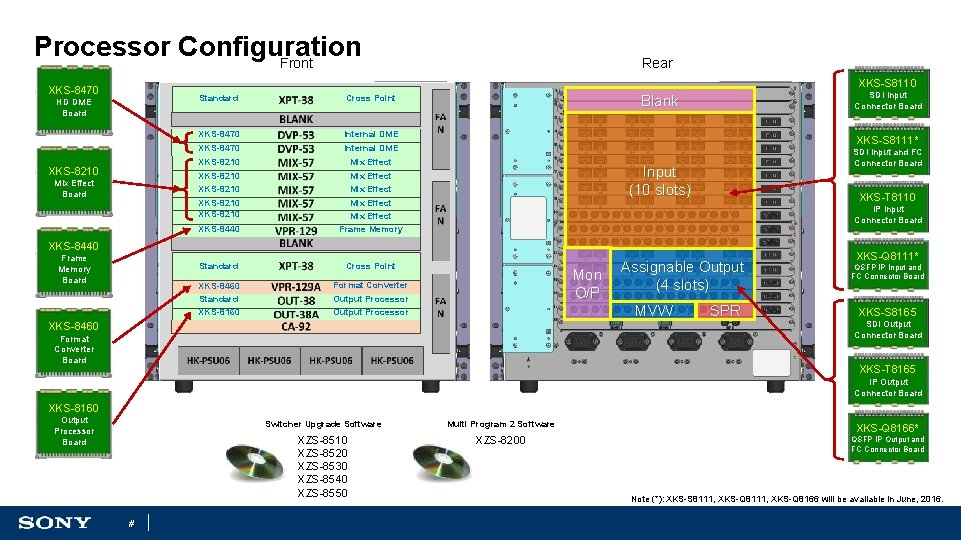

Processor Configuration Front Rear XKS-S 8110 XKS-8470 HD DME Board XKS-8210 Mix Effect Board Standard Cross Point XKS-8470 Internal DME XKS-8210 Mix Effect XKS-8210 XKS-8440 Mix Effect Frame Memory Standard Cross Point XKS-8460 Standard XKS-8160 Format Converter SDI Input Connector Board Blank XKS-S 8111* SDI Input and FC Connector Board Input (10 slots) XKS-T 8110 IP Input Connector Board XKS-8440 Frame Memory Board Mon O/P Output Processor Assignable Output (4 slots) MVW XKS-8460 Format Converter Board SPR XKS-Q 8111* QSFP IP Input and FC Connector Board XKS-S 8165 SDI Output Connector Board XKS-T 8165 IP Output Connector Board XKS-8160 Output Processor Board # Switcher Upgrade Software Multi Program 2 Software XZS-8510 XZS-8520 XZS-8530 XZS-8540 XZS-8550 XZS-8200 XKS-Q 8166* QSFP IP Output and FC Connector Board Note (*): XKS-S 8111, XKS-Q 8166 will be available in June, 2016.
Input, Output and Internal FC/CCR Input Connector Board Output Connector Board XKS-S 8110 SDI Input Connector Board SDI --- XKS-S 8111 (*1) SDI Input and FC Connector Board SDI FC XKS-T 8110 IP Input Connector Board IP XKS-Q 8111 (*1) QSFP IP Input and FC Connector Board IP Input FC SDI Output Connector Board --- XKS-T 8165 IP Output Connector Board IP --- FC XKS-Q 8166* (*1) XKS-8460 QSFP IP Output and FC Connector Board Format Converter Board IP FC XVS-8000 Input CCR XPT XKS-S 8110 XKS-S 8111 Output CCR OUT-38*4 XKS-S 8110 XKS-S 8111 FC (16*2) CCR (16*2) FC (16*2) SDI --- XKS-S 8165 Output FC XKS-S 8165 CCR Internal CCR (4) CCR (12*3) (16*2) CCR (12*3) XKS-T 8165 CCR (16*2) CCR (12*3) FC (16*3) XKS-Q 8166 CCR (16*2) Internal FC (16) CCR (12*3) FC (16*3) XKS-Q 8166 XKS-T 8110 XKS-Q 8111 XKS-8160 XKS-8460 # Note (*): 1. XKS-S 8111, XKS-Q 8166 will be available in June of 2016. 2. The numbers of input FC/CCR are applied in 3 G/HD/SD. These numbers become quarter in 4 K. 3. The numbers of output FC/CCR are applied in HD/SD. These numbers become half in 3 G and quarter in 4 K.
Input and Output Connectors Input : Up to 10 slots Output : Up to 5 slots XVS-8000 4 K : 40 Inputs 3 G : 80 Inputs HD : 160 Inputs SD : 160 Inputs Input : Up to 10 slots Output : Up to 5 slots XVS-8000 4 K : 40 Inputs 3 G : 160 Inputs HD : 160 Inputs SD : 160 Inputs #
Signal Format 4 K 3 G HD SD # XVS-8000 Availability MVS-8000 X SQD Level-A ◎ Jun. 2016 × SQD Level-B ○ Jun. 2016 ○ 2 SI Level-A ◎ Dec. 2015 × 2 SI Level-B ○ Mar. 2016 ○ Level-A ◎ Jun. 2016 △ Level-B ○ Jun. 2016 ○ 1080 P 59. 94 Hz ◎ Jun. 2016 ◎ 1080 P 50 Hz ◎ Jun. 2016 ◎ 1080 i 59. 94 Hz ◎ Dec. 2015 ◎ 1080 i 50 Hz ◎ Dec. 2015 ◎ 1080 Ps. F 29. 97 Hz ◎ Mar. 2016 ◎ 1080 Ps. F 25 Hz ◎ Mar. 2016 ◎ 1080 Ps. F 24 Hz ◎ Mar. 2016 ◎ 1080 Ps. F 23. 976 Hz ◎ Mar. 2016 ◎ 1080 P 29. 97 Hz ◎ Jun. 2016 × 1080 P 25 Hz ◎ Jun. 2016 × 1080 P 24 Hz ◎ Jun. 2016 × 1080 P 23. 976 Hz ◎ Jun. 2016 × 720 P 59. 94 Hz ◎ Mar. 2016 ◎ 720 P 50 Hz ◎ Mar. 2016 ◎ 576 i 50 Hz ◎ TBD ◎ 480 i 59. 94 Hz ◎ TBD ◎ Legend ◎ System Format ○ Necessity to convert formats × Not supported
