Xray Irradiator at UCSF MB Rad Source RS
X-ray Irradiator at UCSF MB

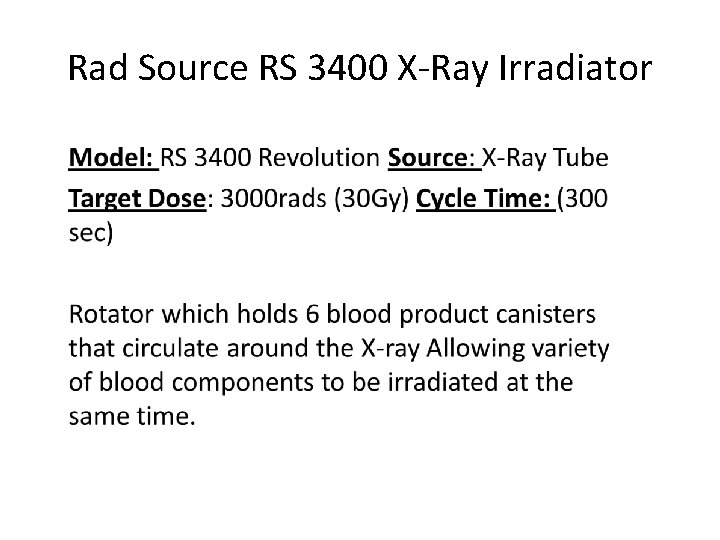

Rad Source RS 3400 X-Ray Irradiator
Dosimetry The X-ray Source in the RS 3400 creates a “cloud” of irradiation emitted longitudinally along its axis. The dose of irradiation produced to the Canisters is moderated by the rotation about the X-ray Source. Fig. 7 is illustrative of the distribution of the irradiation to the Canister. The maximum dose will generally be the middle surface of the Canister and the minimum dose will generally be delivered to the central ends of the Canister
Available Options • Rad Source has syringe holders for on demand irradiation of syringe aliquots • Rad Source encourage clinical engineering or Bio. Med to be trained by them in basic servicing of the irradiator. • Rad Scan: Scanner and program to record irradiation of blood products.

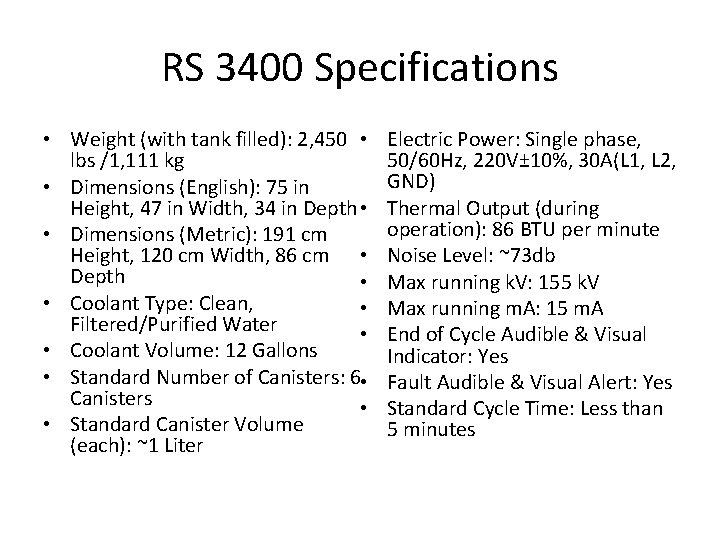

RS 3400 Specifications • Weight (with tank filled): 2, 450 • lbs /1, 111 kg • Dimensions (English): 75 in Height, 47 in Width, 34 in Depth • • Dimensions (Metric): 191 cm Height, 120 cm Width, 86 cm • Depth • • Coolant Type: Clean, • Filtered/Purified Water • • Coolant Volume: 12 Gallons • Standard Number of Canisters: 6 • Canisters • • Standard Canister Volume (each): ~1 Liter Electric Power: Single phase, 50/60 Hz, 220 V± 10%, 30 A(L 1, L 2, GND) Thermal Output (during operation): 86 BTU per minute Noise Level: ~73 db Max running k. V: 155 k. V Max running m. A: 15 m. A End of Cycle Audible & Visual Indicator: Yes Fault Audible & Visual Alert: Yes Standard Cycle Time: Less than 5 minutes

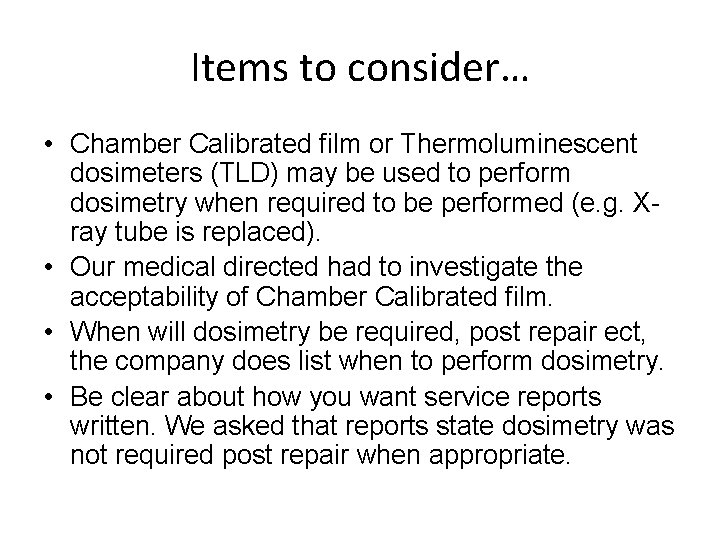

Items to consider… • Chamber Calibrated film or Thermoluminescent dosimeters (TLD) may be used to perform dosimetry when required to be performed (e. g. Xray tube is replaced). • Our medical directed had to investigate the acceptability of Chamber Calibrated film. • When will dosimetry be required, post repair ect, the company does list when to perform dosimetry. • Be clear about how you want service reports written. We asked that reports state dosimetry was not required post repair when appropriate.
Items to consider Extended Warranty and Service Contract • Repair – Replace the Qua. Star emitter: $12, 000 to $35, 000 Repair – Replace a Power Supply: $7, 500 to $24, 500 Repair – Replace the cooling module: $8, 000 • Replace the HV Cables: $7, 500 Individual PM: $5, 000 • Dose Maps: $500 each • Labor Rates: $250 per hour plus travel time and expenses
