Xpert Datalogger & Controller 6/13/2021 Sutron Corporation Xpert Datalogger & Controller sutron. com 1

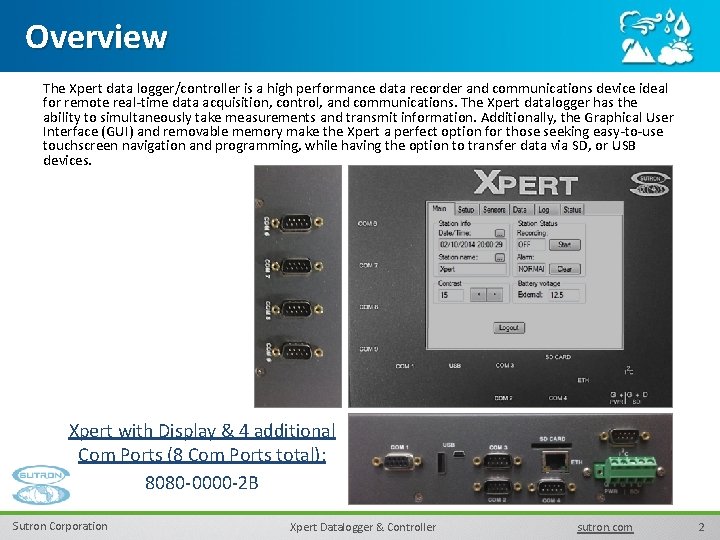

Overview The Xpert data logger/controller is a high performance data recorder and communications device ideal for remote real-time data acquisition, control, and communications. The Xpert datalogger has the ability to simultaneously take measurements and transmit information. Additionally, the Graphical User Interface (GUI) and removable memory make the Xpert a perfect option for those seeking easy-to-use touchscreen navigation and programming, while having the option to transfer data via SD, or USB devices. Xpert with Display & 4 additional Com Ports (8 Com Ports total): 8080 -0000 -2 B Sutron Corporation Xpert Datalogger & Controller sutron. com 2
Xpert Applications • • • Meteorology and Climatology Agrometeorology Oceanography Aviation (AWOS) Flood Warning Water Level and Flow Monitoring Water Quality Hydrology Air Quality Visibility Geotechnical – Dam Safety – Structural Stability • Energy – Solar Farm – Wind Farm Sutron Corporation Xpert Datalogger & Controller sutron. com 3
Xpert Features For anyone seeking the ability to remotely measure, log, and transmit field information, Sutron’s Xpert Data Logger & Controller allows users to simultaneously monitor and even control a large variety of applications, all while providing an easy-to-use touchscreen GUI and removable memory. • • • • Sutron Corporation Extremely easy to use No programming background or experience necessary Simple Graphical User Interface (GUI) based setup Support for SD or USB memory 32 MB Internal Flash Memory 32 -Bit Processor Multiple Communications Simultaneously Sensors connect to the system via analog and digital I/O modules that plug into the I 2 C port as well as via RS 232, RS 485, and SDI-12. 4 communications serial ports for satellite transmitters, modems, radios & other serial communication devices. Retrieve data using any communication interface, USB or SD memory cards. Wide Operating Temperature (-40 to +60°C) Built-In Ethernet View data, calibrate & adjust the Xpert using its large Touch Screen. Locally or remotely, all Xpert functionality is accessed through communications ports using easy to-understand set-up, data display & system maintenance GUIs. Built-in 10 channel A/D, 8 channel DIO Advanced programming using Xpert BASIC setup Xpert Datalogger & Controller sutron. com 4
Xpert Specifications • Measurement Interval: 0. 1 Seconds to 24 hours (User-Programmable) • Number of Measurements Supported: • SDI-12: Unlimited • Analog Inputs: Unlimited via I 2 C modules • Digital Inputs and Outputs: Unlimited via I 2 C modules • Excitation Channels: Unlimited via I 2 C modules +5 excitation voltage • Communication Ports: 4 RS 232 for communications, or 8 com ports V 1. 3 compatible Telemetry: Satlink, Sutron Data & Voice Modem, LOS Radio, Direct Connect, Cellular (GSM/GPRS), IRIDIUM, Ethernet, and custom devices via BASIC Number of Simultaneous Communications 4 • Operating Temperature: -40°C to +60°C Display Operating Temperature: LCD operates to -20°C • Display Type: Sutron Corporation Touchscreen LCD display, monochrome, transflective Xpert Datalogger & Controller sutron. com 5
Xpert Specifications - Continued • Keypad Type: • Memory: Built-In: SD Card: Touchscreen Non-volatile memory: 65 MB (1 to 3 million readings), RAM: 32 MB For download data and read/write setups or additional log memory • Ethernet: • Clock Accuracy (at 0 C – 40°C): Built in Ethernet support 2 sec/day or GPS synchronization through Sat. Link • Power Requirements: Current Drain: • Communication Protocols Supported: 10 -16 VDC (20 VDC max) Typically 3 m. A standby, 40 m. A active SSP (Sutron Standard Protocol), MODBUS, (RTU, ASCII, TCP/IP) YMODEM, Telnet, HTTP, FTP, DHCP, DNS, SLIP, PPP, and custom protocols via Basic using RS-232, TCP, and UDP Menu driven setup, Expanded complexity via BASIC, Custom capability via C++ • Programming: • Device Dimensions: Height: Length: Width: Weight: Sutron Corporation 8. 5” (21. 6 cm) 6. 5” (16. 5 cm) 2. 5” (6. 4 cm) 2 lbs. (. 91 Kg) Xpert Datalogger & Controller sutron. com 6

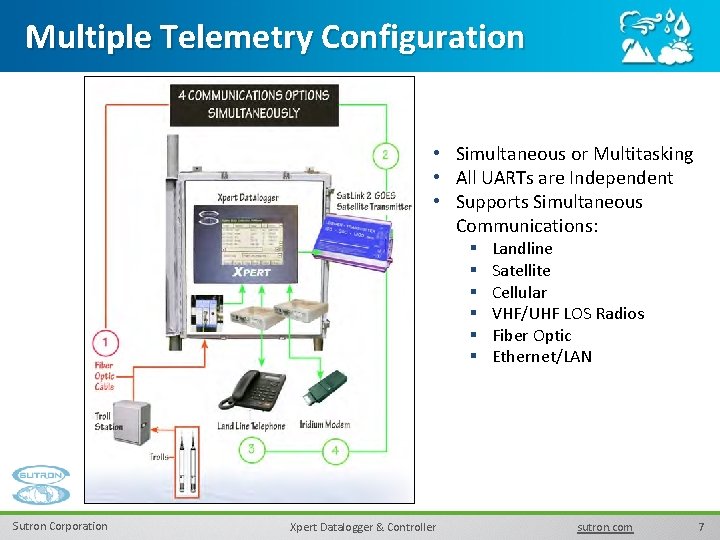

Multiple Telemetry Configuration • Simultaneous or Multitasking • All UARTs are Independent • Supports Simultaneous Communications: § § § Sutron Corporation Xpert Datalogger & Controller Landline Satellite Cellular VHF/UHF LOS Radios Fiber Optic Ethernet/LAN sutron. com 7
Sample Xpert Configuration Xpert Datalogger Comm Option 1: Radio Link External Analog & Digital Expansion Modules Comm Options 2: Fiber Optic Modules RS-232 Surge Protection Module I/O Surge Protection Modules Sutron Corporation Xpert Datalogger & Controller sutron. com 8
XTerm Software for Remote Operation Sutron’s XTerm communications program allows any PC to remotely setup and operate an Xpert without using a front panel. No special installation is needed for XTerm. Simply copy from our website to any folder on your PC. • • • Sutron Corporation Free software shipped with loggers and available on our website Remote operation of Xpert Automatically displays the graphic display of the Xpert Easy file transfer to allow uploading and downloading of setups, programs, and data files Set the clock on the Xpert Export logged data to your PC Communicate with an Xpert via RS 232 com ports 1 -9 at up to 115200 baud Automatically prompts for login account and password when needed Display system information regarding running processes, threads, and memory usage Also available for Windows Mobile, Pocket PC, and PDA Xpert Datalogger & Controller sutron. com 9
Key Client Portfolio – U. S. A • NOAA/NOS • US Army Corps of Engineers – Sacramento District – New Orleans District – New England District Sutron Corporation • USBR • USGS • CRREL – Cold Regions Research Lab • New York Power Authority • TCEQ • Virginia DEQ • Applied Physics Laboratory • Grey. Bull Valley Irrigation District, WY Xpert Datalogger & Controller sutron. com 10
Key Client Portfolio – International • CHS – Canadian Hydrographic Service • Meteorological Department Curacao • WMO • Aruba Met Service • MARINEMET • AASANA – Bolivia • AEMET • Cambodia Airport Authority • Kenya Meteorological Department • British Virgin Islands – Airports Authority • Airports Corporation of Vietnam (ACV) • Colombia Air Force • Cayman Islands Airports Authority (CIAA) Sutron Corporation Xpert Datalogger & Controller • Comision Nacional del Agua (CAN) – Mexico • Civil Aeronautics Administration (CAA) – Taiwan sutron. com 11
Installation Examples Xpert being used as primary DCP for AWOS – Kinmen, Taiwan Sutron Corporation Xpert Datalogger & Controller sutron. com 12
Installation Examples Redundant Xperts being used in a NOAA Tide Station – Virginia Sutron Corporation Xpert Datalogger & Controller sutron. com 13
Installation Examples AWOS with Xpert – Curacao Sutron Corporation Xpert Datalogger & Controller sutron. com 14
Installation Examples Tide Station with Xpert for a UNDP Tide-Monitoring Project Sutron Corporation Xpert Datalogger & Controller sutron. com 15
Installation Examples Tide Station with Xpert – New Orleans, Louisiana Sutron Corporation Xpert Datalogger & Controller sutron. com 16
Installation Examples Xpert in AWOS - Cayman Brac Sutron Corporation Xpert Datalogger & Controller sutron. com 17
Installation Examples Xpert connected to LOS Radio and bubble gauge – Three Gorges Dam, Hubei province, China Sutron Corporation Xpert Datalogger & Controller sutron. com 18

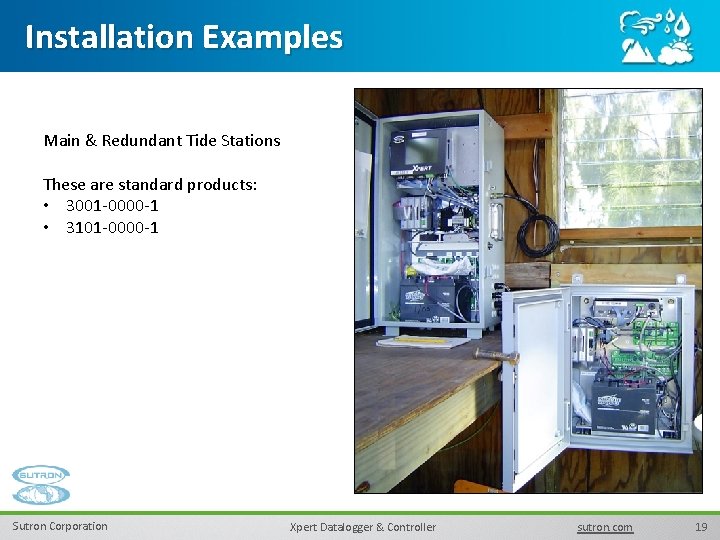

Installation Examples Main & Redundant Tide Stations These are standard products: • 3001 -0000 -1 • 3101 -0000 -1 Sutron Corporation Xpert Datalogger & Controller sutron. com 19

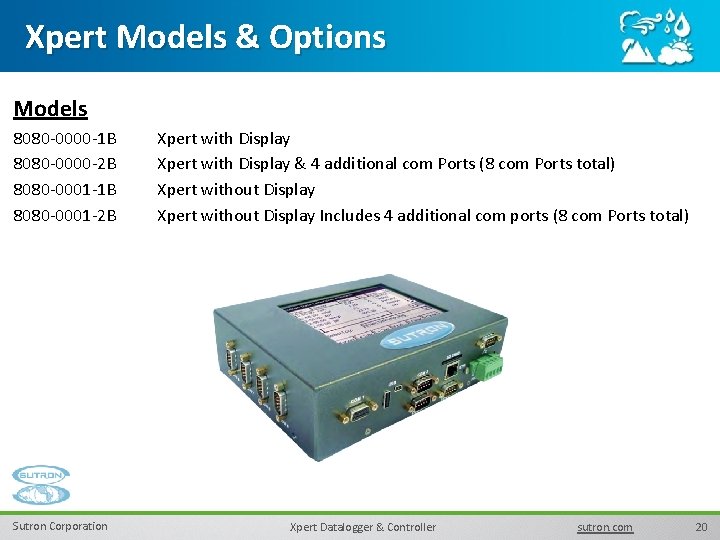

Xpert Models & Options Models 8080 -0000 -1 B 8080 -0000 -2 B 8080 -0001 -1 B 8080 -0001 -2 B Sutron Corporation Xpert with Display & 4 additional com Ports (8 com Ports total) Xpert without Display Includes 4 additional com ports (8 com Ports total) Xpert Datalogger & Controller sutron. com 20

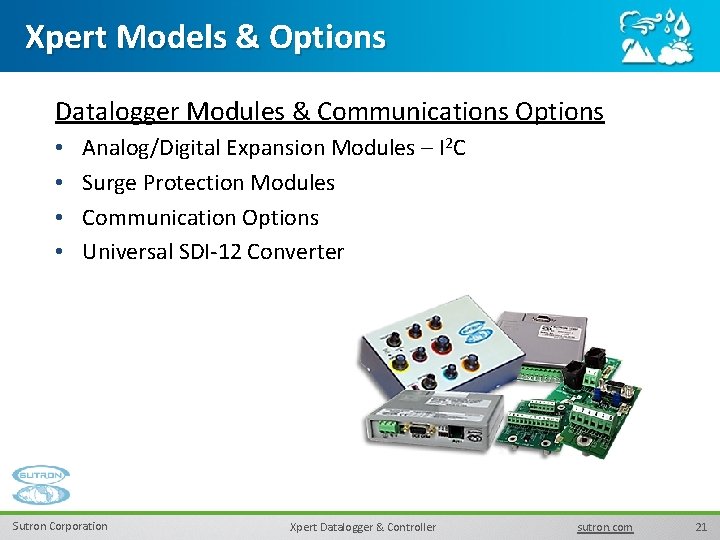

Xpert Models & Options Datalogger Modules & Communications Options • • Analog/Digital Expansion Modules – I 2 C Surge Protection Modules Communication Options Universal SDI-12 Converter Sutron Corporation Xpert Datalogger & Controller sutron. com 21
Xpert Expansion Modules - I 2 C Options 8080 -0003 -1 Xpert Analog I/O Module: 6 Channels 8080 -0003 -3 Xpert Analog I/O Module: 6 Channels with Surge Protection 8080 -0007 Xpert Analog I/O Module: 10 Channel, 16 Bit. 8080 -0002 -1 Xpert Digital I/O Module: 8 Channels 8080 -0002 -4 Xpert Digital I/O Module with Surge Protection 8080 -0008 -1 Fire Weather I/O Module Sutron Corporation Xpert Datalogger & Controller sutron. com 22
Xpert Surge Protection Modules Options 6461 -1241 SDI-12 Surge Protection Module 6461 -1242 Power Surge Protection Module 6461 -1239 RS-232 Surge Protection Module 6461 -1240 Telephone Surge Protection Module Sutron Corporation Xpert Datalogger & Controller sutron. com 23
Xpert Communications Options SL 2 Sat. Link 2 -V 2 Logging Transmitter GPRS-I-O GSM GPRS Modem -various plans available- Cellular Data Plans ISBD-1 -O Iridium® Short Burst Data (SBD) Transceiver -various plans available- Iridium Data Plans 8080 -0005 -1 B Voice Modem Module 8080 -0005 -2 Modem with King Radio Sutron Corporation Xpert Datalogger & Controller sutron. com 24
Universal SDI-12 Converter Options 6661 -1248 -1 Universal SDI-12 Converter 5 Ports to accommodate a vast array of sensors: Highly accurate and stable, programmable input range, and supports low level 10 m. V and high level 0 -5 V sensors. Converts the following to SDI-12: • Analog • Digital/Frequency • Quadrature Sutron Corporation Xpert Datalogger & Controller sutron. com 25
Universal SDI-12 Converter Analog to SDI-12 AT/RH (2 Channel) Water Temp (1 Channel) Analog • 0 -5 VDC • 4 -20 ma • Differential • Ratiometric Pyranometer (1 Channel) Sutron Corporation Xpert Datalogger & Controller sutron. com 26
Universal SDI-12 Converter Digital/Frequency to SDI-12 Prop & Vane Wind Sensor (1 digital, 1 analog) Tipping Bucket Rain Gauge Sutron Corporation Digital/Frequency • Switch Closure • Frequency (20 KHz) • Period Xpert Datalogger & Controller sutron. com 27
Universal SDI-12 Converter Quadrature to SDI-12 Quadrature Shaft Encoder Sutron Corporation Xpert Datalogger & Controller sutron. com 28
Universal SDI-12 Converter Interfaces with many of these sensors • • • Air Temperature Water Temperature Relative Humidity Wind Speed Wind Direction Sutron Corporation Xpert Datalogger & Controller sutron. com 29
