XML is XML is defined as Extensible Markup

XML is…

XML is… defined as Extensible Markup Language (XML) is a set of rules for encoding documents Defines structure and data

XML is… <bookstore> <book category="cooking"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30. 00</price> </book> </bookstore>

XML DOM • A W 3 C standard that defines a standard way for accessing and manipulating XML documents • DOM presents an XML document as a treestructure

XML DOM • A standard programming interface for XML that is platform- and language-independent • The XML DOM defines the objects and properties of all XML elements, and the methods (interface) to access them. • In other words: The XML DOM is a standard for how to get, change, add, or delete XML elements.

XML DOM Nodes According to the DOM, everything in an XML document is a node. The DOM says: The entire document is a document node Every XML element is an element node The text in the XML elements are text nodes Every attribute is an attribute node Comments are comment nodes

XML Node Example <bookstore> <book category="cooking"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30. 00</price> </book> </bookstore> root

XML Node Example <bookstore> <book category="cooking"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30. 00</price> </book> </bookstore> Book node

XML Node Example <bookstore> <book category="cooking"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30. 00</price> </book> </bookstore> Book node contains four other nodes

XML DOM Node Tree • The XML DOM views an XML document as a tree structure called a node-tree • All the nodes in the tree have a relationship to each other and can be accessed through the tree • The node tree shows the set of nodes, and the connections between them. The tree starts at the root node and branches out to the text nodes at the lowest level of the tree

XML DOM Node Tree

XML Parent/Child Relationship • Nodes in the node tree have a hierarchical relationship to each other • The terms parent, child, and sibling are used to describe the relationships. For example, Parent nodes have children

XML Parent/Child Relationship • Children on the same level are called siblings (brothers or sisters) which are nodes with the same parent • In a node tree, the top node is called the root only one root can exist in an XML file. • Every node, except the root, has exactly one parent node

XML Parent/Child Relationship

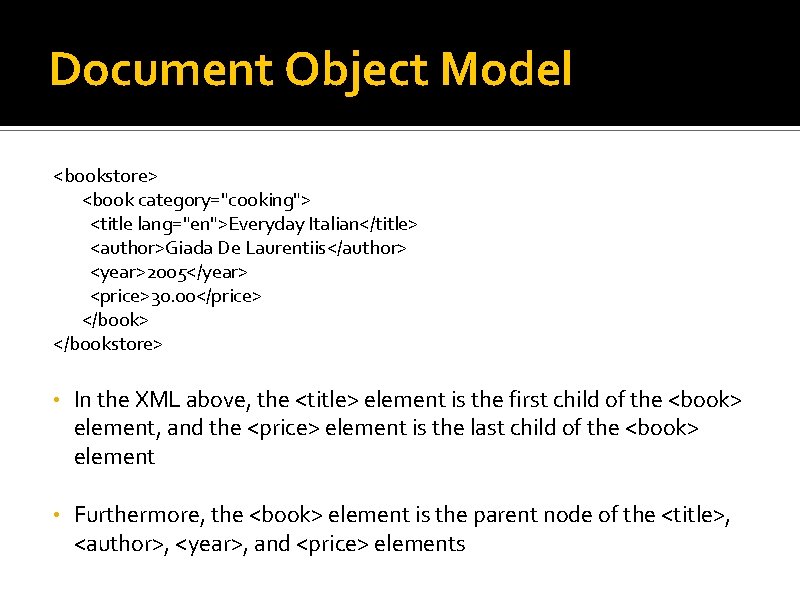

Document Object Model <bookstore> <book category="cooking"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30. 00</price> </book> </bookstore> • In the XML above, the <title> element is the first child of the <book> element, and the <price> element is the last child of the <book> element • Furthermore, the <book> element is the parent node of the <title>, <author>, <year>, and <price> elements

XML DOM Parsing Most browsers have a built-in XML parser to read and manipulate XML The parser converts XML into a Java. Script accessible object • The XML DOM contains methods (functions) to traverse XML trees, access, insert, and delete nodes

XML DOM Parsing • However, before an XML document can be accessed and manipulated, it must be loaded into an XML DOM object • The parser reads XML into memory* and converts it into an XML DOM object that can be accessed with Java. Script * you must clear the browser cache to update the XML file

XMLHTTPRequest Create an XMLHTTP object Open the XMLHTTP object Send an XML HTTP request to the server

Warning!

Warning! Danger, Will Robinson, Danger!

XMLDOM - Warning Danger, Will Robinson, Danger!

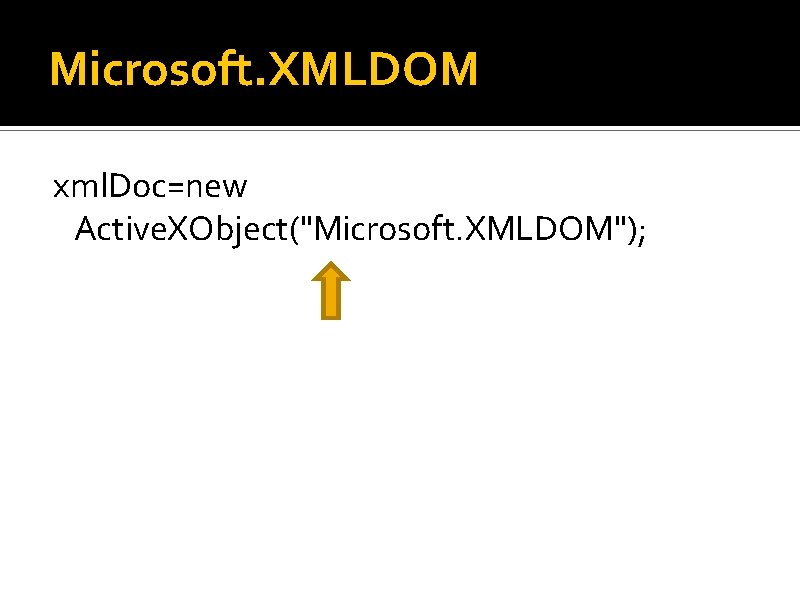

Microsoft. XMLDOM xml. Doc=new Active. XObject("Microsoft. XMLDOM");
